SRC-28

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010688456

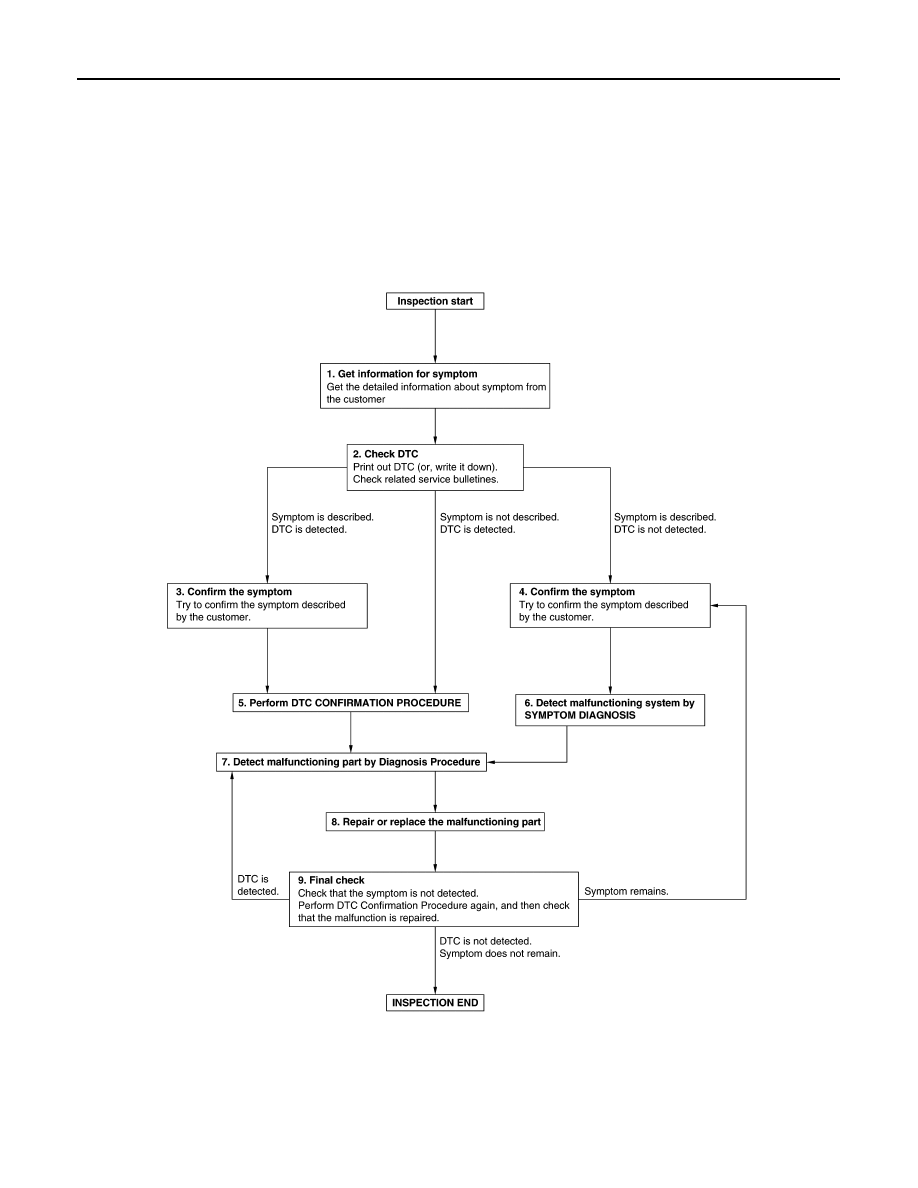

OVERALL SEQUENCE

DETAILED FLOW

JMHIA2620GB

DIAGNOSIS AND REPAIR WORK FLOW

SRC-29

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

1.

GET INFORMATION FOR SYMPTOM

1.

Get detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurs).

2.

Check operation condition of the function that is malfunctioning.

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC.

2.

Perform the following procedure if DTC is detected.

-

Record DTC (Print them out using CONSULT).

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Are any symptoms described and any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected
again.

Is DTC detected?

YES

>> GO TO 7.

NO

>> Check according to

GI-44, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.

Is malfunctioning part detected?

YES

>> GO TO 8.

NO

>> Check according to

GI-44, "Intermittent Incident"

.

8.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.

3.

Check DTC. If DTC is detected, erase it.

SRC-30

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 9.

9.

FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the
malfunction is repaired securely.
When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the
symptom is not detected.

Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 7.
YES-2 >> Symptom remains: GO TO 4.
NO

>> Before returning the vehicle to the customer, always erase DTC.

ADDITIONAL SERVICE WHEN REPLACING AIR BAG DIAGNOSIS SENSOR

UNIT

SRC-31

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ADDITIONAL SERVICE WHEN REPLACING AIR BAG DIAGNOSIS SEN-
SOR UNIT

Description

INFOID:0000000010688457

BEFORE REPLACEMENT

When replacing air bag diagnosis sensor unit, save or print current vehicle specification with CONSULT con-
figuration before replacement.
NOTE:
If “Before Replace ECU” of “Read / Write Configuration” cannot be used, use the “Manual Configuration” after
replacing air bag diagnosis sensor unit.

AFTER REPLACEMENT

CAUTION:

Follow the instructions listed below. Failure to do this may cause malfunctions to the air bag diagno-
sis sensor unit.
• Never perform “Read / Write Configuration” or “Manual Configuration” except for new air bag diag-

nosis sensor unit.

• When replacing air bag diagnosis sensor unit, you must perform “Read / Write Configuration” or

“Manual Configuration” with CONSULT.

• Complete the procedure of “Read / Write Configuration” or “Manual Configuration” in order.
• If you set incorrect “Read / Write Configuration” or “Manual Configuration”, incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

Work Procedure

INFOID:0000000010688458

1.

SAVING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Before Replace ECU” of “Read / Write Configuration” to save or print current vehicle specification.
NOTE:
If “Before Replace ECU” of “Read / Write Configuration” cannot be used, use the “Manual Configuration” after
replacing air bag diagnosis sensor unit.

>> GO TO 2.

2.

REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

Replace air bag diagnosis sensor unit. Refer to

SR-38, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “After Replace ECU” of “Read / Write Configuration” or “Manual Configuration” to write vehicle speci-
fication. Refer to

SRC-32, "Work Procedure"

.

>> WORK END
