BRC-238

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

OPERATION

OPERATION

Switch Name and Function

INFOID:0000000010721665

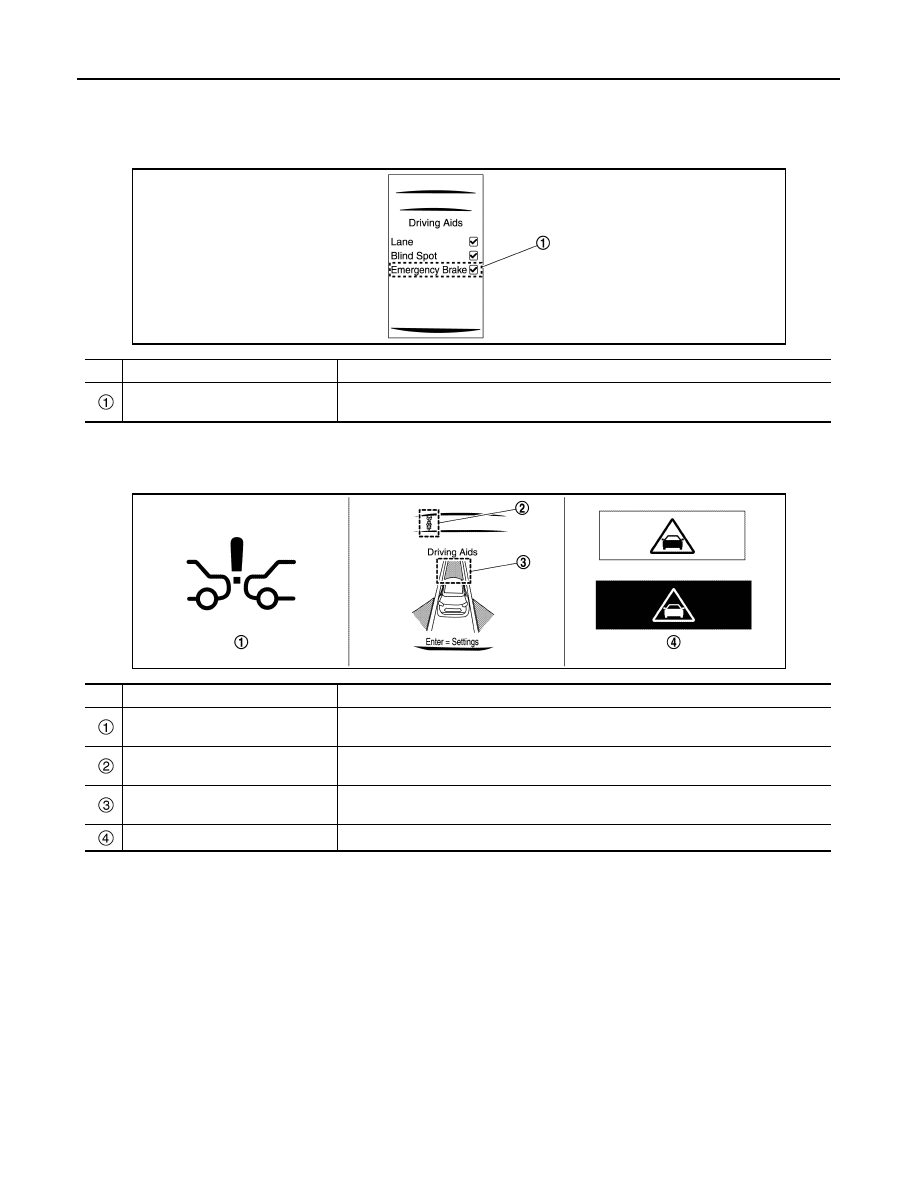

Menu Displayed by Pressing Each Switch

INFOID:0000000010721666

SYSTEM DISPLAY

DISPLAY AND WARNING

Setting Display

JSOIA1622ZZ

No.

Switch name

Description

FEB system setting screen
(Information display)

The setting of FEB system can be switched between ON and OFF

JSOIA1623ZZ

No.

Switch name

Description

FEB warning lamp

• FEB warning lamp indicates that an abnormal condition is present in FEB system
• When the FEB system turns OFF, the FEB warning lamp will illuminate.

FEB system indicator
(Warning systems indicator)

• Indicates that FEB system is ON
• Blinks when approaching vehicle ahead

FEB system indicator “Forward” po-
sition

• Indicates that FEB system is ON
• Blinks when approaching vehicle ahead

FEB warning

Displays immediately before the harder brake operates

OPERATION

BRC-239

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

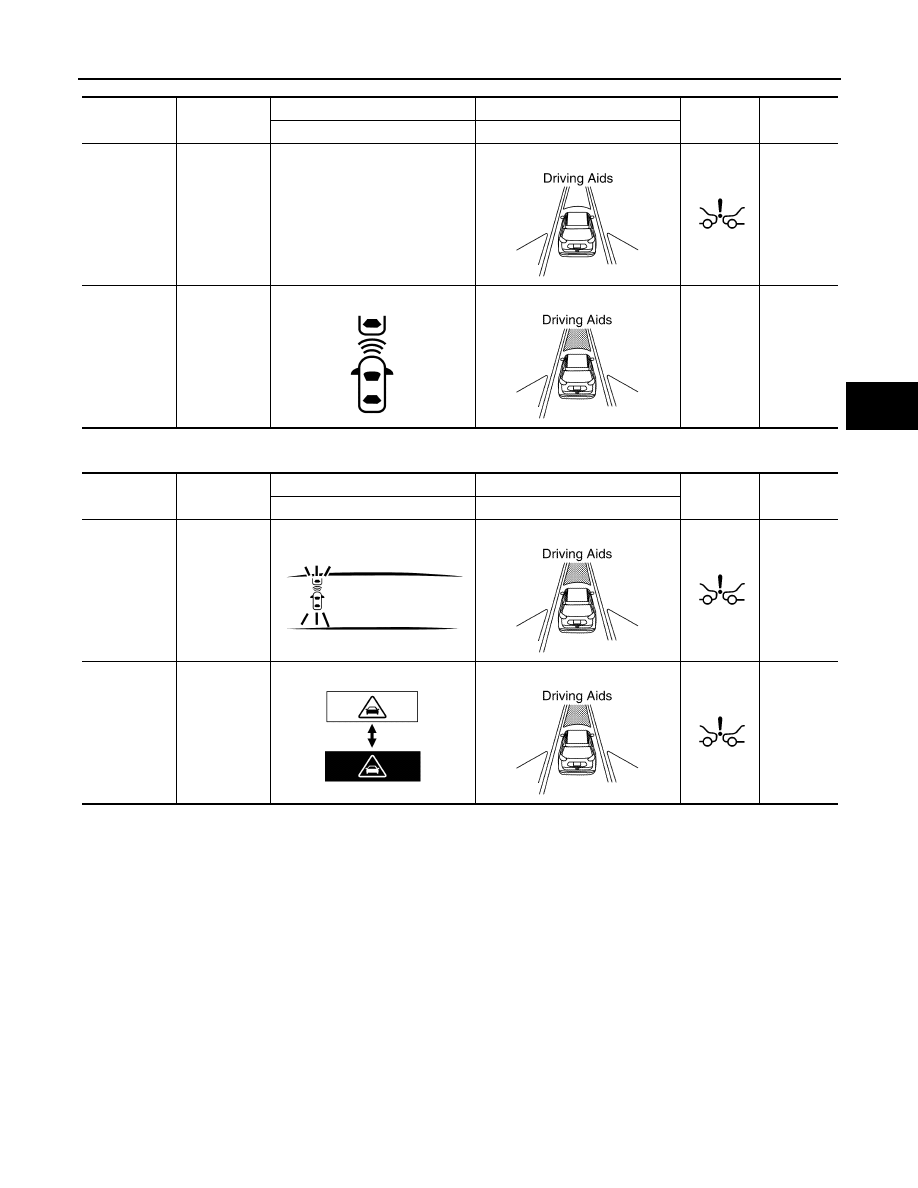

Warning Operation

Warning Display

System status

Condition

Display on combination meter

Display on combination meter

FEB warn-

ing lamp

Buzzer

Upper part

Middle part

FEB OFF

FEB ON

System ON

White

White

OFF

JSOIA1624ZZ

JSOIA1428ZZ

JSOIA1625ZZ

System status

Action

Display on combination meter

Display on combination meter

FEB warn-

ing lamp

Buzzer

Upper part

Middle part

There is a
possibility of a
collision with
the vehicle
ahead

Partial brake

Yellow (Blink)

Yellow (Blink)

Short con-

tinuous

beeps

An obstacle
ahead is
avoided due to
the system ap-
plying braking.

Harder brake

Red

White

Yellow (Blink)

Continu-

ous beeps

JSOIA1290ZZ

JSOIA1625ZZ

JSOIA1477ZZ

JSOIA1625ZZ

BRC-240

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

OPERATION

NOTE:
*: The system operates if the ignition switch is turned OFF

ON after the condition improves

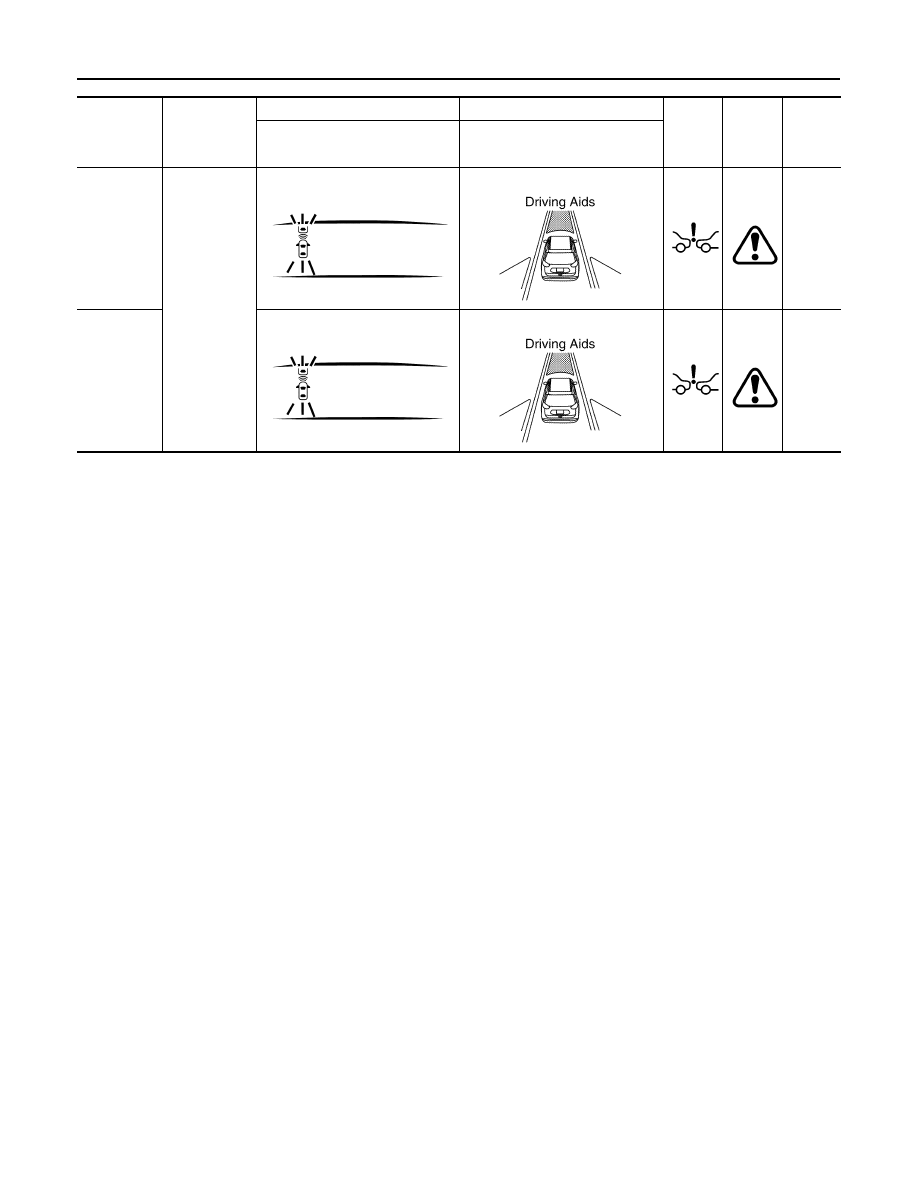

System sta-

tus

Condition

Display on combination meter

Display on combination meter

FEB

warn-

ing

lamp

Master

warn-

ing

lamp

Buzzer

Upper part

Middle part

FEB system
malfunction

The FEB sys-
tem is auto-
matically

canceled.

*

Yellow (Blink)

Yellow

Yellow

Beep

Dirt around
the distance
sensor

Yellow (Blink)

Yellow

Yellow

Beep

JSOIA1290ZZ

JSOIA1625ZZ

JSOIA1290ZZ

JSOIA1625ZZ

HANDLING PRECAUTION

BRC-241

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

HANDLING PRECAUTION

Description

INFOID:0000000010721667

PRECAUTIONS FOR FORWARD EMERGENCY BRAKING

• The forward emergency braking system is a supplemental aid to the driver. It is not a replacement for the

driver’s attention to traffic conditions or responsibility to drive safely. It cannot prevent accidents due to care-
lessness or dangerous driving techniques.

• The forward emergency braking system does not function in all driving, traffic, weather and road conditions.
• The radar sensor has some performance limitations. If a stationary vehicle is in the vehicle’s path, the for-

ward emergency braking system will not function when the vehicle is driven at speeds over approximately 80
km/h (50 MPH).

• The distance sensor does not detect the following objects:
- Pedestrians, animals, or obstacles in the roadway
- Oncoming vehicles
- Crossing vehicles
• The distance sensor may not detect a vehicle ahead in the following conditions:
- Dirt, ice, snow or other material covering the radar sensor.
- Interference by other radar sources.
- Snow or road spray from traveling vehicles.
- If the vehicle ahead is narrow (e.g.motorcycle)
- When driving on a steep downhill slope or roads with sharp curves.
- When towing a trailer.
• In some road or traffic conditions, the forward emergency braking system may unexpectedly apply partial

braking. When acceleration is necessary, continue to depress the accelerator pedal to override the system.

• Braking distances increase on slippery surfaces.
• Excessive noise will interfere with the warning chime sound, and the chime may not be heard.
• The system is designed to automatically check the sensor’s functionality, within certain limitations. The sys-

tem may not detect some forms of obstruction of the sensor area of the front bumper such as ice, snow,
stickers, for example. In these cases, the system may not be able to warn the driver properly. Be sure that
check, clean and clear the sensor area of the front bumper regularly.
