< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

SYSTEM

CVT models

M/T models

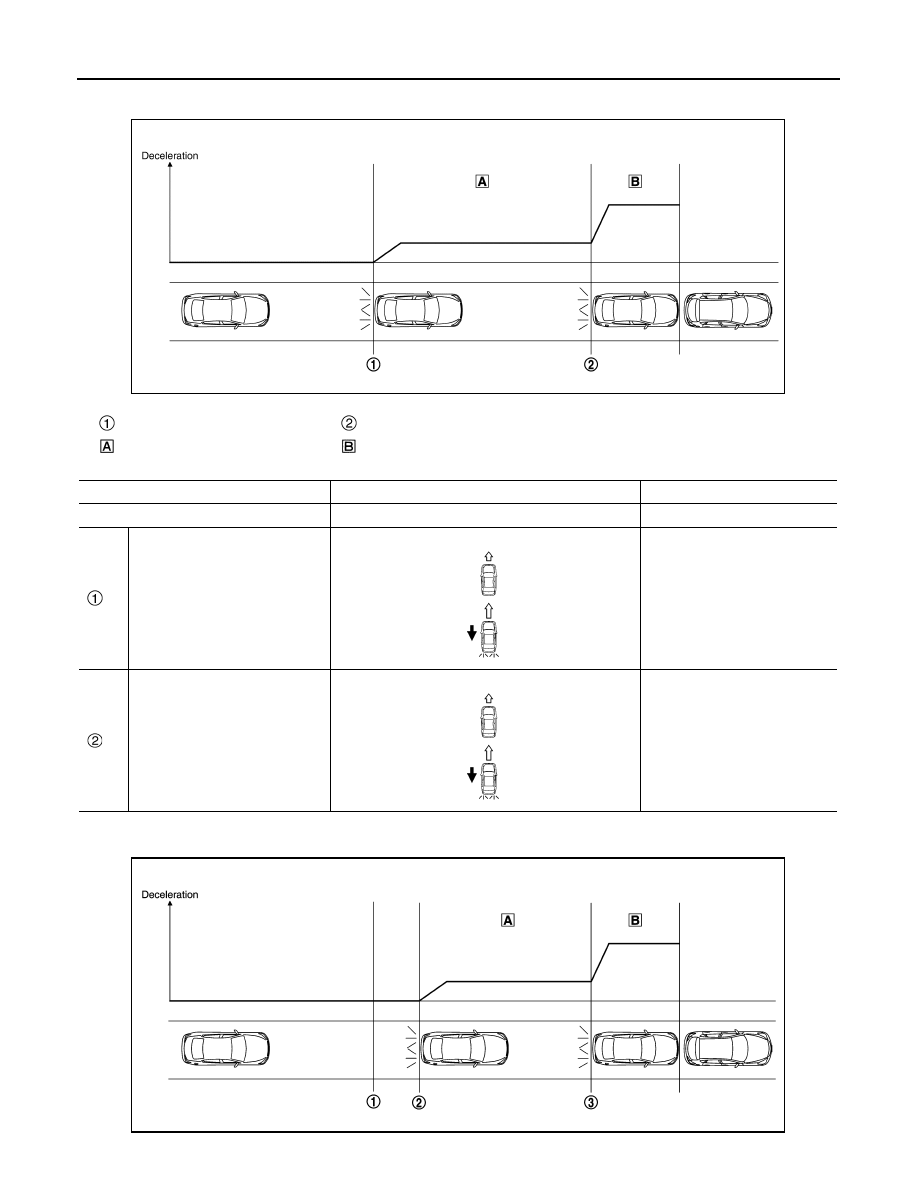

Start of warning and partial brake

Start of harder brake

Partial brake

Harder brake

Situation

Brake

Warning

No obstacle approached

No operation

—

Start of warning and partial brake

Partial brake

• Sounds the buzzer
• Blinks vehicle ahead indicator

Start of harder brake

Harder brake

• Sounds the buzzer

(Higher pitched buzzer)

• Indicates FEB warning

JSOIA0952ZZ

JSOIA0222ZZ

JSOIA0222ZZ

JSOIA1130ZZ

SYSTEM

BRC-235

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

CAUTION:

It is the driver

′

s responsibility to stay alert, drive safely and be in control of the vehicle at all times. As

there is a performance limit, it may not provide a warning or brake in certain conditions.

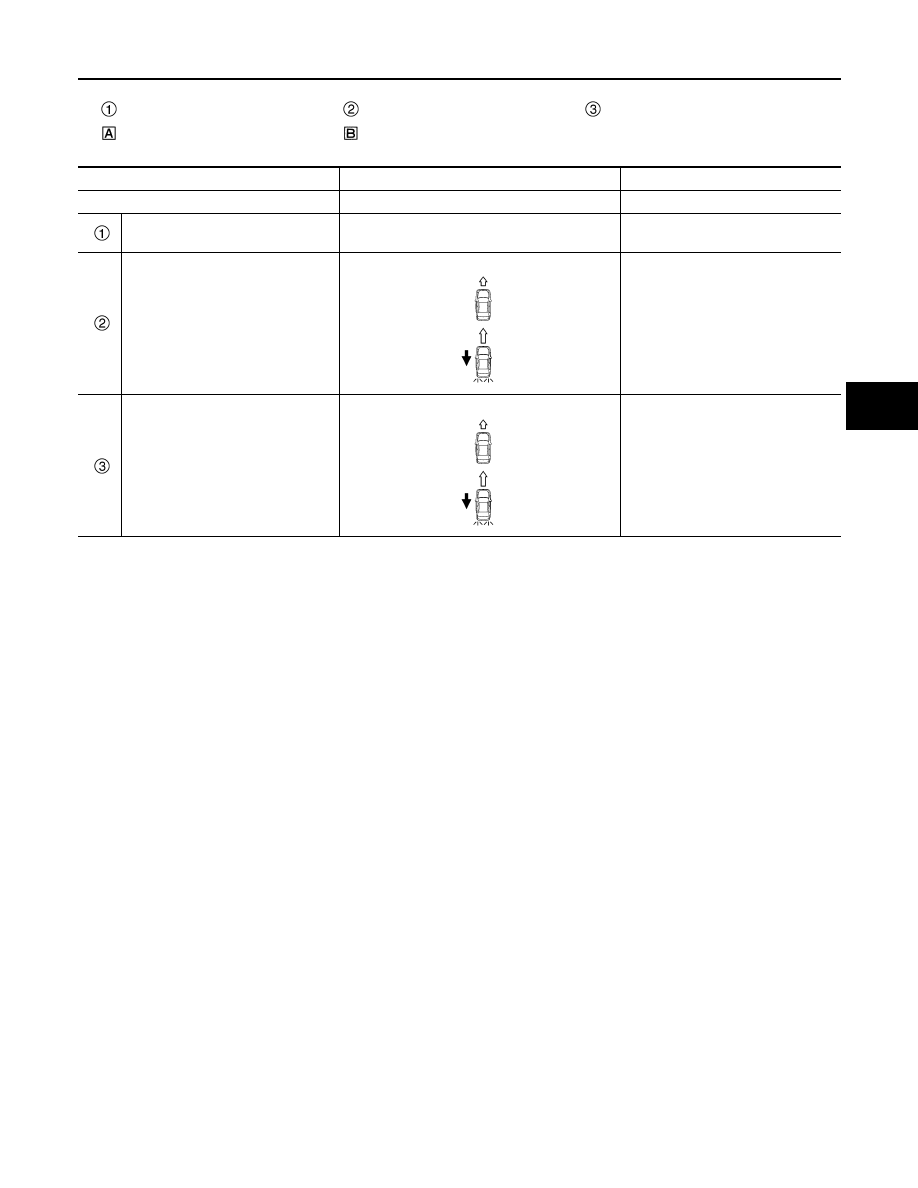

Start of warning

Start of partial brake

Start of harder brake

Partial brake

Harder brake

Situation

Brake

Warning

No obstacle approached

No operation

—

Start of warning

No operation

• Sounds the buzzer
• Blinks vehicle ahead indicator

Start of partial brake

Partial brake

• Sounds the buzzer

(Higher pitched buzzer)

• Indicates FEB warning

Start of harder brake

Harder brake

• Sounds the buzzer

(Higher pitched buzzer)

• Indicates FEB warning

JSOIA0222ZZ

JSOIA0222ZZ

BRC-236

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

SYSTEM

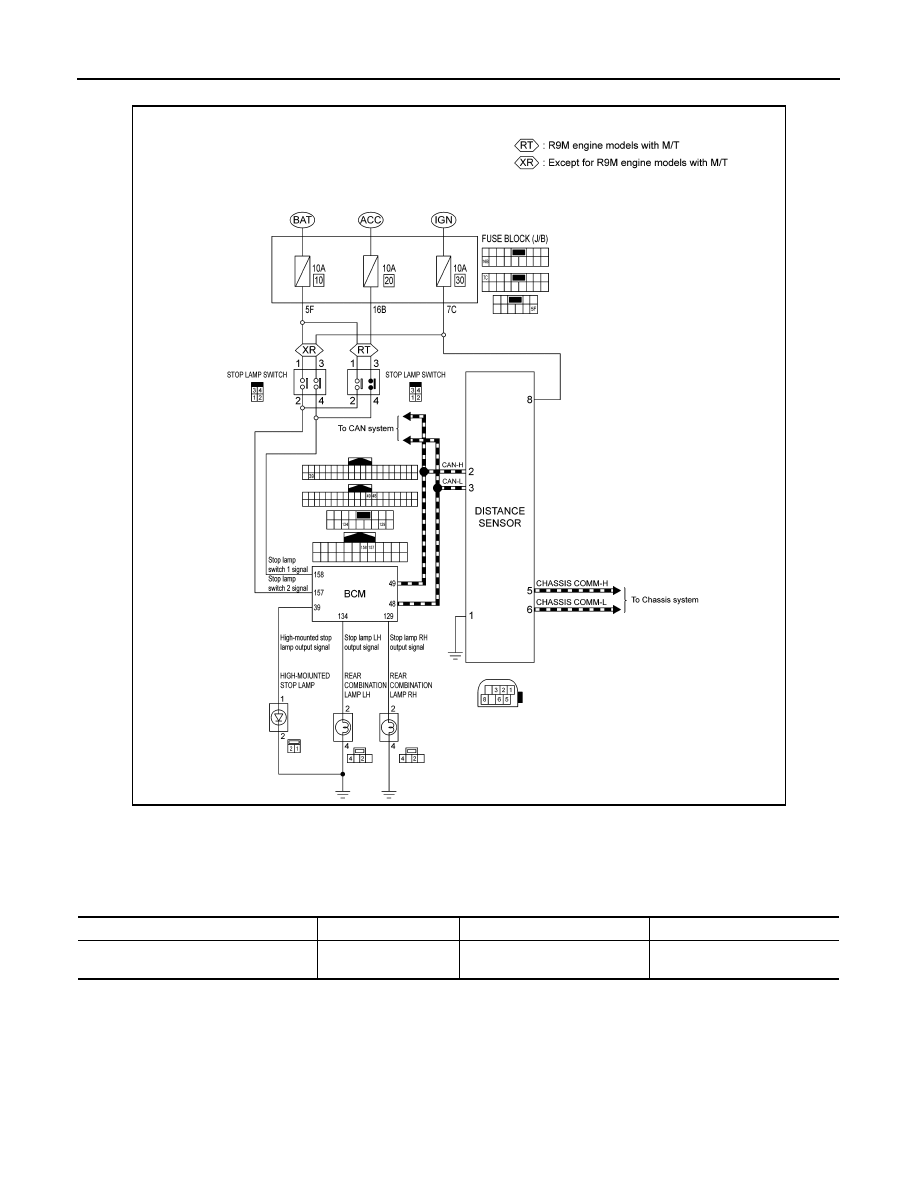

Circuit Diagram

INFOID:0000000010727972

Fail-safe (Distance Sensor)

INFOID:0000000010930906

If a malfunction occurs in the distance sensor cancels control, sounds a beep, and turns ON the FEB system
warning and warning lamp.

WARNING/INDICATOR/CHIME LIST

JSOIA1638GB

System

Buzzer

Warning lamp/Indicator lamp

Description

Forward Emergency Braking (FEB)

Beep

• FEB system display: Yellow
• FEB warning lamp: On

Cancel

SYSTEM

BRC-237

< SYSTEM DESCRIPTION >

[FORWARD EMERGENCY BRAKING]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010727970

Name

Design

Layout/Function

FEB warning lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-36, "WARNING LAMPS/INDICATOR LAMPS :

FEB Warning Lamp"

.
