Nissan X-Trail 32. Manual - part 189





BRC-222

< REMOVAL AND INSTALLATION >

[WITH VDC (ESP)]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000010723767

REMOVAL

1.

Remove spiral cable assembly. Refer to

SR-23, "Removal and Installation"

.

2.

Remove steering angle sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform steering angle sensor neutral position adjustment when steering angle sensor is removed and

installed, or replaced. Refer to

BRC-99, "Work Procedure"

.

VDC (ESP) OFF SWITCH

BRC-223

< REMOVAL AND INSTALLATION >

[WITH VDC (ESP)]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC (ESP) OFF SWITCH

Removal and Installation

INFOID:0000000010723768

REMOVAL

1.

Remove lower instrument panel.
• For LHD, refer to

IP-14, "Removal and Installation"

.

• For RHD, refer to

IP-41, "Removal and Installation"

.

2.

Remove switch bracket.
• For LHD, refer to

IP-14, "Removal and Installation"

.

• For RHD, refer to

IP-41, "Removal and Installation"

.

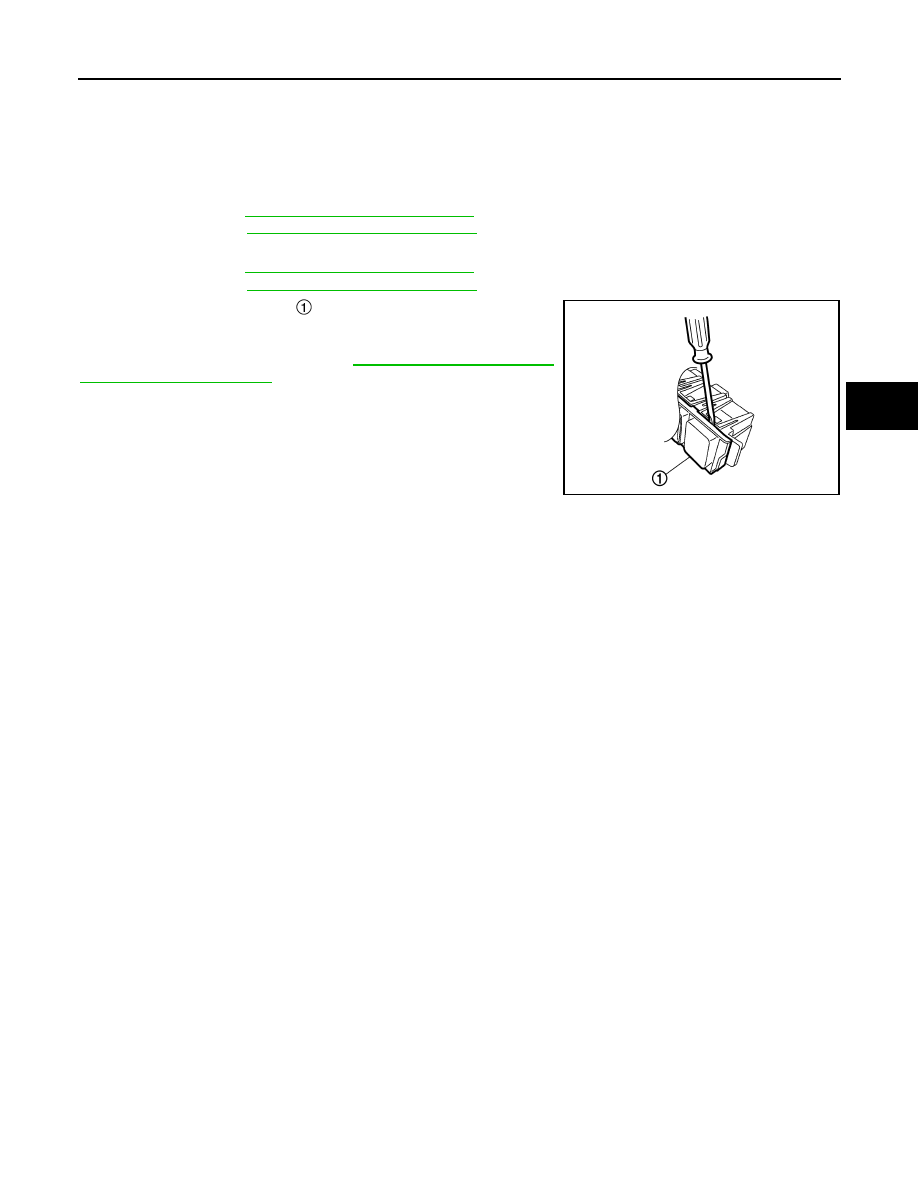

3.

Remove VDC OFF switch

 from switch bracket while pushing

the pawl.

NOTE:
For design of VDC OFF switch, refer to

BRC-48, "VDC (ESP) FUNC-

TION : System Description"

.

INSTALLATION

Installation is the reverse order of removal.

JSFIA2274ZZ

BRC-224

< REMOVAL AND INSTALLATION >

[WITH VDC (ESP)]

HILL DESCENT CONTROL (DOWNHILL DRIVE SUPPORT) SWITCH

HILL DESCENT CONTROL (DOWNHILL DRIVE SUPPORT) SWITCH

Removal and Installation

INFOID:0000000010723769

REMOVAL

1.

Remove center console switch panel.
• For LHD, refer to

IP-25, "Removal and Installation"

.

• For RHD, refer to

IP-52, "Removal and Installation"

.

2.

Remove switch bracket.

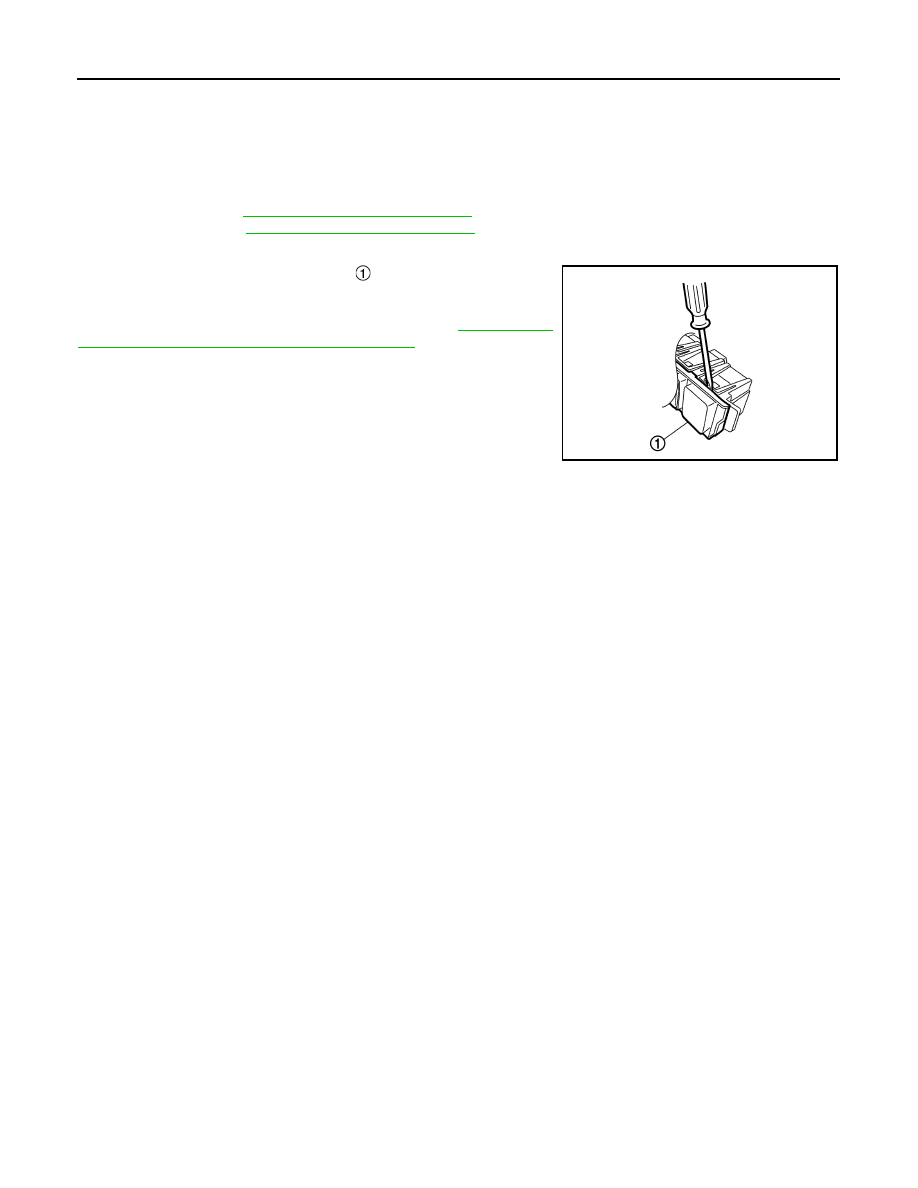

3.

Remove hill descent control switch

 from switch bracket while

pushing the pawl.

NOTE:
For design of hill descent control switch, refer to

BRC-28, "hill

descent control (Downhill Drive Support) Switch"

.

INSTALLATION

Installation is the reverse order of removal.

JSFIA2274ZZ

PRECAUTIONS

BRC-225

< PRECAUTION >

[FORWARD EMERGENCY BRAKING]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010930903

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010930904

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

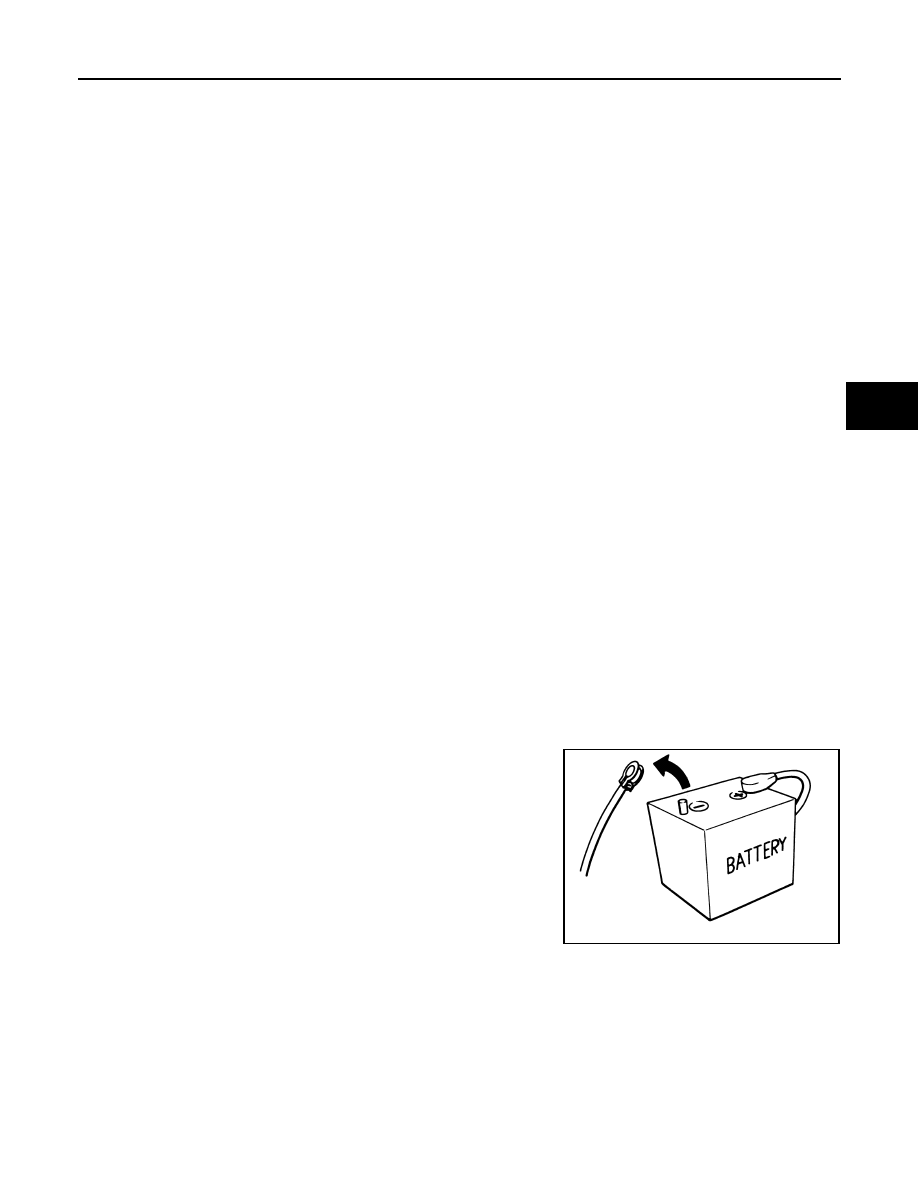

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

SEF289H
