Nissan X-Trail 32. Manual - part 1805

SE-68

< REMOVAL AND INSTALLATION >

SECOND SEAT (SLIDING TYPE)

2.

Remove seatback side trim and seatback side pad as a set. Refer to

SE-58, "SEATBACK : Disassembly

and Assembly"

.

3.

Remove seat cushion outside finisher inner side.

4.

Disengage seat cushion inside finisher inner side fixing clips,
and then remove seat cushion inside finisher inner side.

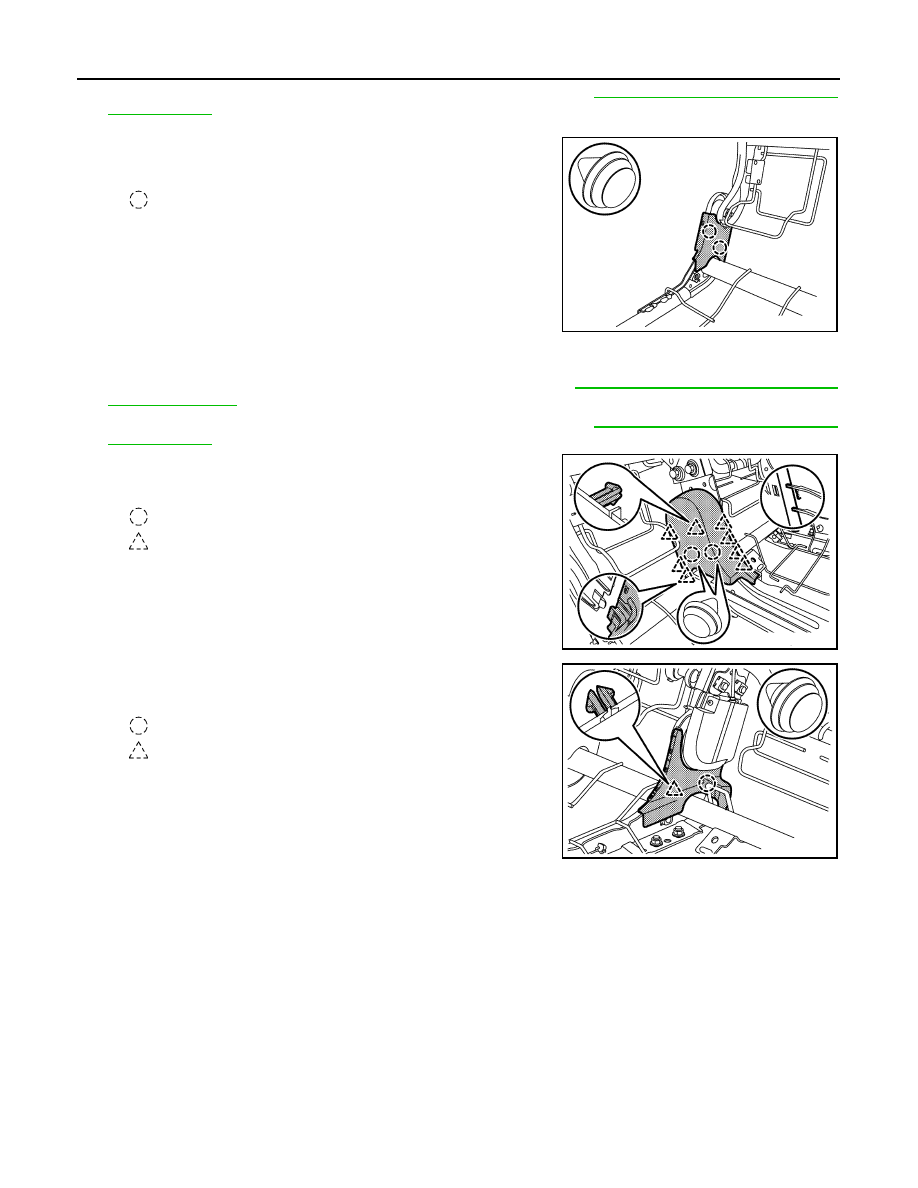

Seat Cushion Center Finisher

1.

Remove seat cushion trim and seat cushion pad as a set. Refer to

SE-63, "SEAT CUSHION : Disassem-

bly and Assembly"

.

2.

Remove seatback side trim and seatback side pad as a set. Refer to

SE-58, "SEATBACK : Disassembly

and Assembly"

.

3.

Disengage seat cushion center finisher outer fixing pawls, clips,
and then remove seat cushion center finisher outer.

4.

Disengage seat cushion center finisher inner fixing pawl, clip,
and then remove seat cushion center finisher inner.

ASSEMBLY

Assemble in the reverse order of disassembly.

: Clip

JMJIA9695ZZ

: Clip

: Pawl

JMJIA9696ZZ

: Clip

: Pawl

JMJIA9697ZZ

THIRD SEAT

SE-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

THIRD SEAT

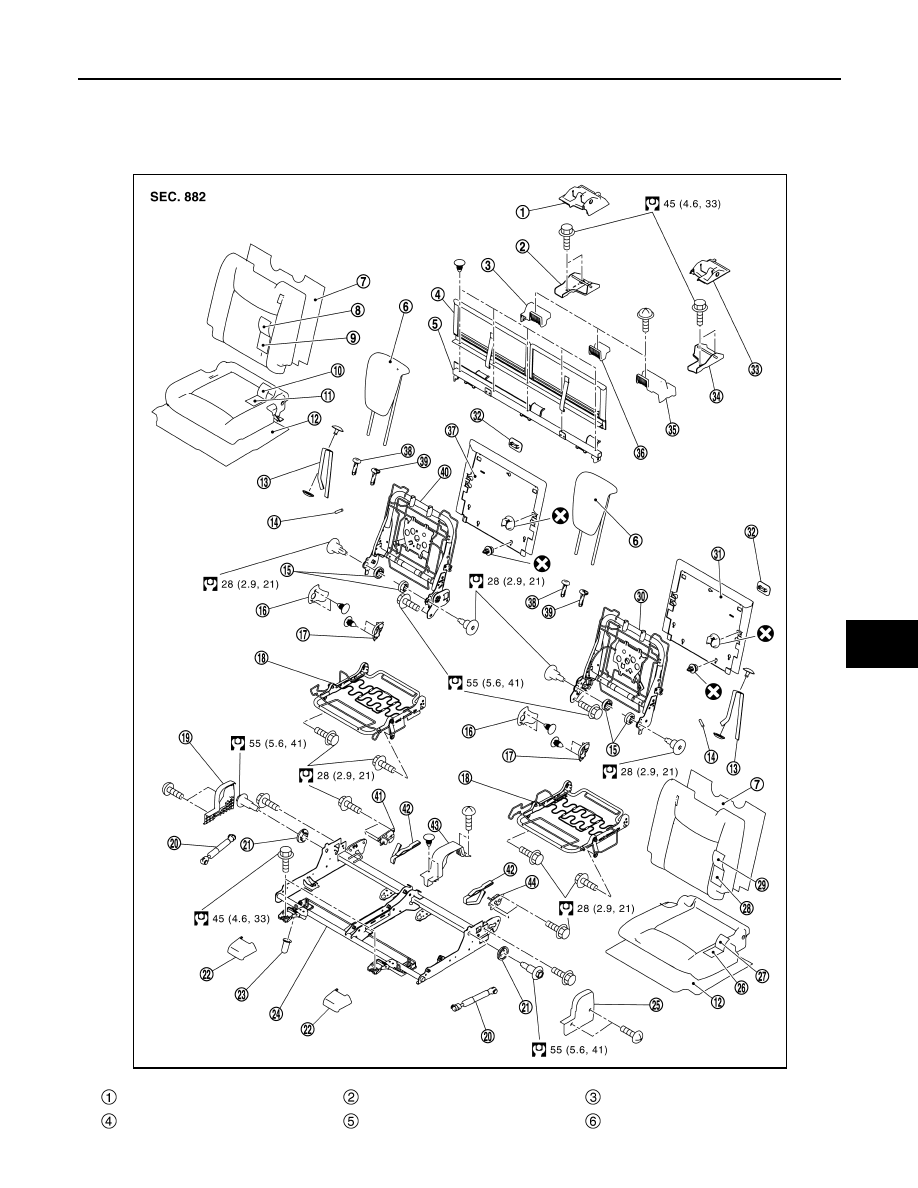

Exploded View

INFOID:0000000010713150

Lock cover RH

Striker RH

Under finisher RH

Bridge board

Bridge board pipe

Headrest

JMJIA9735GB

SE-70

< REMOVAL AND INSTALLATION >

THIRD SEAT

Removal and Installation

INFOID:0000000010713151

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

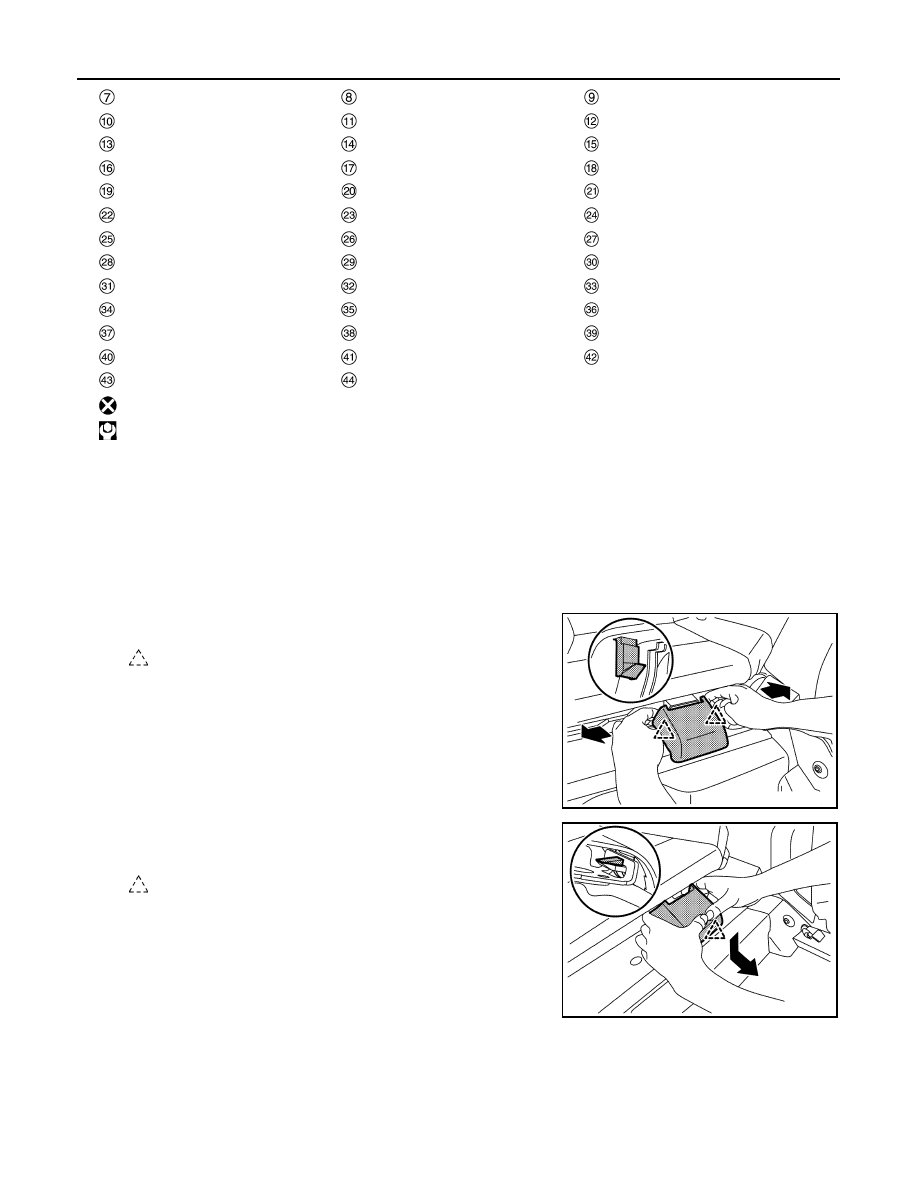

REMOVAL

Third Seat

1.

Remove leg covers.

a.

Disengage leg cover fixing pawls while open the leg cover.

b.

Press the leg cover end center while pulling it downward, disen-
gage the leg cover pawl, and then remove.

Seatback silencer

Seatback trim RH

Seatback pad RH

Seat cushion trim RH

Seat cushion pad RH

Seat cushion silencer

Release strap

Lever tube

Bush

Seatback inner cover RH

Seatback inner cover LH

Seat cushion frame

Hinge outer cover RH

Assist stay

Bush

Leg cover

Cap

Seat frame

Hinge outer cover LH

Seat cushion pad LH

Seat cushion trim LH

Seatback pad LH

Seatback trim LH

Seatback frame LH

Seatback board LH

Seat control lever escutcheon

Lock cover LH

Striker LH

Under finisher LH

Center under finisher

Seatback board RH

Headrest holder (free)

Headrest holder (lock)

Seatback frame RH

Seat lock RH

Release strap

Reclining device cover center

Seat look LH

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Pawl

JMJIA9713ZZ

: Pawl

JMJIA9714ZZ

THIRD SEAT

SE-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

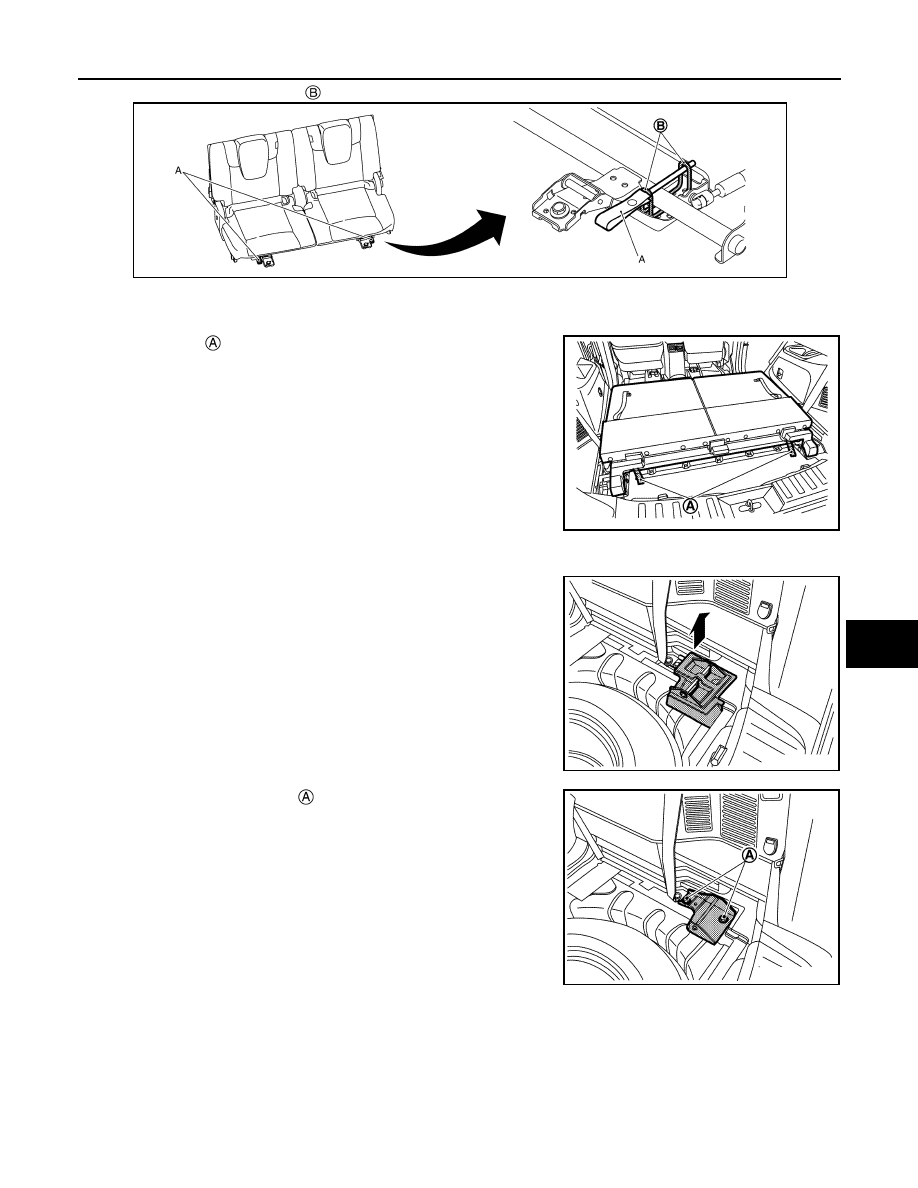

2.

Insert stopper (A) to portion

 of seat frame.

3.

Remove seat fixing bolts.

4.

Fold seatback toward vehicle front.

5.

Pull the strap

 for unlocking form floor, and then remove seat.

Striker

1.

Remove lock cover.

2.

Remove striker fixing bolts

, and then remove striker.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Before locking, be sure to drop the right front side locate pin onto the floor.

JMJIA9715ZZ

JMJIA9716ZZ

JMJIA9717ZZ

JMJIA9718ZZ
