Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. Never perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.

1.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove rear seat belt retractor assembly. Refer to

SB-17, "SEAT BELT RETRACTOR : Removal and

Installation"

.

2.

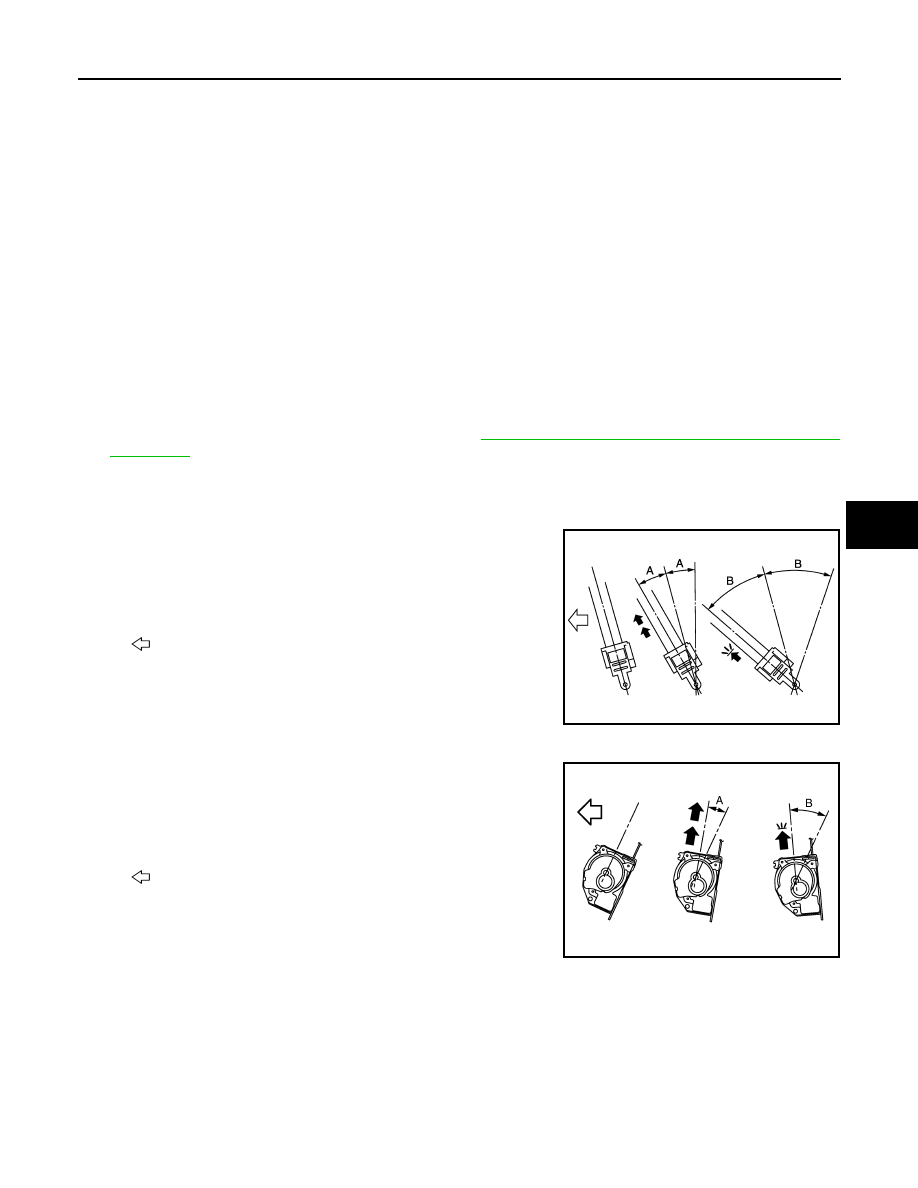

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the figure.

Outer Seat Belt Retractor

• The webbing can be pulled out when the angle (A) is 12

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 27

degrees or more.

Center Seat Belt Retractor

• The webbing can be pulled out when the angle (A) is 12

degrees or less.

• The webbing cannot be pulled out when the angle (B) is 27

degrees or more.

3.

Replace the seat belt assembly if it does not operate normally.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000010927780

REMOVAL

Sliding Seat Type

A and B

: Tilting angles

: Vehicle front

JMHIA1064ZZ

A and B

: Tilting angles

: Vehicle front

JMHIA0561ZZ

SB-20

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

1.

Remove second seat. Refer to

SE-54, "Removal and Installation"

.

2.

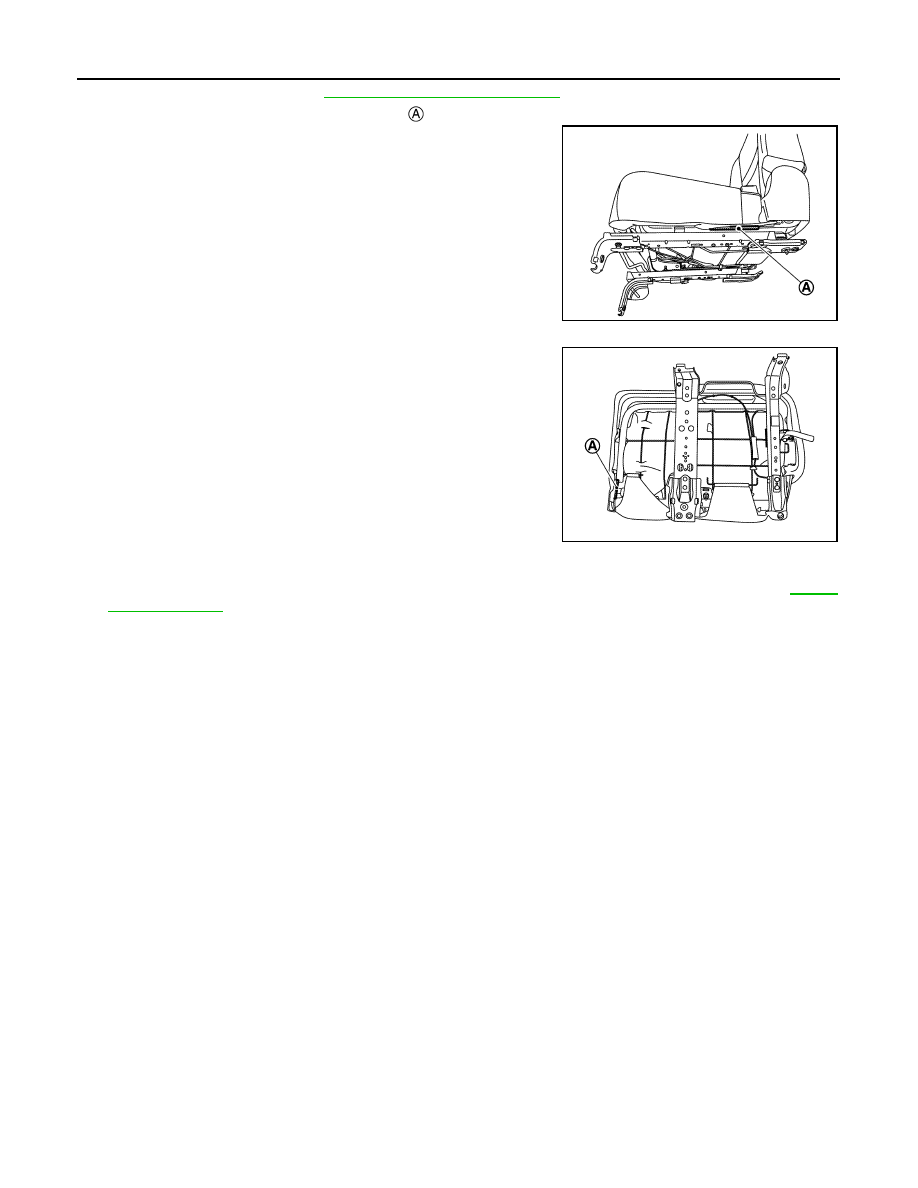

Disengage seat cushion trim fixing retainer

.

• Seat belt buckle RH

• Center seat belt buckle

3.

Disengage seat belt buckle harness connector and harness clips (if equipped).

4.

Remove seat belt buckle mounting anchor bolt, and then remove seat belt buckle. Refer to

SB-16,

"Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE : Inspection

INFOID:0000000010927781

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation was noted.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp for proper operation as per the following:

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate.

b.

Fasten driver seat belt. The seat belt warning lamp should turn OFF.

2.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

3.

Repeat step above if necessary to check the other seat belts.

JMHIA2893ZZ

JMHIA2894ZZ

THIRD SEAT BELT

SB-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

THIRD SEAT BELT

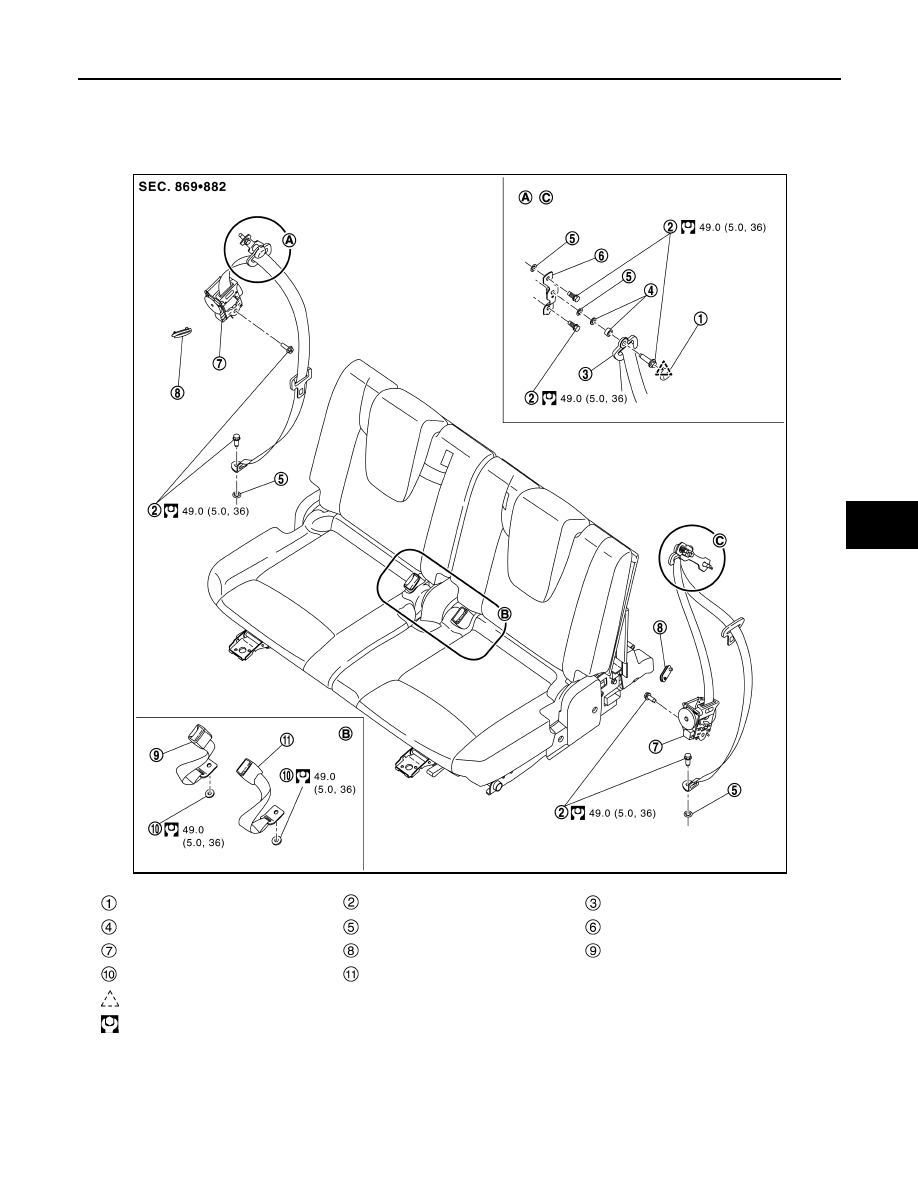

Exploded View

INFOID:0000000010927782

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000010927783

REMOVAL

Shoulder anchor cover

Anchor bolt

Shoulder anchor

Spacer

Retaining washer

Shoulder bracket

Seat belt retractor assembly LH/RH

Seat belt hook

Seat belt buckle RH

Anchor nut

Seat belt buckle LH

: Pawl

: N·m (kg-m, ft-lb)

JMHIA2861GB

SB-22

< REMOVAL AND INSTALLATION >

THIRD SEAT BELT

1.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2.

Remove shoulder anchor.

a.

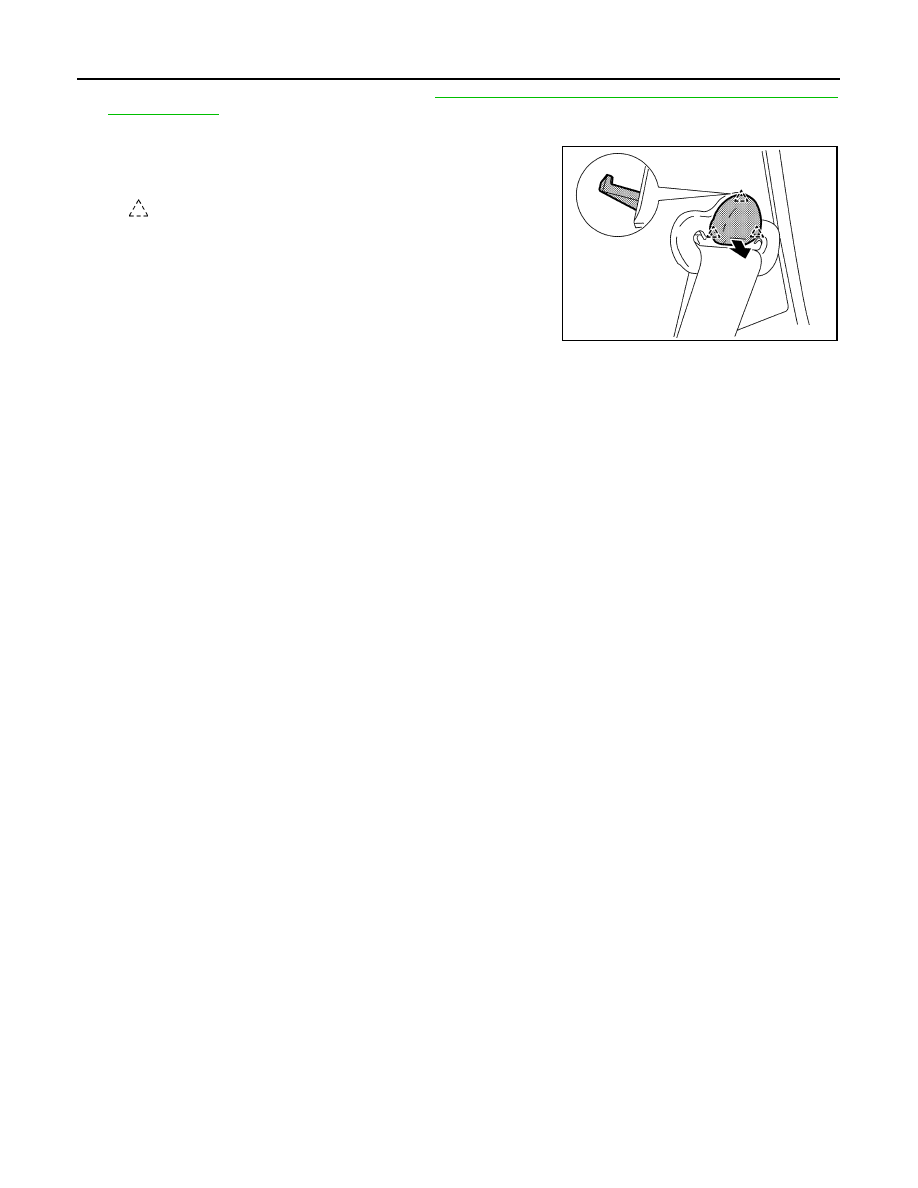

Disengage shoulder anchor cover fixing pawls, and then remove
shoulder anchor cover.

b.

Remove shoulder anchor mounting anchor bolt, and then remove shoulder anchor.

3.

Remove seat belt retractor assembly mounting anchor bolt, and then remove seat belt retractor.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT RETRACTOR : Inspection

INFOID:0000000010927784

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

2.

Check retractor operation:

a.

Fully extend the seat belt webbing and check for twists, tears or other damage.

b.

Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the
seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the
loops of that upper anchors can cause the seat belts to retract slowly.

3.

Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extending any further.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

: Pawl

JMHIA1725ZZ
