< WIRING DIAGRAM >

SUNROOF SYSTEM

WIRING DIAGRAM

SUNROOF SYSTEM

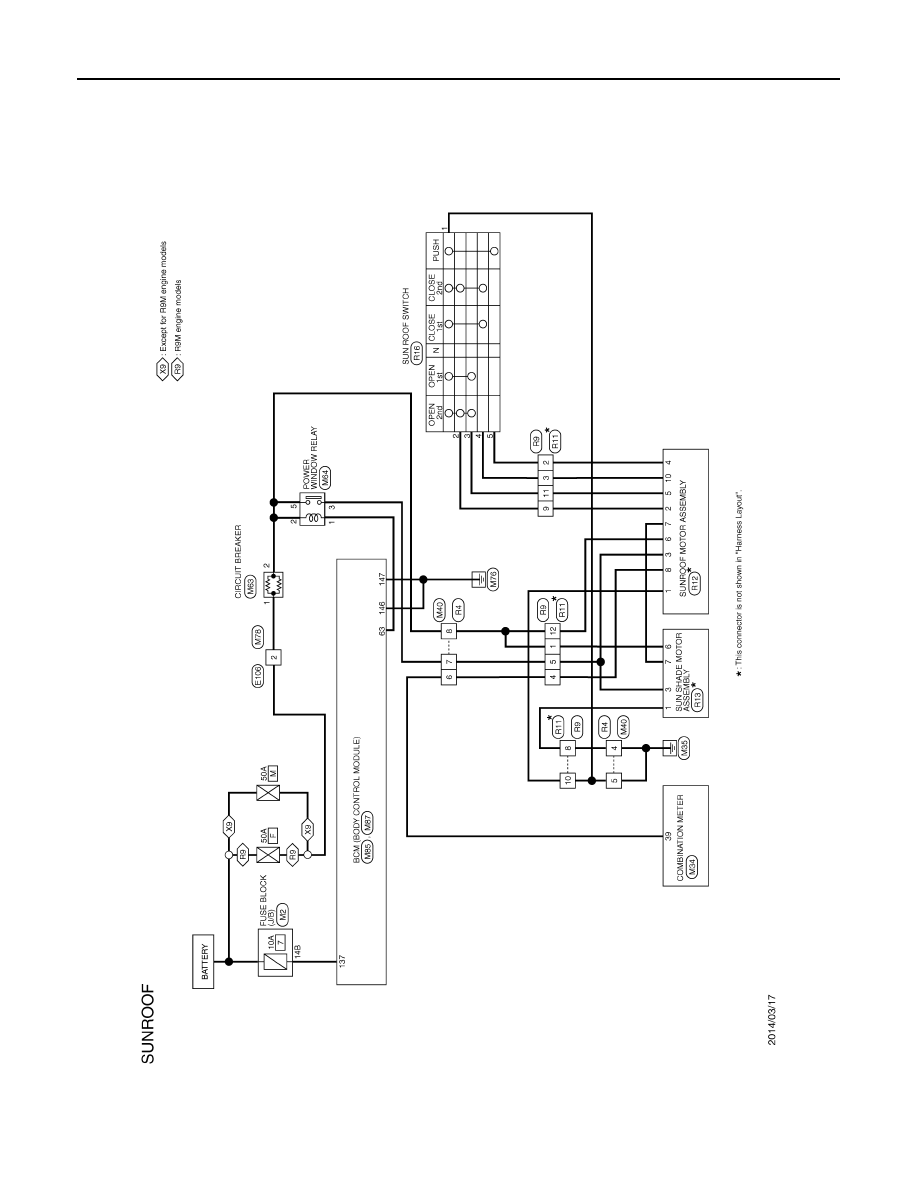

Wiring Diagram

INFOID:0000000010735398

JRKWD4491GB

SUNROOF SYSTEM

RF-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

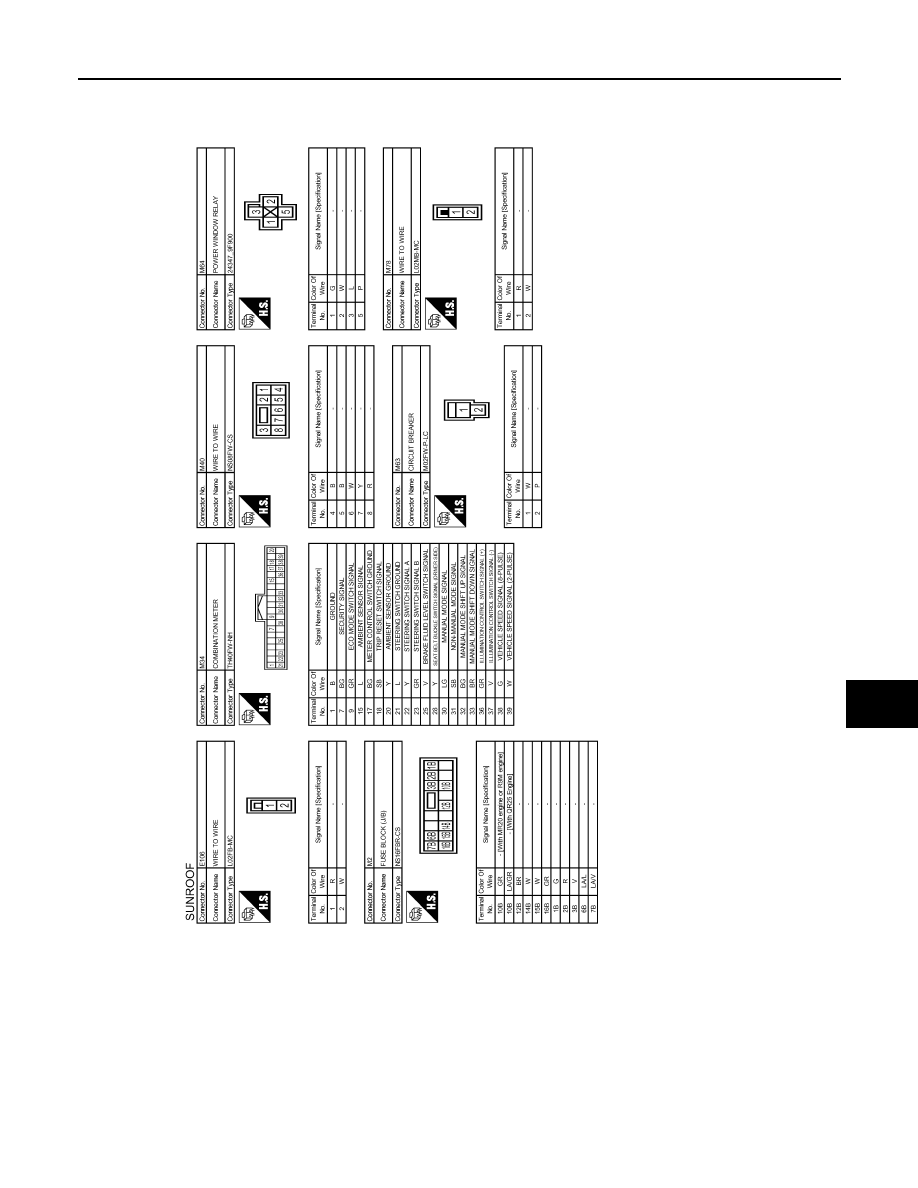

JRKWD4492GB

RF-20

< WIRING DIAGRAM >

SUNROOF SYSTEM

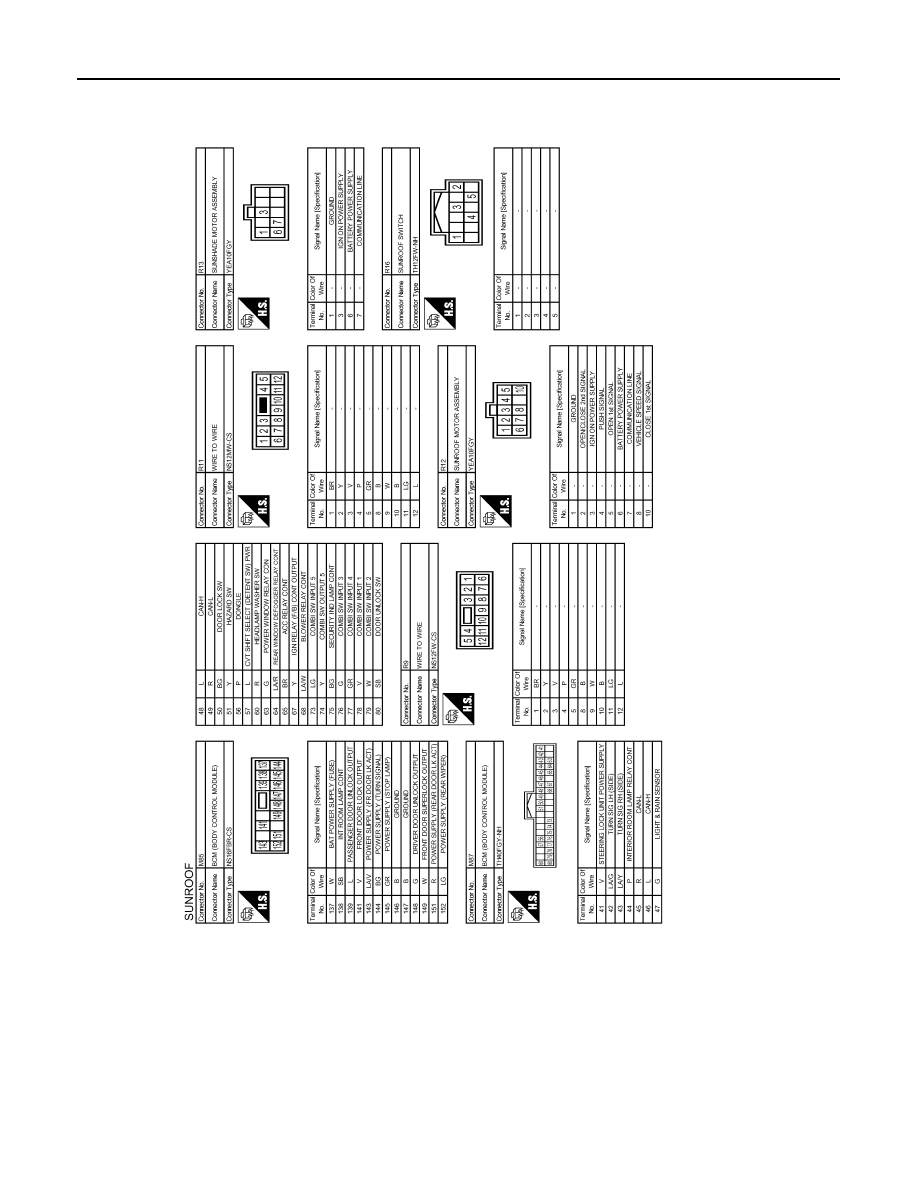

JRKWD4493GB

DIAGNOSIS AND REPAIR WORKFLOW

RF-21

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

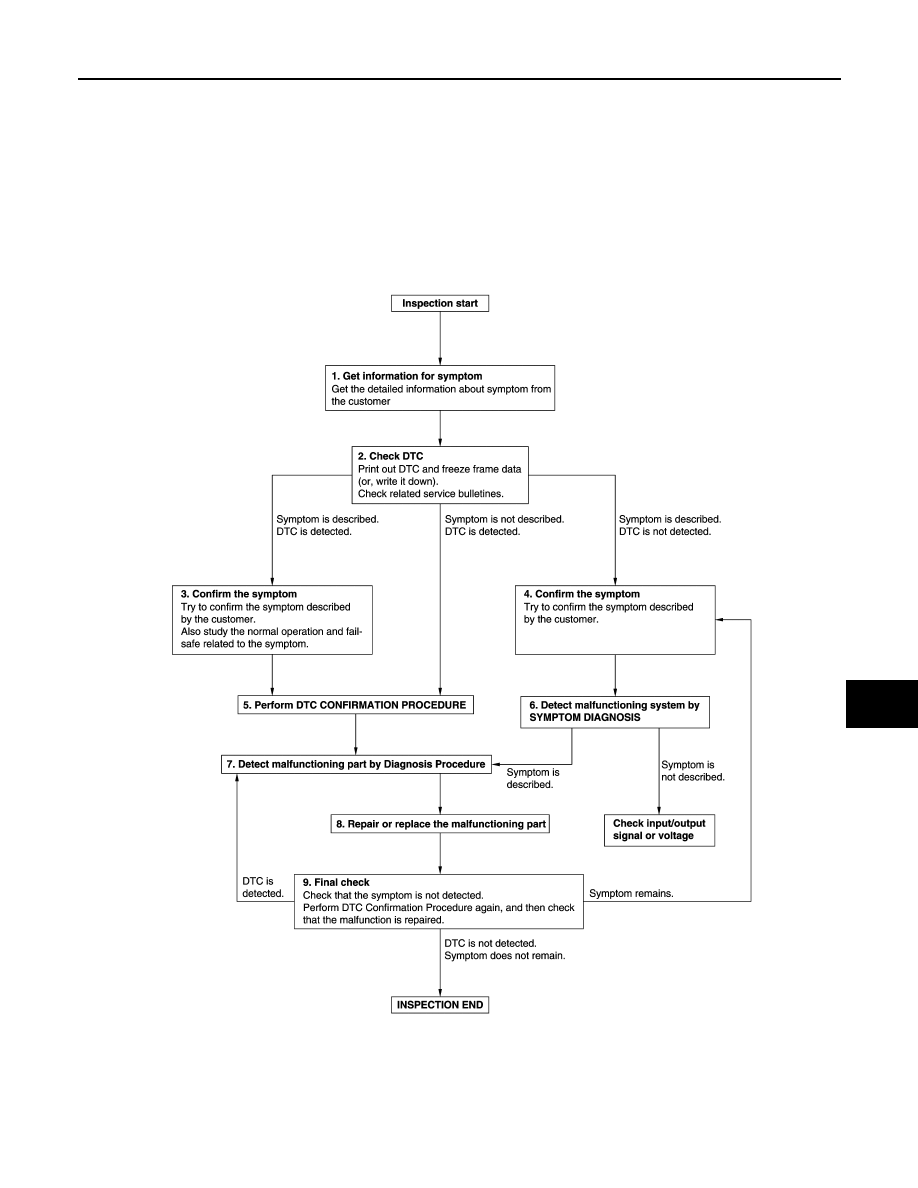

Work Flow

INFOID:0000000010735399

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB
