Nissan X-Trail 32. Manual - part 1745





PWO

POWER SOCKET

PWO-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWF4028GB

PWO-8

< WIRING DIAGRAM >

POWER SOCKET

JRMWF4029GB

PWO

POWER SOCKET

PWO-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

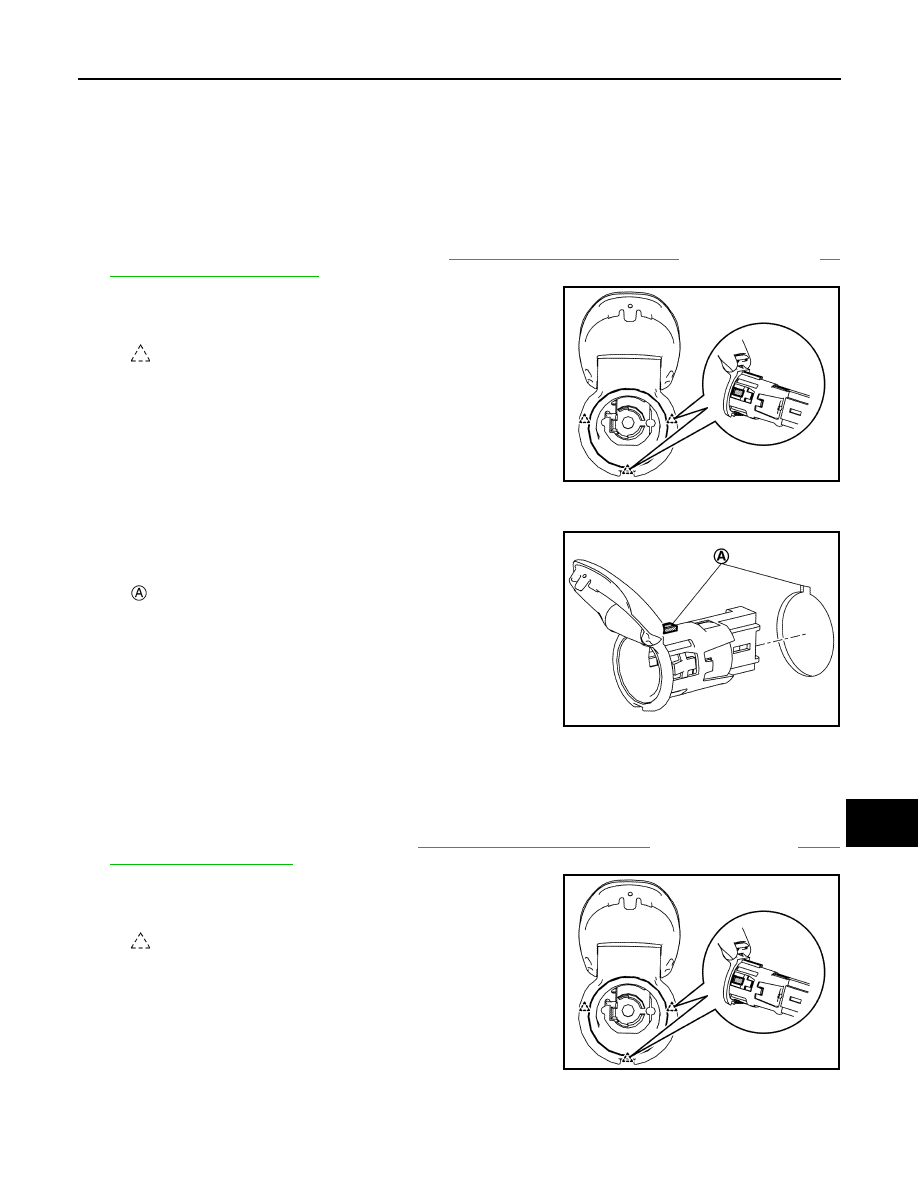

REMOVAL AND INSTALLATION

POWER SOCKET

FRONT POWER SOCKET

FRONT POWER SOCKET : Removal and Installation

INFOID:0000000010709179

REMOVAL

1.

Remove instrument lower panel center. Refer to

IP-14, "Removal and Installation"

 (LHD MODELS) or

IP-

41, "Removal and Installation"

 (RHD MODELS).

2.

Press the power socket fixing pawls from the back of the instru-
ment panel lower center to remove the power socket.

INSTALLATION

Note the following, and install in the reverse order of removal.
Align the cut outs of power socket and power socket finisher assem-
bly.

CONSOLE POWER SOCKET

CONSOLE POWER SOCKET : Removal and Installation

INFOID:0000000010709180

REMOVAL

1.

Remove center console assembly. Refer to

IP-25, "Removal and Installation"

 (LHD MODELS) or

IP-52,

"Removal and Installation"

 (RHD MODELS).

2.

Press the power socket fixing pawl from the back of the center
console assembly to remove the power socket.

INSTALLATION

Note the following, and install in the reverse order of removal.

: Pawl

JSMIA1116ZZ

: Cut out

JSMIA1119ZZ

: Pawl

JSMIA1116ZZ

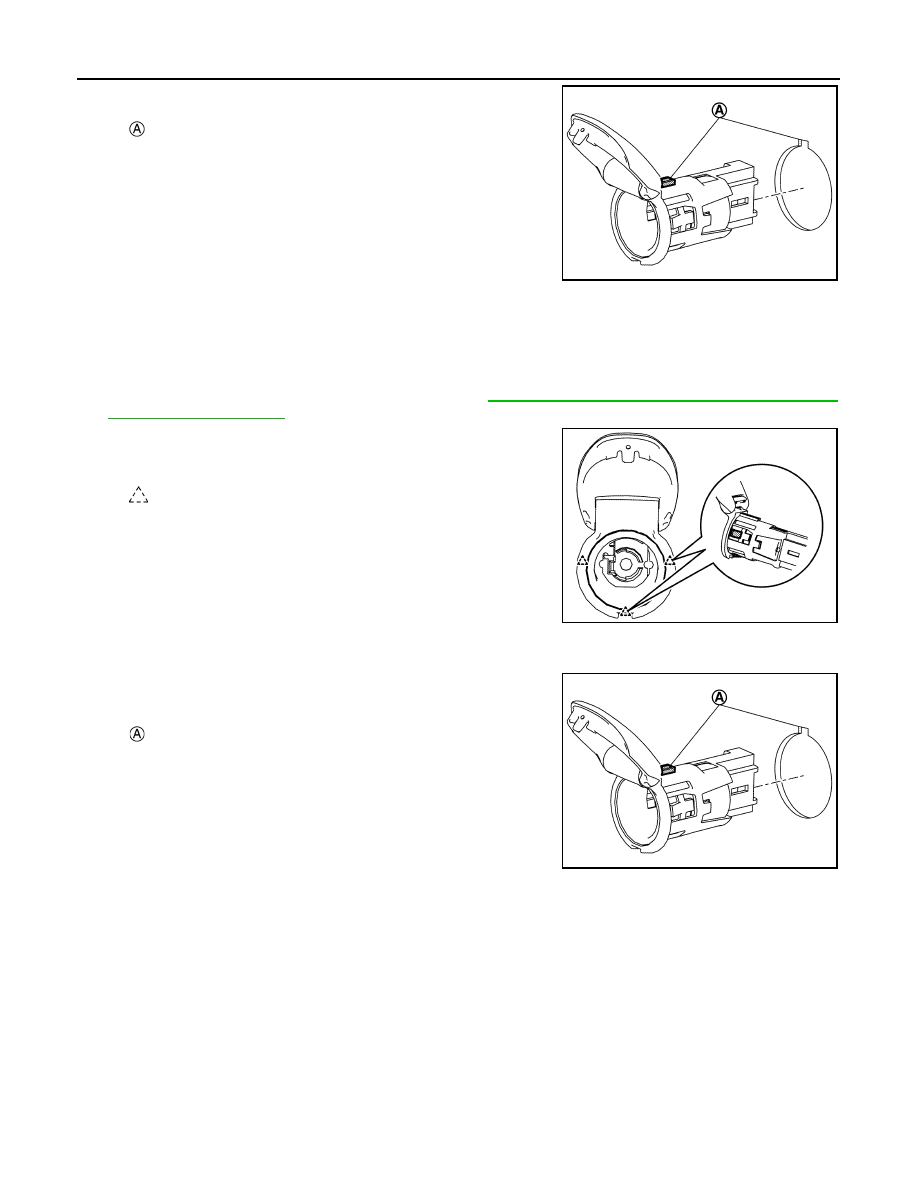

PWO-10

< REMOVAL AND INSTALLATION >

POWER SOCKET

Align the cut outs of power socket and center console assembly.

LUGGAGE ROOM POWER SOCKET

LUGGAGE ROOM POWER SOCKET : Removal and Installation

INFOID:0000000010709181

REMOVAL

1.

Remove luggage side lower finisher RH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2.

Press the power socket fixing pawls from the back of the lug-
gage side lower finisher RH to remove the power socket.

INSTALLATION

Note the following, and install in the reverse order of removal.
Align the cut outs of power socket and luggage side lower finisher
RH.

: Cut out

JSMIA1119ZZ

: Pawl

JSMIA1116ZZ

: Cut out

JSMIA1119ZZ
