PWC-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

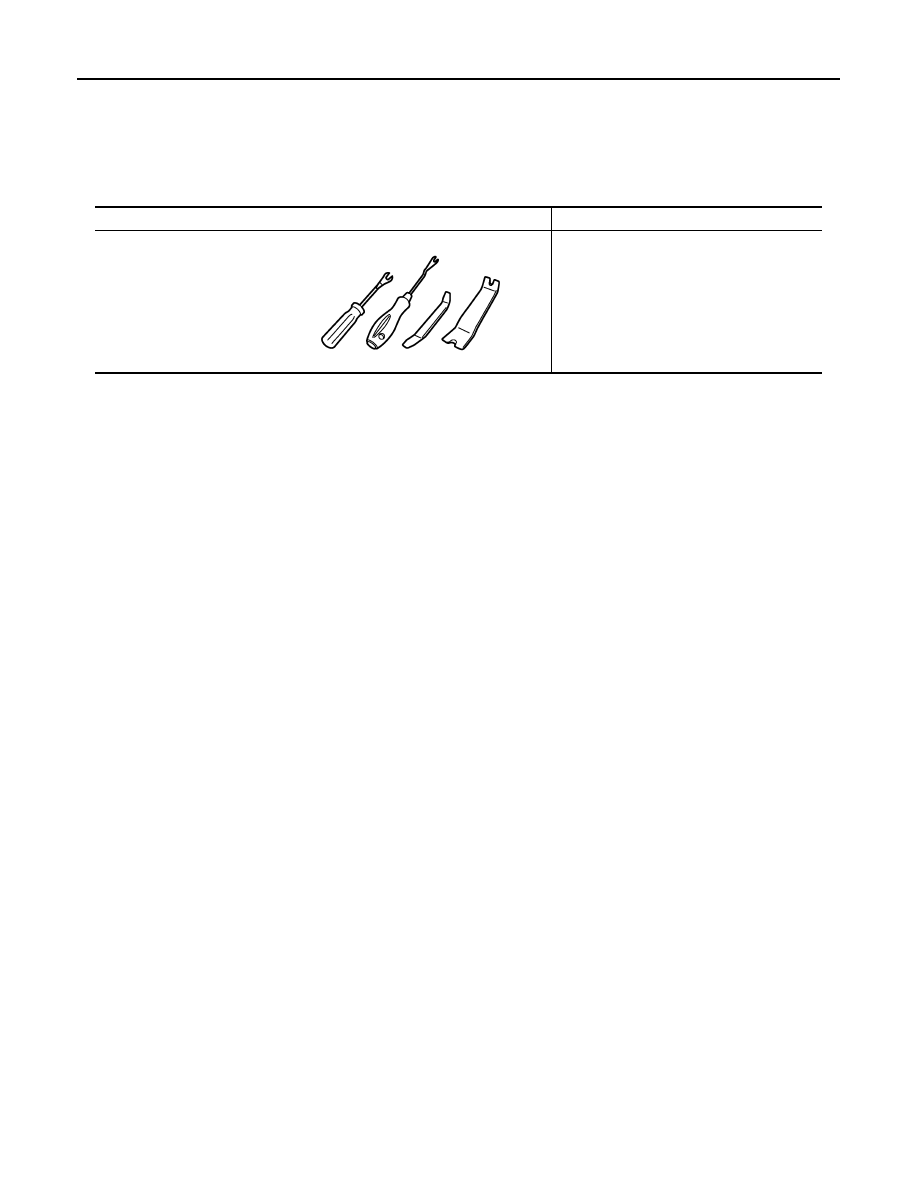

Commercial Service Tools

INFOID:0000000010735201

Tool name

Description

Remover tool

Removes the clips, pawls and metal clips

JMKIA3050ZZ

COMPONENT PARTS

PWC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

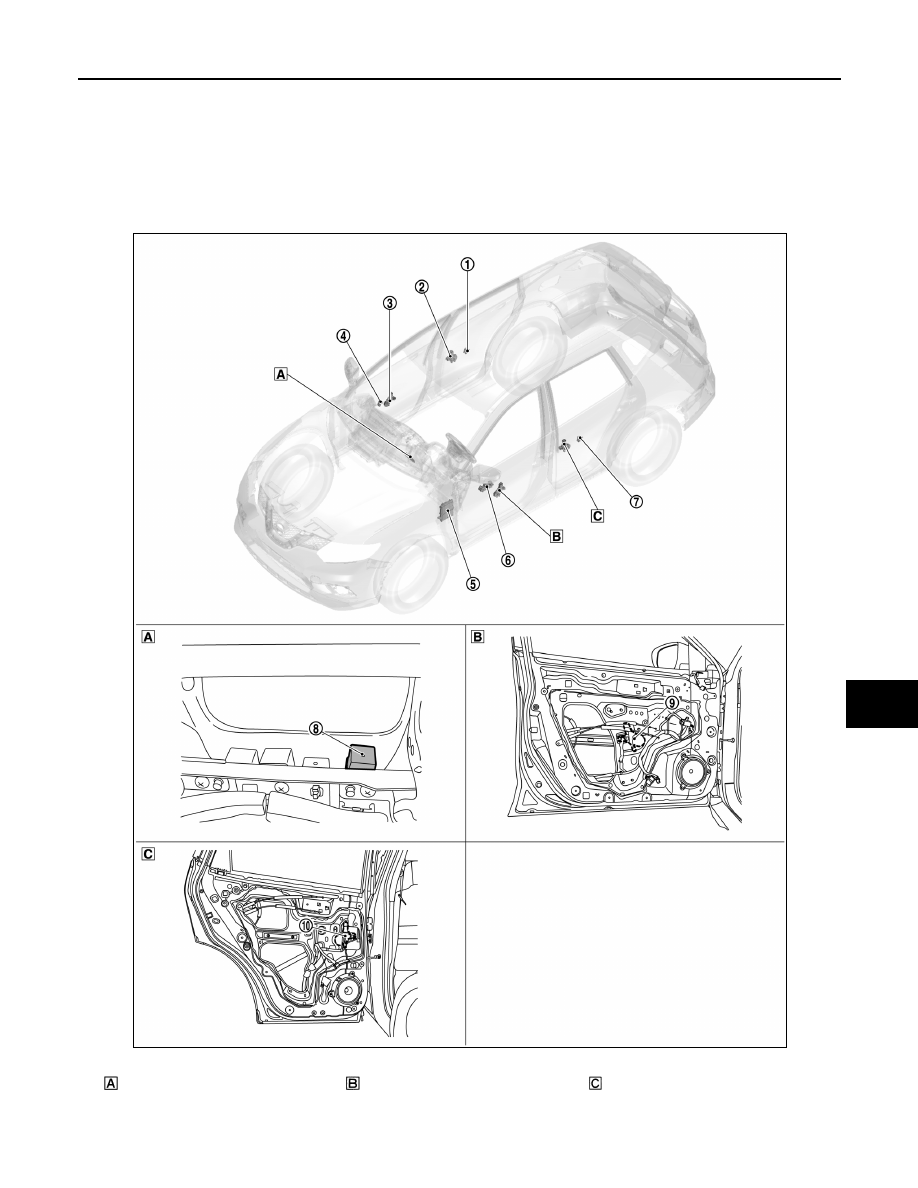

Component Parts Location

INFOID:0000000010735202

LHD MODELS

Behind A/C control

View with front door finisher (driver
side) removed

View with rear door finisher LH re-
moved

JMKIB3541ZZ

PWC-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

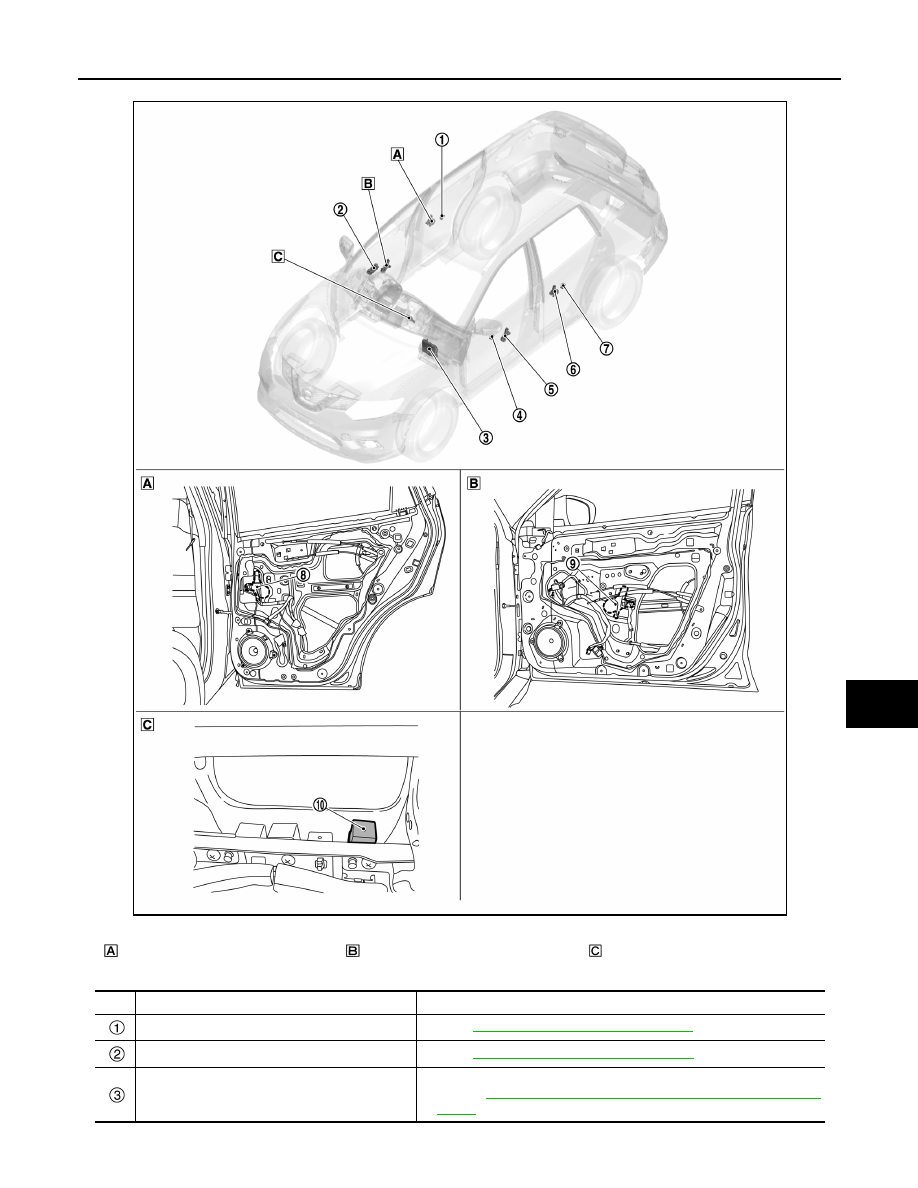

RHD MODELS

No.

Component

Function

Rear power window switch RH

Refer to

PWC-11, "Rear Power Window Switch"

Rear power window motor RH

Refer to

PWC-11, "Power Window Motor"

Front power window motor (passenger side)

Refer to

PWC-11, "Power Window Motor"

Front power window switch (passenger side)

Refer to

PWC-10, "Front Power Window Switch (Passenger side)"

BCM

• Controls power window relay
• Refer  to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Lo-

cation"

 for detailed installation location

Power window main switch

Refer to

PWC-10, "Power Window Main Switch"

Rear power window switch LH

Refer to

PWC-11, "Rear Power Window Switch"

Power window relay

Supplies power supply to each power window switch

Front power window motor (driver side)

Refer to

PWC-11, "Power Window Motor"

Rear power window motor LH

Refer to

PWC-11, "Power Window Motor"

COMPONENT PARTS

PWC-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

View with rear door finisher RH re-
moved

View with front door finisher (driver
side) removed

Behind A/C control

No.

Component

Function

Rear power window switch RH

Refer to

PWC-11, "Rear Power Window Switch"

Power window main switch

Refer to

PWC-10, "Power Window Main Switch"

BCM

• Controls power window relay
• Refer  to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Lo-

cation"

 for detailed installation location

JMKIB3961ZZ
