DOOR MIRROR

MIR-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

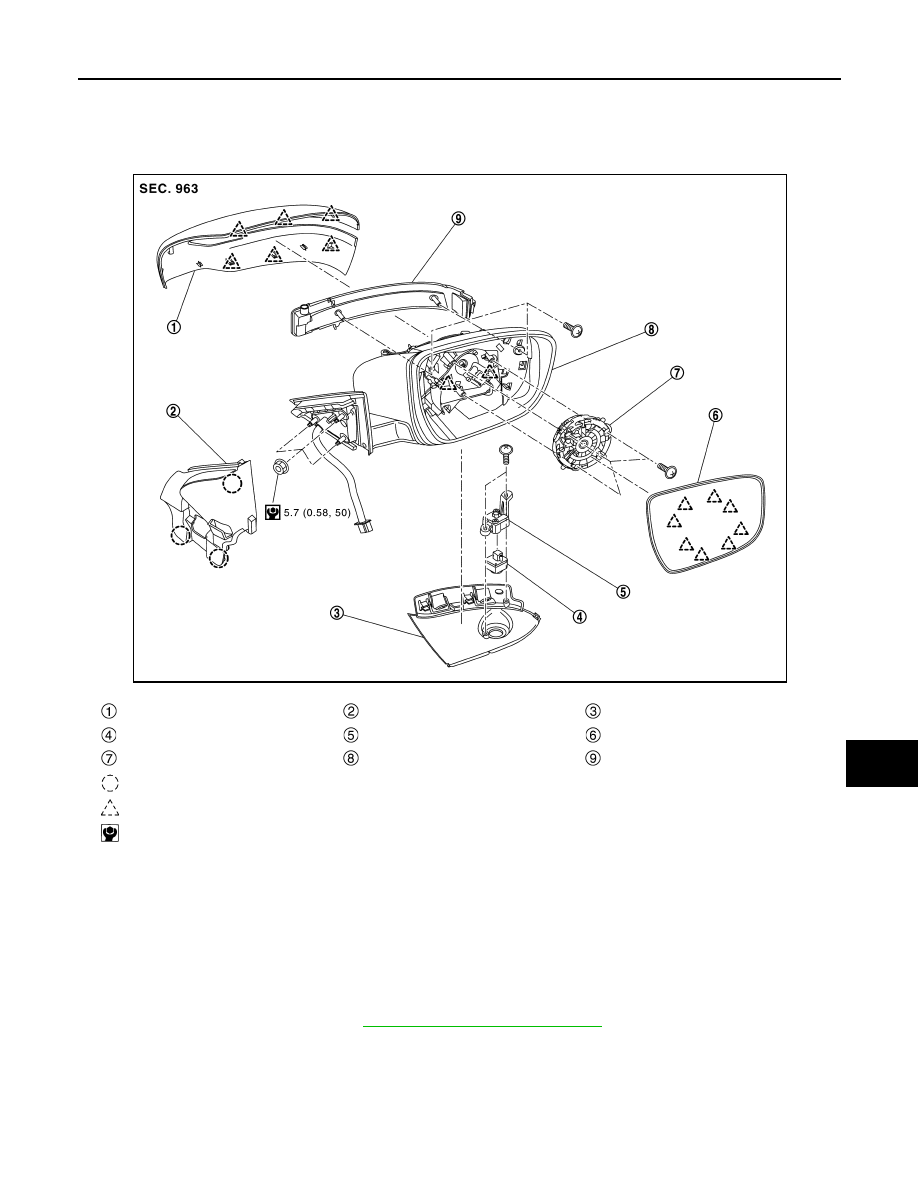

DOOR MIRROR

Exploded View

INFOID:0000000011008299

*

: With side camera

DOOR MIRROR ASSEMBLY

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000011008300

REMOVAL

CAUTION:

Never damage the body panel.

1.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

Door mirror cover

Door mirror corner cover

Door mirror finisher

Side camera

*

Side camera bracket

*

Glass mirror

Door mirror actuator

Door mirror housing

Side turn signal lamp

: Clip

: Pawl

: N·m (kg·m, in-lb)

JMLIA4826GB

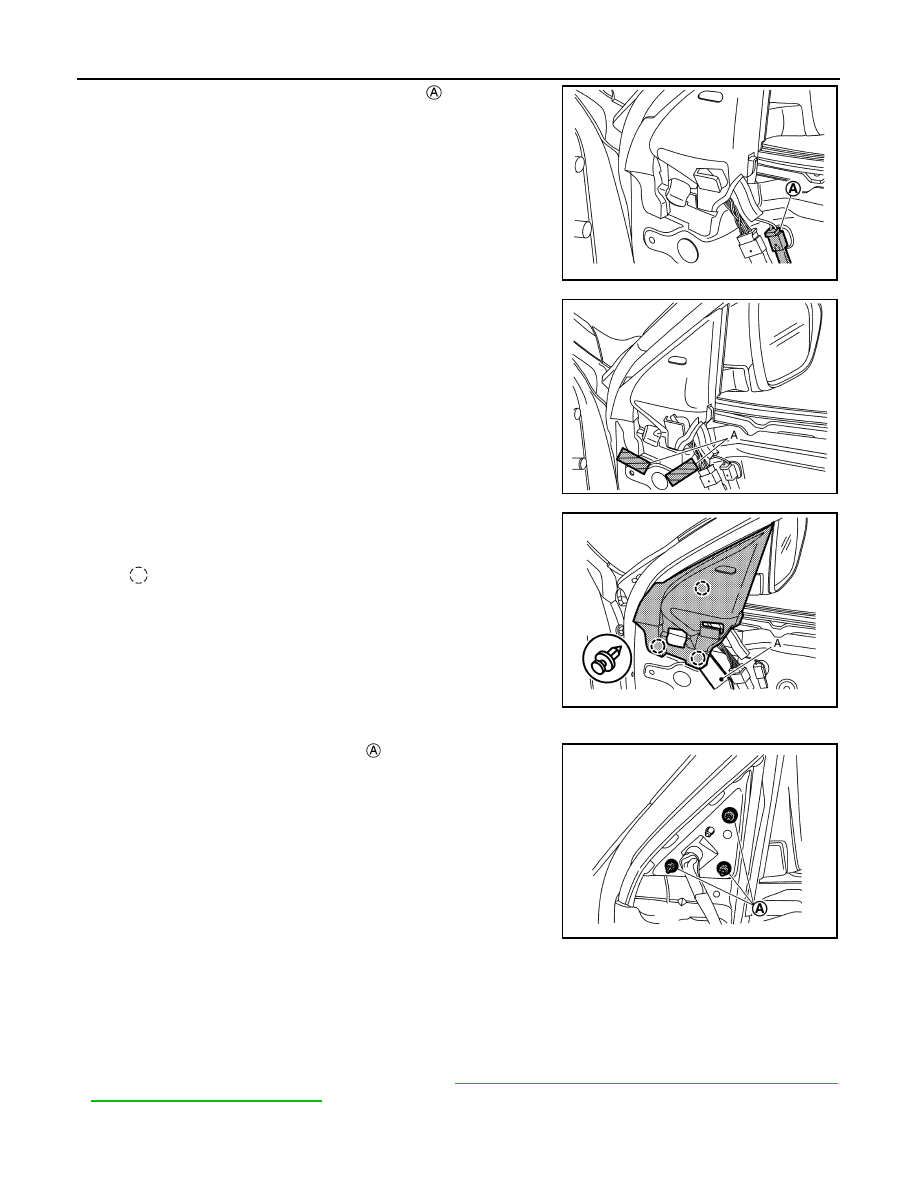

MIR-28

< REMOVAL AND INSTALLATION >

DOOR MIRROR

2.

Disconnect BSW indicator harness connector

 (with BSW indi-

cator).

3.

Apply protective tapes (A) on front door panel to protect it from
damage.

4.

Disengage door mirror corner cover fixing clips using a remover
tool (A), and then remove door mirror corner cover.

5.

Disconnect door mirror harness connector.

6.

Remove door mirror mounting nuts

, and then remove door

mirror assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Visually check clip for deformation and damage during installation. Replace with new ones if neces-

sary.

• When installing, check in advance that clips are accurately aligned with the portions on front door

panel, and then install by pressing in.

• Perform side camera image calibration. Refer to

AV-161, "CALIBRATING CAMERA IMAGE (AROUND

VIEW MONITOR) : Description"

.

JMLIA4879ZZ

JMLIA4873ZZ

: Clip

JMLIA4837ZZ

JMLIA4829ZZ

DOOR MIRROR

MIR-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

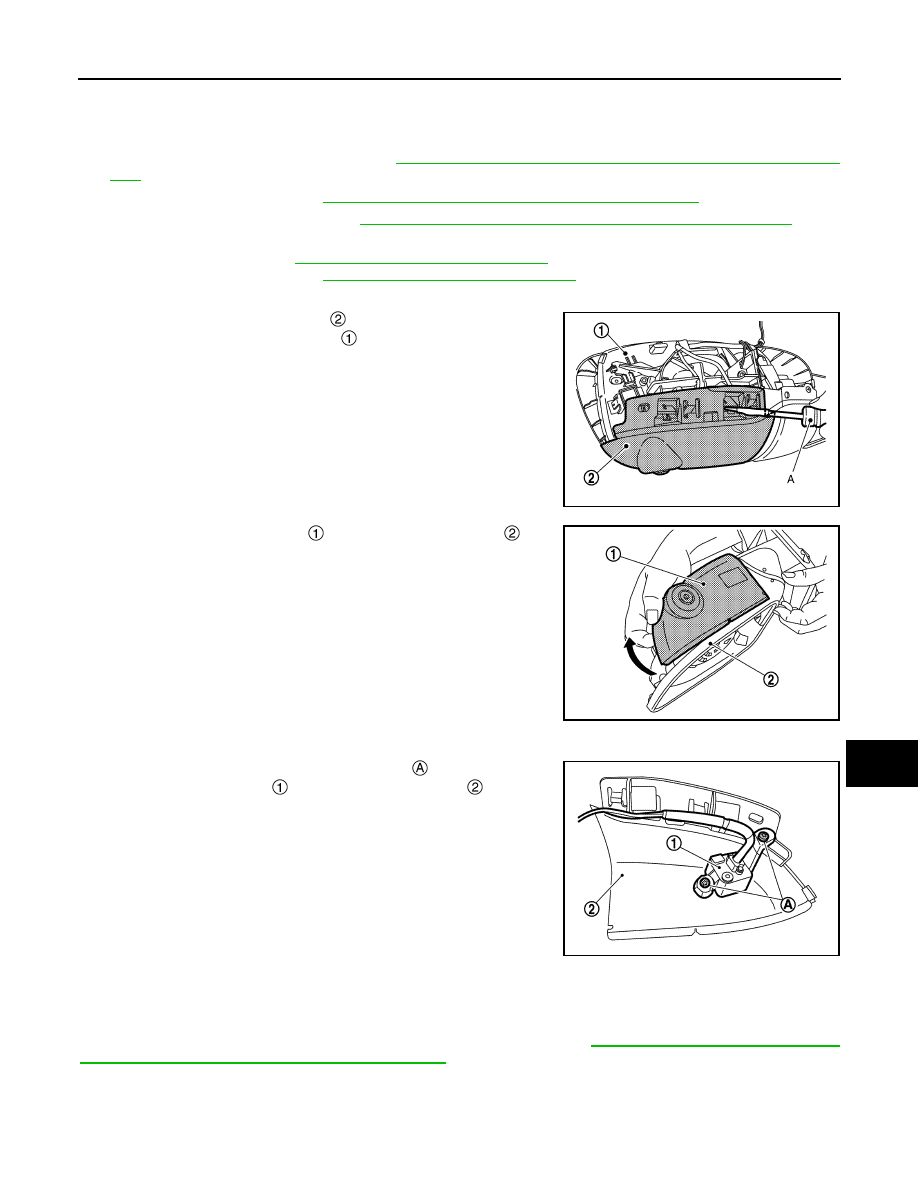

DOOR MIRROR ASSEMBLY : Disassembly and Assembly

INFOID:0000000011008301

DISASSEMBLY

1.

Remove door mirror assembly. Refer to

MIR-27, "DOOR MIRROR ASSEMBLY : Removal and Installa-

tion"

.

2.

Remove glass mirror. Refer to

MIR-30, "GLASS MIRROR : Removal and Installation"

.

3.

Remove door mirror cover. Refer to

MIR-30, "DOOR MIRROR COVER : Removal and Installation"

.

4.

Remove side turn signal lamp. Refer to the following.
• LED headlamp: Refer to

EXL-198, "Removal and Installation"

.

• Halogen headlamp: Refer to

EXL-385, "Removal and Installation"

.

5.

Remove door mirror finisher.

a.

Disengage door mirror finisher

 fixing pawls using a remover

tool (A) from door mirror housing

.

6.

Remove door mirror finisher

 from door mirror housing

.

7.

Disconnect side camera harness connector (with side camera).

8.

Remove side camera bracket fixing screws

, and then remove

side camera assembly

 from door mirror finisher

 (with side

camera).

ASSEMBLY

Note the following items, and then assemble in the reverse order of disassembly.

CAUTION:

Perform side camera image calibration (with side camera). Refer to

AV-161, "CALIBRATING CAMERA

IMAGE (AROUND VIEW MONITOR) : Description"

.

GLASS MIRROR

JMLIA4831ZZ

JMLIA4832ZZ

JMLIA4833ZZ

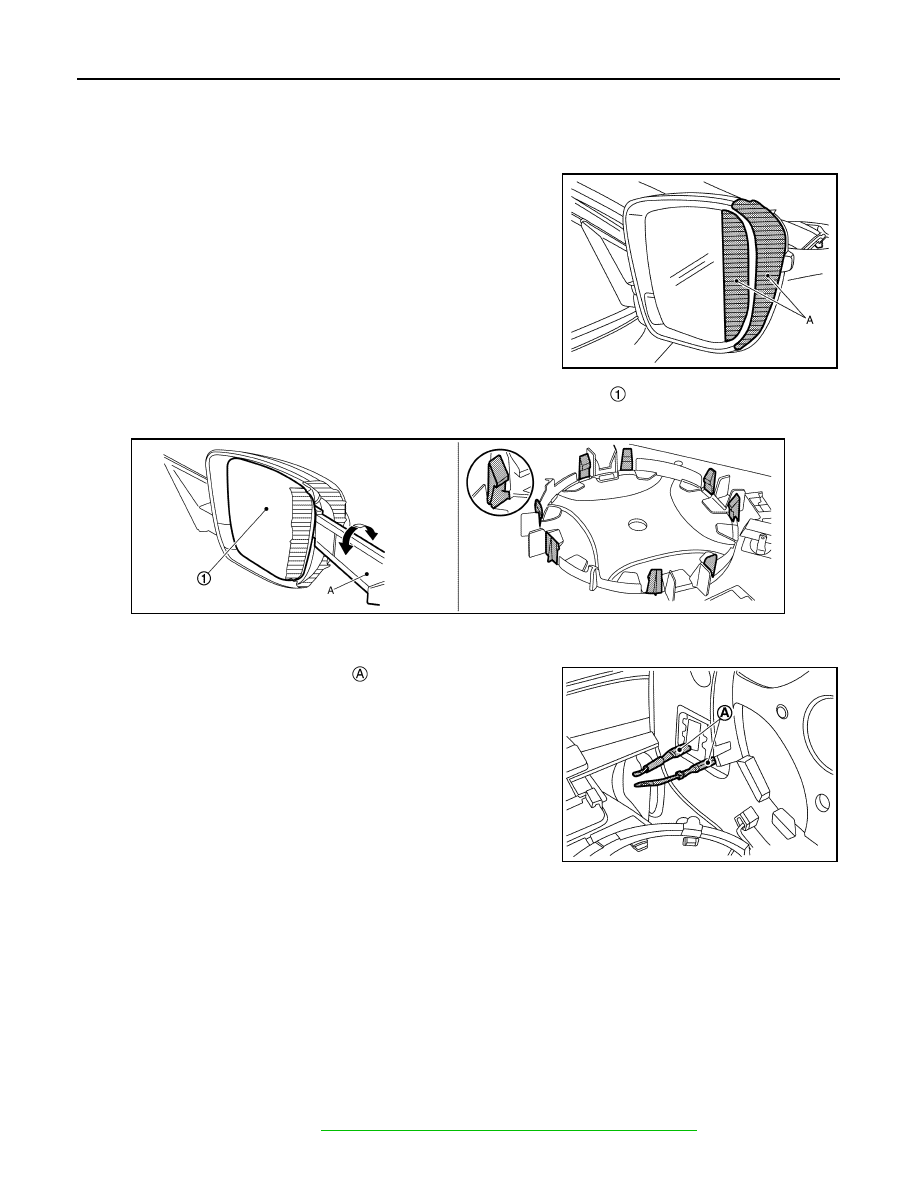

MIR-30

< REMOVAL AND INSTALLATION >

DOOR MIRROR

GLASS MIRROR : Removal and Installation

INFOID:0000000011008302

REMOVAL

1.

Place glass mirror inward.

2.

Apply protective tape (A) on door mirror housing and glass mir-
ror to protect it from damage.

3.

Insert remover tool (A) into the recess at outside between glass mirror

 and door mirror actuator, and

then disengage the glass mirror fixing pawls by pushing up while rotating (twisting) the remover tool as
shown in the figure.

CAUTION:

Remove the pawls slowly so they are not damaged.

4.

Disconnect heater mirror terminals

 (with heater mirror).

CAUTION:

Make a mark (short note, photo, etc.) of terminals layout,
before disassembly.

5.

Remove glass mirror.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, visually check that pawls are securely engaged.

DOOR MIRROR COVER

DOOR MIRROR COVER : Removal and Installation

INFOID:0000000011008303

REMOVAL

1.

Remove glass mirror. Refer to

MIR-30, "GLASS MIRROR : Removal and Installation"

.

JMLIA4827ZZ

JMLIA4828ZZ

JMLIA4194ZZ
