Nissan X-Trail 32. Manual - part 156

BRC-90

< WIRING DIAGRAM >

[WITH VDC (ESP)]

BRAKE CONTROL SYSTEM

RHD

JRFWC1750GB

BRAKE CONTROL SYSTEM

BRC-91

< WIRING DIAGRAM >

[WITH VDC (ESP)]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

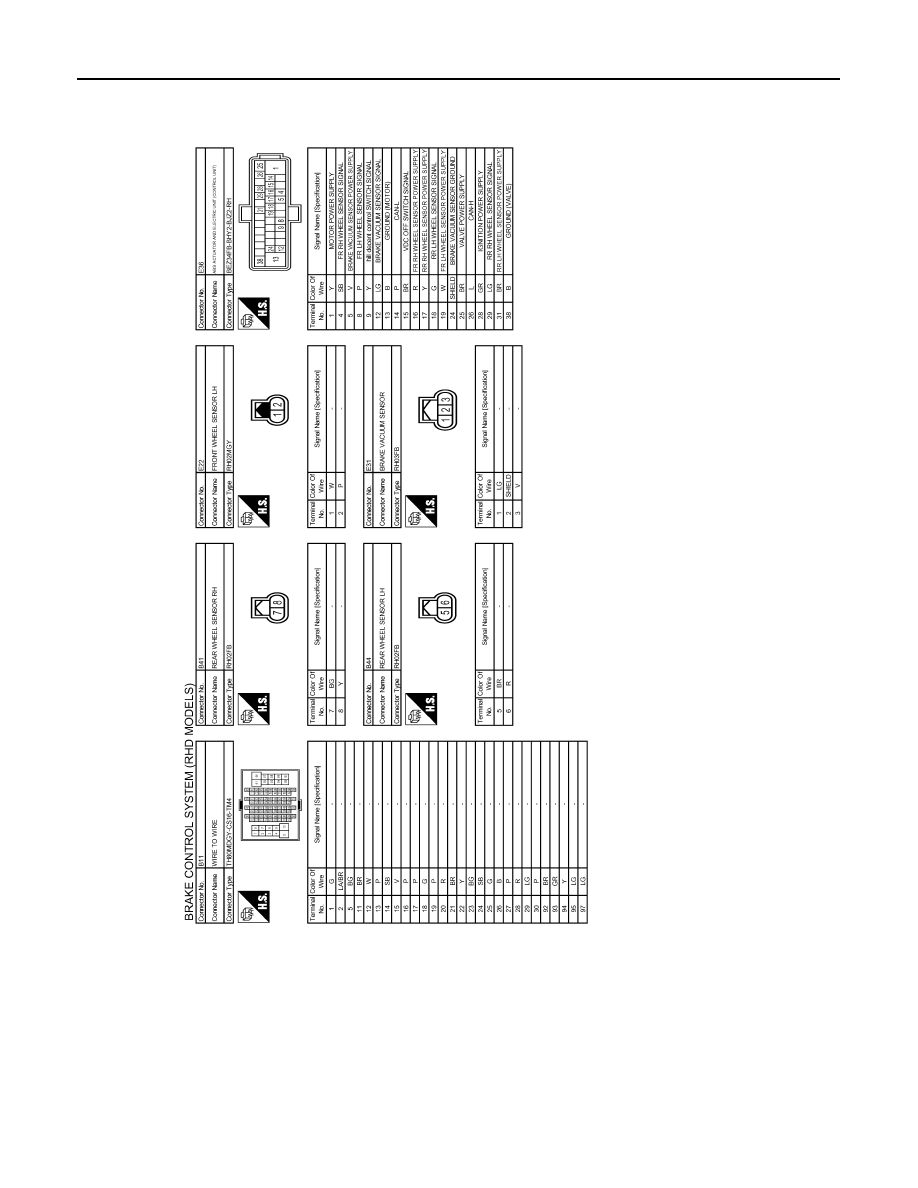

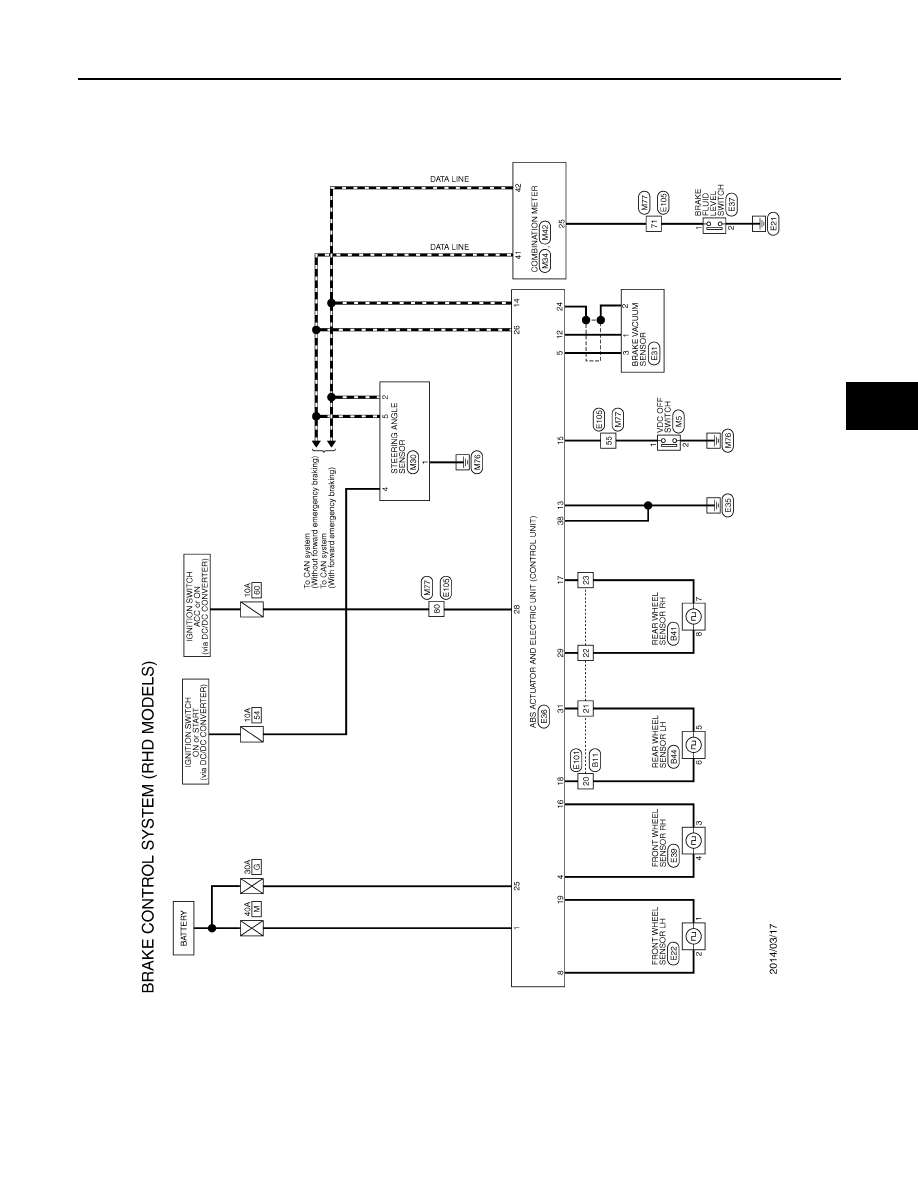

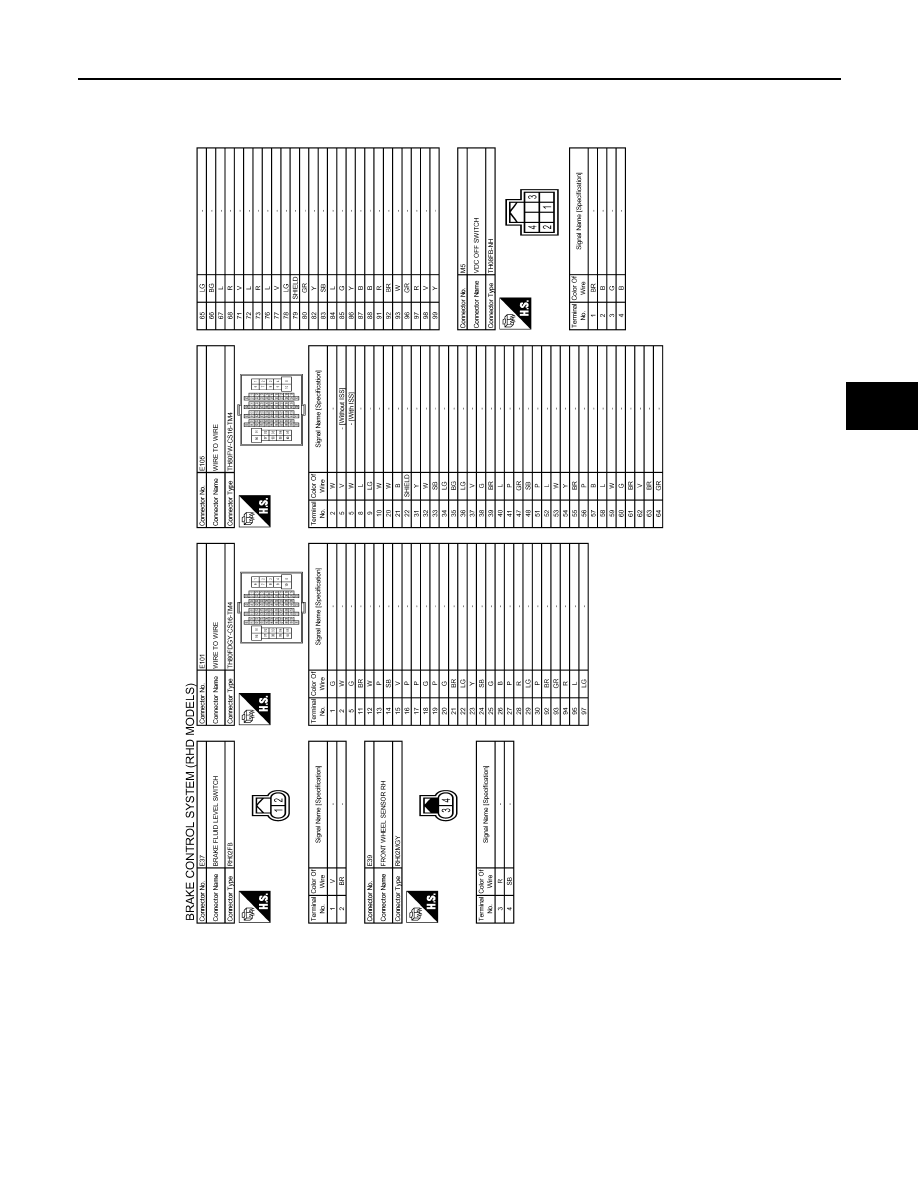

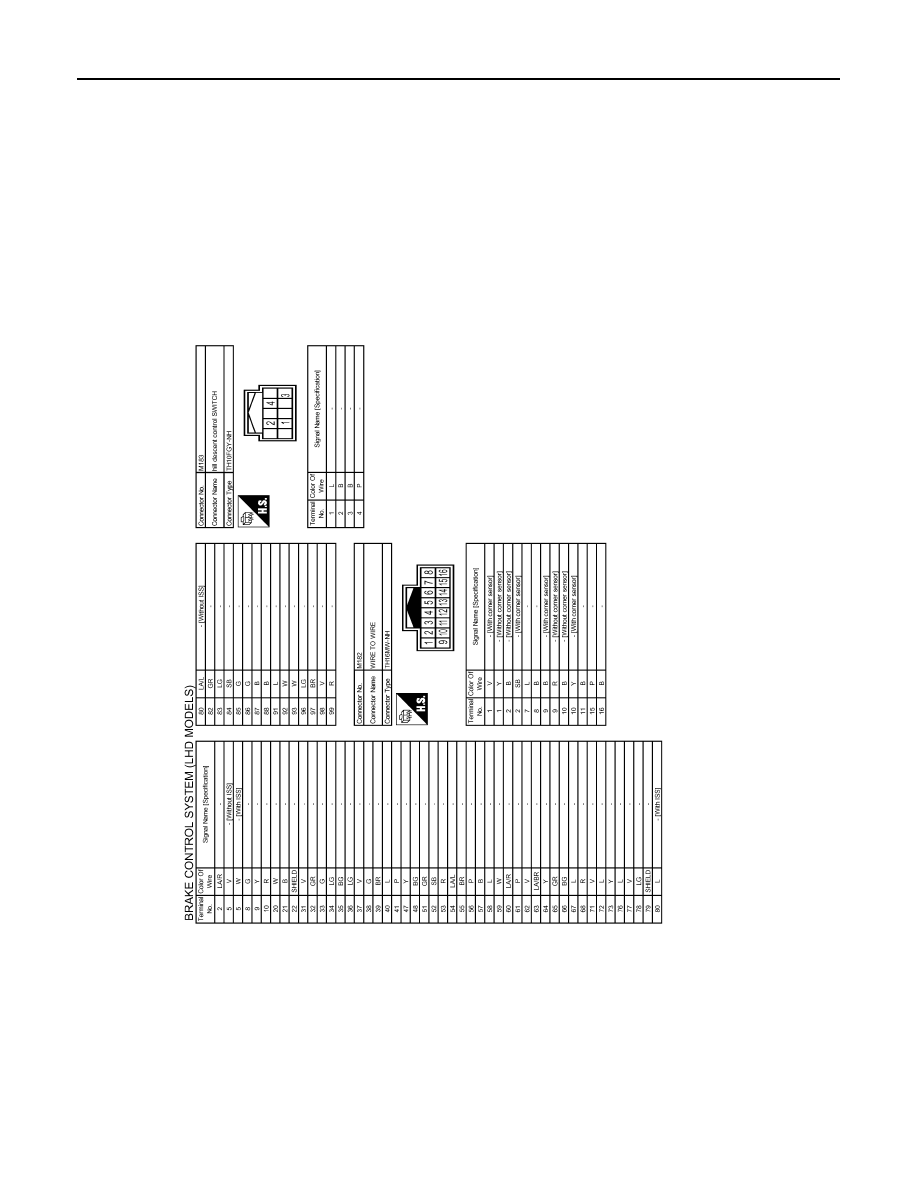

RHD : Wiring Diagram

INFOID:0000000010723651

JRFWC1751GB

BRC-92

< WIRING DIAGRAM >

[WITH VDC (ESP)]

BRAKE CONTROL SYSTEM

JRFWC1752GB

BRAKE CONTROL SYSTEM

BRC-93

< WIRING DIAGRAM >

[WITH VDC (ESP)]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

JRFWC1753GB
