Nissan X-Trail 32. Manual - part 1489

CENTER CONSOLE ASSEMBLY

IP-51

< REMOVAL AND INSTALLATION >

[RHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE ASSEMBLY

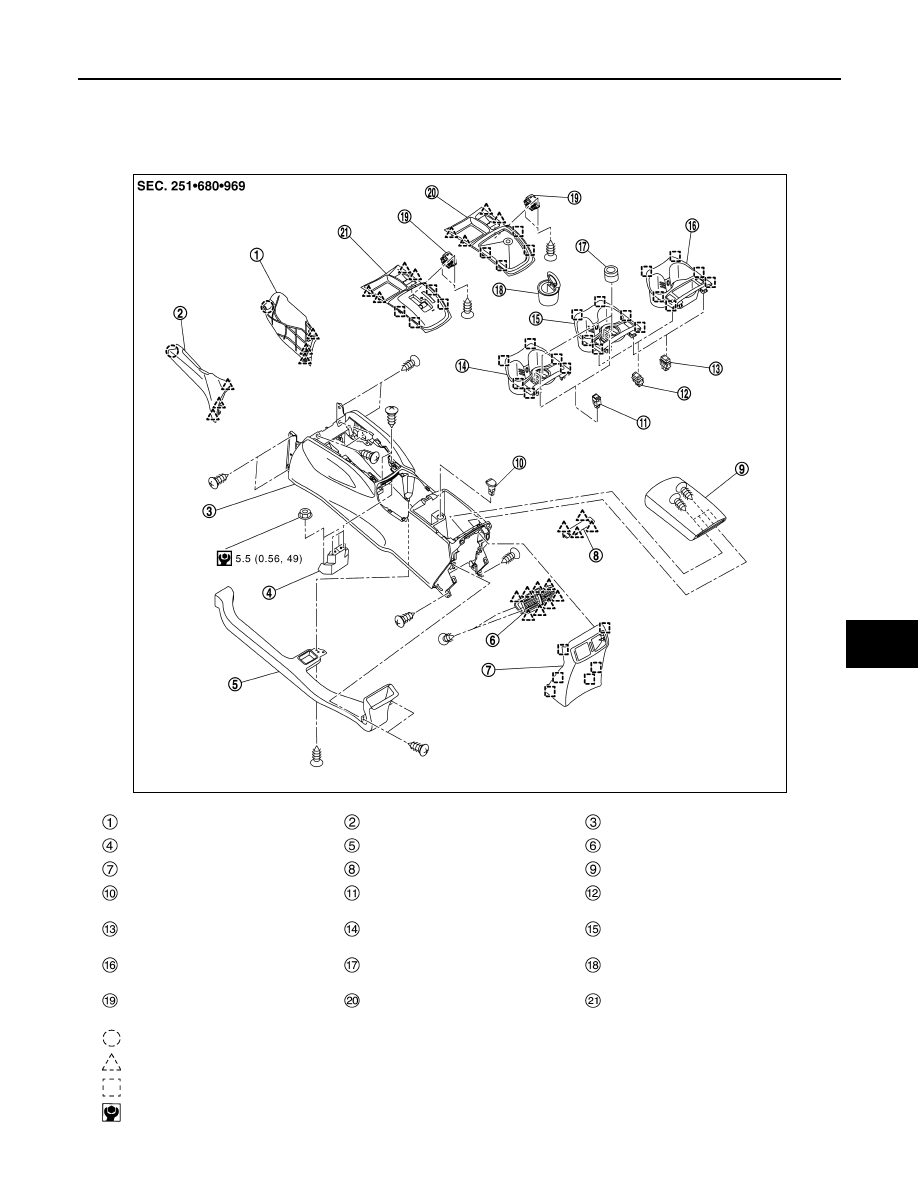

Exploded View

INFOID:0000000010981697

Instrument lower cover RH

Instrument lower cover LH

Center console assembly

Console bracket (M/T models)

Rear ventilator duct 2 (if equipped)

Rear ventilator grille (if equipped)

Console rear finisher

Console mask

Console lid

Power socket (if equipped)

Hill descent control switch
(if equipped)

Heated seat switch LH
(if equipped)

Heated seat switch RH
(if equipped)

Console switch panel

Console switch panel

Console switch panel

4WD mode switch
(if equipped)

Ashtray

Parking brake switch

Console boot assembly
(M/T models)

A/T console finisher
(CVT models)

: Clip

: Pawl

: Metal clip

: N·m (kg-m, in-lb)

JMJIB0237GB

IP-52

< REMOVAL AND INSTALLATION >

[RHD MODELS]

CENTER CONSOLE ASSEMBLY

Removal and Installation

INFOID:0000000010981698

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 minutes
or more.

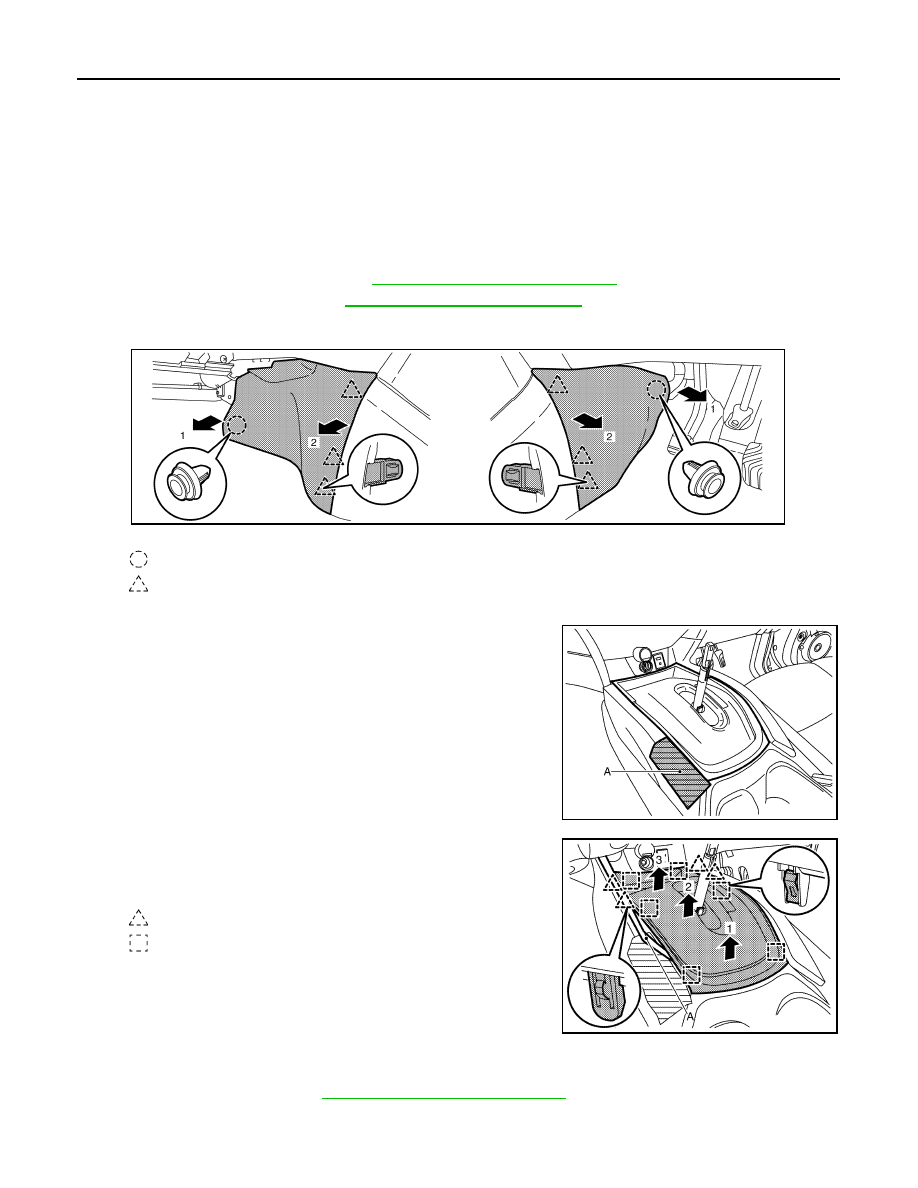

REMOVAL

CAUTION:

When removing, always use a remover tool that is made of plastic.

1.

Put selector lever in

“

N

”

 position (CVT models).

2.

Remove selector lever knob. Refer to

TM-403, "Removal and Installation"

. (CVT models)

3.

Remove shift lever knob. Refer to

TM-28, "Removal and Installation"

. (M/T models)

4.

Disengage fixing clip and pawls, and then remove instrument lower cover LH and RH according to numer-
ical order 1

→

2 indicated by arrows as shown in the figure.

5.

Remove A/T console finisher. (CVT models)

a.

Apply protective tape (A) on the part to protect it from damage.

b.

Disengage fixing metal clips and pawls using a remover tool (A),
and then remove A/T console finisher according to numerical
order 1

→

3 indicated by arrows as shown in the figure.

c.

Disconnect harness connector.

d.

Remove the following part after removing A/T console finisher.
Parking brake switch: Refer to

PB-156, "Removal and Installation"

.

6.

Remove console boot assembly. (M/T models)

: Clip

: Pawl

JMJIA9741ZZ

JMJIA9740ZZ

: Pawl

: Metal clip

JMJIA9775ZZ

CENTER CONSOLE ASSEMBLY

IP-53

< REMOVAL AND INSTALLATION >

[RHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

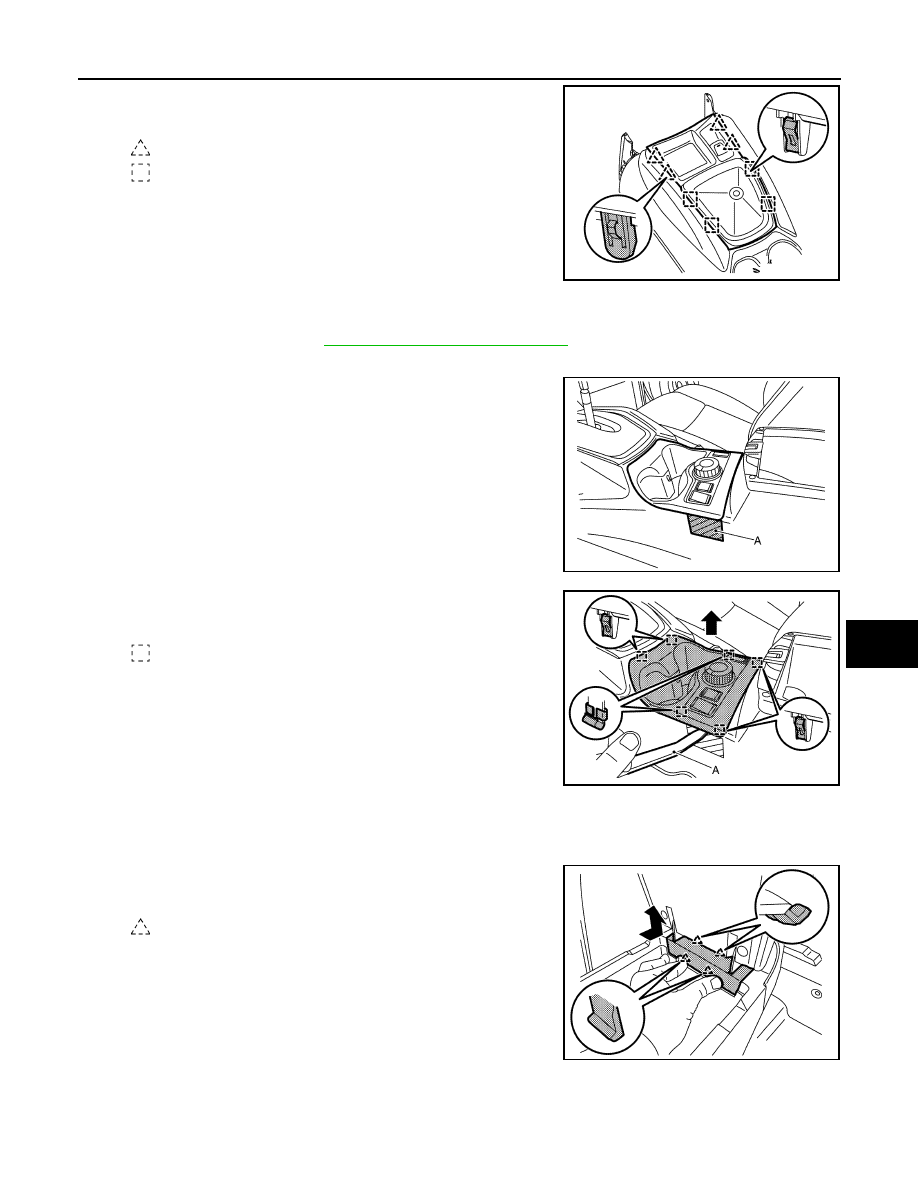

a.

Disengage fixing metal clips and pawls, and then remove con-
sole boot assembly.

b.

Disconnect harness connector.

c.

Remove the following part after removing console boot assembly.
Parking brake switch: Refer to

PB-156, "Removal and Installation"

.

7.

Remove console switch panel.

a.

Apply protective tape (A) on the part to protect it from damage.

b.

Disengage fixing metal clips using a remover tool (A), and then
remove console switch panel from center console assembly.

c.

Disconnect harness connectors.

8.

Remove console mask.

a.

Open the console lid.

b.

Disengage fixing pawls, and then remove console mask by
arrow as shown in the figure.

9.

Remove console rear finisher assembly.

: Pawl

: Metal clip

JMJIB0184ZZ

JMJIA9816ZZ

: Metal clip

JMJIA9818ZZ

: Pawl

JMJIA9815ZZ

IP-54

< REMOVAL AND INSTALLATION >

[RHD MODELS]

CENTER CONSOLE ASSEMBLY

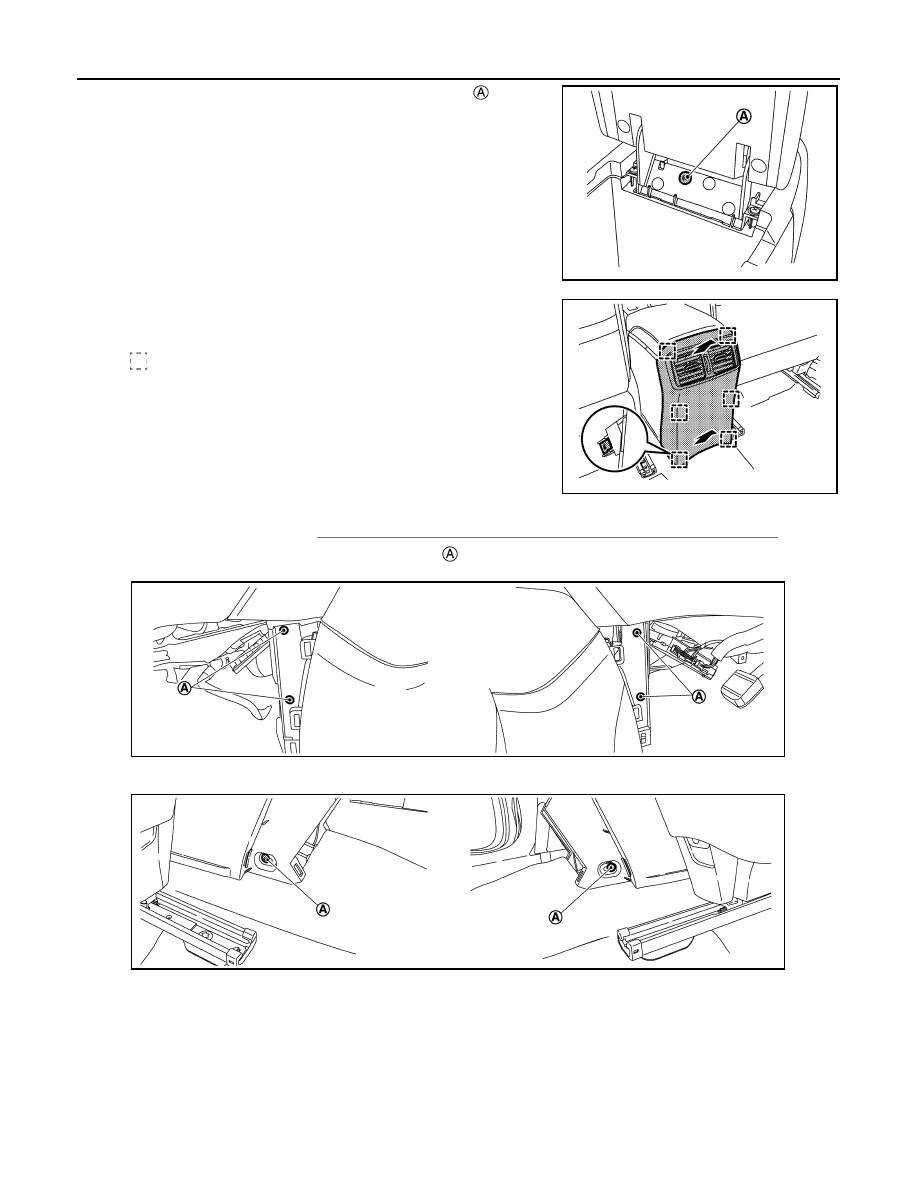

a.

Remove console rear finisher assembly fixing screw

.

b.

Disengage fixing metal clips, and then remove console rear fin-
isher assembly by arrows as shown in the figure.

c.

Remove the following part after removing console rear finisher assembly. (if equipped)
Rear ventilator grille: Refer to

VTL-14, "REAR VENTILATOR GRILLE : Removal and Installation"

.

10. Remove center console assembly fixing screws

.

• Front side

• Rear  side

JMJIA9628ZZ

: Metal clip

JMJIA9757ZZ

JMJIA9747ZZ

JMJIA9748ZZ
