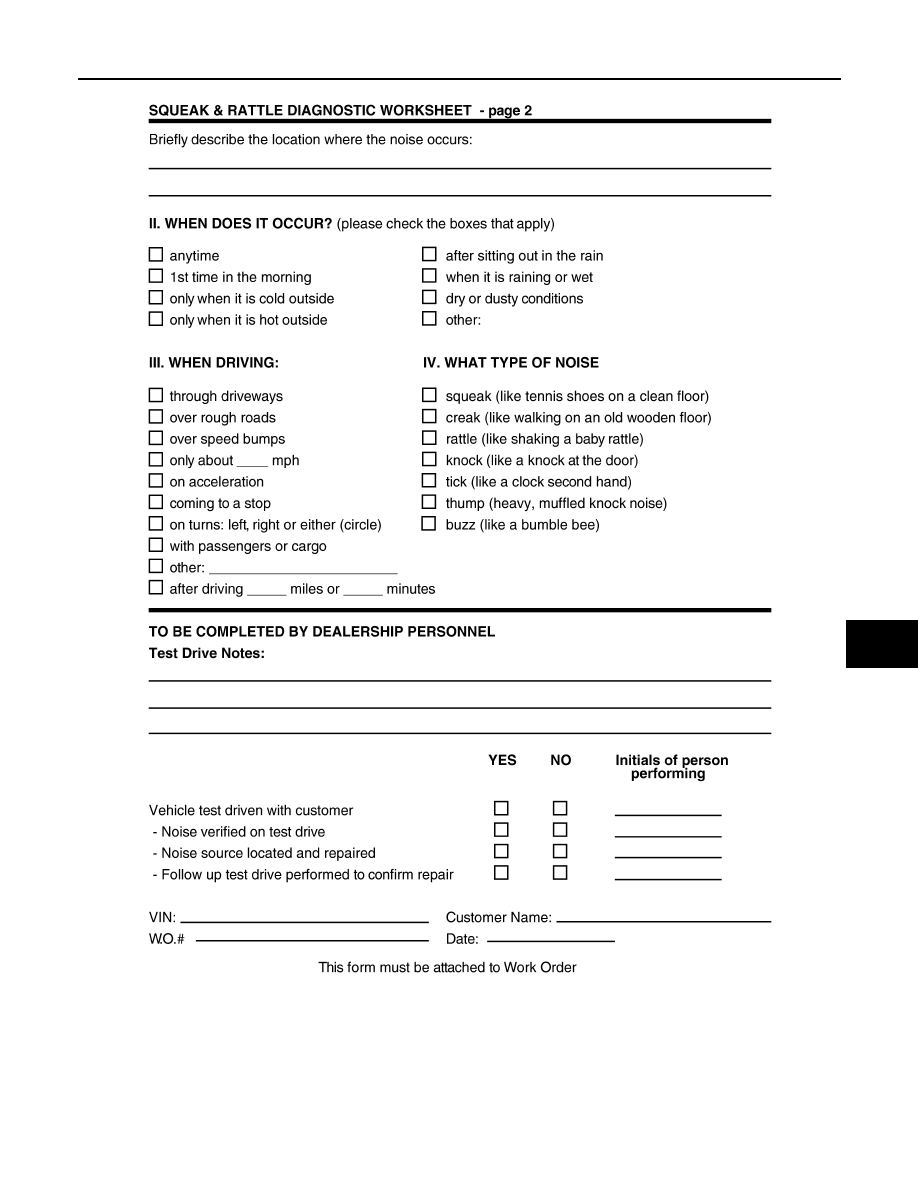

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-39

< SYMPTOM DIAGNOSIS >

[RHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

PIIB8742E

IP-40

< REMOVAL AND INSTALLATION >

[RHD MODELS]

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

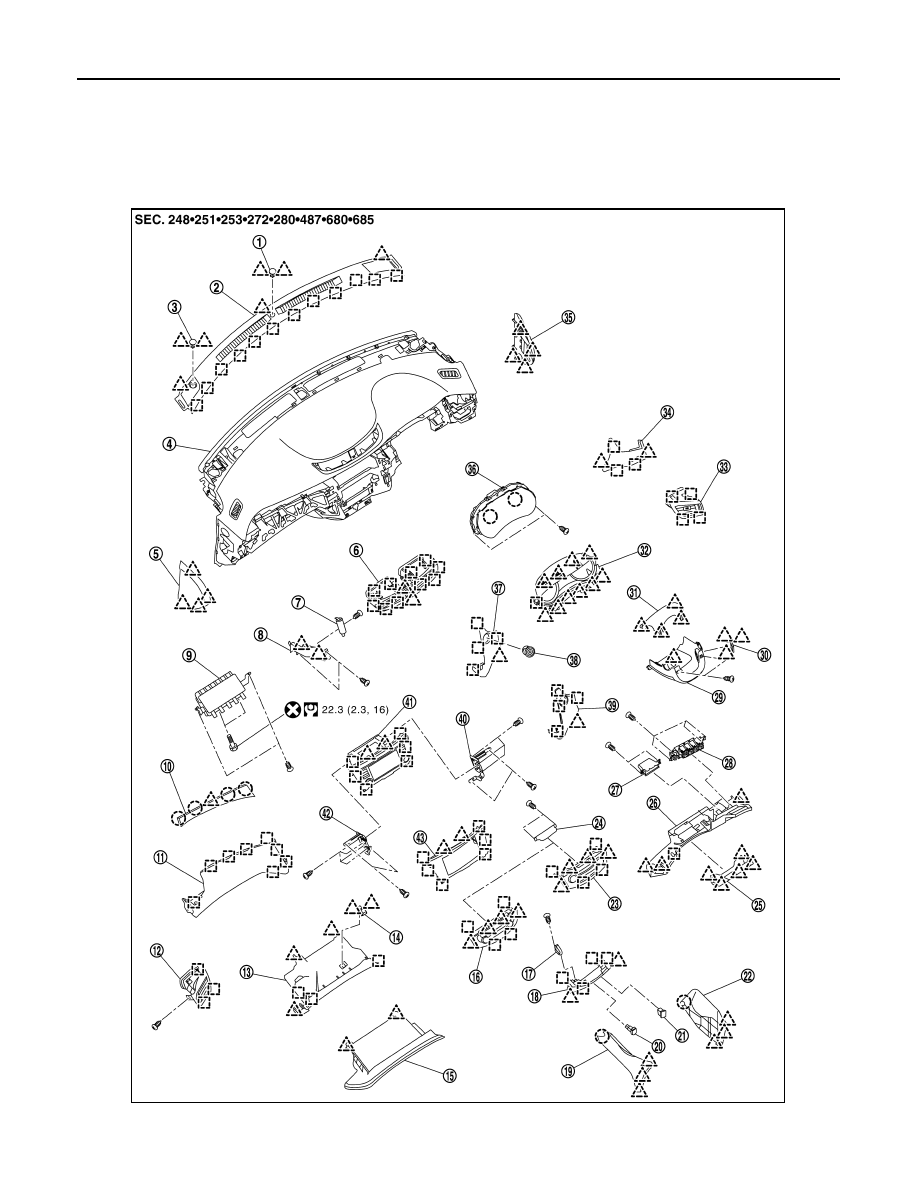

Exploded View

INFOID:0000000010981695

JMJIA9776GB

INSTRUMENT PANEL ASSEMBLY

IP-41

< REMOVAL AND INSTALLATION >

[RHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000010981696

WORK STEP

When removing instrument panel assembly, combination meter and audio unit or NAVI control unit take steps
in the order shown by the numbers below.

Sunload sensor (if equipped)

Instrument garnish

Switch panel A

Instrument panel assembly

Instrument mask

Center ventilator grille

Glove box damper

Glove box bracket

Passenger air bag module

Instrument finisher B

Instrument upper panel assist

Side ventilator grille LH

Glove box cover

Glove box lamp assembly

Air bag cutoff switch

Glove box

A/C control
(automatic air conditioning)

In-vehicle sensor
(automatic air conditioning)

Instrument lower panel center

Instrument lower cover LH

Power socket (if equipped)

USB connector and AUX jack
(if equipped)

Instrument lower cover RH

A/C control (A/C amp.)
(manual air conditioning)

Warning lamp mask

Fuse block lid

Instrument lower panel RH

Card pocket

Switch bracket

Steering column cover lower

Ignition switch cover

Steering column cover upper

Cluster lid A

Side ventilator grille RH

Instrument finisher A

Instrument mask

Combination meter

Instrument finisher E
(with Intelligent Key System)

Push-button ignition switch
(with Intelligent Key System)

Instrument finisher E
(without Intelligent Key System)

Audio bracket RH

Audio unit
(audio system without NAVI)
NAVI control unit
(audio system with NAVI)

Audio bracket LH

Cluster lid C
(without audio system)

: Clip

: Pawl

: Metal clip

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

PARTS

INSTRUMENT

PANEL

ASSEMBLY

COMBINATION

METER

AUDIO UNIT

OR

NAVI CONTROL UNIT

Center console assembly

[1]

A/C control
(automatic air conditioning)
A/C control (A/C amp.)
(manual air conditioning)

[2]

[1]

[1]

Instrument lower panel center

[3]

Instrument finisher E

[4]

[2]

[2]

Glove box

[5]

Instrument mask LH

[6]

[3]

Glove box cover

[7]

Glove box bracket

[8]

Side ventilator grille LH

[9]

[4]

Instrument finisher B

[10]

[5]

IP-42

< REMOVAL AND INSTALLATION >

[RHD MODELS]

INSTRUMENT PANEL ASSEMBLY

[]: Number indicates step in removal procedure.

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 minutes
or more.

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic.
• Always apply the parking brake before performing removal and installation.

1.

Remove center console assembly. Refer to

IP-52, "Removal and Installation"

.

2.

Remove A/C control (automatic air conditioning) or A/C control (A/C amp.) (manual air conditioning).
Refer to

HAC-125, "Removal and Installation"

 (automatic air conditioning) or

HAC-222, "Removal and

Installation"

 (manual air conditioning).

3.

Remove instrument lower panel center.

Instrument upper panel assist

[11]

Audio unit or NAVI control unit
(with audio system)

[12]

[6]

Cluster lid C
(without audio system)

[13]

Instrument mask RH

[14]

[3]

Fuse block lid

[15]

[4]

Hood lock control handle

[16]

[5]

instrument lower panel RH

[17]

[6]

Side ventilator grille RH

[18]

[7]

Instrument finisher A

[19]

[8]

Cluster lid A

[20]

[9]

Combination meter

[21]

[10]

Sunload sensor (if equipped)

[22]

Front pillar garnish LH and RH

[23]

Instrument garnish

[24]

Center ventilator grille

[25]

Driver air bag module

[26]

Steering wheel

[27]

Steering column cover

[28]

Spiral cable

[29]

Steering angle sensor (if equipped)

[30]

Combination switch

[31]

Passenger air bag mounting bolt

[32]

Passenger air bag harness connector

[33]

Instrument panel assembly

[34]
