SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-11

< SYMPTOM DIAGNOSIS >

[LHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

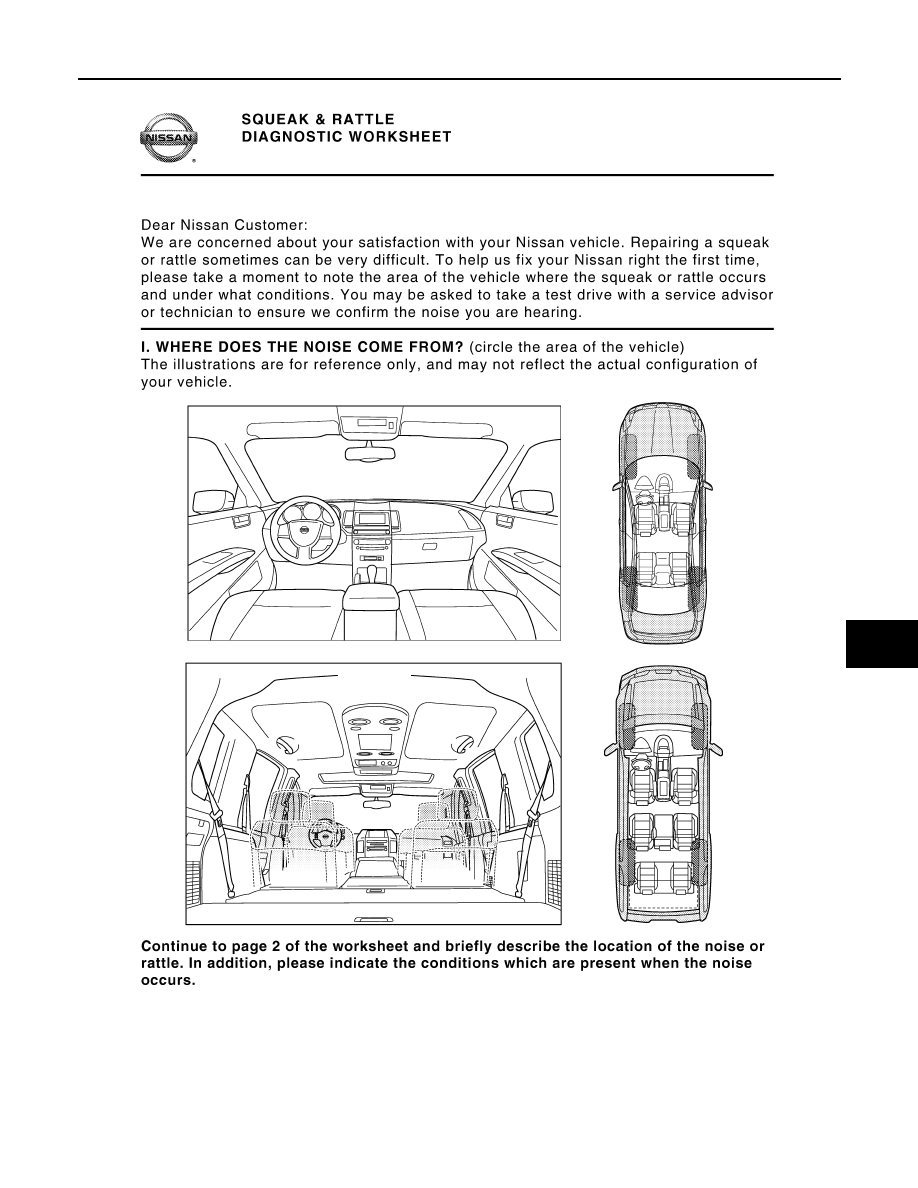

Diagnostic Worksheet

INFOID:0000000010981674

PIIB8740E

IP-12

< SYMPTOM DIAGNOSIS >

[LHD MODELS]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

INSTRUMENT PANEL ASSEMBLY

IP-13

< REMOVAL AND INSTALLATION >

[LHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

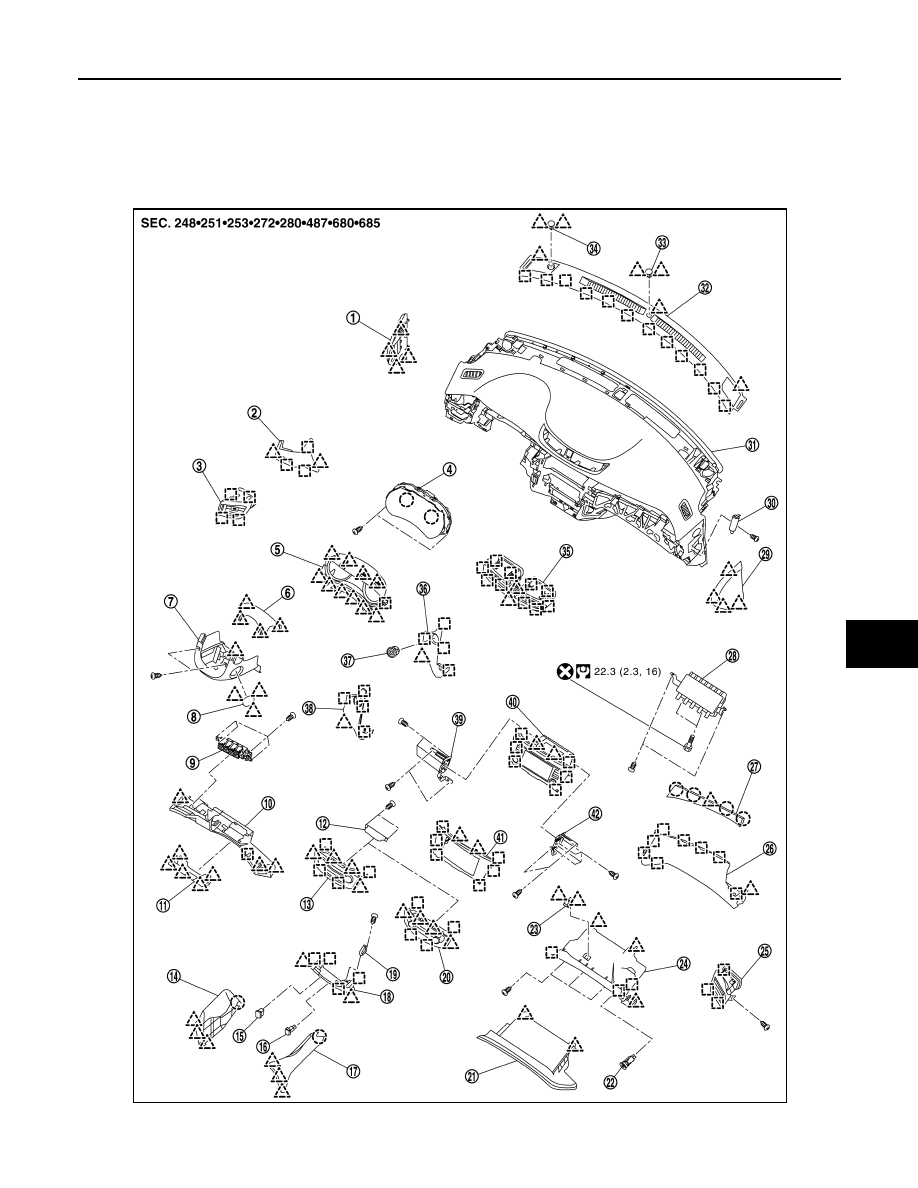

Exploded View

INFOID:0000000010981675

JMJIB0236GB

IP-14

< REMOVAL AND INSTALLATION >

[LHD MODELS]

INSTRUMENT PANEL ASSEMBLY

Removal and Installation

INFOID:0000000010981676

WORK STEP

When removing instrument panel assembly, combination meter and audio unit or AV control unit take steps in
the order shown by the numbers below.

Instrument mask LH

Instrument finisher A

Side ventilator grille LH

Combination meter

Cluster lid A

Steering column cover upper

Steering column cover lower

Ignition switch cover

Switch panel

Instrument lower panel LH

Fuse block

Warning lamp mask

A/C control
(automatic air conditioning)

Instrument lower cover LH

Power socket

USB connector and AUX jack

Instrument lower cover RH

Instrument lower panel center

In-vehicle sensor
(automatic air conditioning)

A/C control (A/C amp.)
(manual air conditioning)

Glove box

Air bag cutoff switch

Glove box lamp assembly

Glove box cover

Side ventilator grille RH

Instrument upper panel assembly

Instrument finisher B

Passenger air bag module

Instrument mask RH

Glove box damper

Instrument panel assembly

Instrument garnish

Sunload sensor (if equipped)

Switch panel A

Center ventilator grille

Instrument finisher E
(with Intelligent Key System)

Push-button ignition switch
(with Intelligent Key System)

Instrument finisher E
(without Intelligent Key System)

Audio bracket LH

Audio unit
 (audio system without NAVI)
NAVI control unit
(audio system with NAVI)

Cluster lid C
(without audio system)

Audio bracket RH

: Clip

: Pawl

: Metal clip

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

PARTS

INSTRUMENT

PANEL

ASSEMBLY

COMBINATION

METER

AUDIO UNIT

OR

NAVI CONTROL UNIT

Center console assembly

[1]

A/C control
(automatic air conditioning)
A/C control (A/C amp.)
(manual air conditioning)

[2]

[1]

[1]

Instrument lower panel center

[3]

Instrument finisher E

[4]

[2]

[2]

Glove box

[5]

Instrument mask RH

[6]

[3]

Glove box cover

[7]

[4]

Side ventilator grille RH

[8]

[5]

Instrument finisher B

[9]

[6]

Instrument upper panel assist

[10]

[7]

Audio unit or NAVI control unit (with audio sys-
tem)

[11]

[8]
