LUGGAGE TRIM

INT-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

*1

: Without third seat

*2

: Without third seat and with temporary spare tire

*3

: With third seat

*4

: Without third seat and with full size spare tire

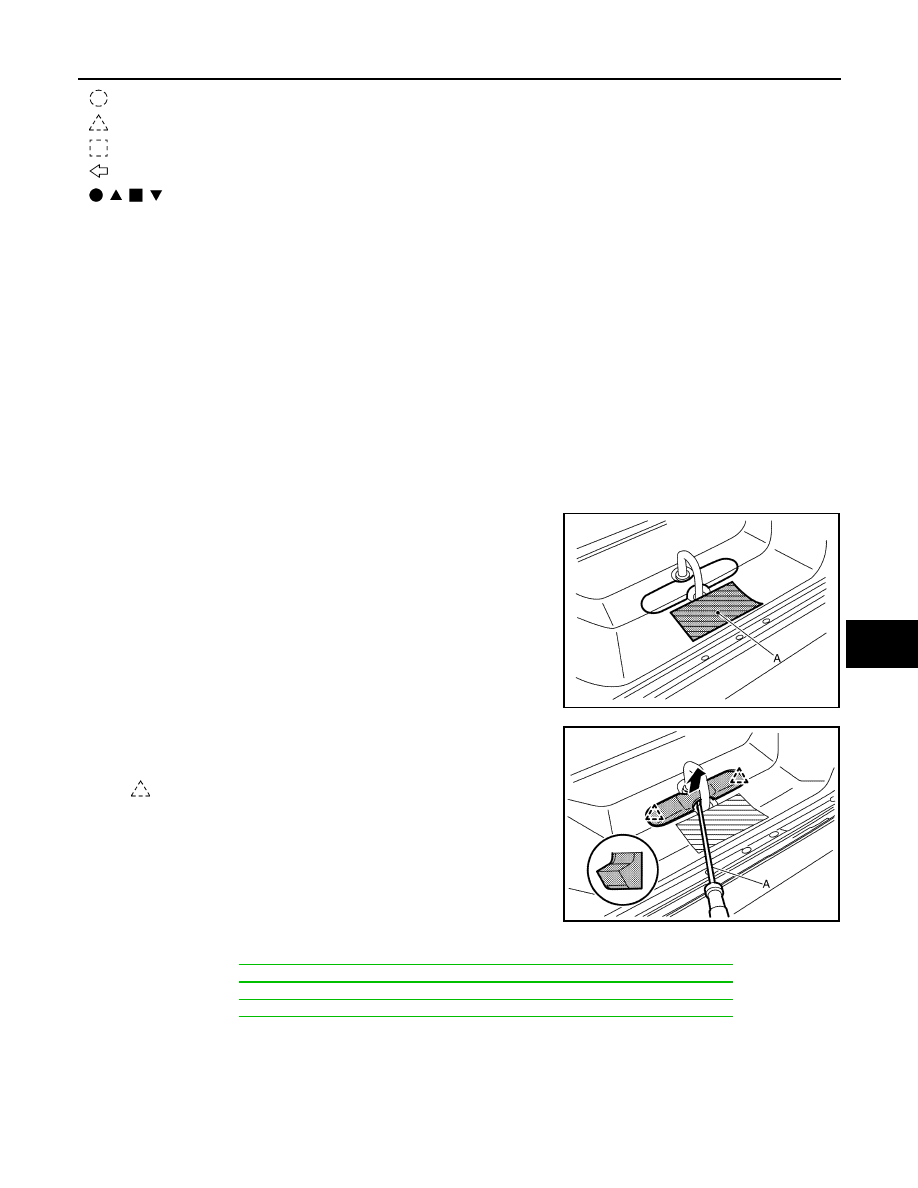

LUGGAGE REAR PLATE

LUGGAGE REAR PLATE : Removal and Installation

INFOID:0000000010730562

CAUTION:

Never damage the body panel.

REMOVAL

1.

Fully open back door.

2.

Remove rear luggage floor board center.

3.

Remove luggage rear plate mask.

a.

Apply protective tape (A) on luggage rear plate to protect it from
damage.

b.

Disengage luggage rear plate mask fixing pawls using a
remover tool (A), and then remove luggage rear plate mask.

4.

Remove back door weather-strip. Refer to the following.
• Type 1: Refer to

DLK-295, "BACK DOOR WEATHER-STRIP : Removal and Installation"

.

• Type 2: Refer to

DLK-603, "BACK DOOR WEATHER-STRIP : Removal and Installation"

.

• Type 3: Refer to

DLK-766, "BACK DOOR WEATHER-STRIP : Removal and Installation"

.

• Type 4: Refer to

DLK-908, "BACK DOOR WEATHER-STRIP : Removal and Installation"

.

: Clip

: Pawl

: Metal clip

: Vehicle front

,

,

,

: indicates that the part is connected at points with same symbol in actual vehicle.

JMJIA9649ZZ

: Pawl

JMJIA9642ZZ

INT-42

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

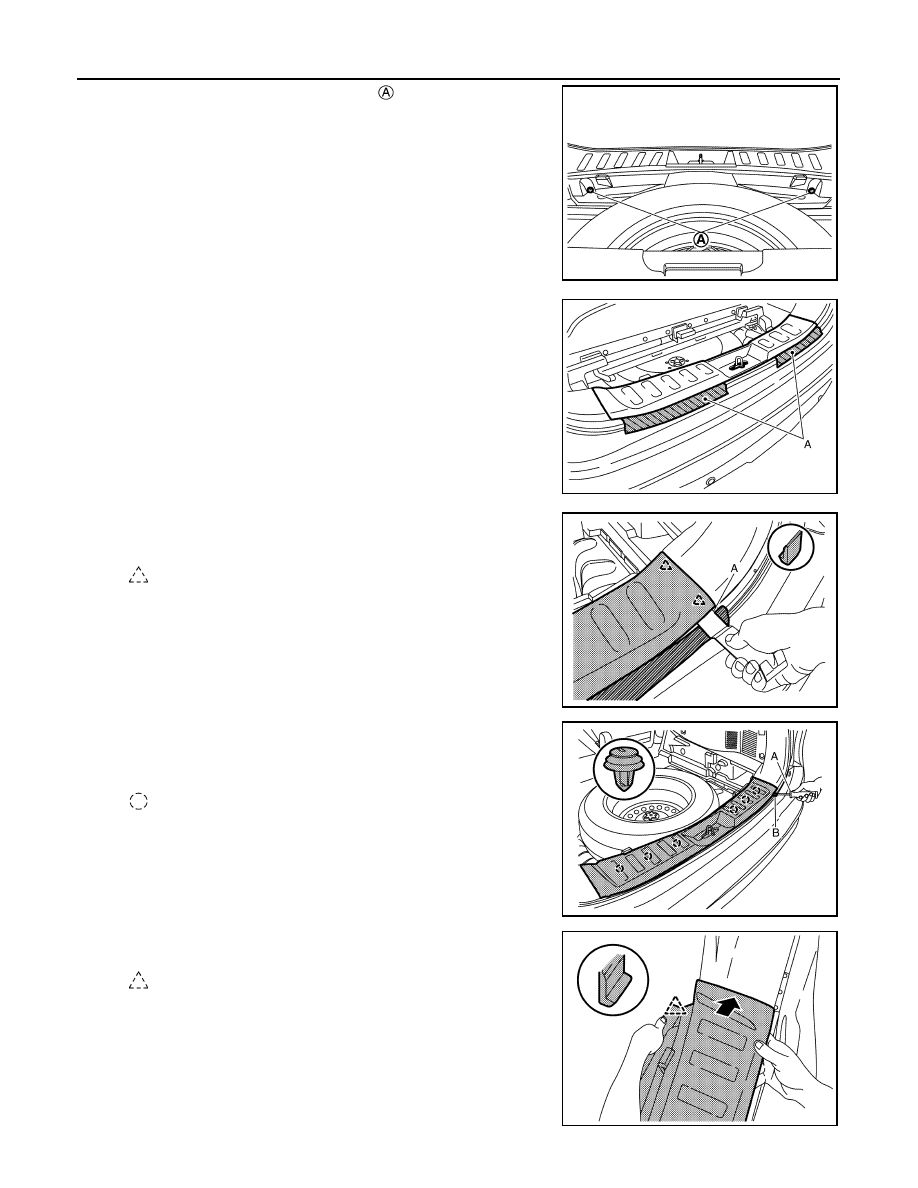

5.

Remove luggage rear plate fixing clips

.

6.

Apply protective tapes (A) on the body panel to protect it from
damage.

7.

Disengage luggage rear plate fixing pawls using a remover tool
(A).

8.

Remove luggage rear plate fixing clips using a remover tool (A).

CAUTION:

Use a remover tool wrapped in tape (B).

9.

Disengage fixing pawls, and then remove luggage rear plate.

JSJIA0106ZZ

JMJIA9643ZZ

: Pawl

JMJIB0102ZZ

: Clip

JMJIB0103ZZ

: Pawl

JMJIA9837ZZ

LUGGAGE TRIM

INT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• Check in advance that clips and pawls are accurately aligned with the portions on body panel, and

then install by pressing in.

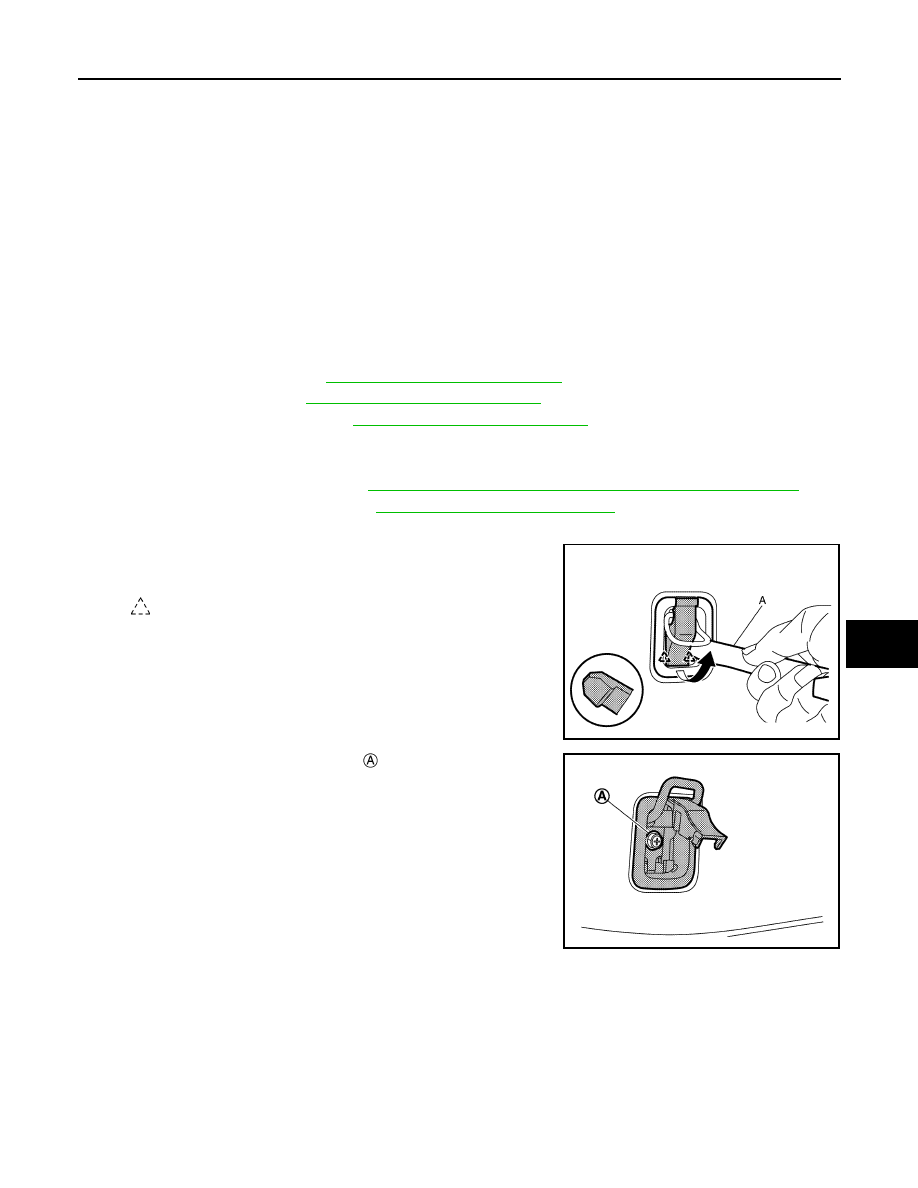

LUGGAGE SIDE LOWER FINISHER

LUGGAGE SIDE LOWER FINISHER : Removal and Installation

INFOID:0000000010730563

CAUTION:

Never damage the body panel.

REMOVAL

1.

Remove tonneau cover assembly.

2.

Remove second seat. Refer to

SE-54, "Removal and Installation"

.

3.

Remove third seat. Refer to

SE-70, "Removal and Installation"

 (with third seat).

4.

Remove third seat striker. Refer to

SE-70, "Removal and Installation"

 (with third seat).

5.

Remove second seat belt outer anchor mounting anchor bolts.

6.

Remove third seat belt outer anchor mounting anchor bolts (with third seat).

7.

Remove luggage rear plate. Refer to

INT-41, "LUGGAGE REAR PLATE : Removal and Installation"

.

8.

Remove luggage room lamp. Refer to

INL-90, "Removal and Installation"

.

9.

Remove rope hook.

a.

Disengage fixing pawls using a remover tool (A), and then open
rope hook cover.

b.

Remove rope hook mounting bolt

, and then remove rope

hook.

: Pawl

JMJIA9839ZZ

JMJIB0104ZZ

INT-44

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

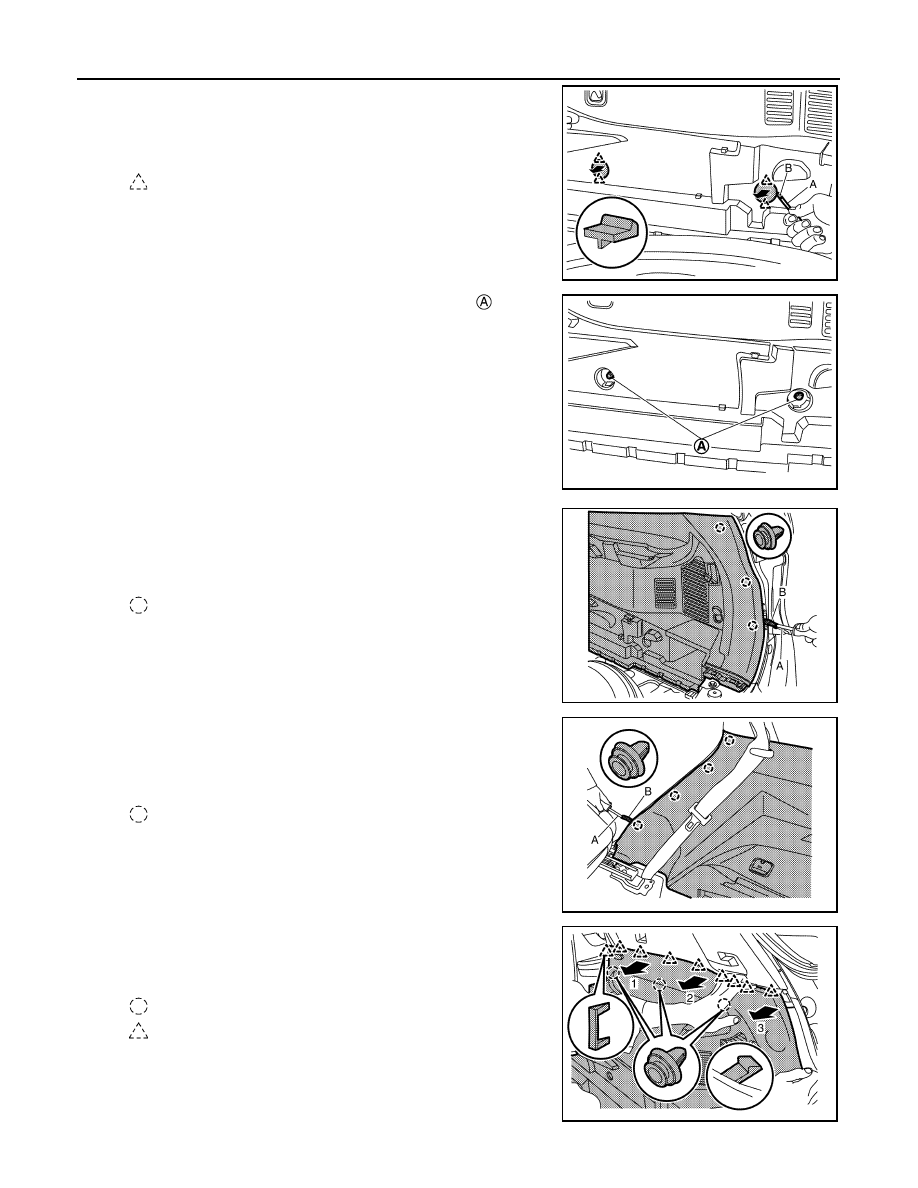

10. Remove luggage trim cap using a remover tool (A) (without third

seat).

CAUTION:

Use a remover tool wrapped in tape (B).

11. Remove luggage side lower finisher mounting bolts

 (without

third seat).

12. Remove luggage side lower finisher rear end fixing clips using a

remover tool (A).

CAUTION:

Use a remover tool wrapped in tape (B).

13. Remove luggage side lower finisher front end fixing clips using a

remover tool (A).

CAUTION:

Use a remover tool wrapped in tape (B).

14. Disengage luggage side lower finisher fixing clips and pawls

according to numerical order 1

→

3 indicated by arrows as shown

in the figure.

: Pawl

JMJIA9838ZZ

JMJIB0105ZZ

: Clip

JMJIB0106ZZ

: Clip

JMJIB0107ZZ

: Clip

: Pawl

JMJIB0281ZZ
