2.

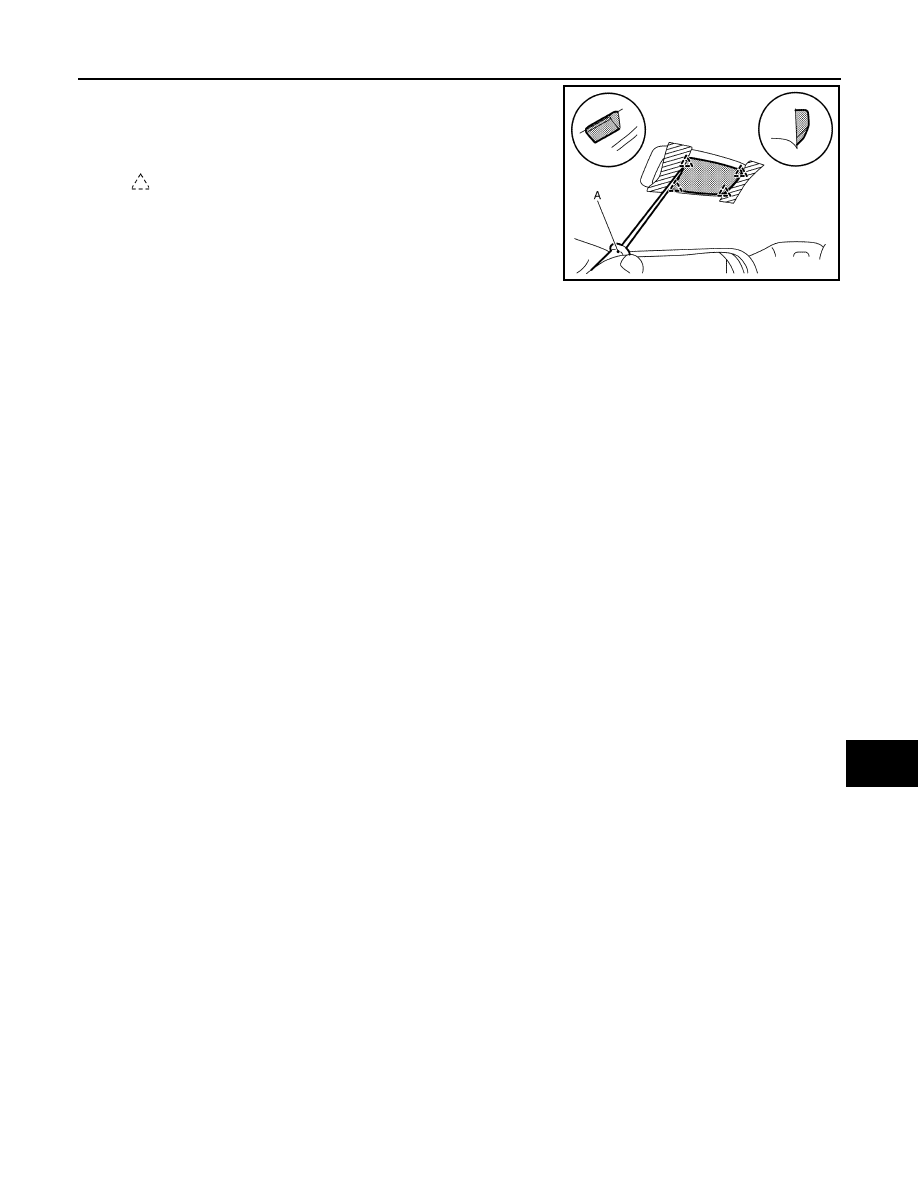

Disengage lens fixing pawls using a remover tool (A), and then
remove lens.

CAUTION:

Use a remover tool wrapped in tape.

3.

Remove bulb.

: Pawl

JMLIA3630ZZ

INL-90

< REMOVAL AND INSTALLATION >

LUGGAGE ROOM LAMP

LUGGAGE ROOM LAMP

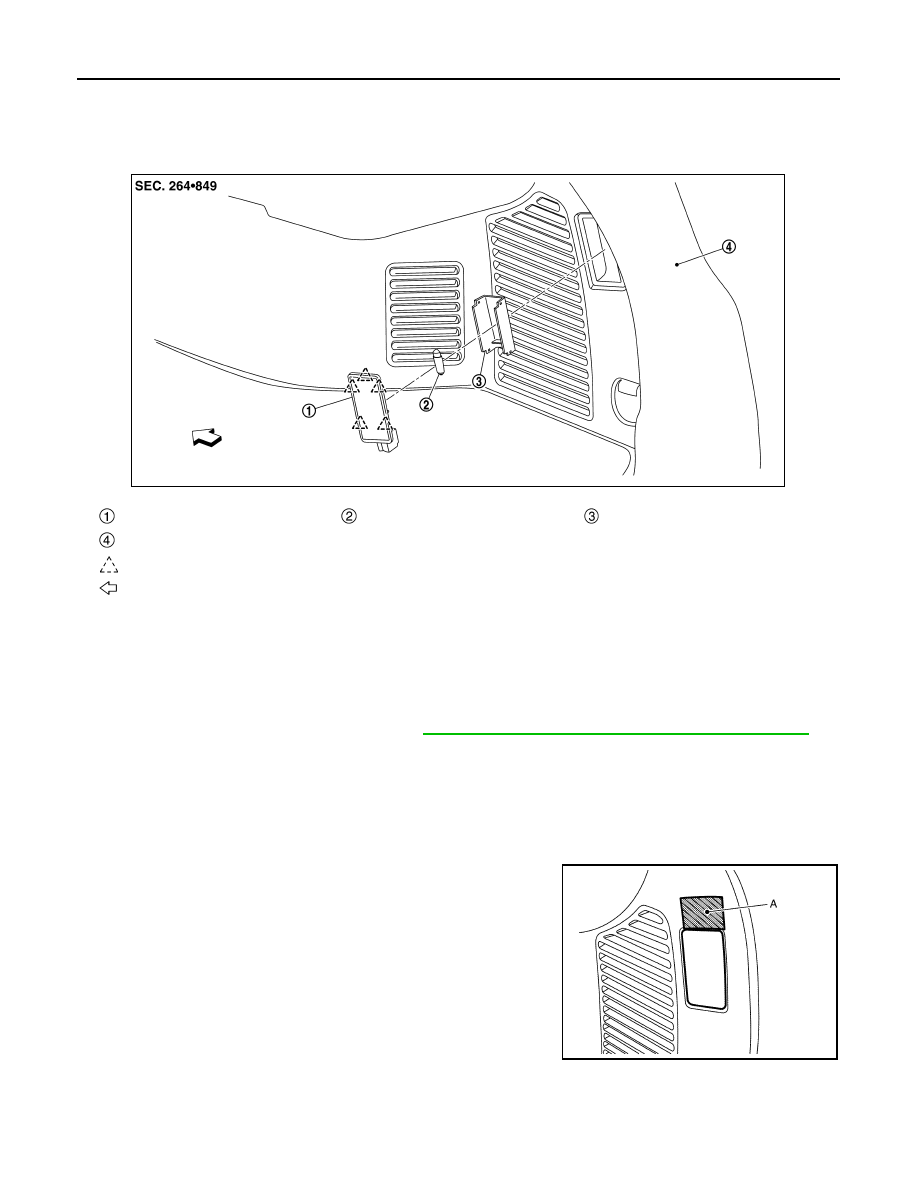

Exploded View

INFOID:0000000010755175

Removal and Installation

INFOID:0000000010755176

REMOVAL

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

INL-4, "Precautions for Removing Battery Terminal"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it for pre-

venting damage to the bulb.

• The surface of the bulb is very hot just after the lamp is turned OFF. Never touch the glass surface of

the bulb with bare hands for preventing burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (due to dirt or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

1.

Apply protective tape (A) to luggage side lower finisher RH for
protecting it from damage.

Luggage room lamp base

Bulb

Shade

Luggage side lower finisher RH

: Pawl

: Vehicle front

JMLIA4875ZZ

JMLIA4885ZZ

LUGGAGE ROOM LAMP

INL-91

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

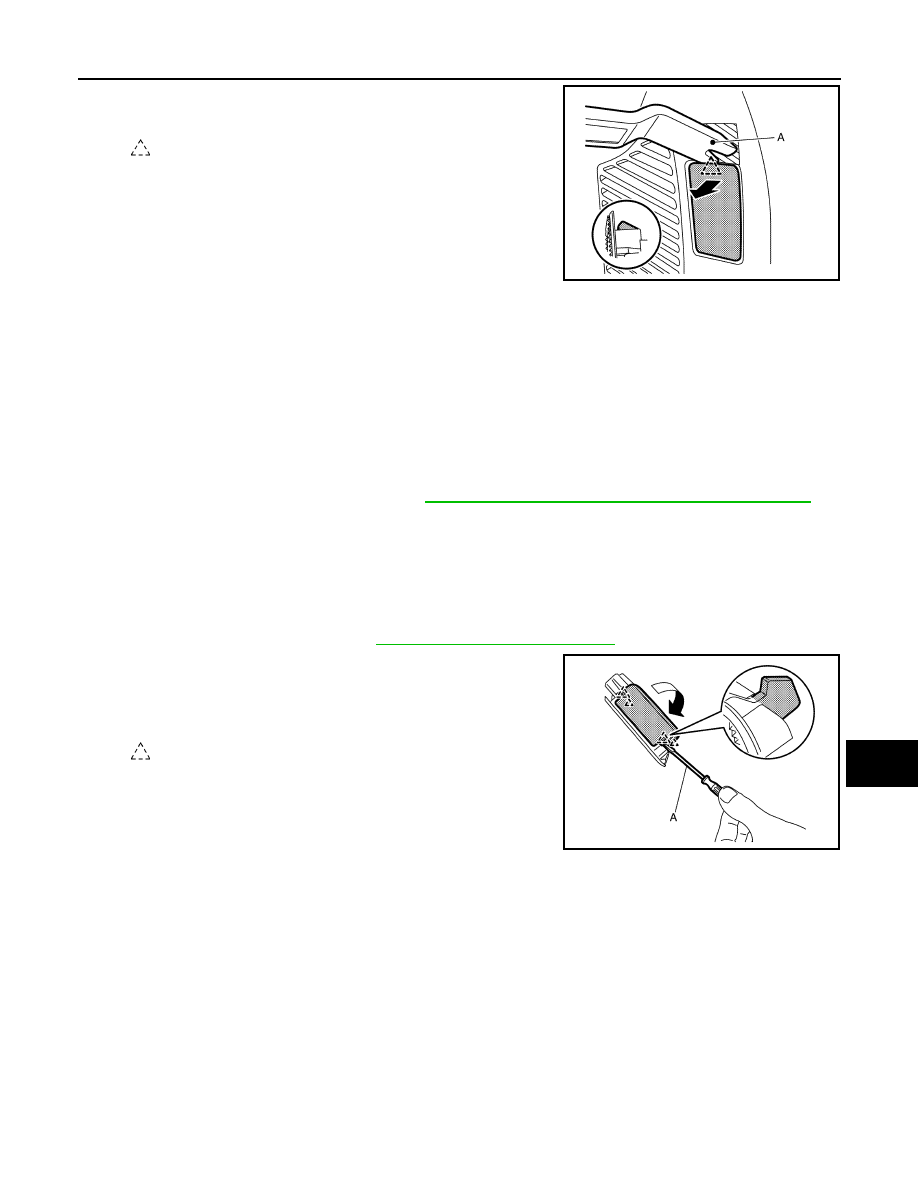

2.

Disengage luggage room lamp fixing pawl using a remover tool
(A).

3.

Disconnect luggage room lamp harness connector, and then remove luggage room lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010755177

LUGGAGE ROOM LAMP BULB

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

INL-4, "Precautions for Removing Battery Terminal"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it for pre-

venting damage to the bulb.

• The surface of the bulb is very hot just after the lamp is turned OFF. Never touch the glass surface of

the bulb with bare hands for preventing burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (due to dirt or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

1.

Remove luggage room lamp. Refer to

INL-90, "Removal and Installation"

.

2.

Disengage shade fixing pawls using a remover tool (A), and
then remove shade.

CAUTION:

Use a remover tool wrapped in tape.

3.

Remove bulb.

: Pawl

JMLIA4886ZZ

: Pawl

JMLIA1700ZZ

INL-92

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000010755178

*1

: Without sunroof

*2

: With sunroof

Item

Type

Wattage (W)

Push-button ignition switch illumination

LED

—

Map lamp

LED

—

Map lamp illumination
(Integrated into map lamp assembly)

LED

—

Vanity mirror lamp

—

1.8

Glove box lamp

Wedge

1.4

Room lamp

*1

—

8.0

Personal lamp

*2

Wedge

8.0

Luggage room lamp

—

3.4
