VANITY MIRROR LAMP

INL-81

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

2.

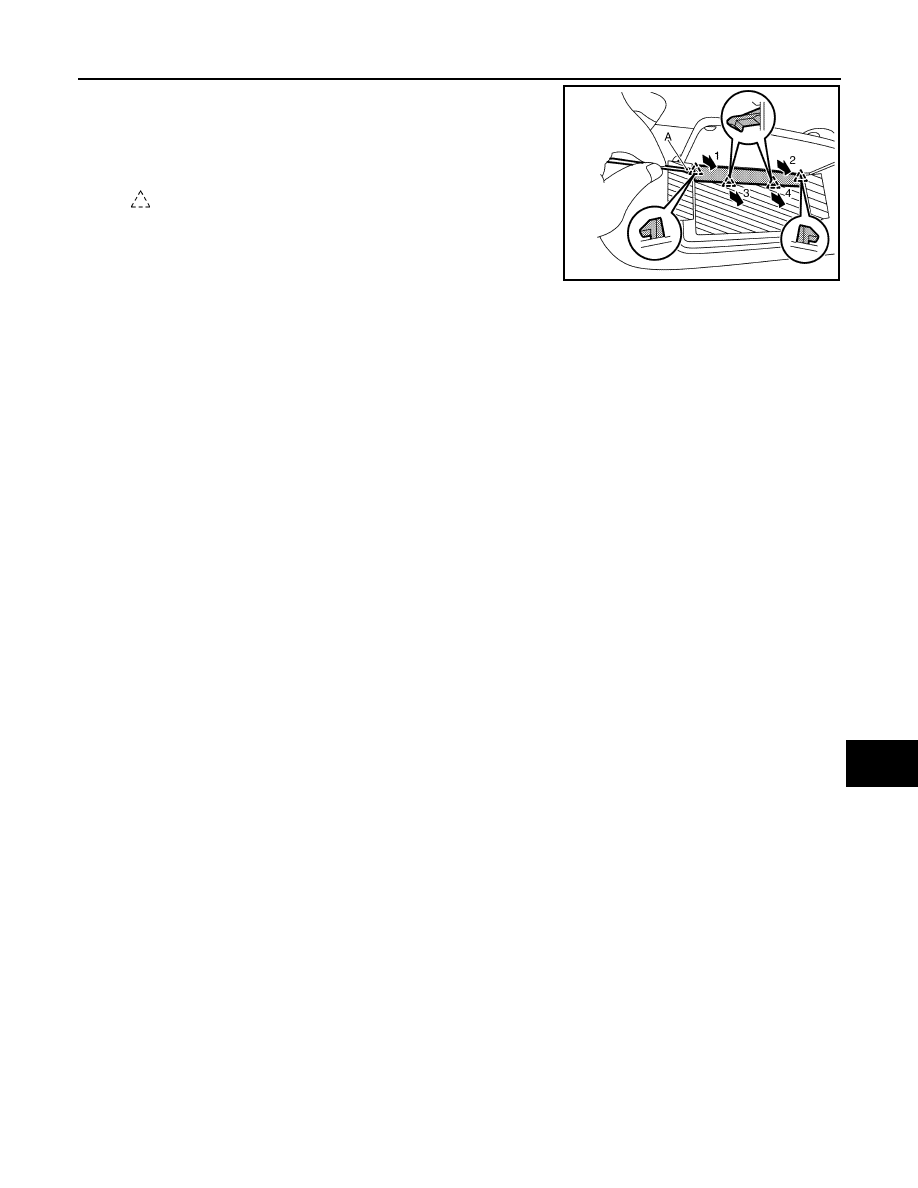

Disengage lens fixing pawls using a remover tool (A) according
to numerical order 1

→

4 indicated by arrows as shown in the fig-

ure, and then remove lens.

CAUTION:

Use a remover tool wrapped in tape.

3.

Remove bulb.

: Pawl

JMLIA4269ZZ

INL-82

< REMOVAL AND INSTALLATION >

GLOVE BOX LAMP

GLOVE BOX LAMP

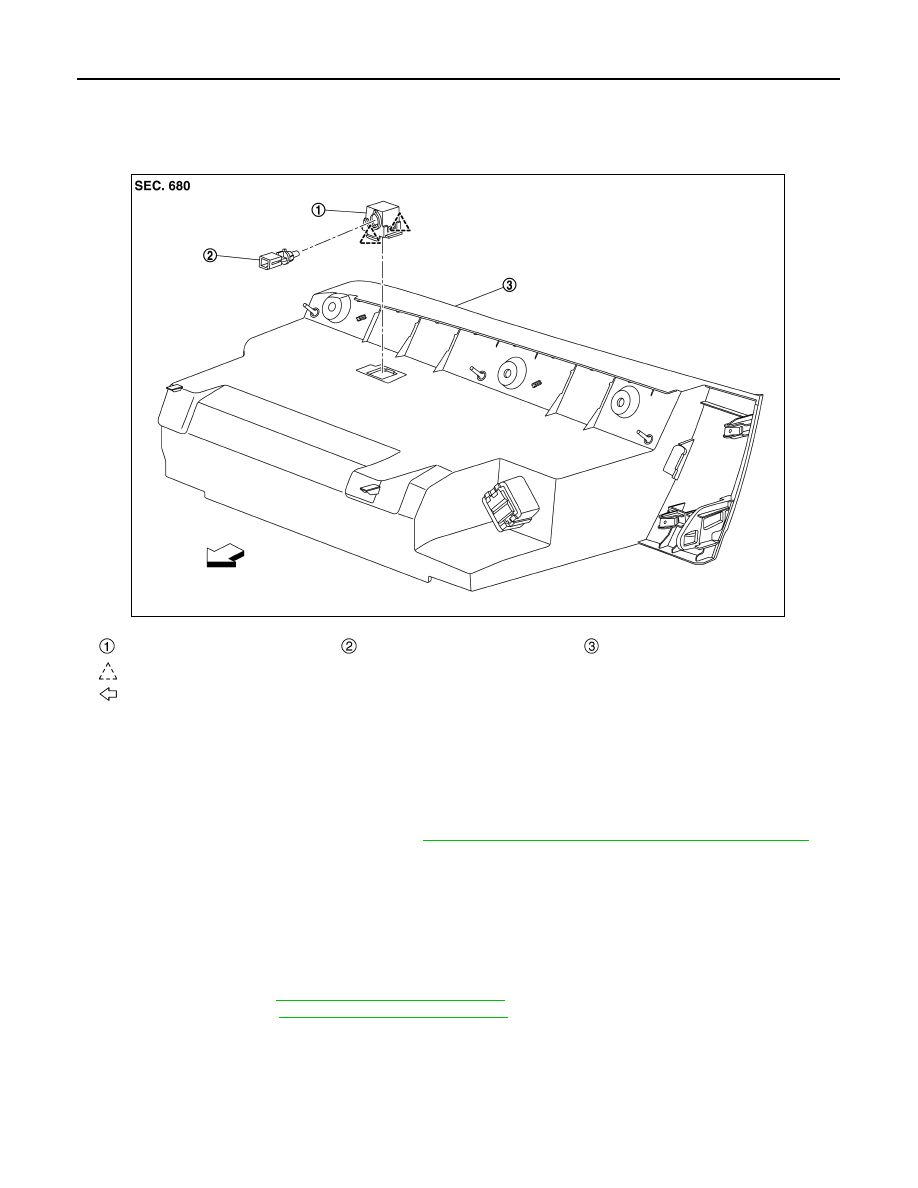

Exploded View

INFOID:0000000010755167

Replacement

INFOID:0000000010755168

GLOVE BOX LAMP BULB

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

INL-4, "Precautions for Removing Battery Terminal"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it for pre-

venting damage to the bulb.

• The surface of the bulb is very hot just after the lamp is turned OFF. Never touch the glass surface of

the bulb with bare hands for preventing burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (due to dirt or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

1.

Remove glove box cover. Refer to the following.
• LHD models: Refer to

IP-14, "Removal and Installation"

.

• RHD models: Refer to

IP-41, "Removal and Installation"

.

Lamp housing

Bulb & socket assembly

Glove box cover

: Pawl

: Vehicle front

JMLIA4880ZZ

GLOVE BOX LAMP

INL-83

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

2.

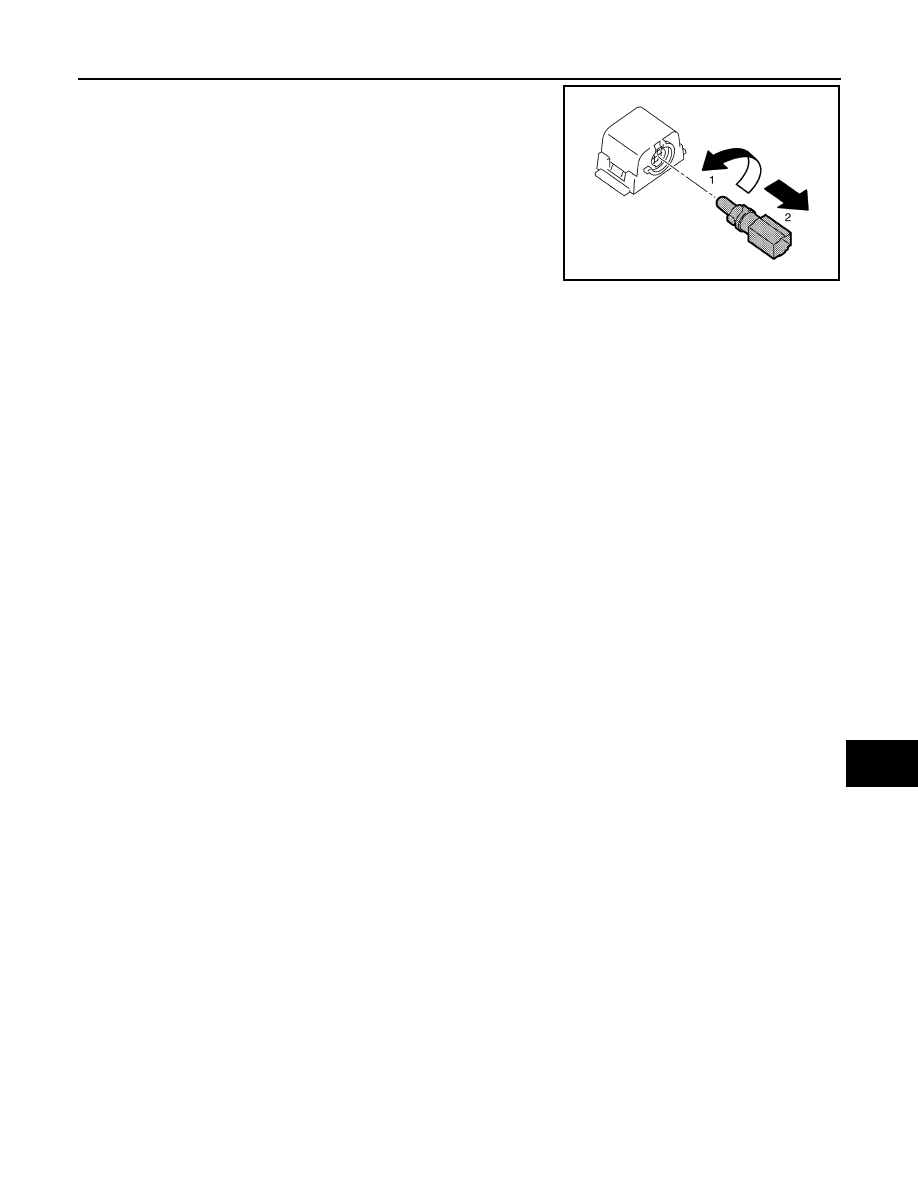

Remove bulb & socket assembly according to numerical order
1

→

2 indicated by arrows as shown in the figure.

JMLIA3624ZZ

INL-84

< REMOVAL AND INSTALLATION >

ROOM LAMP

ROOM LAMP

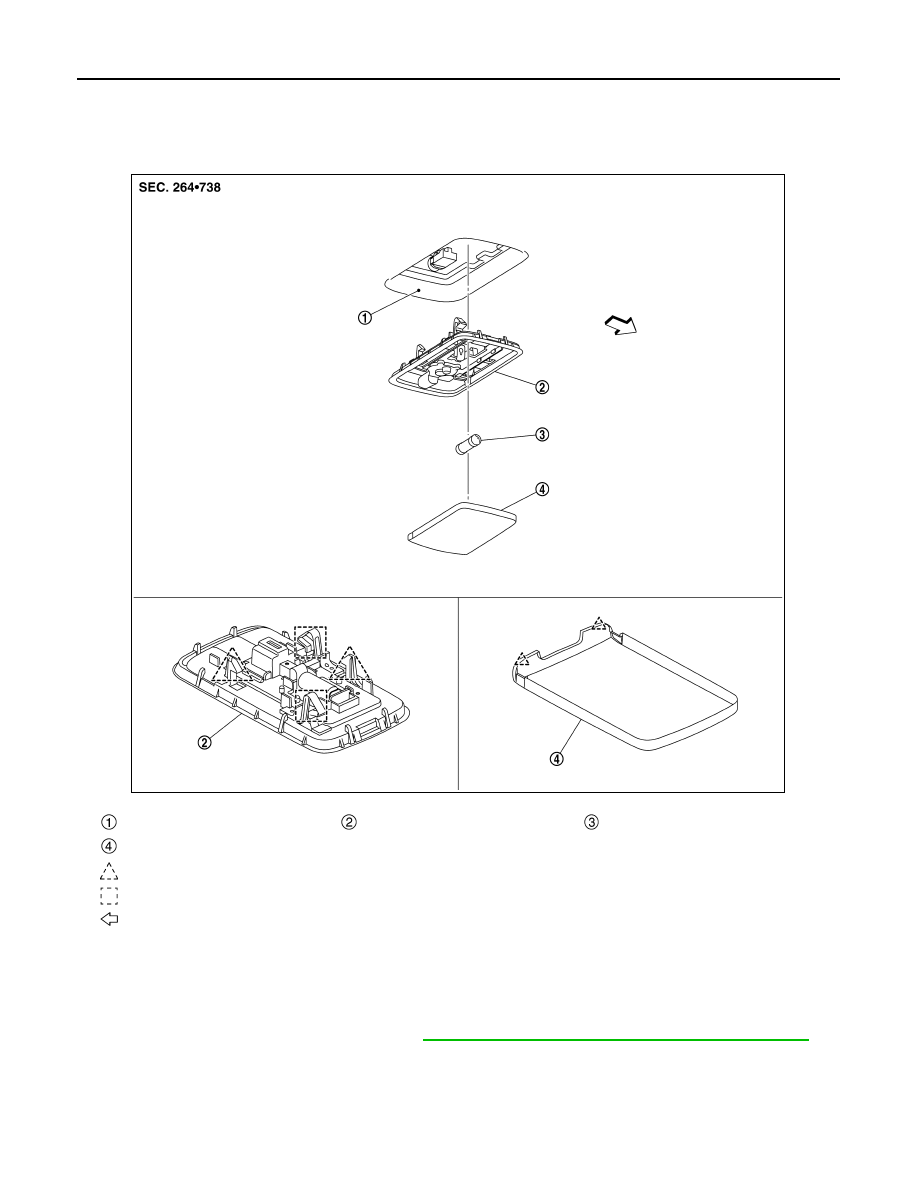

Exploded View

INFOID:0000000010755169

Removal and Installation

INFOID:0000000010755170

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

INL-4, "Precautions for Removing Battery Terminal"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it for pre-

venting damage to the bulb.

• The surface of the bulb is very hot just after the lamp is turned OFF. Never touch the glass surface of

the bulb with bare hands for preventing burns.

Headlining

Room lamp housing

Bulb

Lens

: Pawl

: Metal clip

: Vehicle front

JMLIA3194ZZ
