Nissan X-Trail 32. Manual - part 1460





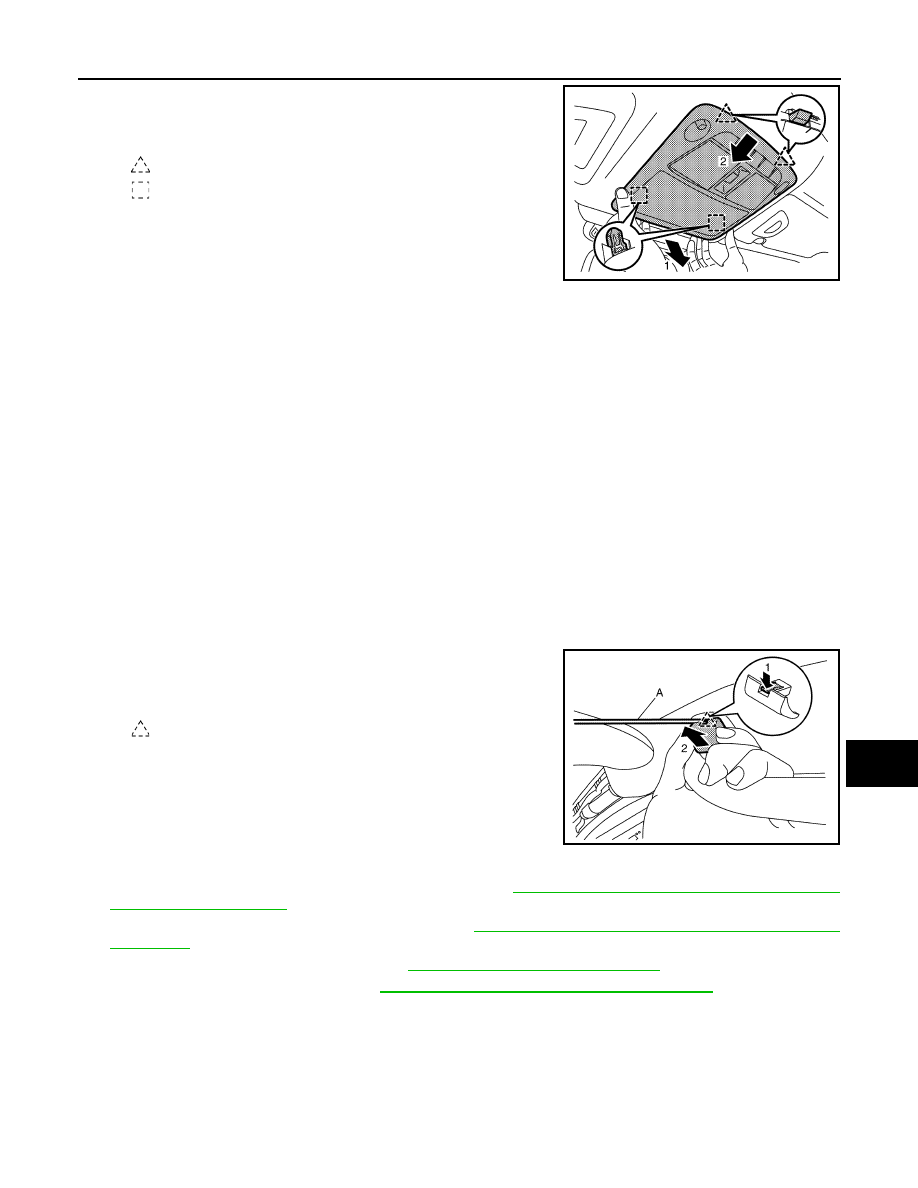

MAP LAMP

INL-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

1.

Disengage map lamp assembly fixing pawls and metal clips
according to numerical order 1

2 indicated by arrows as shown

in the figure.

2.

Disconnect harness connectors, and then remove map lamp assembly.

INSTALLATION

Install in the reverse order of removal.

MAP LAMP : Replacement

INFOID:0000000010755163

MAP LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED. For replacement, replace map
lamp assembly as a set.

MAP LAMP BRACKET

MAP LAMP BRACKET : Removal and Installation

INFOID:0000000010755164

REMOVAL

1.

Remove all assist grips.
Disengage assist grip cap fixing pawl using a remover tool (A),
and then slide assist grip cap and remove it according to numer-
ical order 1

2 indicated by arrows as shown in the figure.

2.

Disengage assist grip fixing metal clips, and then remove assist grip.

3.

Remove center pillar upper garnish (LH and RH). Refer to

INT-28, "CENTER PILLAR UPPER GARNISH :

Removal and Installation"

.

4.

Remove front pillar garnish (LH and RH). Refer to

INT-23, "FRONT PILLAR GARNISH : Removal and

Installation"

.

5.

Remove light & rain sensor cover. Refer to

WW-109, "Removal and Installation"

. (With light & rain sensor)

6.

Remove map lamp assembly. Refer to

INL-76, "MAP LAMP : Removal and Installation"

.

7.

Remove sun visor assembly (LH and RH).

: Pawl

: Metal clip

JMLIA4261ZZ

: Pawl

JMJIA8937ZZ

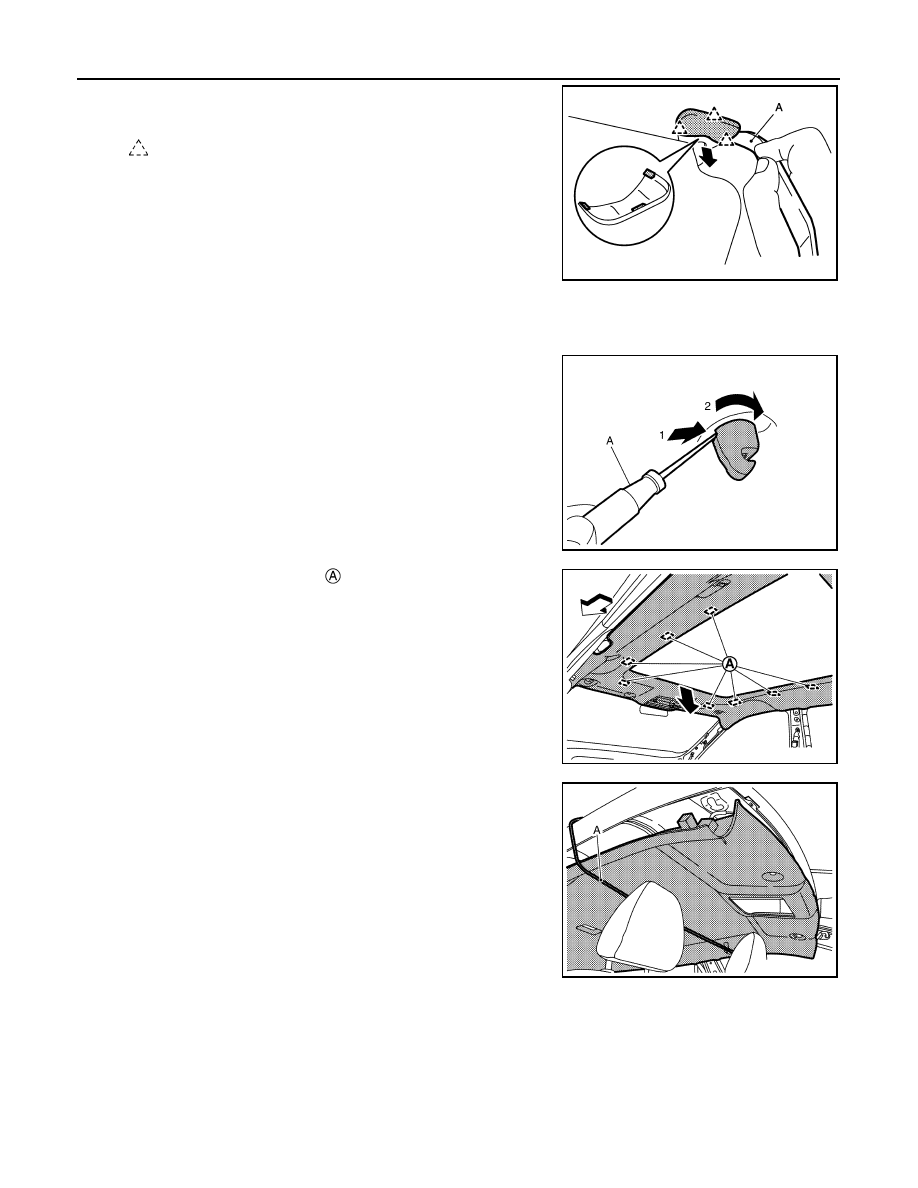

INL-78

< REMOVAL AND INSTALLATION >

MAP LAMP

a.

Disengage sun visor cover fixing pawls using a remover tool (A),
and then remove sun visor cover (LH and RH).

b.

Remove sun visor assembly fixing screws, and then disconnect vanity mirror lamp harness connector.
(With vanity mirror lamp)

c.

Remove sun visor assembly (LH and RH).

8.

Remove sun visor holder (LH and RH) using a remover tool (A)
according to numerical order 1

2 indicated by arrows as shown

in the figure.

9.

Disengage dual lock fasteners

 between headlining assembly

and roof panel. (With sunroof)

CAUTION:

Never bend headlining when removing.

10. Remove front portion of headlining assembly from roof panel.

CAUTION:

To prevent damage of the headlining assembly, hold it
using a rope (A) or belt.

: Pawl

JMJIA4399ZZ

JMJIA9251ZZ

JMJIA9639ZZ

JMKIB2588ZZ

MAP LAMP

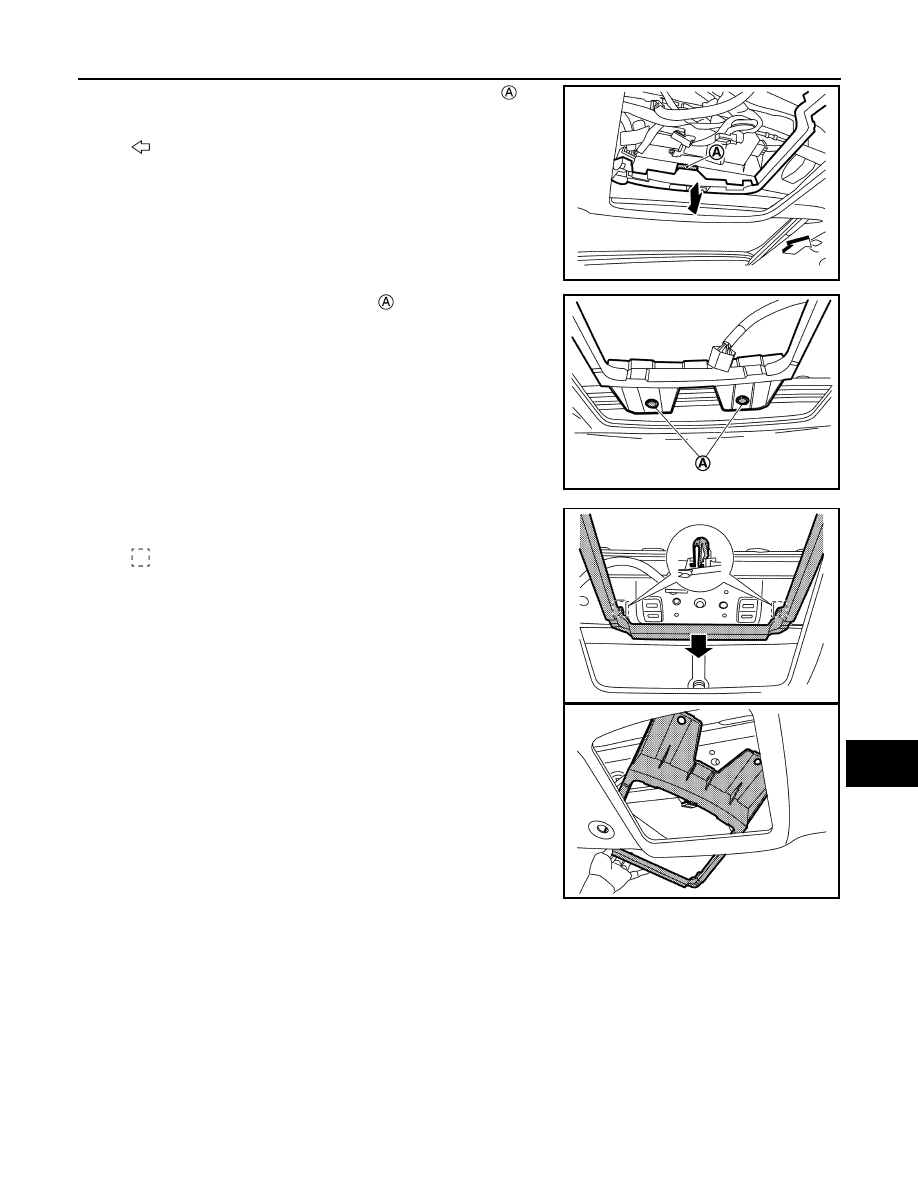

INL-79

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

11. Disengage map lamp bracket fixing dual lock fastener

 from

roof panel. (With sunroof)

12. Remove map lamp bracket fixing clips

. (Without sunroof)

13. Disengage map lamp bracket fixing metal clips.

14. Remove map lamp bracket from between headlining assembly

and roof panel.

CAUTION:

Never damage windshield glass.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Make sure that map lamp bracket fixing dual lock fastener are engaged to roof panel. (With sunroof)
• Visually check clips for deformation and damage during installation. Replace with new ones if neces-

sary. (Without sunroof)

• Visually check metal clips for deformation and damage during installation. Replace with new ones if

necessary.

: Vehicle front

JMLIA4263ZZ

JMLIA5106ZZ

: Metal clip

JMLIA5107ZZ

JMLIA5108ZZ

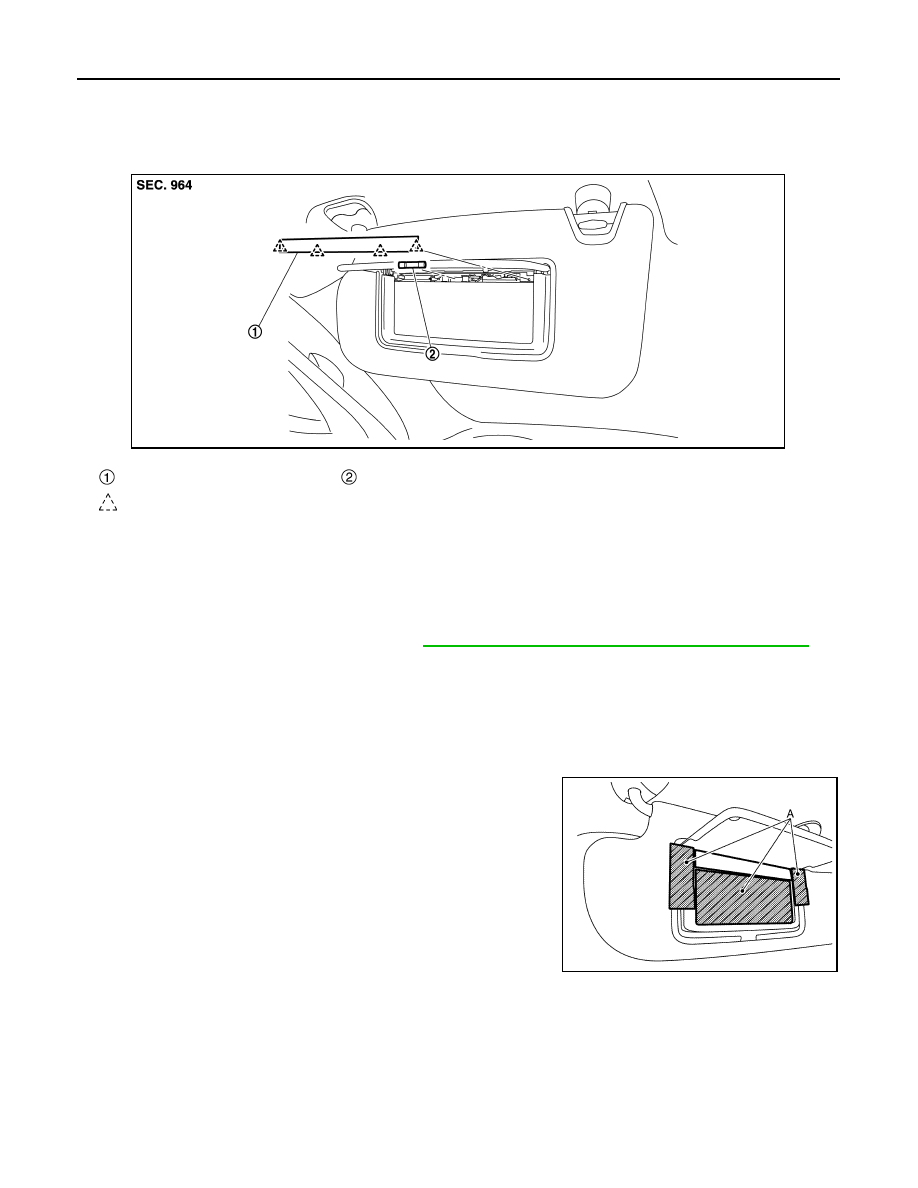

INL-80

< REMOVAL AND INSTALLATION >

VANITY MIRROR LAMP

VANITY MIRROR LAMP

Exploded View

INFOID:0000000010755165

Replacement

INFOID:0000000010755166

VANITY MIRROR LAMP BULB

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

INL-4, "Precautions for Removing Battery Terminal"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it for pre-

venting damage to the bulb.

• The surface of the bulb is very hot just after the lamp is turned OFF. Never touch the glass surface of

the bulb with bare hands for preventing burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (due to dirt or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

1.

Apply protective tapes (A) to vanity mirror of surface for protect-
ing it from damage.

Lens

Bulb

: Pawl

JMLIA0540ZZ

JMLIA4268ZZ
