Nissan X-Trail 32. Manual - part 1427

DIAGNOSIS AND REPAIR WORK FLOW

HAC-183

< BASIC INSPECTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010939831

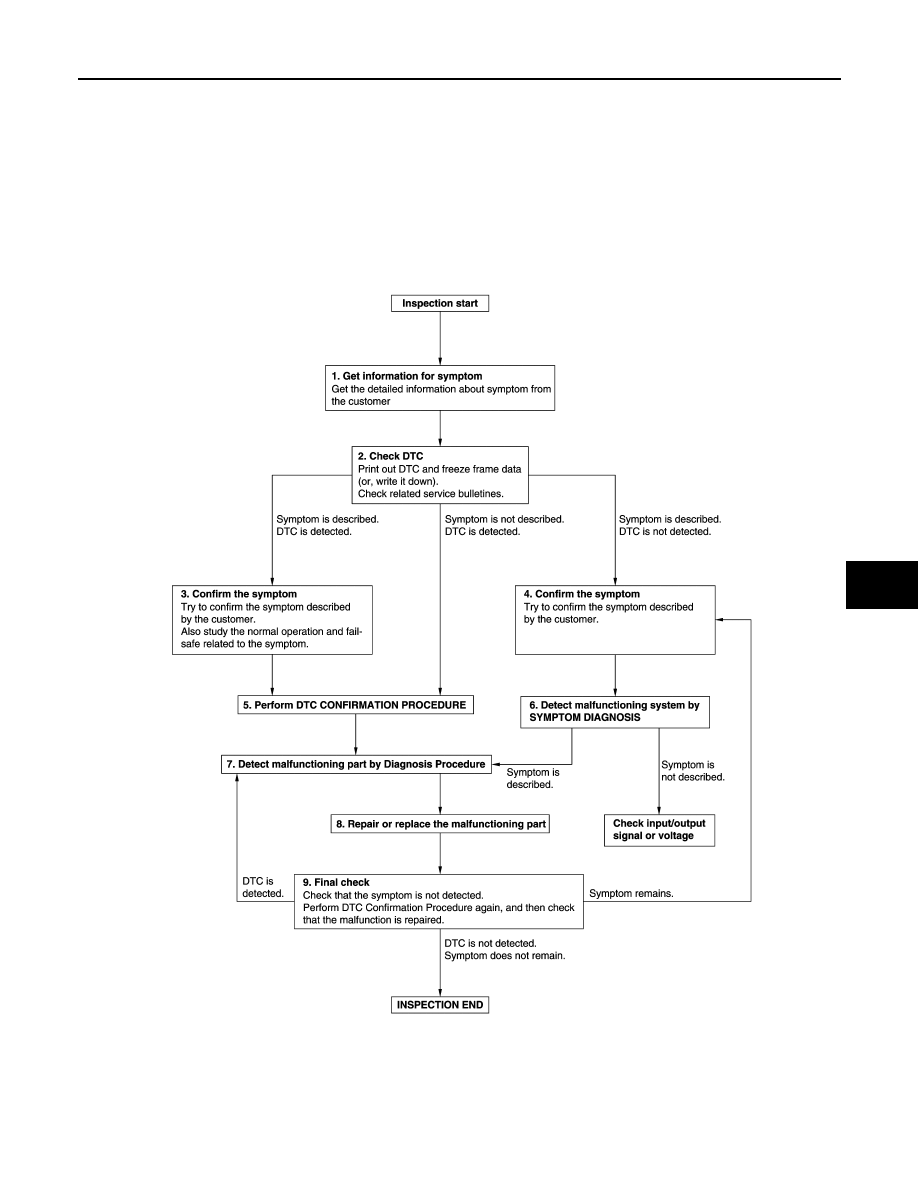

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB

HAC-184

< BASIC INSPECTION >

[MANUAL AIR CONDITIONING]

DIAGNOSIS AND REPAIR WORK FLOW

1.

GET INFORMATION FOR SYMPTOM

1.

Get detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurs).

2.

Check operation condition of the function that is malfunctioning.

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC.

2.

Perform the following procedure if DTC is detected.

-

Record DTC and freeze frame data (Print them out using CONSULT.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Are any symptoms described and any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Also study the normal operation and fail-safe related to the symptom.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected
again. At this time, always connect CONSULT to the vehicle, and check self diagnostic results in real time.
If two or more DTCs are detected, refer to DTC INSPECTION PRIORITY CHART, and determine trouble diag-
nosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 7.

NO

>> Check according to

GI-44, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.

Is the symptom described?

YES

>> GO TO 7.

NO

>> Monitor input data from related sensors or check voltage of related module terminals using CON-

SULT.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

DIAGNOSIS AND REPAIR WORK FLOW

HAC-185

< BASIC INSPECTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Inspect according to Diagnosis Procedure of the system.

Is malfunctioning part detected?

YES

>> GO TO 8.

NO

>> Check according to

GI-44, "Intermittent Incident"

.

8.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.

3.

Check DTC. If DTC is detected, erase it.

>> GO TO 9.

9.

FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the
malfunction is repaired securely.
When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the
symptom is not detected.

Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 7.
YES-2 >> Symptom remains: GO TO 4.
NO

>> Before returning the vehicle to the customer, always erase DTC.

HAC-186

< BASIC INSPECTION >

[MANUAL AIR CONDITIONING]

OPERATION INSPECTION

OPERATION INSPECTION

Work Procedure

INFOID:0000000010939832

DESCRIPTION

The purpose of the operation inspection is to check that the individual system operates normally.

OPERATION INSPECTION

1.

CHECK FAN SPEED

1.

Start engine.

2.

Operate fan control dial and check that fan speed changes.

3.

Check operation for all fan speeds.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 8.

2.

CHECK AIR OUTLET

1.

Operate fan control dial to set the fan speed to maximum speed.

2.

Operate MODE VENT/FOOT/DEF switch and MAX DEF switch.

3.

Check that air outlets change according to each indicated air outlet by placing a hand in front of the out-
lets.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 8.

3.

CHECK AIR INLET

1.

Press INTAKE switch to set the air inlet to recirculation. The INTAKE switch indicator turns ON.

2.

Listen to intake sound and confirm air inlets change.

3.

Press INTAKE switch again to set the air inlet to fresh air intake. The INTAKE switch indicator turns OFF.

4.

Listen to intake sound and confirm air inlets change.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 8.

4.

CHECK COMPRESSOR

1.

Press A/C switch. The A/C switch indicator turns ON.

2.

Check visually and by sound that the compressor operates.

3.

Press A/C switch again. The A/C switch indicator turns OFF.

4.

Check that compressor stops.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 8.

5.

CHECK DISCHARGE AIR TEMPERATURE

1.

Operate temperature control dial.

2.

Check that discharge air temperature changes.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 8.

6.

CHECK WITH TEMPERATURE SETTING LOWERED

1.

Operate compressor.

2.

Operate temperature control dial to lower the set to full cold.

3.

Check that cool air blows from the air outlets.

Is the inspection result normal?

Check condition

: Engine running at normal operating temperature.
