A/C AMP.

HAC-171

< ECU DIAGNOSIS INFORMATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DTC Index

INFOID:0000000010939828

DTC

Items

(CONSULT screen terms)

Reference

U1000

CAN COMM CIRCUIT

HAC-190, "DTC Descrip-

tion"

U1010

CONTROL UNIT (CAN)

HAC-191, "DTC Descrip-

tion"

B24A4

INTAKE SENSOR

[CIRCUIT SHORT TO GROUND]

HAC-192, "DTC Descrip-

tion"

[CIRC SHORT TO BATT OR OPEN]

B24B7

INTAKE DOOR MOTOR

[CIRCUIT SHORT TO BATTERY]

HAC-195, "DTC Descrip-

tion"

[CIRC SHORT TO GRND OR OPEN]

B24B9

MODE DOOR MOTOR

[CIRCUIT SHORT TO BATTERY]

HAC-198, "DTC Descrip-

tion"

[CIRC SHORT TO GRND OR OPEN]

B24BB

LEFT AIR MIX DOOR MOTOR

[CIRCUIT SHORT TO BATTERY]

HAC-201, "DTC Descrip-

tion"

[CIRC SHORT TO GRND OR OPEN]

HAC-172

< ECU DIAGNOSIS INFORMATION >

[MANUAL AIR CONDITIONING]

BCM, ECM, IPDM E/R

BCM, ECM, IPDM E/R

List of ECU Reference

INFOID:0000000010939829

ECU

Reference

BCM

BCS-53, "Reference Value"

BCS-76, "Fail-safe"

BCS-77, "DTC Inspection Priority Chart"

BCS-78, "DTC Index"

ECM

MR20DD engine models

EC-89, "Reference Value"

EC-103, "Fail-safe"

EC-107, "DTC Inspection Priority Chart"

EC-109, "DTC Index"

R9M engine models

EC-889, "Reference Value"

EC-901, "Fail-safe"

EC-907, "DTC Inspection Priority Chart"

EC-908, "DTC Index"

IPDM E/R

PCS-22, "Reference Value"

PCS-34, "Fail-safe"

PCS-37, "DTC Inspection Priority Chart"

PCS-38, "DTC Index"

MANUAL AIR CONDITIONING SYSTEM

HAC-173

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

WIRING DIAGRAM

MANUAL AIR CONDITIONING SYSTEM

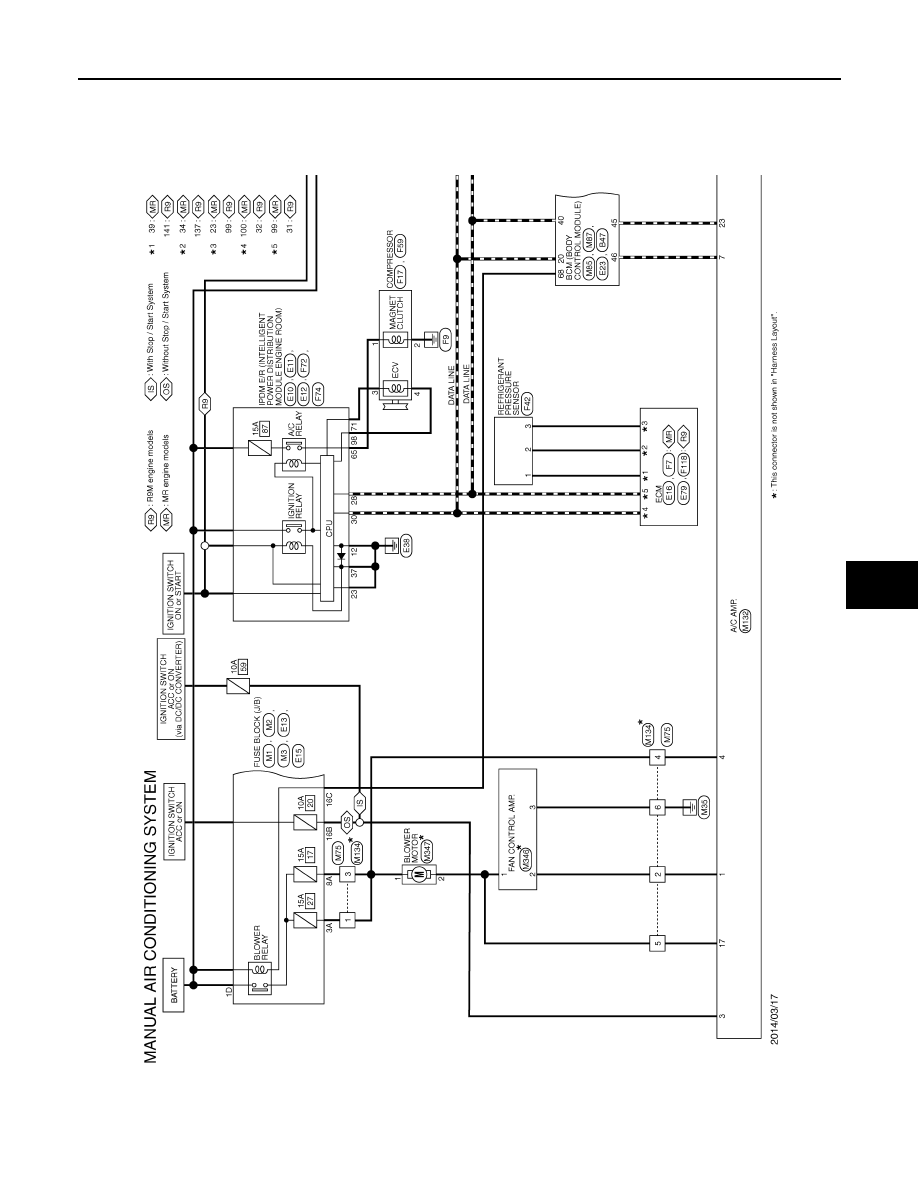

Wiring Diagram

INFOID:0000000010939830

JRIWC2436GB

HAC-174

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONING]

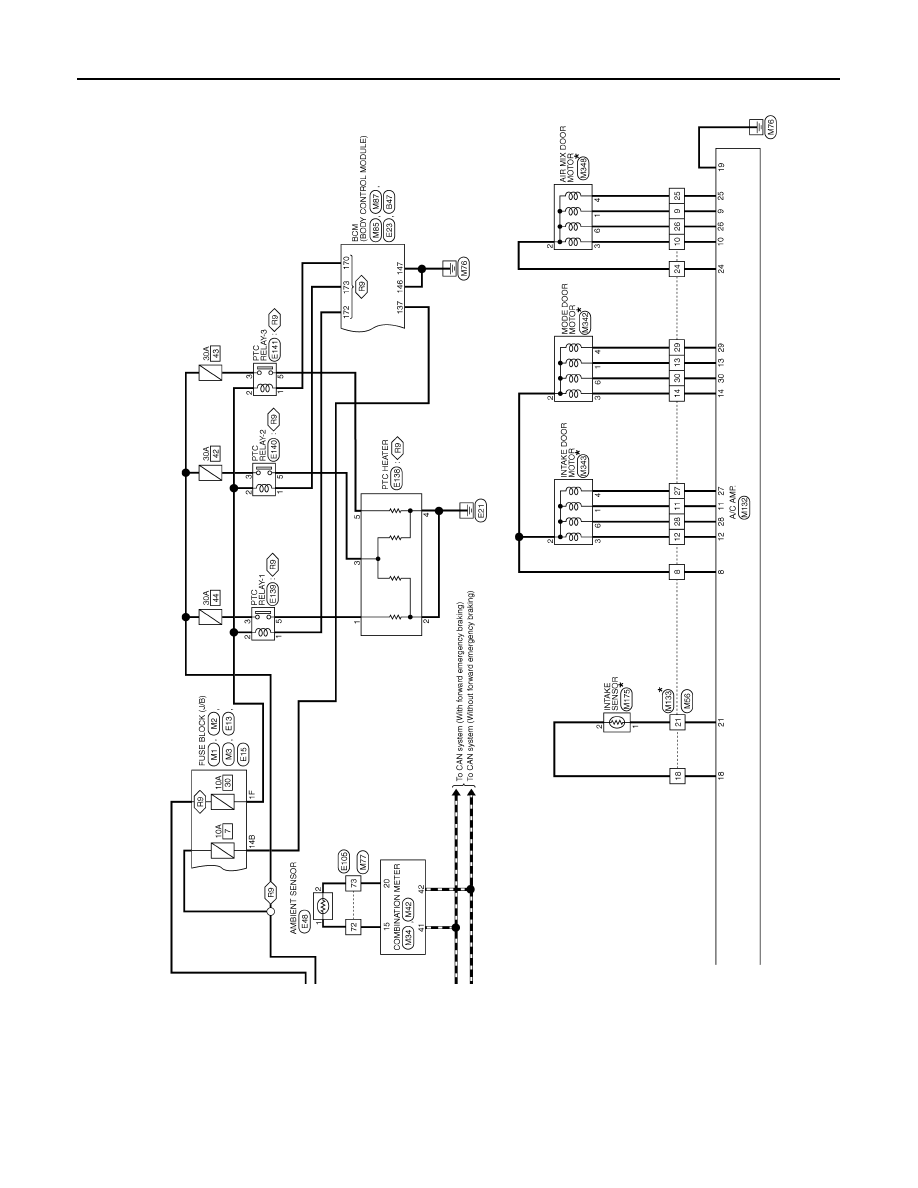

MANUAL AIR CONDITIONING SYSTEM

JRIWC2437GB
