- The ignition switch is turned from ON to OFF a total of 360 times.
- The ignition switch turns OFF while the mode door motor, air mix door motor, or intake door motor is operat-

ing.

• If A/C amp., air mix door motor, mode door motor, or intake door motor is removed, it is necessary to perform

motor zero position reset using CONSULT.

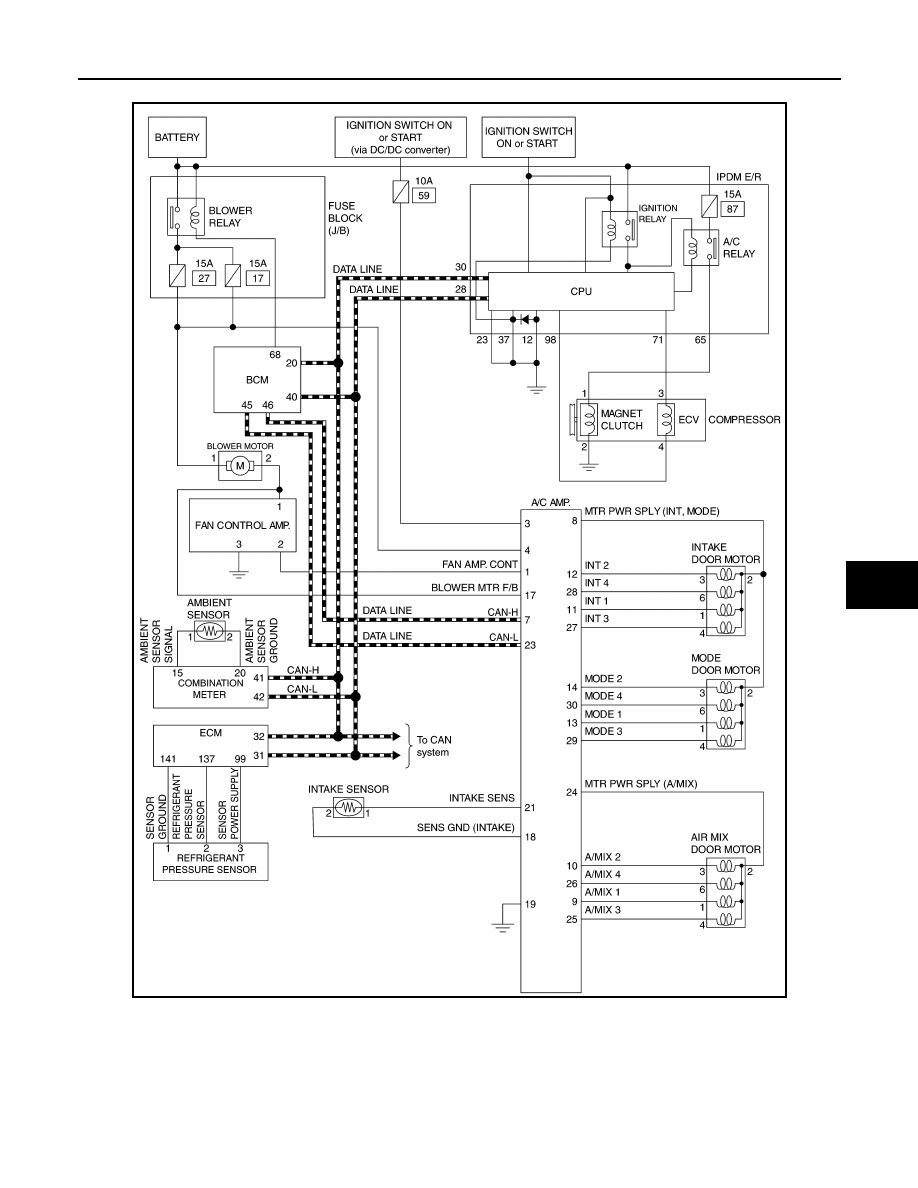

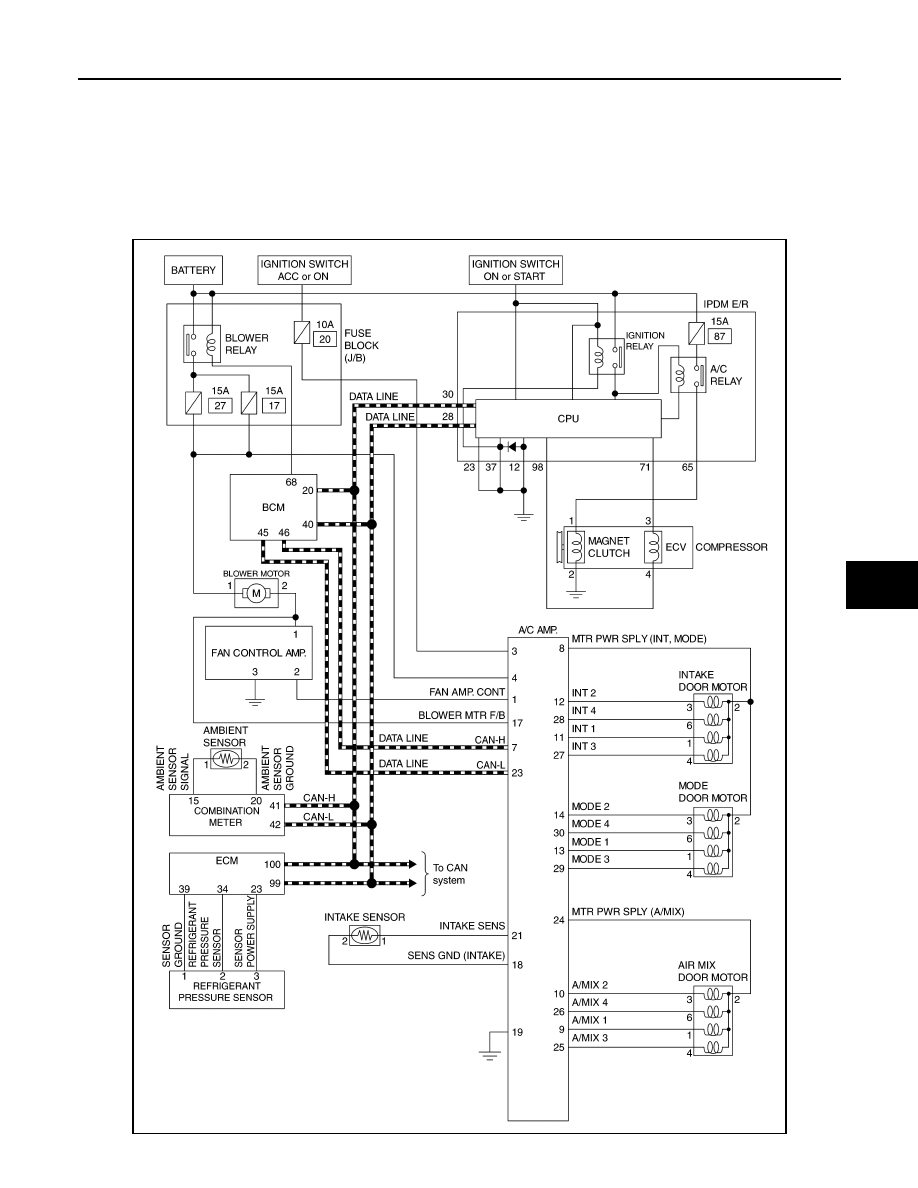

MANUAL AIR CONDITIONING SYSTEM : Circuit Diagram

INFOID:0000000010941038

MR20DD ENGINE MODELS

JMIIA3671GB

HAC-156

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

SYSTEM

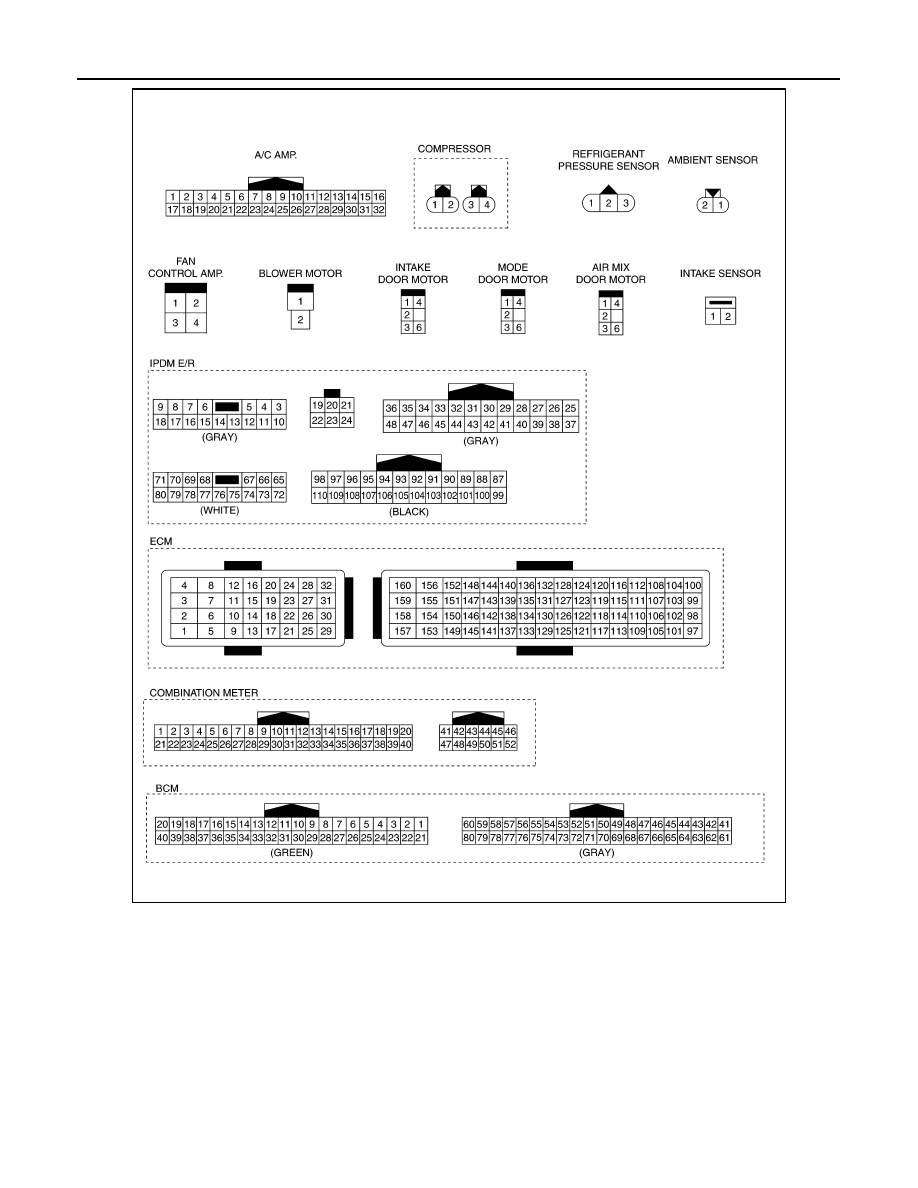

JMIIA3672GB

SYSTEM

HAC-157

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

R9M ENGINE MODELS

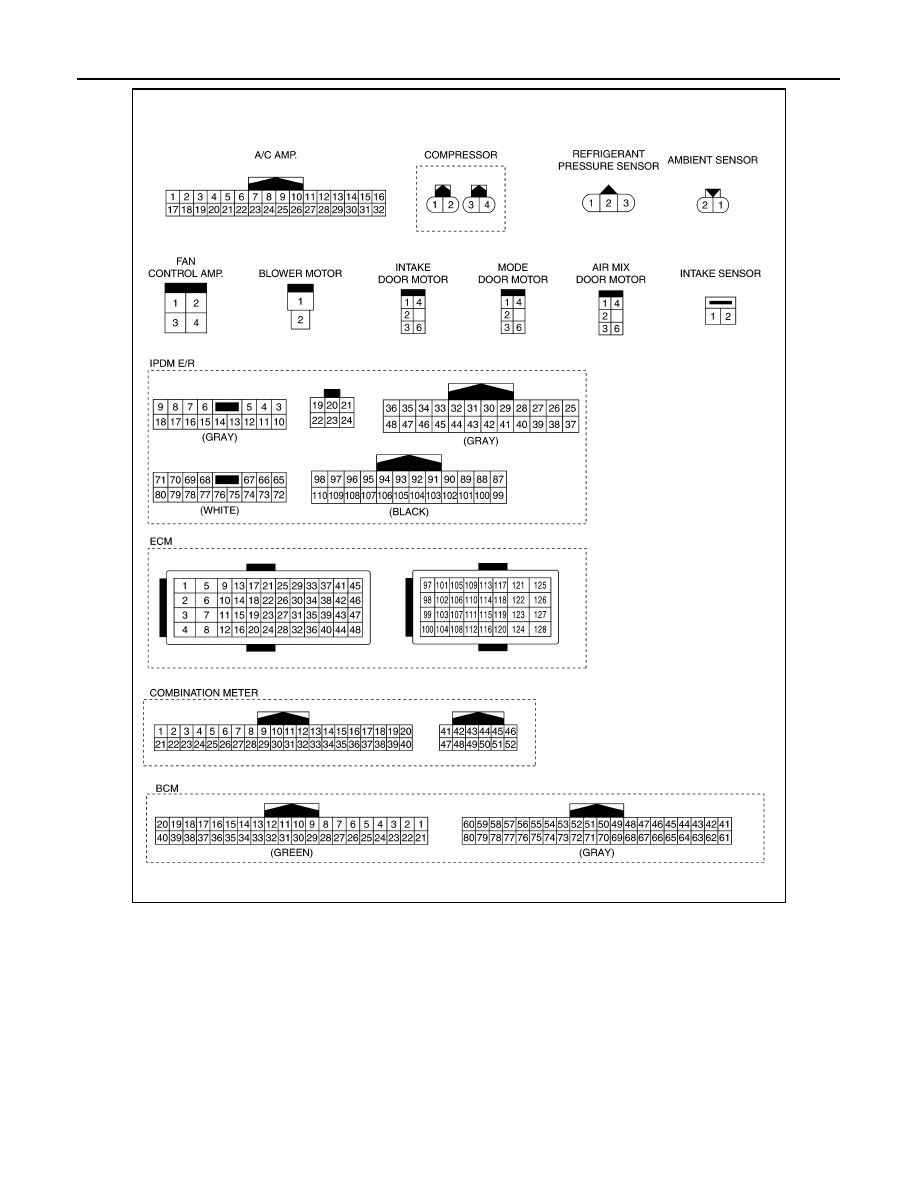

JMIIA3673GB

HAC-158

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

SYSTEM

PTC HEATER CONTROL SYSTEM

JMIIA3674GB
