Nissan X-Trail 32. Manual - part 1333

GW-50

< REMOVAL AND INSTALLATION >

FRONT DOOR REGULATOR

• Work procedure. Refer to

PWC-34, "Work Procedure"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

REAR DOOR GLASS

GW-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR DOOR GLASS

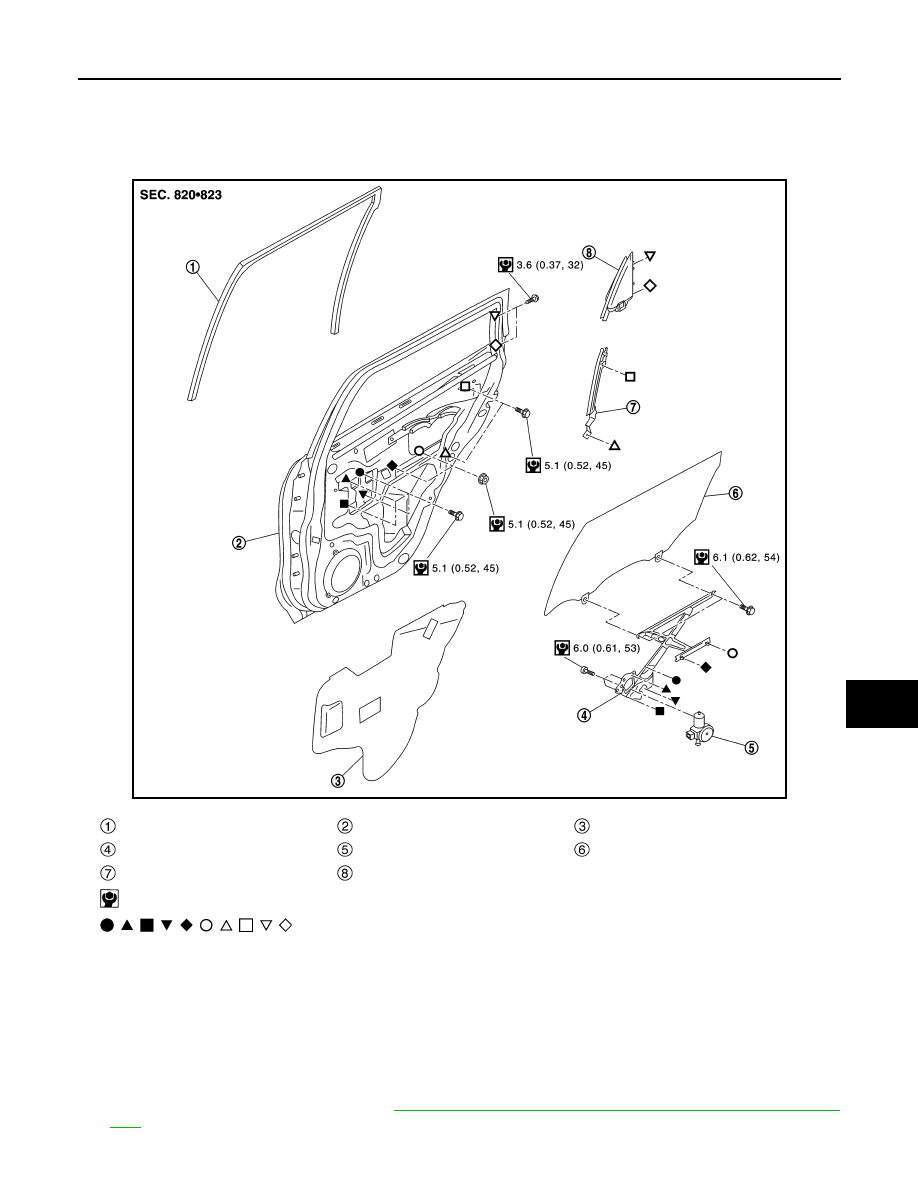

Exploded View

INFOID:0000000010755116

RHD models

REAR DOOR GLASS

REAR DOOR GLASS : Removal and Installation

INFOID:0000000010755117

REMOVAL

CAUTION:

Never damage rear door glass and rear door panel.

1.

Remove rear door corner piece. Refer to

GW-54, "REAR DOOR CORNER PIECE : Removal and Installa-

tion"

.

JMKIB3200GB

Rear door glass run

Rear door panel

Rear door sealing screen

Rear door regulator

Rear door power window motor

Rear door glass

Rear door lower sash

Rear door corner piece

: N·m (kg-m, in-lb)

,

,

,

,

,

,

,

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

GW-52

< REMOVAL AND INSTALLATION >

REAR DOOR GLASS

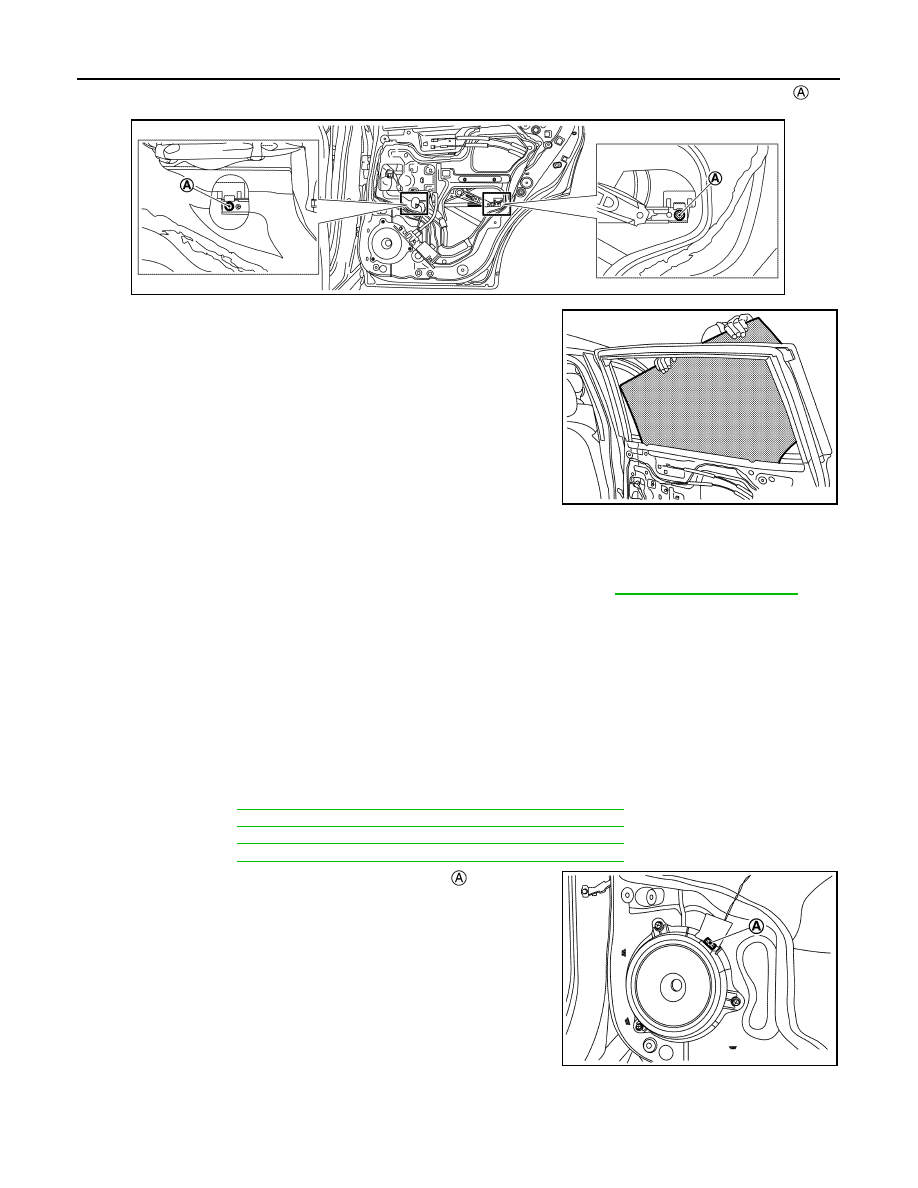

2.

Operate power window switch to raise or lower rear door glass until rear door glass mounting bolts

 can

be seen, and then remove rear door glass mounting bolts.

3.

Hold securely rear door glass and pull it out of rear door panel to
remove rear door glass.

CAUTION:

Never damage rear door glass and rear door panel.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Tighten rear door glass mounting bolts to the specified torque. Refer to

GW-51, "Exploded View"

.

REAR DOOR LOWER SASH

REAR DOOR LOWER SASH : Removal and Installation

INFOID:0000000010755118

REMOVAL

CAUTION:

Never damage rear door glass and rear door panel.
1.

Fully open rear door glass.

2.

Remove rear door inside handle. Refer to the following.
• Type 1: Refer to

DLK-309, "INSIDE HANDLE : Removal and Installation"

.

• Type 2: Refer to

DLK-616, "INSIDE HANDLE : Removal and Installation"

.

• Type 3: Refer to

DLK-779, "INSIDE HANDLE : Removal and Installation"

.

• Type 4: Refer to

DLK-921, "INSIDE HANDLE : Removal and Installation"

.

3.

Disconnect rear door speaker harness connector

.

JMKIB3150ZZ

JMKIB3173ZZ

JMKIB3147ZZ

REAR DOOR GLASS

GW-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

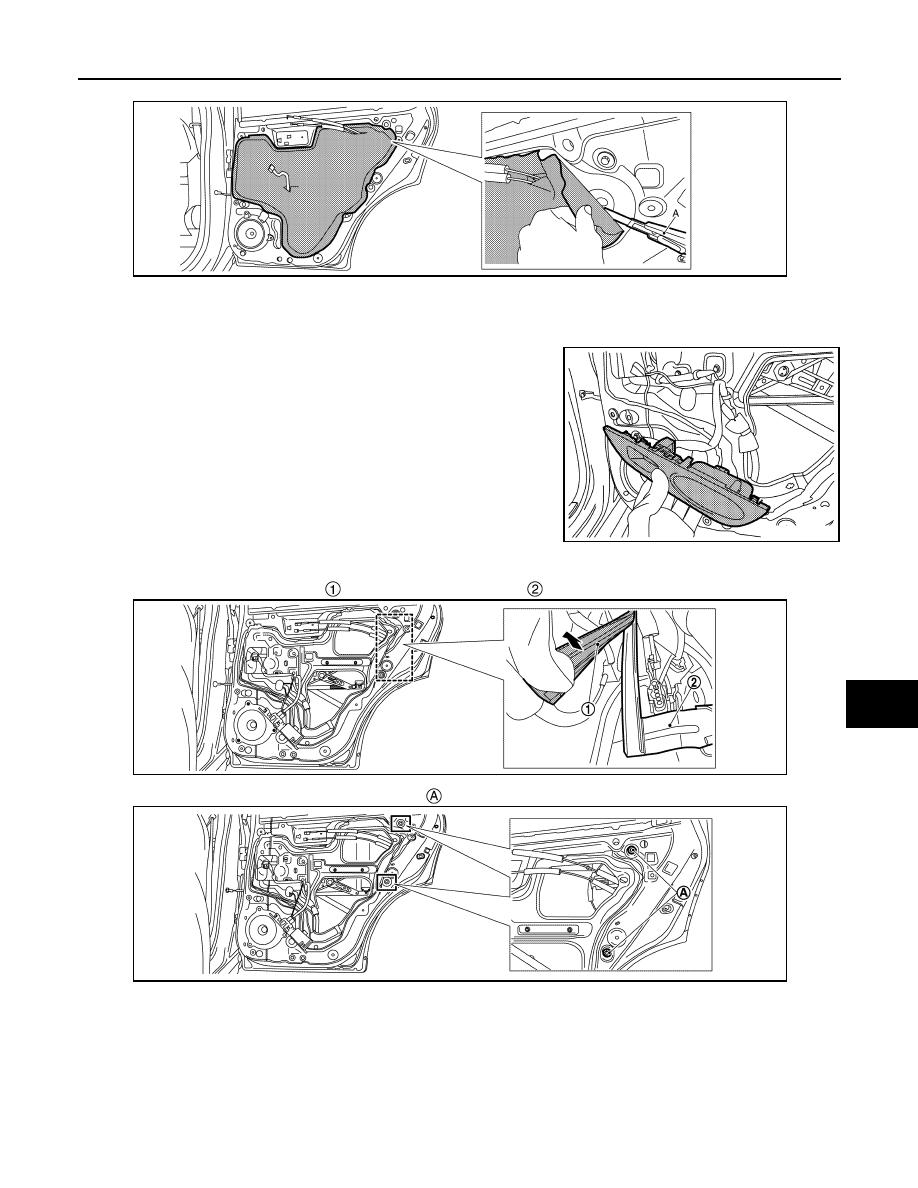

4.

Cut butyl-tape inside of rear door sealing screen by using cutter knife (A).

CAUTION:

Cut the butyl-tape so that remain on rear door sealing screen, if the rear door sealing screen is
reused.

5.

Reconnect power window switch.

6.

Fully close rear door glass.

7.

Disengage rear door glass run

 from rear door lower sash

.

8.

Remove rear door lower sash mounting bolts

.

JMKIB3148ZZ

JMKIB3149ZZ

JMKIB3164ZZ

JMKIB3165ZZ
