Nissan X-Trail 32. Manual - part 1271

FAX-76

< REMOVAL AND INSTALLATION >

[4WD]

FRONT WHEEL HUB AND KNUCKLE

• When installing a cotter pin

 and adjusting cap

, securely bend

the basal portion to prevent rattles.

CAUTION:

Never reuse cotter pin.

Disc rotor

CAUTION:

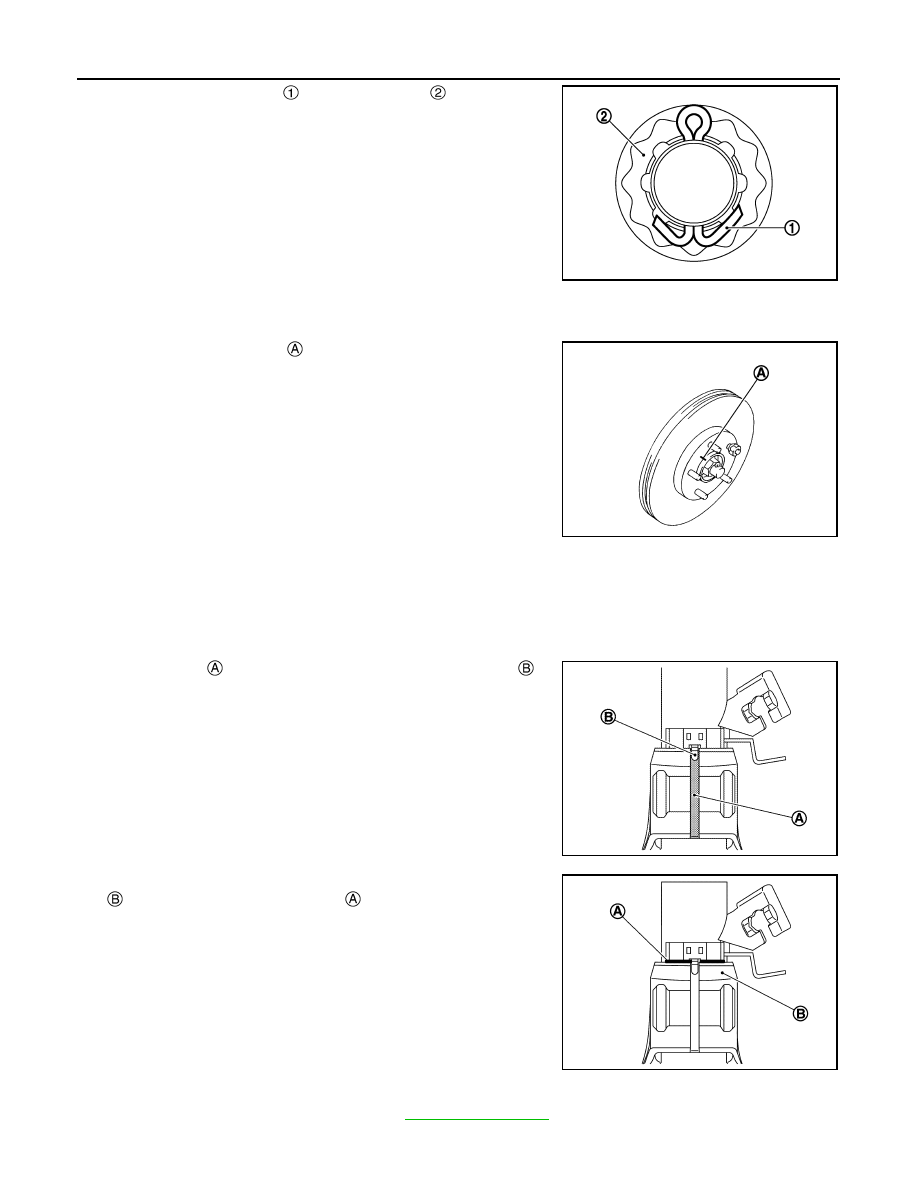

• Align the matching marks

 made during removal when reus-

ing the disc rotor.

• Never drop disc rotor.

Strut Assembly and Steering Knuckle Connection

CAUTION:

Be sure to remove lubricants if lubricant has been used to separate the connection of strut assembly
and steering knuckle.
• Install the steering knuckle to strut assembly as follows.

1.

Set suitable jack under steering knuckle.

2.

Align the gap

 of steering knuckle to the projection part

 of

strut.

3.

Tighten the mounting bolt with pushing up the steering knuckle

 until contacts stopper bracket

 end face, using a suitable

jack.

CAUTION:

Check the stable condition when using a jack.

• Perform inspection after installation. Refer to

FAX-77, "Inspection"

.

JPDIF0295ZZ

JPDIG0066ZZ

JMEIA0223ZZ

JMEIA0224ZZ

FRONT WHEEL HUB AND KNUCKLE

FAX-77

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

Inspection

INFOID:0000000010824409

INSPECTION AFTER REMOVAL

Check the following items, and replace the part if necessary.
• Check components for deformation, cracks, and other damage.
• Check boots of transverse link and steering outer socket ball joint for breakage, axial end play, and swing

torque.

- Transverse link: Refer to

FSU-18, "Inspection"

.

- Steering outer socket: Refer to

ST-26, "Inspection"

.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-212, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check the wheel alignment. Refer to

FSU-8, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.

FAX-78

< REMOVAL AND INSTALLATION >

[4WD]

FRONT DRIVE SHAFT BOOT

FRONT DRIVE SHAFT BOOT

MR20DD

MR20DD : Exploded View

INFOID:0000000010824410

LEFT SIDE

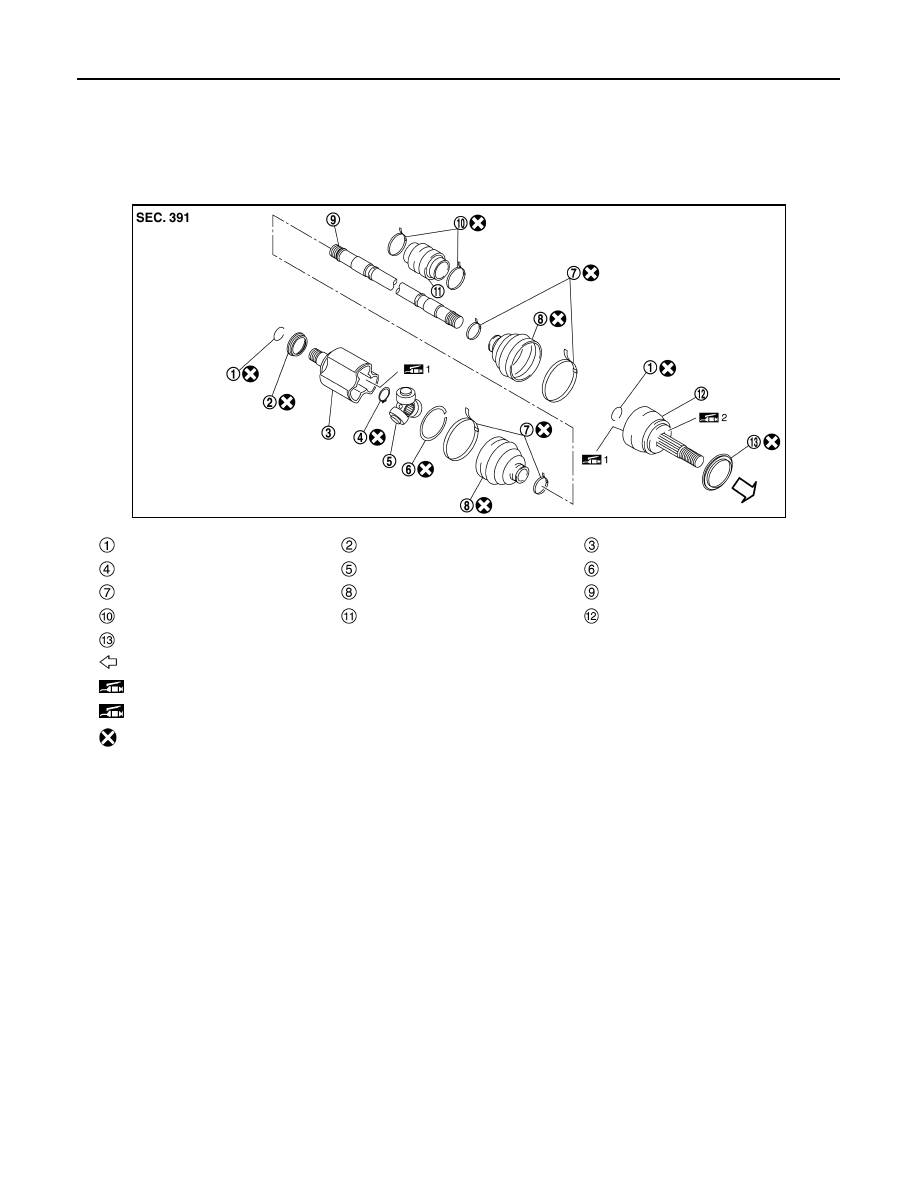

JSDIA5389ZZ

Circular clip

Dust shield

Housing

Snap ring

Spider assembly

Stopper ring

Boot band

Boot

Shaft

Damper band

Dinamic damper

Joint sub-assembly

Dust shield

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)].

: Always replace after every disassembly.

FRONT DRIVE SHAFT BOOT

FAX-79

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

RIGHT SIDE

MR20DD : Removal and Installation

INFOID:0000000010824411

REMOVAL

Wheel Side

1.

Remove tires. Refer to

WT-61, "Removal and Installation"

.

2.

Remove wheel sensor from steering knuckle. Refer to

BRC-212, "FRONT WHEEL SENSOR : Removal

and Installation"

.

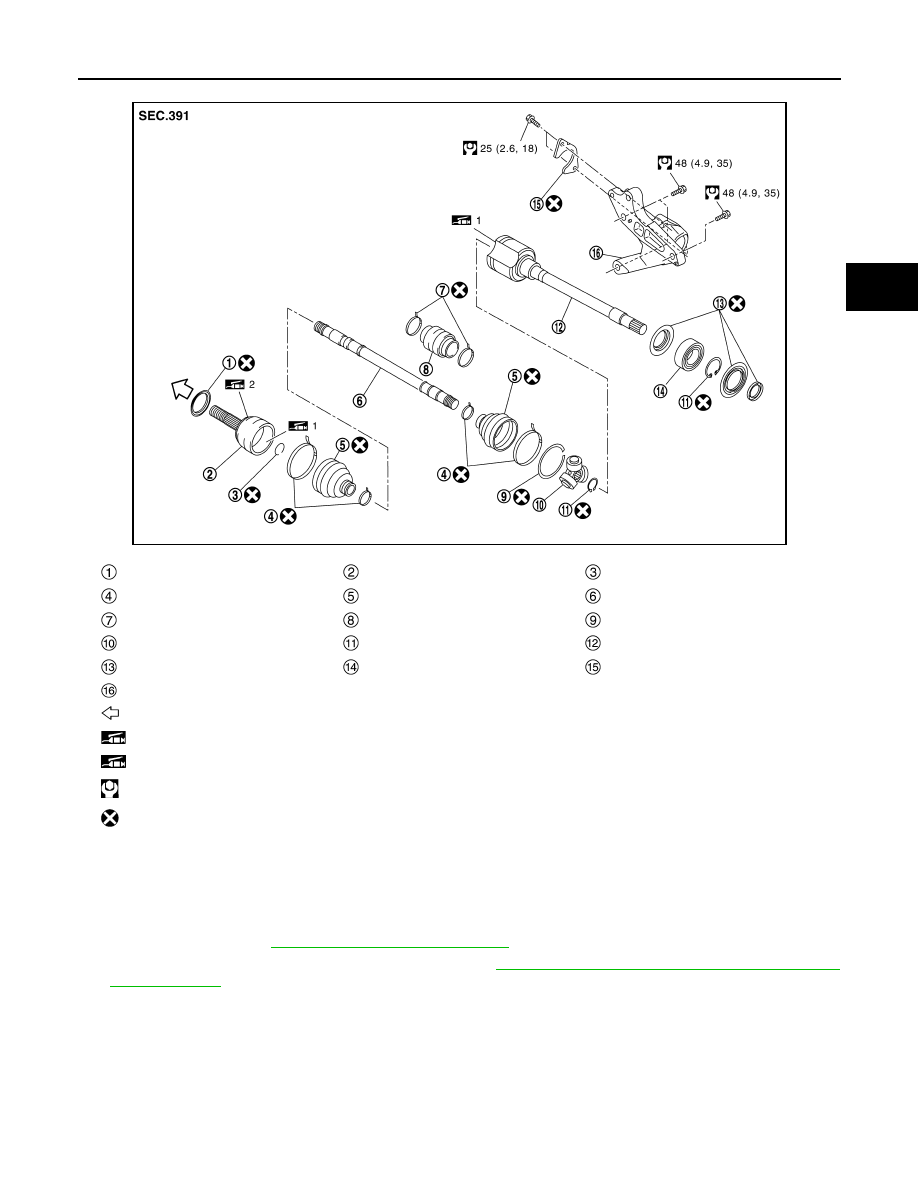

JSDIA5460GB

Dust shield

Joint sub-assembly

Circular clip

Boot band

Boot

Shaft

Damper band

Dynamic damper

Stopper ring

Spider assembly

Snap ring

Housing

Dust shield

Support bearing

Retainer

Support bearing bracket

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)].

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.
