FAX-4

< PRECAUTION >

[2WD]

PRECAUTIONS

• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

6.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

7.

Perform the necessary repair operation.

8.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

9.

Perform self-diagnosis check of all control units using CONSULT.

Precautions for Removing Battery Terminal

INFOID:0000000010921119

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

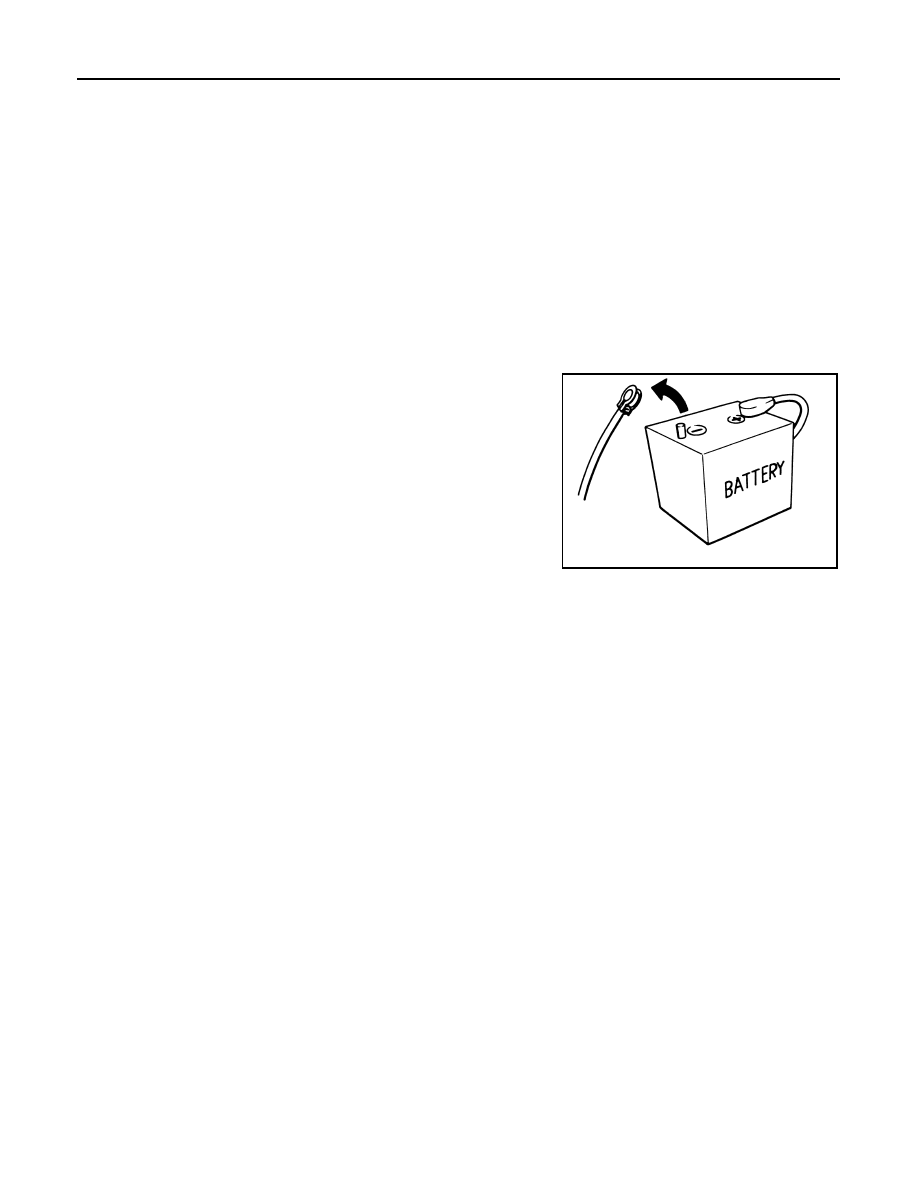

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

PRECAUTIONS

FAX-5

< PRECAUTION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precautions for Drive Shaft

INFOID:0000000010824371

CAUTION:

Note the following precautions when disassembling and assembling drive shaft.
• Joint sub-assembly does not disassemble because it is non-overhaul parts.
• Perform work in a dust-free location.
• Before disassembling and assembling, clean the parts.
• Prevent the entry of foreign objects during disassembly of the service location.
• Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a

clean cover must be placed over parts.

• Paper waste must be used. Fabric shop cloths must not be used because of the danger of lint adher-

ing to parts.

• Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be

removed by blowing with air or wiping with paper waste.

FAX-6

< PREPARATION >

[2WD]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000010824372

Commercial Service Tool

INFOID:0000000010824373

Tool number
Tool name

Description

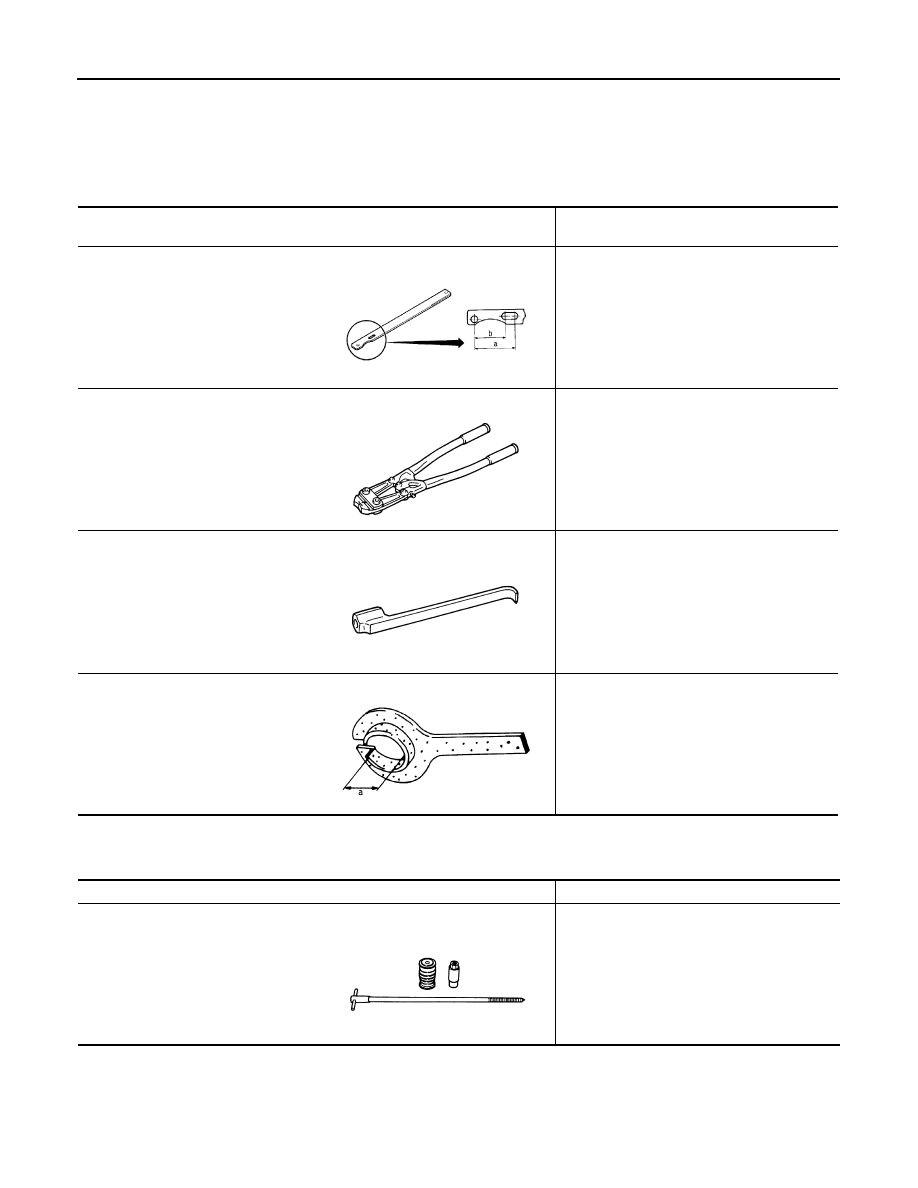

KV40104000
Hub lock nut wrench
a: 85 mm (3.35 in)
b: 65 mm (2.56 in)

Removing and Installing wheel hub lock nut.

KV40107300
Boot band crimping tool

Installing boot band

KV40107500
Drive shaft attachment

Removing drive shaft

KV38107900
Protector
a: 32 mm (1.26 in) dia.

Installing drive shaft

ZZA0802D

ZZA1229D

ZZA1230D

PDIA1183J

Tool name

Description

Drive shaft puller

Removing drive shaft joint sub assembly

JPDIG0152ZZ

PREPARATION

FAX-7

< PREPARATION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

Lubricant or/and Sealant

INFOID:0000000010824374

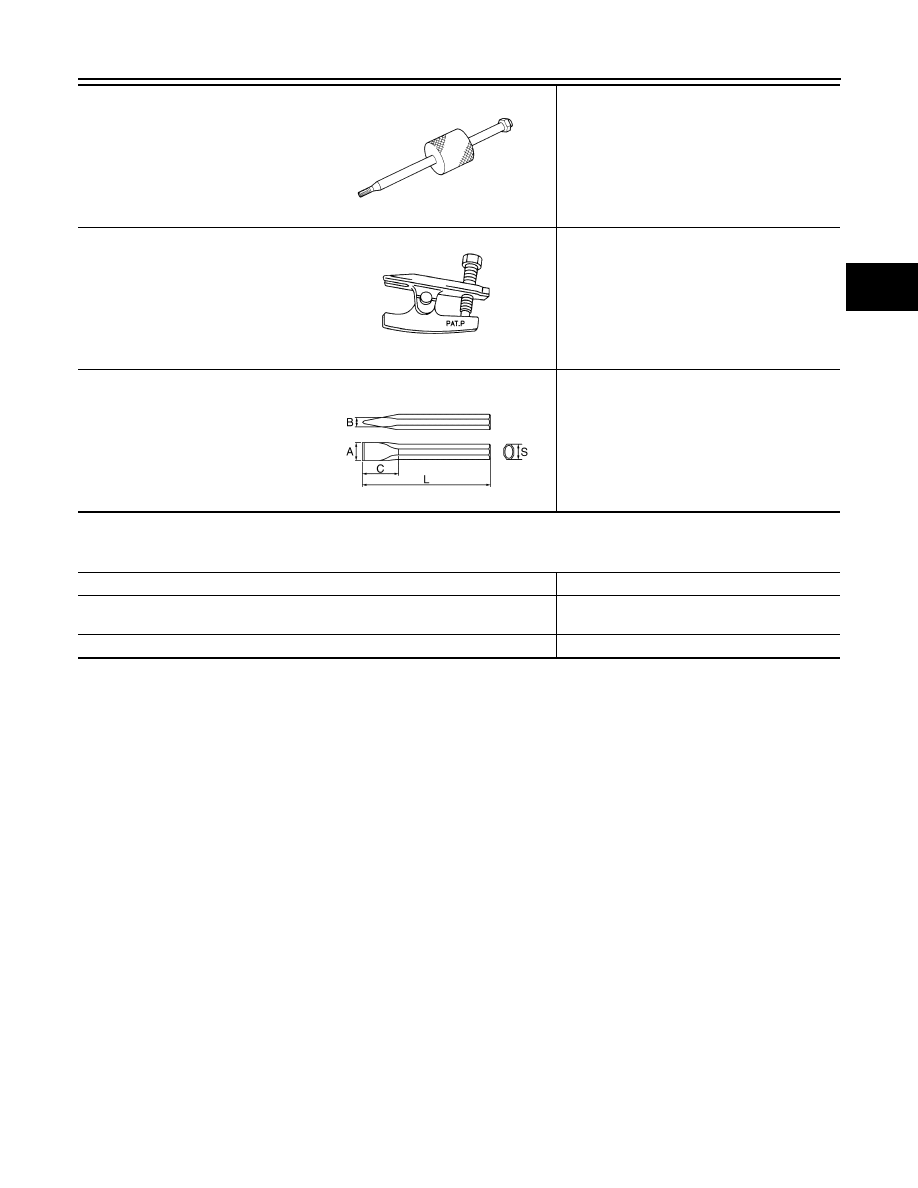

Sliding hammer

Removing drive shaft

Ball joint remover

Removing hub bolt

Chisel

Removing and installing steering knuckle and
strut assembly
A: 16 – 32 mm (0.63 – 1.26 in)
B: 10 mm (0.39 in) or more
C: 40 – 70 mm (1.57 – 2.76 in)
L: 220 mm (7.87 in) or less
S: 14 mm (0.55 in) or more

ZZA0023D

NT146

JSEIA0915ZZ

Name

Description

 Fill NISSAN Genuine grease or equivalent

• Joint sub-assembly  inside
• Housing inside

Apply paste [service parts (440037S000)]

• Joint sub-assembly
