Nissan X-Trail 32. Manual - part 1196

SYSTEM

EXL-241

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

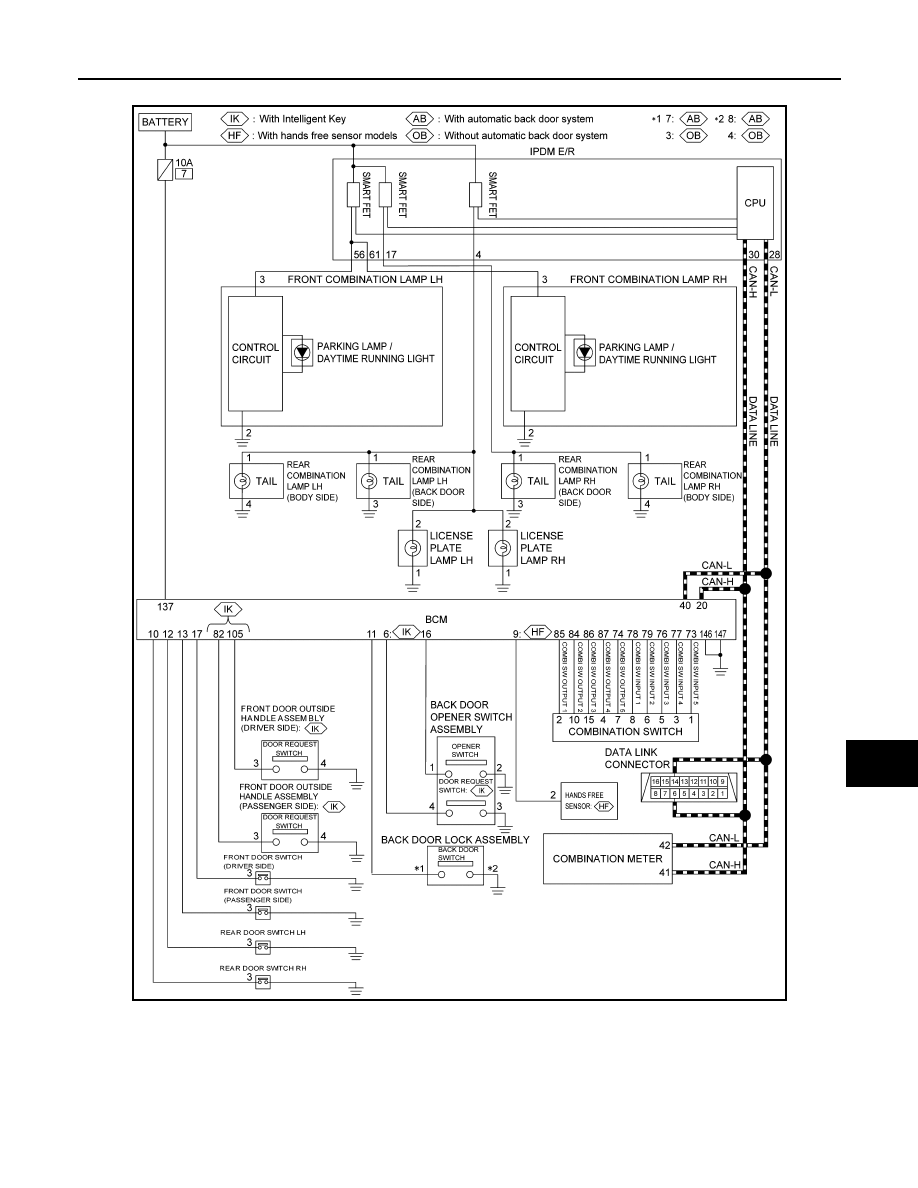

PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : Circuit Diagram

INFOID:0000000010789796

JMLIA5523GB

EXL-242

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

SYSTEM

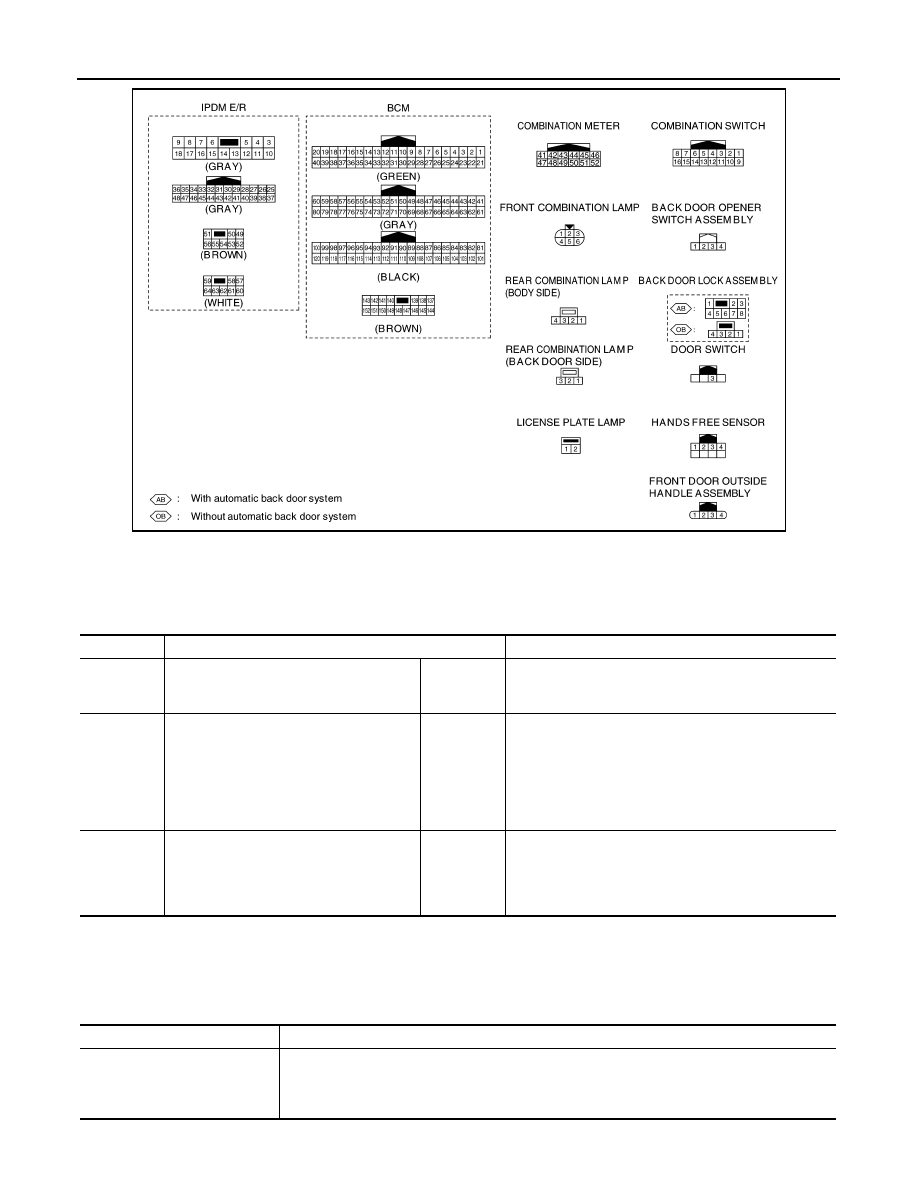

PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : Fail-safe

INFOID:0000000010789797

FAIL-SAFE CONTROL BY DTC

IPDM E/R performs fail-safe control when any DTC are detected.

CAN COMMUNICATION CONTROL

When CAN communication with BCM is impossible, IPDM E/R performs fail-safe control. After CAN communi-
cation recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

STOP LAMP SYSTEM

JMLIA5384GB

DTC

CONSULT display description

Fail-safe

B20D2

PARKING LAMP PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the parking lamp (LH/RH)
power supply circuit until the parking lamp, license plate
lamp, and tail lamp ON conditions are no longer satisfied.

B20D4

TAIL LAMP LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the following power supply
circuits until the parking lamp, license plate lamp, and tail
lamp ON conditions are no longer satisfied.
• Tail lamp LH (body side)
• Tail lamp LH (back door side)
• License plate lamp LH
• License plate lamp RH

B20D5

TAIL LAMP RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the following power supply
circuits until the parking lamp, license plate lamp, and tail
lamp ON conditions are no longer satisfied.
• Tail lamp RH (body side)
• Tail lamp RH (back door side)

Control part

Fail-safe operation

• Parking  lamp
• License plate lamp
• Tail lamp

• Turns ON the tail lamp, parking lamp and license plate lamp when the ignition switch is turned

ON.

• Turns OFF the tail lamp, parking lamp and license plate lamp when the ignition switch is turned

OFF.

SYSTEM

EXL-243

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

STOP LAMP SYSTEM : System Description

INFOID:0000000010789798

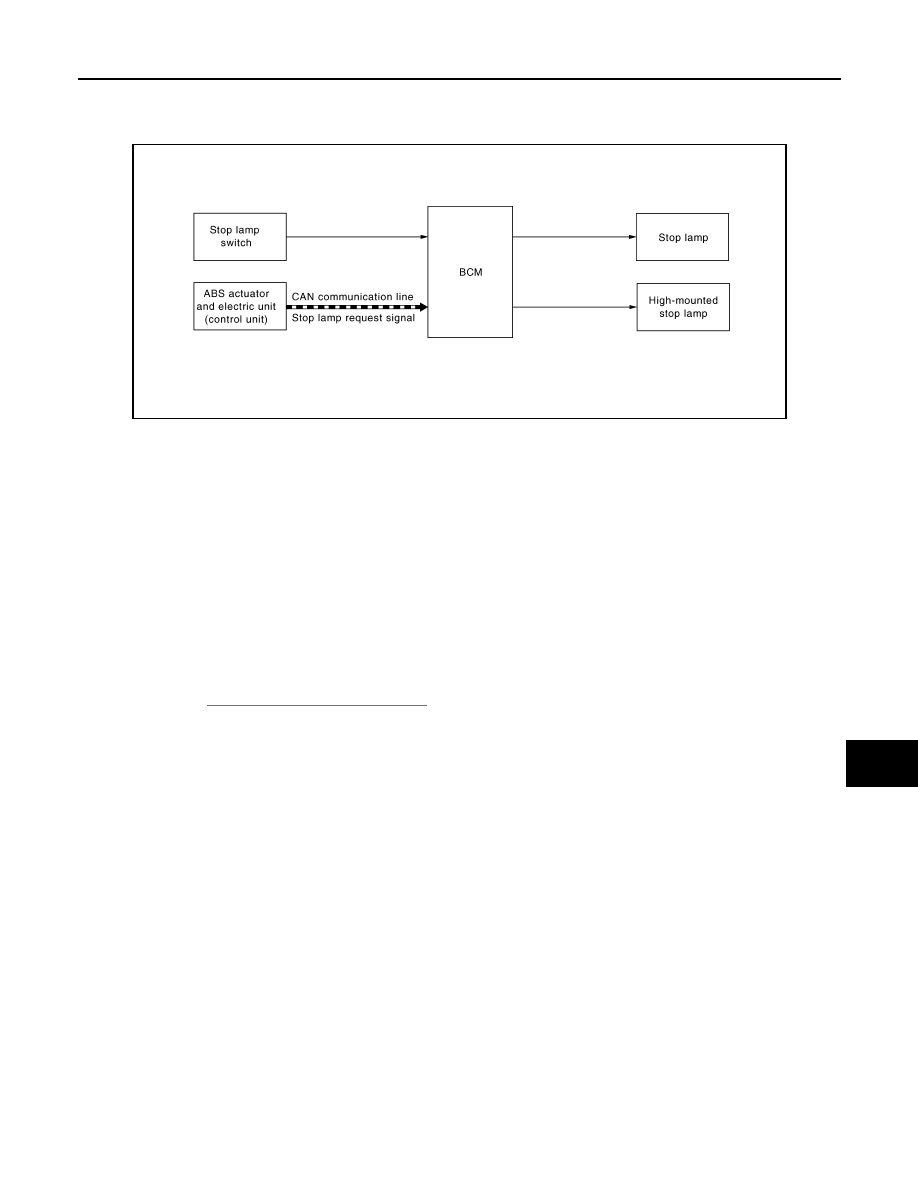

SYSTEM DIAGRAM

OUTLINE

Stop lamp and high-mounted stop lamp is controlled by combination switch reading function and the stop lamp
and high-mounted stop lamp control function of BCM, and forward emergency braking function of ABS actua-
tor and electric unit (control unit).

STOP LAMP AND HIGH-MOUNTED STOP LAMP OPERATION

• BCM detects the brake pedal position status from stop lamp switch.
• BCM supplies voltage to stop lamp and high-mounted stop lamp according to the stop lamp and high-

mounted stop lamp ON condition.

Stop lamp and high-mounted stop lamp ON condition

- Brake pedal is depressed

FORWARD EMERGENCY BRAKING FUNCTION

• When the forward emergency braking operates, the ABS actuator and electric unit (control unit) transmits

the stop lamp request signal to BCM via CAN communication. (For details about the forward emergency
braking, refer to

BRC-232, "System Description"

.)

• When BCM receives the stop lamp request signal from the ABS actuator and electric unit (control unit), it

supplies power to the stop lamp and high-mounted stop lamp systems, turning ON the stop lamp and high-
mounted stop lamp.

JMLIA5234GB

EXL-244

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

SYSTEM

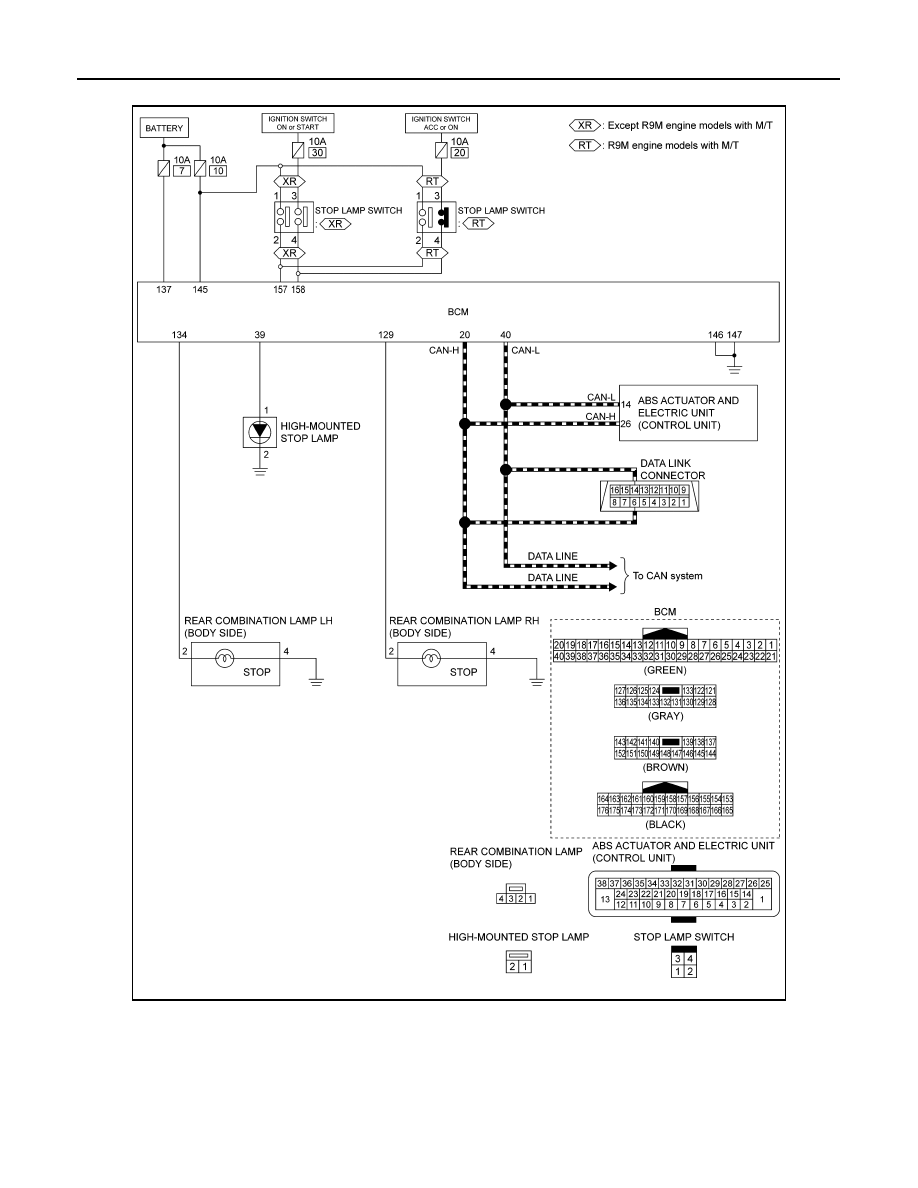

STOP LAMP SYSTEM : Circuit Diagram

INFOID:0000000010789799

NOTE:
ABS actuator and electric unit (control unit) is not used.

FRONT FOG LAMP SYSTEM

JMLIA5524GB
