SYSTEM

EXL-53

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

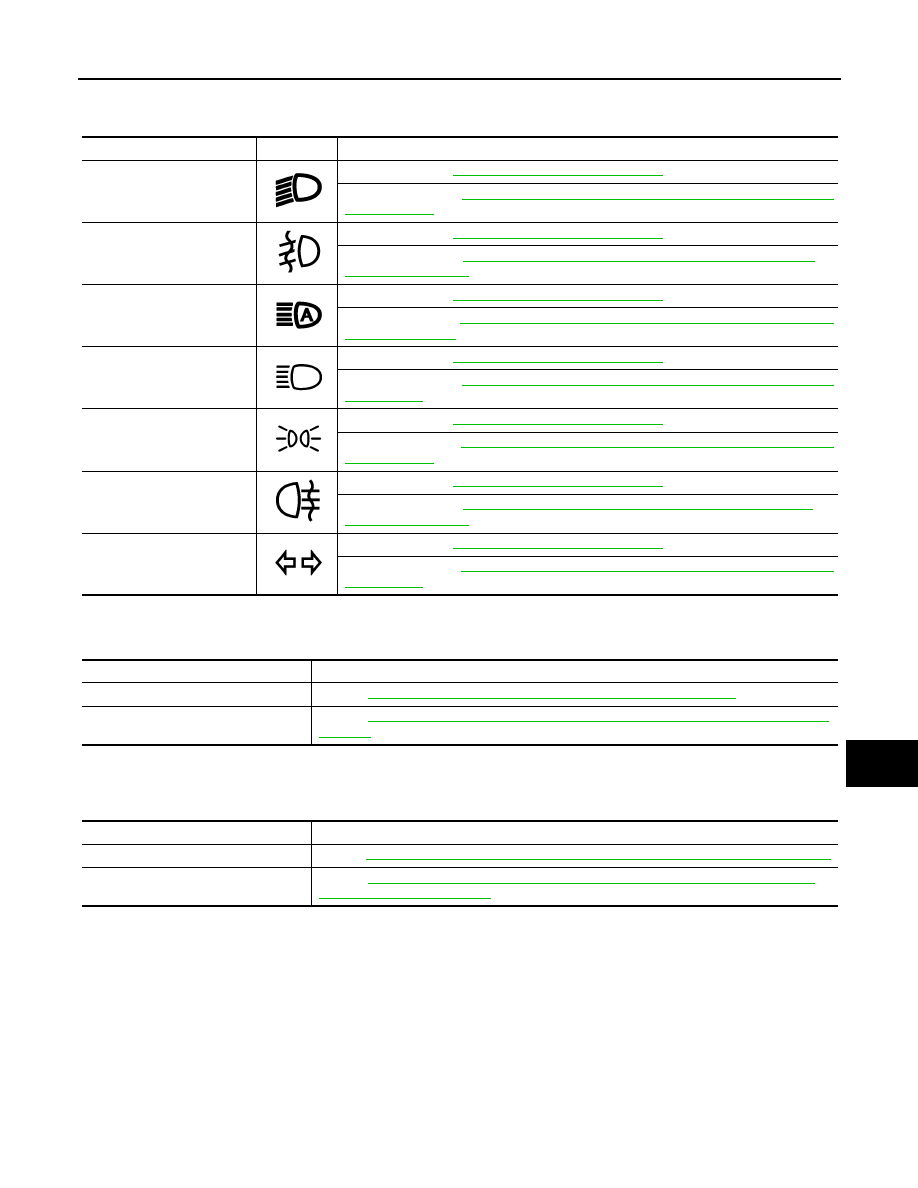

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010788774

WARNING/INDICATOR/CHIME LIST : Warning Chime

INFOID:0000000010788775

WARNING/INDICATOR/CHIME LIST : Warning/Indicator (Information Display)

INFOID:0000000010788776

Item

Design

Reference

Dipped beam indicator lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-32, "WARNING LAMPS/INDICATOR LAMPS : Dipped Beam

Indicator Lamp"

.

Front fog lamp indicator lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-38, "WARNING LAMPS/INDICATOR LAMPS : Front Fog

Lamp Indicator Lamp"

.

High beam assist indicator
lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-40, "WARNING LAMPS/INDICATOR LAMPS : High Beam As-

sist Indicator Lamp"

.

High beam indicator lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-41, "WARNING LAMPS/INDICATOR LAMPS : High Beam In-

dicator Lamp"

.

Position lamp indicator lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-52, "WARNING LAMPS/INDICATOR LAMPS : Position Lamp

Indicator Lamp"

.

Rear fog lamp indicator lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-53, "WARNING LAMPS/INDICATOR LAMPS : Rear Fog

Lamp Indicator Lamp"

.

Turn signal indicator lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-59, "WARNING LAMPS/INDICATOR LAMPS : Turn Signal In-

dicator Lamp"

.

Item

Reference

Light reminder warning (buzzer)

Refer to

WCS-12, "WARNING CHIME : Light Reminder Warning (Buzzer)"

.

Turn signal operation sound warning

Refer to

EXL-36, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System De-

scription"

.

Item

Reference

Headlamp warning

Refer to

EXL-49, "INFORMATION DISPLAY (COMBINATION METER) : Headlamp Warning"

.

Light reminder warning (information
display)

Refer to

EXL-51, "INFORMATION DISPLAY (COMBINATION METER) : Light Reminder

Warning (Information Display)"

.

EXL-54

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000011008908

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:
*: This item is displayed, but not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

—

AIR CONDITONER*

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×

DIAGNOSIS SYSTEM (BCM)

EXL-55

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP

HEADLAMP : CONSULT Function (BCM - HEAD LAMP) (LED Headlamp)

INFOID:0000000010788778

WORK SUPPORT

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

V

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

°

C

External temperature of the moment a particular DTC is detected

VEHICLE COND

—

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

—

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Service item

Setting item

Setting

CUSTOM A/LIGHT SETTING

MODE1*

Normal

MODE2

More sensitive setting than normal setting (Turns ON earlier than normal operation)

MODE3

More sensitive setting than MODE2 (Turns ON earlier than MODE2)

MODE4

Less sensitive setting than normal setting (Turns ON later than normal operation)

TWILIGHT On

MODE1

NOTE:
This item is displayed, but cannot be used

MODE2

WIPER LINK

MODE1

NOTE:
This item is displayed, but cannot be used

MODE2

MODE3

MODE4

Monitor item

[Unit]

Description

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

ENGINE STATE
[STOP/STALL/CRANK/RUN]

Indicates [STOP/STALL/CRANK/RUN] condition of engine states

VEH SPEED 1
[km/h]

Indicates [km/h] condition of vehicle speed signal from combination meter

EXL-56

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

TURN SIGNAL R
[On/Off]

Each switch status that BCM judges from the combination switch reading function.

TURN SIGNAL L
[On/Off]

TAIL LAMP SW
[On/Off]

HI BEAM SW
[On/Off]

HEADLAMP SW
[On/Off]

LIGHT OFF SW
[On/Off]

PASSING SW
[On/Off]

AUTO LIGHT SW
[On/Off]

FR FOG SW
[On/Off]

RR FOG SW
[On/Off]

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK
[On/Off]

Indicated [On/Off] condition of back door switch

OPTI SEN (DTCT)
[V]

NOTE:
This item is displayed, but cannot be monitored

OPTI SEN (FILT)
[V]

NOTE:
This item is displayed, but cannot be monitored

OPTICAL SENSOR
[On/Off/NG]

The sensor condition received from light & rain sensor

Monitor item

[Unit]

Description

Test item

Operation

Description

FR FOG LAMP

On

• Transmits the front fog light request signal to IPDM E/R via CAN communication

to turn the front fog lamp ON

• Transmits the front fog light request signal to combination meter via CAN commu-

nication to turn the front fog lamp indicator lamp ON

Off

Stops the front fog light request signal transmission

RR FOG LAMP

On

• Outputs voltage to turn the rear fog lamp ON
• Transmits the rear fog lamp status signal to combination meter via CAN commu-

nication to turn the rear fog lamp indicator lamp ON

Off

• Stops the voltage to turn the rear fog lamp OFF
• Stops the rear fog lamp status signal transmission

STOP LAMP 1

On

Outputs voltage to turn the stop lamp RH ON

Off

Stops the voltage to turn the stop lamp RH OFF
