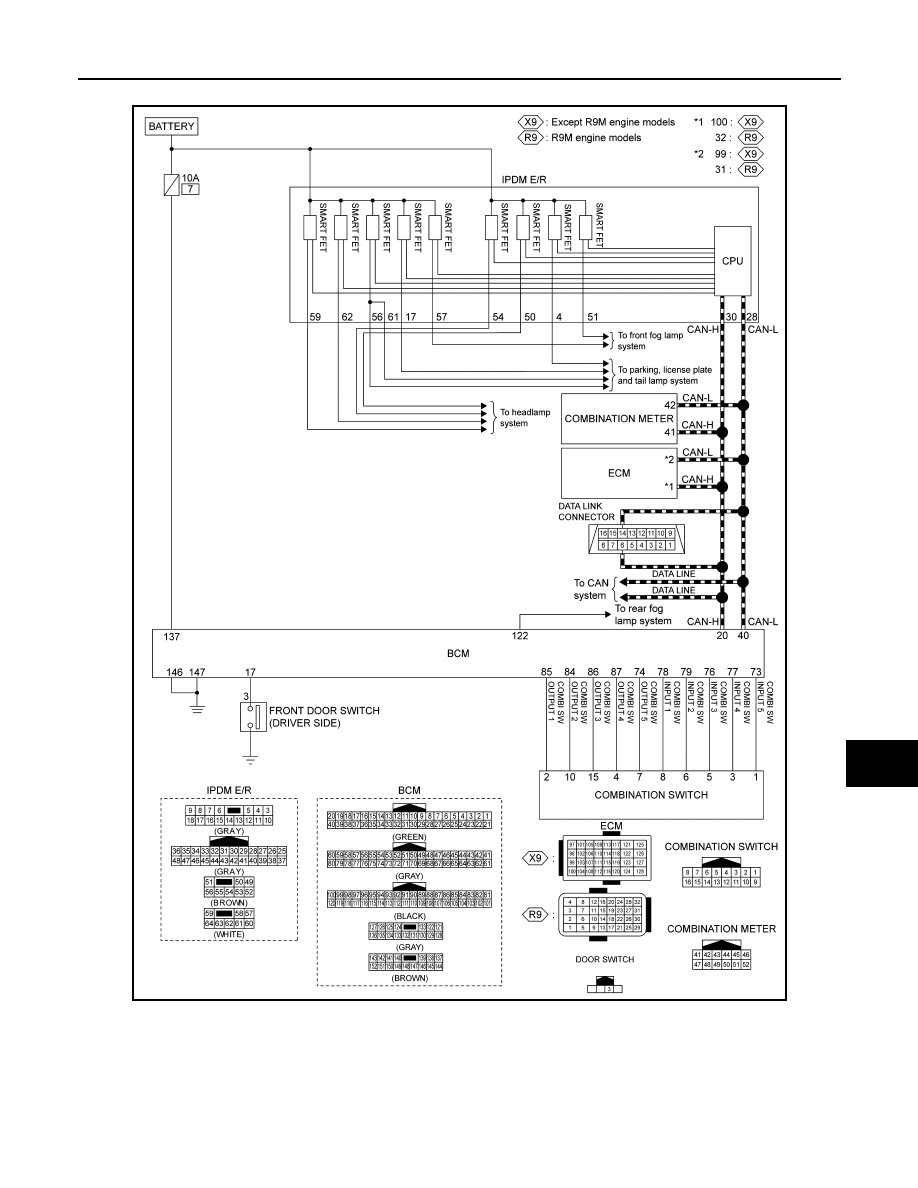

EXTERIOR LAMP BATTERY SAVER SYSTEM : Circuit Diagram

INFOID:0000000010788771

INFORMATION DISPLAY (COMBINATION METER)

INFORMATION DISPLAY (COMBINATION METER) : Headlamp Warning

INFOID:0000000010788772

DESIGN/PURPOSE

Headlamp warning warns the driver that there is a malfunction in LED headlamp system.

JMLIA5521GB

EXL-50

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

SYSTEM

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.
For master warning lamp, refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-19, "METER SYSTEM :

Fail-Safe"

.

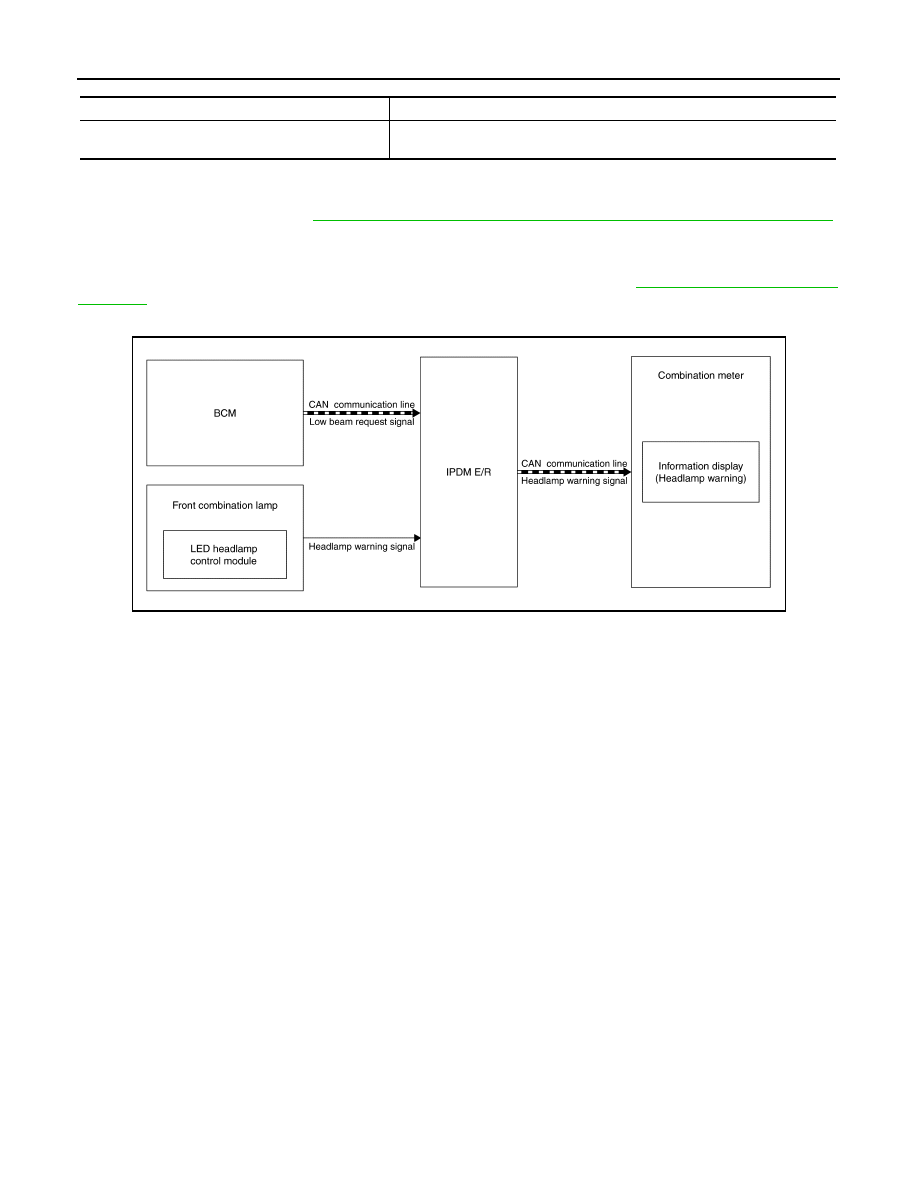

SYSTEM DIAGRAM

SIGNAL PATH

• BCM transmits the low beam request signal to IPDM E/R with CAN communication when headlamp (LO) ON

judgment.

• When LED headlamp control module detects a malfunction of headlamp (LO) circuit, headlamp warning sig-

nal is output to IPDM E/R.

• When the IPDM E/R receives the low beam request signal and the headlamp warning signal is input, it trans-

mits the headlamp warning signal (CAN communication) to the combination meter.

• When the ignition switch is ON and the combination meter receives the headlamp warning signal, the combi-

nation meter displays the headlamp warning on the information display.

WARNING/INDICATOR OPERATING CONDITION

When all of the following conditions are satisfied.
• Ignition switch ON
• Headlamp warning signal (CAN communication) is ON (IPDM E/R receives the low beam request signal and

inputs the headlamp warning signal).
NOTE:
When the headlamp warning signal is received, the most likely cause is a malfunction of the following.
• Headlamp (LO) power supply/ground circuit
• Headlamp warning signal circuit
• Front combination lamp internal circuit
- LED [Headlamp (LO)]
- LED headlamp control module
- Harness

WARNING/INDICATOR CANCEL CONDITION

When any of the following conditions are satisfied.
• Ignition switch OFF
• Headlamp warning signal (CAN communication) is OFF (IPDM E/R receives the low beam request signal

and does not input the headlamp warning signal).

Symbol

Message

—

Headlight system
fault

JMLIA5360GB

SYSTEM

EXL-51

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

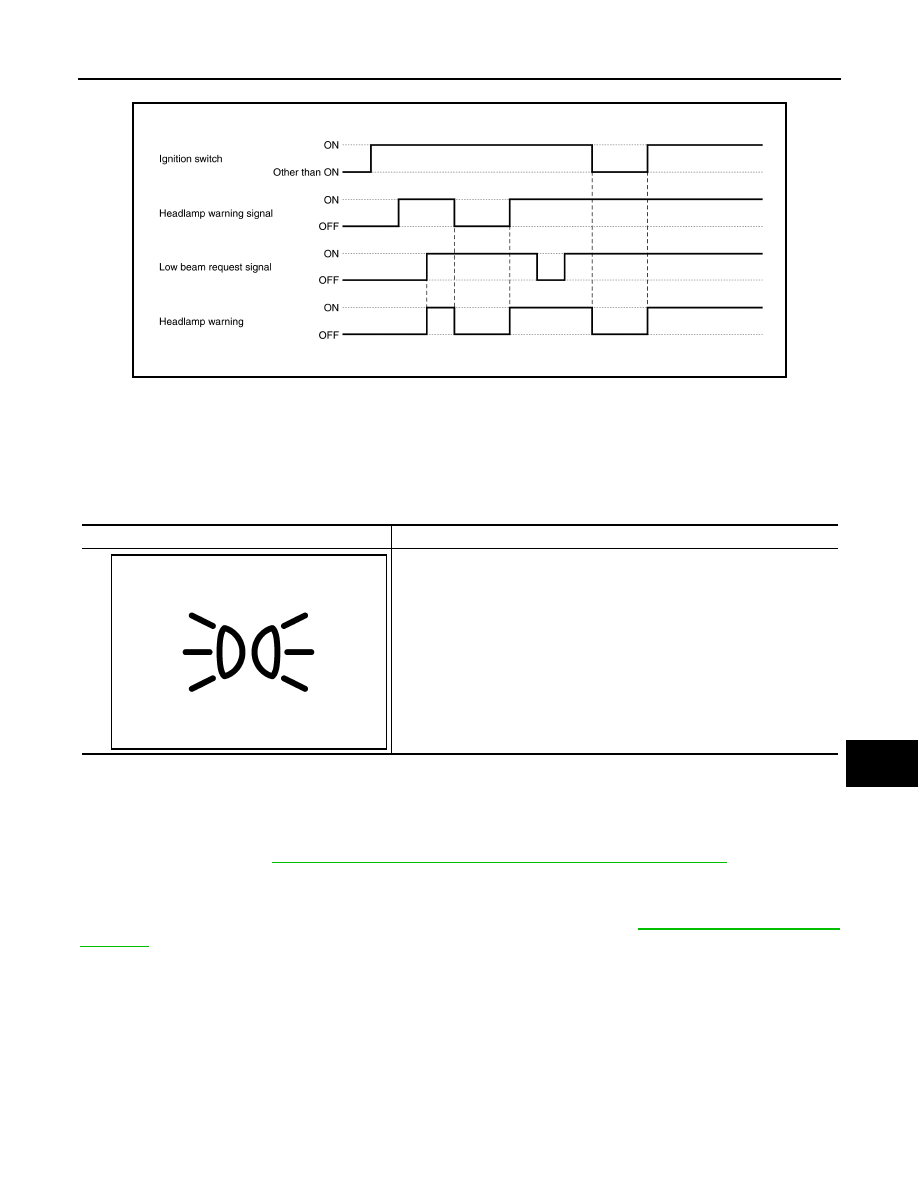

TIMING CHART

INFORMATION DISPLAY (COMBINATION METER) : Light Reminder Warning (Infor-
mation Display)

INFOID:0000000010788773

DESIGN/PURPOSE

When the driver is exiting the vehicle while ignition is in any position other than ON and lamps are ON, the light
reminder warning (information display) displays a warning in the information display to alert the driver.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

SYNCHRONIZATION WITH WARNING CHIME

Synchronization is applied.
For warning chime, refer to

WCS-12, "WARNING CHIME : Light Reminder Warning (Buzzer)"

.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-19, "METER SYSTEM :

Fail-Safe"

.

JMLIA4114GB

Symbol

Message

Turn off
headlights

JPNIA1880ZZ

EXL-52

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

SYSTEM

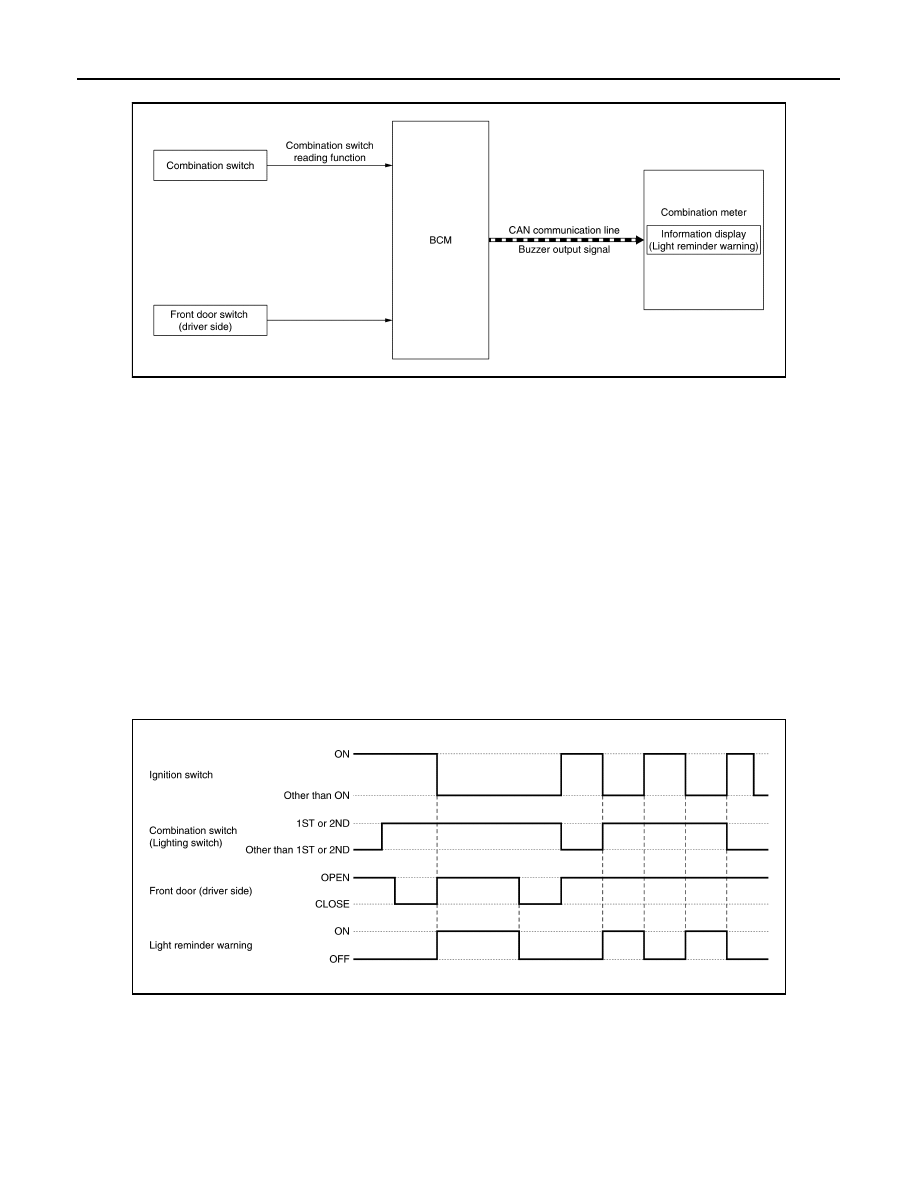

SYSTEM DIAGRAM

SIGNAL PATH

• BCM reads status of combination switch.
• BCM judges light reminder warning (information display) by lighting switch signal and driver door switch

(driver side) signal. BCM transmits buzzer output signal to combination meter via CAN communication.

• When combination meter receives the buzzer output signal, “Light reminder warning” pop-up screen

appears in the information display.

WARNING/INDICATOR OPERATING CONDITION

When all of the following conditions are satisfied.
• Ignition other than ON
• Lighting switch 1ST or 2ND
• Front door (driver side) OPEN [front door switch (driver side) ON]

WARNING/INDICATOR CANCEL CONDITION

When any of the following conditions are satisfied.
• Ignition ON
• Lighting switch other than 1ST or 2ND
• Front door (driver side) CLOSE [front door switch (driver side) OFF]

TIMING CHART

WARNING/INDICATOR/CHIME LIST

JMLIA4115GB

JMLIA4116GB
