EX-4

< PREPARATION >

[MR20DD]

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000010782881

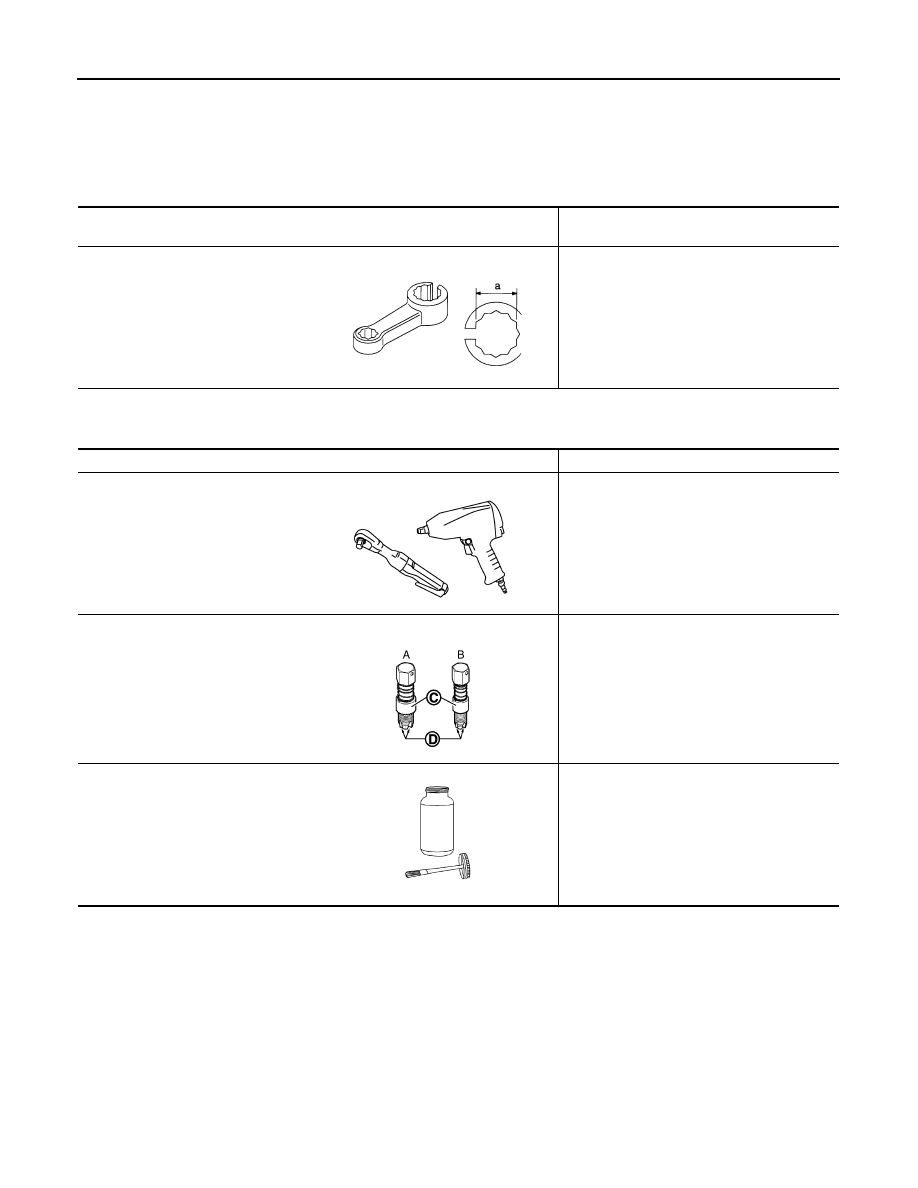

Commercial Service Tools

INFOID:0000000010782882

Tool number
Tool name

Description

KV10114400
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 2
a: For 22 mm (0.87 in) width hexagon nut

S-NT636

Tool name

Description

Power tool

Loosening nuts and bolts

Heated oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
A: J-43897-18 [18 mm (0.71 in) dia.] for zir-
conia heated oxygen sensor
B: J-43897-12 [12 mm (0.47 in) dia.] for tita-
nia heated oxygen sensor
C: Mating surface shave cylinder
D: Flutes

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating heated oxygen sensor thread
cleaner when reconditioning exhaust system
threads

PBIC0190E

JPBIA0238ZZ

AEM489

EXHAUST SYSTEM

EX-5

< PERIODIC MAINTENANCE >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

PERIODIC MAINTENANCE

EXHAUST SYSTEM

Inspection

INFOID:0000000010782883

Check exhaust pipes, muffler, and mounting for improper attach-
ment, leakage, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A

EX-6

< REMOVAL AND INSTALLATION >

[MR20DD]

EXHAUST SYSTEM

REMOVAL AND INSTALLATION

EXHAUST SYSTEM

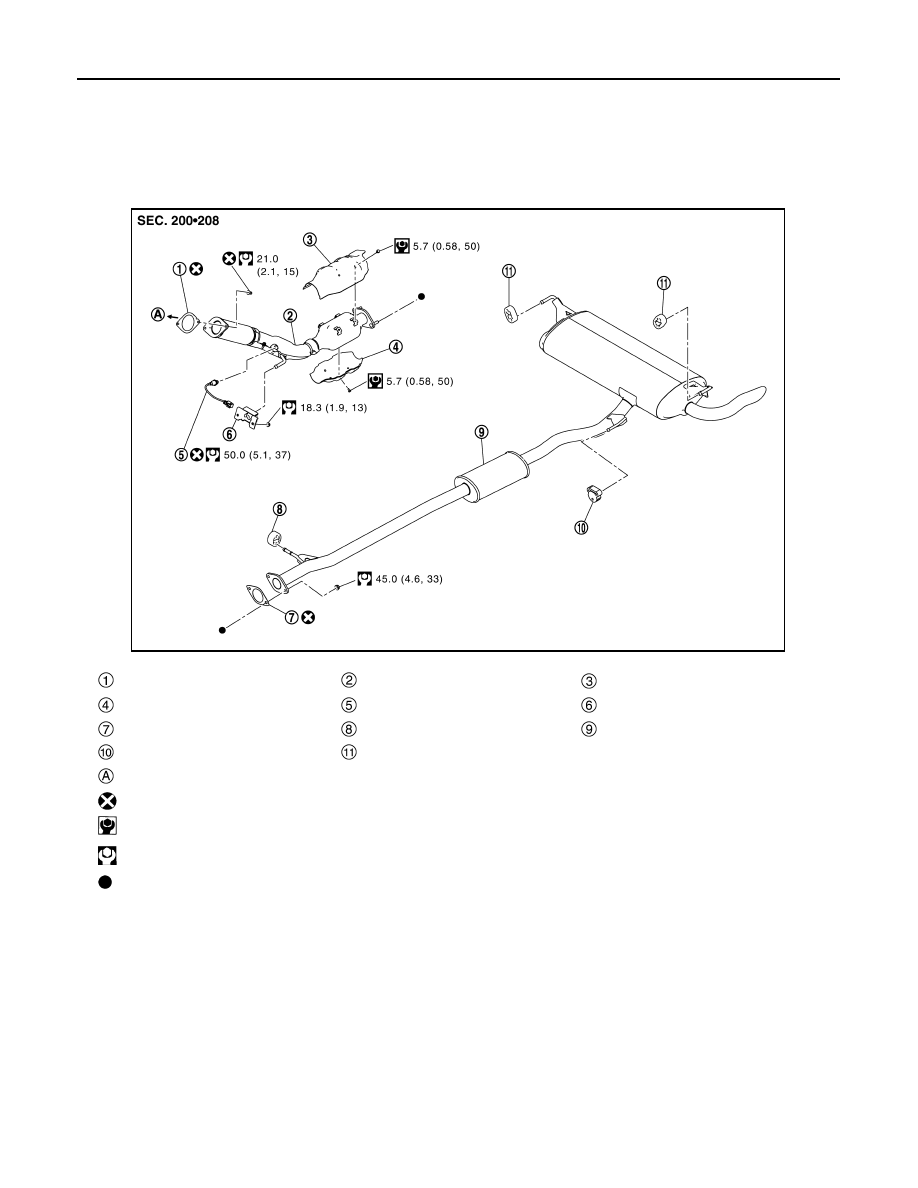

Exploded View

INFOID:0000000010782884

Removal and Installation

INFOID:0000000010782885

REMOVAL

• Disconnect each joint and mounting.
• Remove heated oxygen sensor 2 with following procedure.

Gasket

Exhaust front tube

Heat insulator

Heat insulator (Not applicable)

Heated oxygen sensor 2

Mounting rubber

Gasket

Mounting rubber

Main muffler

Mounting rubber

Mounting rubber

To exhaust manifold

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSBIA5024GB

EXHAUST SYSTEM

EX-7

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

- Using heated oxygen sensor wrench [SST: KV10114400] (A),

removal heated oxygen sensor 2

.

CAUTION:

Discard any sensor which has been dropped from a height of
more than 0.5 m (19.7 in) onto a hard surface such as a con-
crete floor; use a new one.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Always replace gaskets with new ones when reassembling.
• Discard any heated oxygen sensor 2 which has been dropped onto a hard surface such as a con-

crete floor. Use a new one.

• Before installing a new heated oxygen sensor 2, clean exhaust system threads using the heated oxy-

gen sensor thread cleaner [commercial service tool (J-43897-18 or J-43897-12)] and apply anti-seize
lubricant (commercial service tool).

• Never over torque heated oxygen sensor 2. Doing so may cause damage to the heated oxygen sen-

sor 2, resulting in the “MIL” coming on.

• If heat insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the heat

insulator, remove them.

• When installing heat insulator avoid large gaps or interference between heat insulator and each

exhaust pipe.

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid gas

leakage.

• Temporarily tighten mounting nuts and bolts. Check each part for unusual interference and mount-

ing rubber interference, and then tighten them to the specified torque.

• When installing each mounting rubber, avoid twisting or unusual extension in up/down, front/rear

and right/left directions.

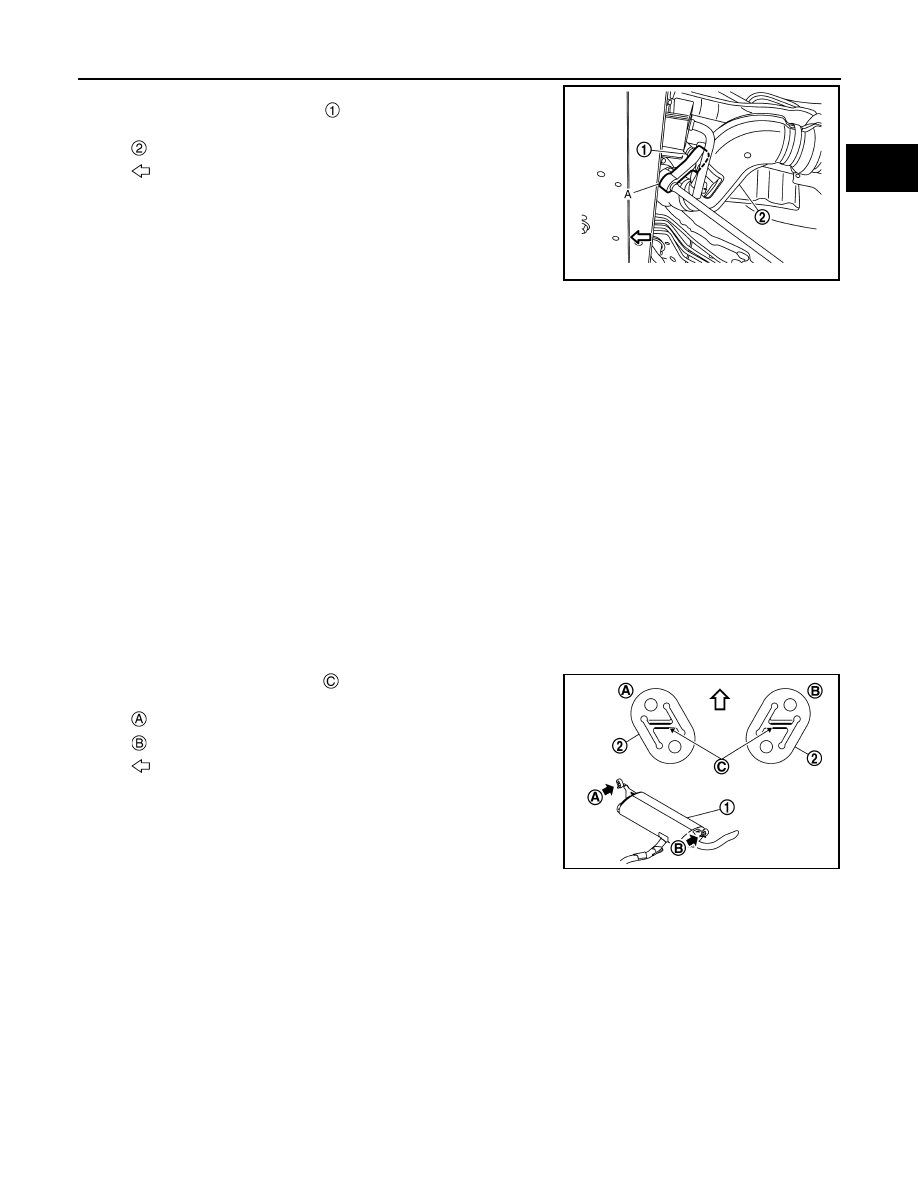

• Install mounting rubber, refer to the following instructions,
- Install slit of the mounting rubber

 is in a horizontal direction.

Inspection

INFOID:0000000010782886

INSPECTION AFTER INSTALLATION

• Check clearance between tail tube and rear bumper is even.
• With engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.

: Exhaust front tube

: Vehicle front

JSBIA4404ZZ

: RH

: LH

: Vehicle upper

JPBIA6874ZZ
