SERVICE DATA AND SPECIFICATIONS (SDS)

EM-421

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Main Bearing

INFOID:0000000010784377

MAIN BEARING GRADE TABLE

MAIN BEARING OIL CLEARANCE

Unit: mm (in)

Connecting Rod Bearing

INFOID:0000000010784378

CONNECTING ROD BEARING OIL CLEARANCE

Unit: mm (in)

Cylinder block main bearing
housing inner diameter

Grade mark A

55.4975 - 55.4985 (2.1849 - 2.185)

Grade mark B

55.4985 - 55.4995 (2.185)

Grade mark C

55.4995 - 55.5005 (2.185 - 2.1851)

Grade mark E

55.5005 - 55.5015 (2.1851)

Grade mark H

55.5015 - 55.5025 (2.1851)

Grade mark J

55.5025 - 55.5035 (2.1851 - 2.1852)

Grade mark K

55.5035 - 55.5045 (2.1852)

Grade mark L

55.5045 - 55.5055 (2.1852 - 2.1853)

Grade mark M

55.5055 - 55.5065 (2.1853)

Grade mark P

55.5065 - 55.5075 (2.1853)

Grade mark S

55.5075 - 55.5085 (2.1853 - 2.1854)

Grade mark T

55.5085 - 55.5095 (2.1854)

Grade mark U

55.5095 - 55.5105 (2.1854)

Grade mark Z

55.5105 - 55.5115 (2.1854 - 2.1855)

Marking

Thickness Identification

color

Lower shell

bearing

33281R or 4

1.989 mm (0.0783 in)

Blue

38751R or 3

1.985 mm (0.0781 in)

Black

37686R or 2

1.981 mm (0.0780 in)

Yellow

31153R or 1

1.977 mm (0.0778 in)

White

Upper shell

bearing

53785R or 4

1.989 mm (0.0783 in)

Blue

54889 or 3

1.985 mm (0.0781 in)

Black

7527 (upper)

1.981 mm (0.0780 in)

Yellow

7521 (lower)

1.977 mm (0.0778 in)

White

Main bearing oil clearance

Standard

0.035 - 0.065 (0.0014 - 0.0026)

Connecting rod bearing oil clearance

Standard

 0.053 - 0.093 (0.0021 - 0.0037)

EX-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EX

A

EX

N

O

P

CONTENTS

EXHAUST SYSTEM

MR20DD

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Removal and Installation ...........................................

2

Precautions for Removing Battery Terminal  .............

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tools ................................................

4

Commercial Service Tools  ........................................

4

PERIODIC MAINTENANCE ..........................

5

EXHAUST SYSTEM  ............................................

5

Inspection ..................................................................

5

REMOVAL AND INSTALLATION ................

6

EXHAUST SYSTEM  ............................................

6

Exploded View  ..........................................................

6

Removal and Installation ...........................................

6

Inspection ..................................................................

7

QR25DE

PRECAUTION ...............................................

8

PRECAUTIONS ...................................................

8

Removal and Installation ...........................................

8

Precautions for Removing Battery Terminal  .............

8

PREPARATION ...........................................

10

PREPARATION .................................................

10

Special Service Tools  ..............................................

10

Commercial Service Tools .......................................

10

PERIODIC MAINTENANCE  ........................

11

EXHAUST SYSTEM ..........................................

11

Inspection ................................................................

11

REMOVAL AND INSTALLATION  ...............

12

EXHAUST SYSTEM ..........................................

12

Exploded View .........................................................

12

Removal and Installation  .........................................

12

Inspection ................................................................

13

R9M

PRECAUTION ..............................................

14

PRECAUTIONS .................................................

14

Removal and Installation  .........................................

14

Precautions for Removing Battery Terminal ............

14

PERIODIC MAINTENANCE  ........................

16

EXHAUST SYSTEM ..........................................

16

Inspection ................................................................

16

REMOVAL AND INSTALLATION  ...............

17

EXHAUST SYSTEM ..........................................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

18

Inspection ................................................................

19

EX-2

< PRECAUTION >

[MR20DD]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Removal and Installation

INFOID:0000000010782879

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance, and shape.

• Perform the operation with the exhaust system fully cooled down because the system will be hot

just after engine stops.

• Be careful not to cut your hand on the heat insulator edge.
• Never use silicon-containing products (e.g. oil) to prevent malfunctions such as the interference with

the conduction of electricity and the occurrence of noise in the radio.

• Prevent rust preventives from adhering to the sensor body.

Precautions for Removing Battery Terminal

INFOID:0000000010782919

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

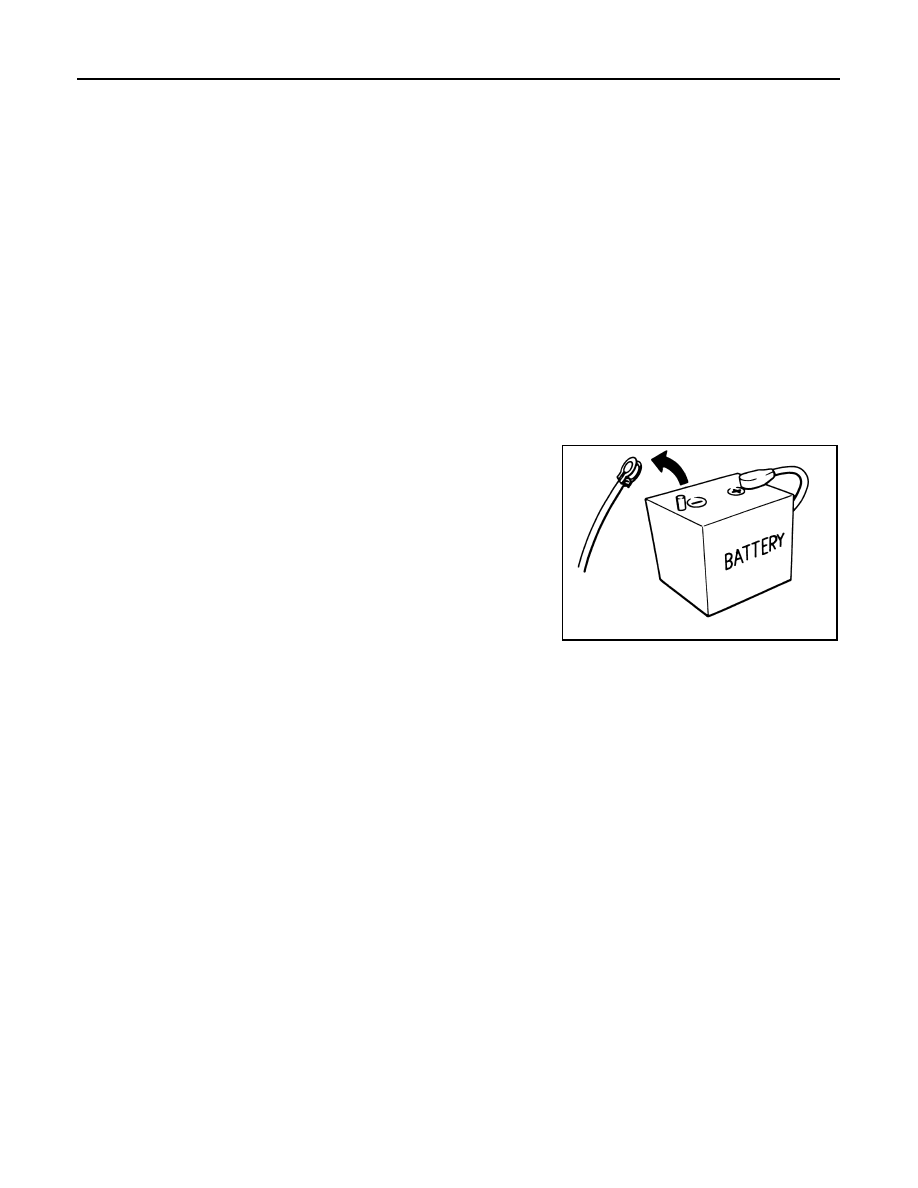

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

PRECAUTIONS

EX-3

< PRECAUTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.
