INTAKE MANIFOLD

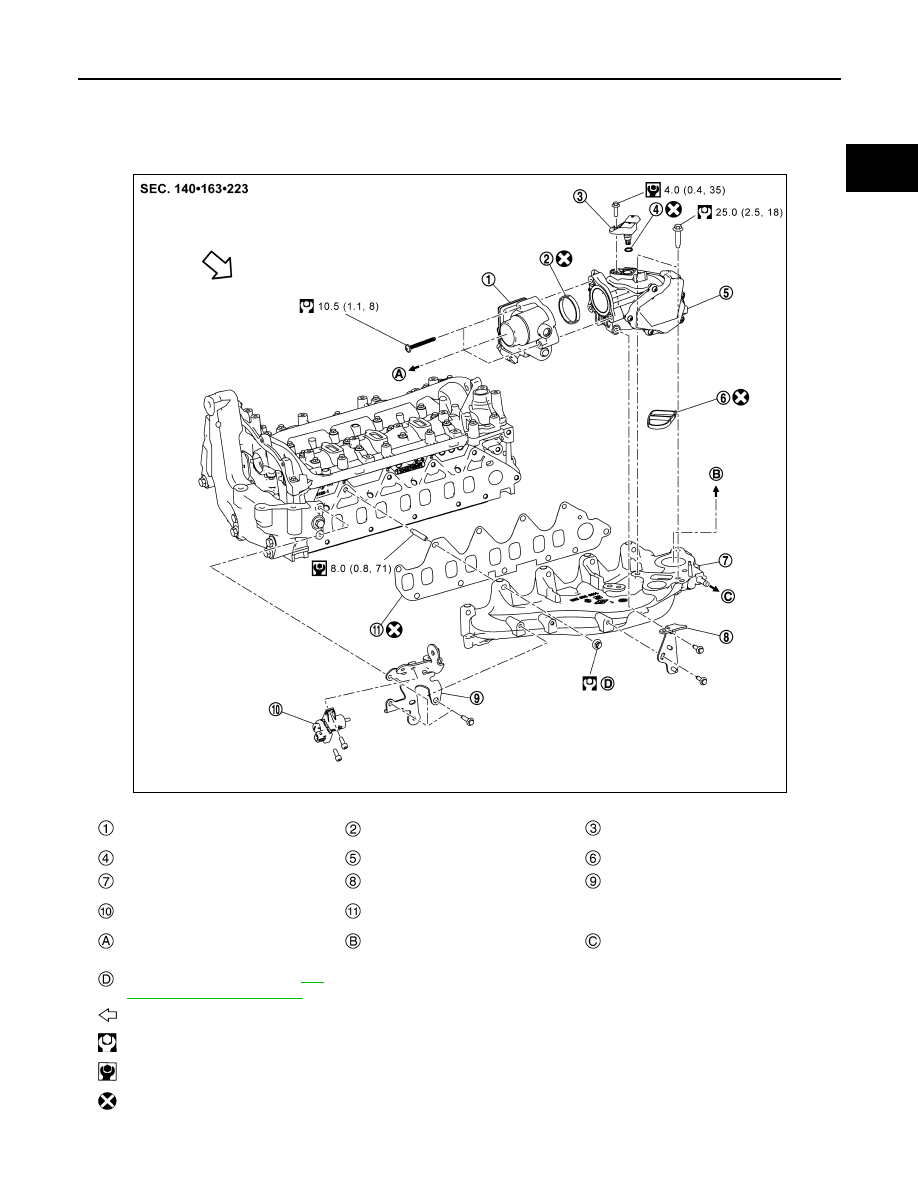

Exploded View

INFOID:0000000010784319

Electric throttle control actuator

Gasket

Turbocharger boost sensor (with in-
take air temperature sensor 2)

O-ring

Intake manifold runner control valve

Gasket

Intake manifold

Bracket

Bracket

Engine coolant bypass control sole-
noid valve

Gasket

To charge air cooler

To EGR volume control valve

To water outlet

Comply with the installation proce-
dure when tightening. Refer to

EM-

314, "Removal and Installation"

: Vehicle front

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

JPBIA6947GB

EM-314

< REMOVAL AND INSTALLATION >

[R9M]

INTAKE MANIFOLD

Removal and Installation

INFOID:0000000010784320

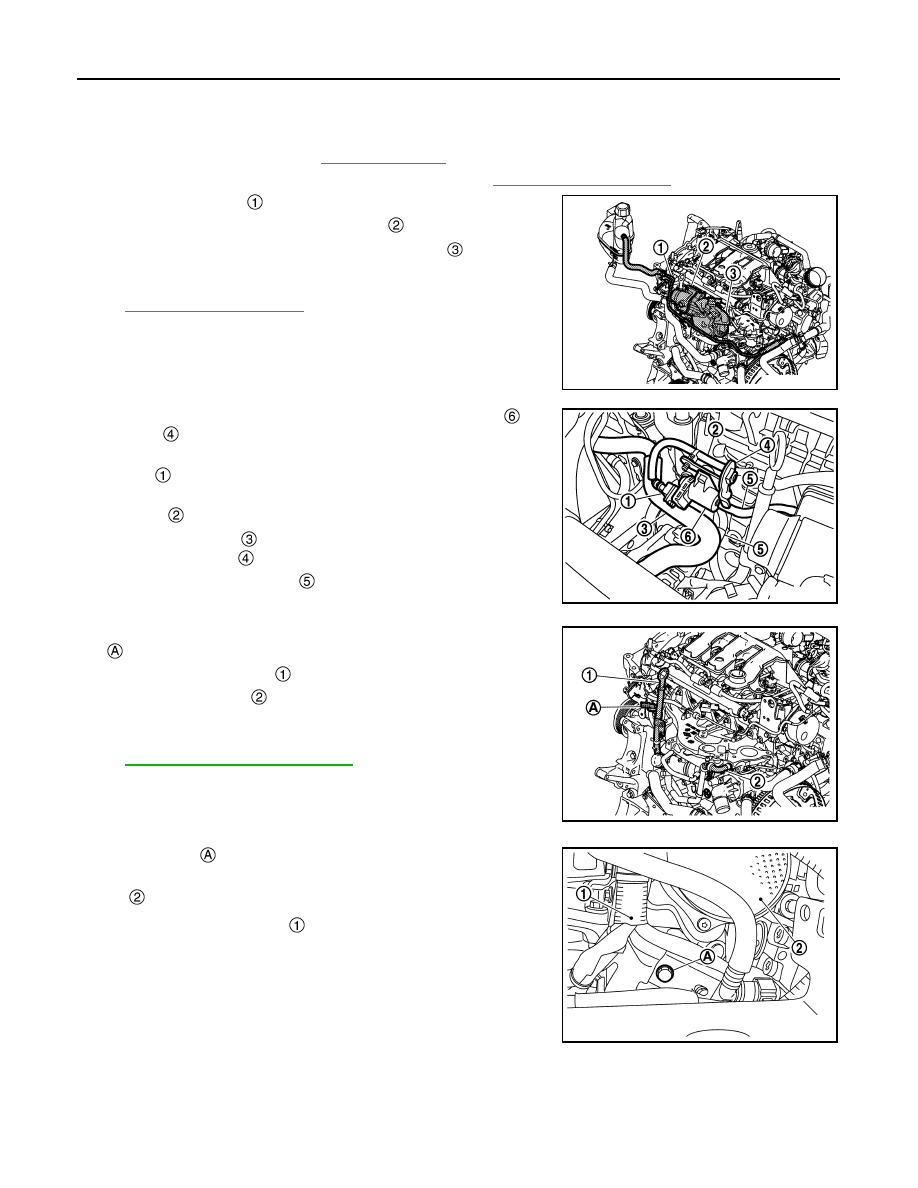

REMOVAL

1.

Drain engine coolant. Refer to

CO-64, "Draining"

.

2.

Remove air inlet hose 2, air inlet tube 1 and 2. Refer to

EM-310, "Exploded View"

.

3.

Remove water pipe

.

4.

Remove electric throttle control actuator

 from intake manifold.

5.

Remove intake manifold runner control valve

 from intake

manifold.

6.

Remove EGR volume control valve from intake manifold. Refer
to

EM-317, "Exploded View"

.

CAUTION:

• Handle carefully to avoid any shock to EGR volume con-

trol valve.

• Never disassemble EGR volume control valve.

7.

Remove engine coolant bypass control solenoid valve

 and

bracket

assembly.

a.

Disconnect engine coolant bypass control solenoid valve con-
nector .

b.

Unclip engine coolant bypass control solenoid valve connector
harness

 and put aside.

c.

Unclip water hose

 from engine coolant bypass control sole-

noid valve bracket

 .

d.

Disconnect vacuum hoses

 from engine coolant bypass con-

trol solenoid valve.

8.

Unclip engine coolant temperature sensor harness connector

.

9.

Remove oil level gauge

 and oil level gauge guide.

10. Remove water hose

 from intake manifold.

11. Disconnect harness connectors from A/C compressor.

12. Disconnect terminal nut and connector from the alternator. Refer

to

CHG-26, "R9M : Exploded View"

.

13. Remove bolt

.

14. Put aside engine harness

 .

JPBIA6966ZZ

E1BIA0612ZZ

JPBIA6967ZZ

: Vacuum pump

JPBIA6968ZZ

INTAKE MANIFOLD

EM-315

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

15. Unclip vacuum hose

 on the intake manifold and put aside.

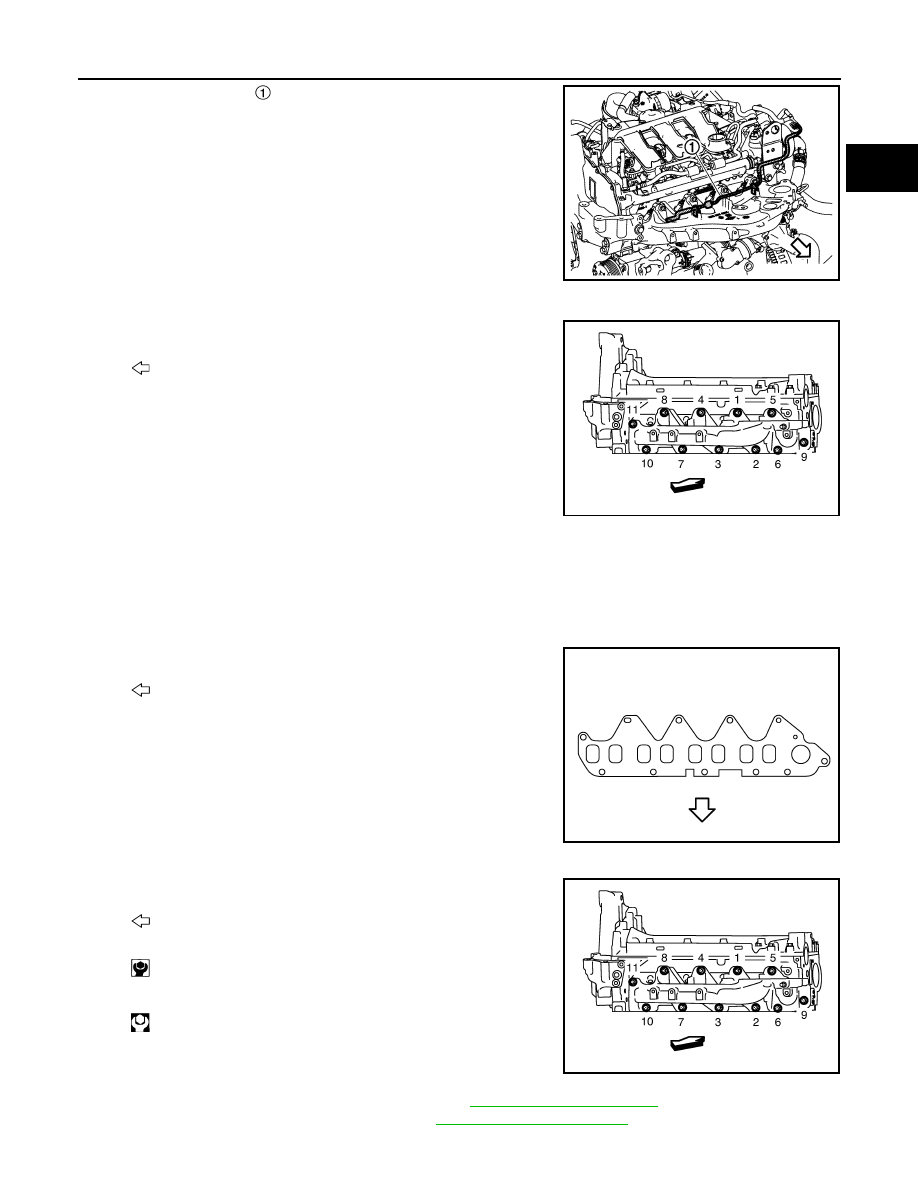

16. Remove intake manifold with the following procedure:
a.

Loosen mounting nuts in reverse order as shown in the figure.

b.

Remove intake manifold and gasket.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Clean each joint surface before installation.
• Replace intake manifold stud if loosened.

Intake Manifold

1.

Install gasket to cylinder head as shown in the figure.

2.

Install intake manifold.
• Tighten mounting nuts in two steps separately.

3.

Perform "Throttle valve position learning". Refer to

EC-949, "Work Procedure"

. and "Intakemanifold run-

ner control valve position learning". Refer to

EC-953, "Work Procedure"

. when removing or replacing

throttle valve or swirl valve.

JPBIA6969ZZ

: Vehicle front

E1BIA0579ZZ

: Engine lower

E1BIA0580ZZ

: Vehicle front

1st step: 10 N·m ( 1.0 kg-m, 89 in-lb)

2nd step: 25 N·m ( 2.6 kg-m, 18 ft-lb)

E1BIA0579ZZ

EM-316

< REMOVAL AND INSTALLATION >

[R9M]

INTAKE MANIFOLD

4.

Perform "EGR volume control valve position learning". Refer to

EC-951, "Work Procedure"

. when remov-

ing or replacing EGR volume control valve.

5.

When replacing EGR volume control valve, throttle valve or swirl valve, this procedure must be per-
formed. Refer to

EC-943, "Special Repair Requirement List"

Inspection

INFOID:0000000010784321

INSPECTION AFTER REMOVAL

Surface Distortion

• Check the surface distortion of the intake manifold mating surface with a straightedge and a feeler gauge.

• If it exceeds the standard, replace intake manifold.

Standard

: Refer to

EM-414, "Intake Manifold"

.
