AIR CLEANER FILTER

EM-305

< PERIODIC MAINTENANCE >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

MAINTENANCE INTERVAL

Refer to

MA-8, "Periodic Maintenance"

.

Inspection (Viscous Paper Type)

INFOID:0000000011004808

INSPECTION AFTER REMOVAL

Examine with eyes that there is no stain, clogging, or damage on air cleaner element.
• Remove dusts (such as dead leafs) on air cleaner element surface and inside cleaner case.
• If clogging or damage is observed, replace the air cleaner element.

CAUTION:

Never clean the viscous paper type air cleaner element by blowing as there is a risk of deterioration of
its performance

MAINTENANCE INTERVAL

Refer to

MA-8, "Periodic Maintenance"

.

EM-306

< REMOVAL AND INSTALLATION >

[R9M]

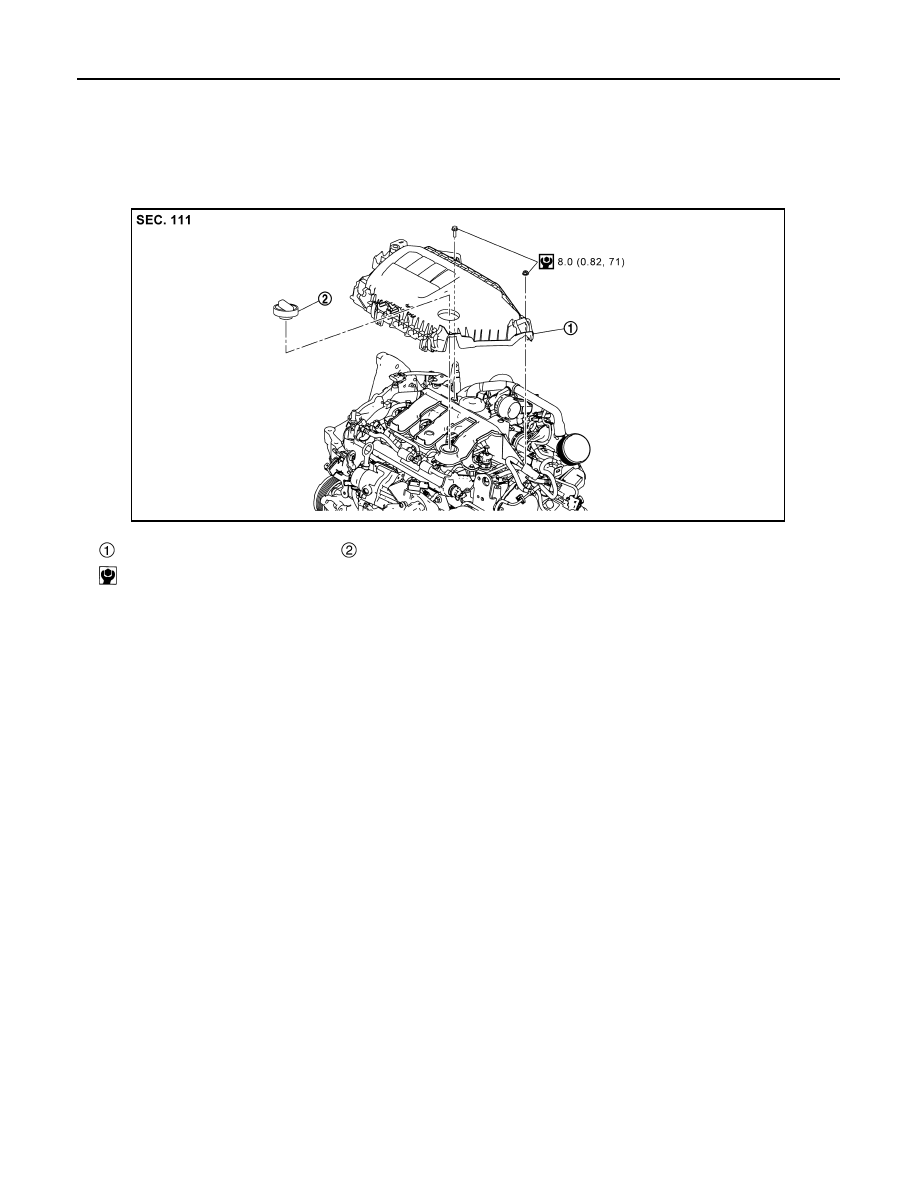

ENGINE COVER

REMOVAL AND INSTALLATION

ENGINE COVER

Exploded View

INFOID:0000000011004823

Removal and Installation

INFOID:0000000011004824

REMOVAL

1.

Remove Oil filter cap.

2.

Move harness.

3.

Remove engine cover.

CAUTION:

• Never damage or scratch engine cover when installing or removing.

INSTALLATION

Install in the reverse order of removal.

Engine cover

Oil filler cap

: N·m (kg-m, in-lb)

JPBIA6949GB

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

EM-307

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

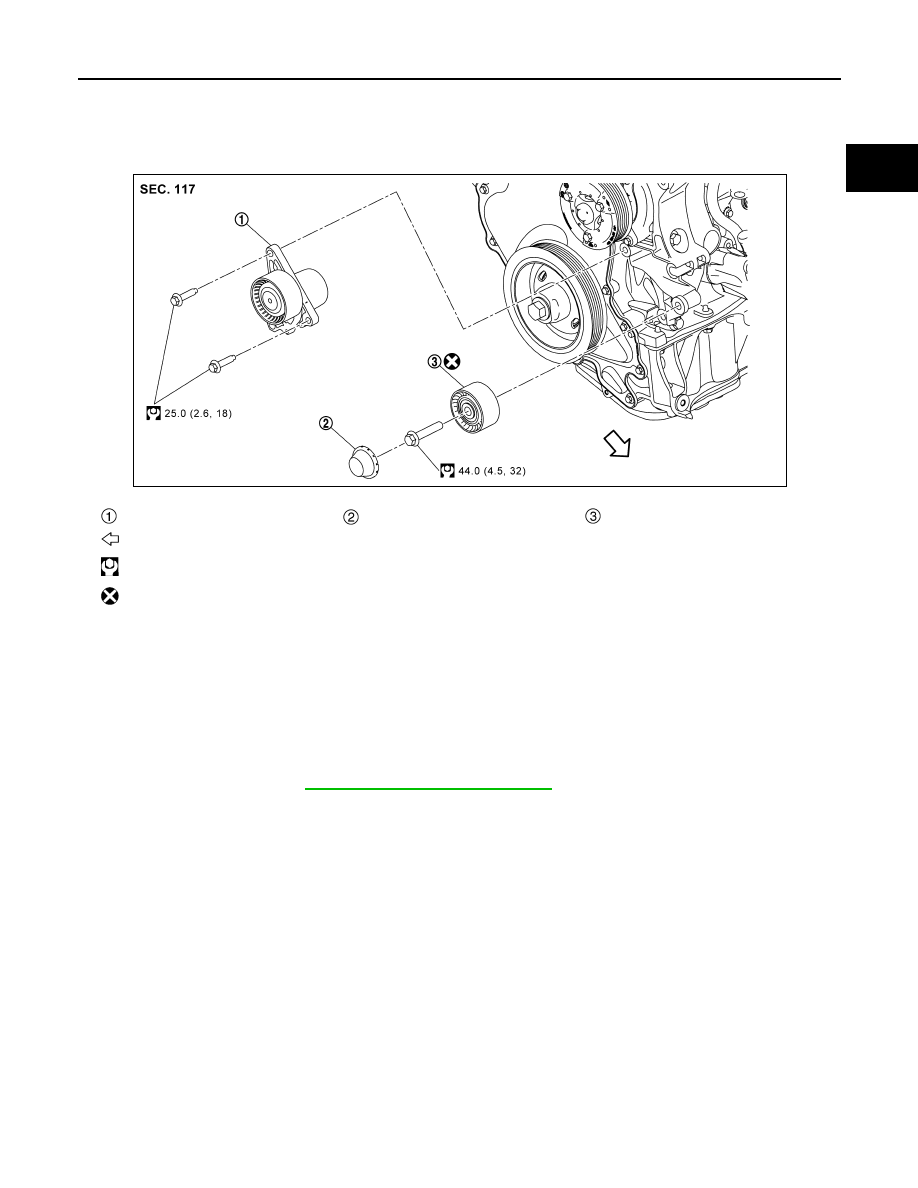

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

Exploded View

INFOID:0000000010784309

Removal and Installation

INFOID:0000000010784310

CAUTION:

• Replace the drive belt that has been removed with a new one.
• Drive belt auto-tensioner and idler pulley must be replaced with new ones when the drive belt is

replaced.

• Never run the engine without the drive belt to avoid damaging the crankshaft pulley.

REMOVAL

1.

Remove drive belt. Refer to

EM-300, "Removal and Installation"

.

• Keep drive belt auto-tensioner pulley arm locked after drive belt is removed.

2.

Remove drive belt auto-tensioner.

3.

Remove rear torque rod mounting bolt.

4.

Move engine, and remove cover and idler pulley.

INSTALLATION

Install in the reverse order of removal.

Drive belt auto-tensioner

Cover

Idler pulley

: Vehicle front

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

JPBIA6944GB

EM-308

< REMOVAL AND INSTALLATION >

[R9M]

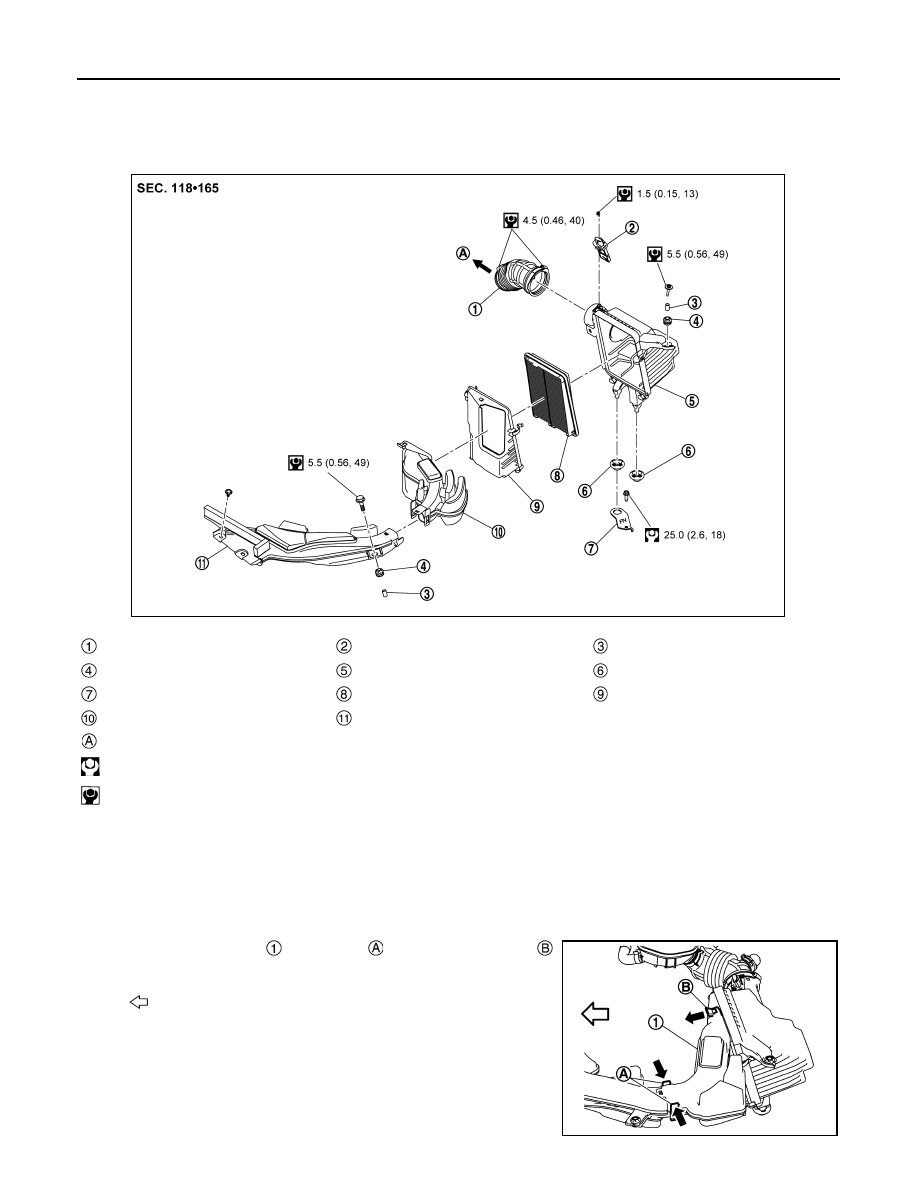

AIR CLEANER AND AIR DUCT

AIR CLEANER AND AIR DUCT

Exploded View

INFOID:0000000010784311

Removal and Installation

INFOID:0000000010784312

REMOVAL

NOTE:
Mass air flow sensor is removable under the car-mounted condition.

1.

Remove air duct 1 and air duct 2.
• To remove air duct 2

, pinch pawl

 to unlock, move pawl

frontward, and remove air duct 2 upward.

JPBIA6926GB

Air duct

Mass air flow sensor

Collar

Grommet

Air cleaner body

Mounting rubber

Bracket

Air cleaner filter

Air cleaner cover

Air duct 2

Air duct 1

To turbochager

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Vehicle front

JSBIA4626ZZ
