Nissan X-Trail 32. Manual - part 109





BR-30

< REMOVAL AND INSTALLATION >

[LHD]

BRAKE PIPING

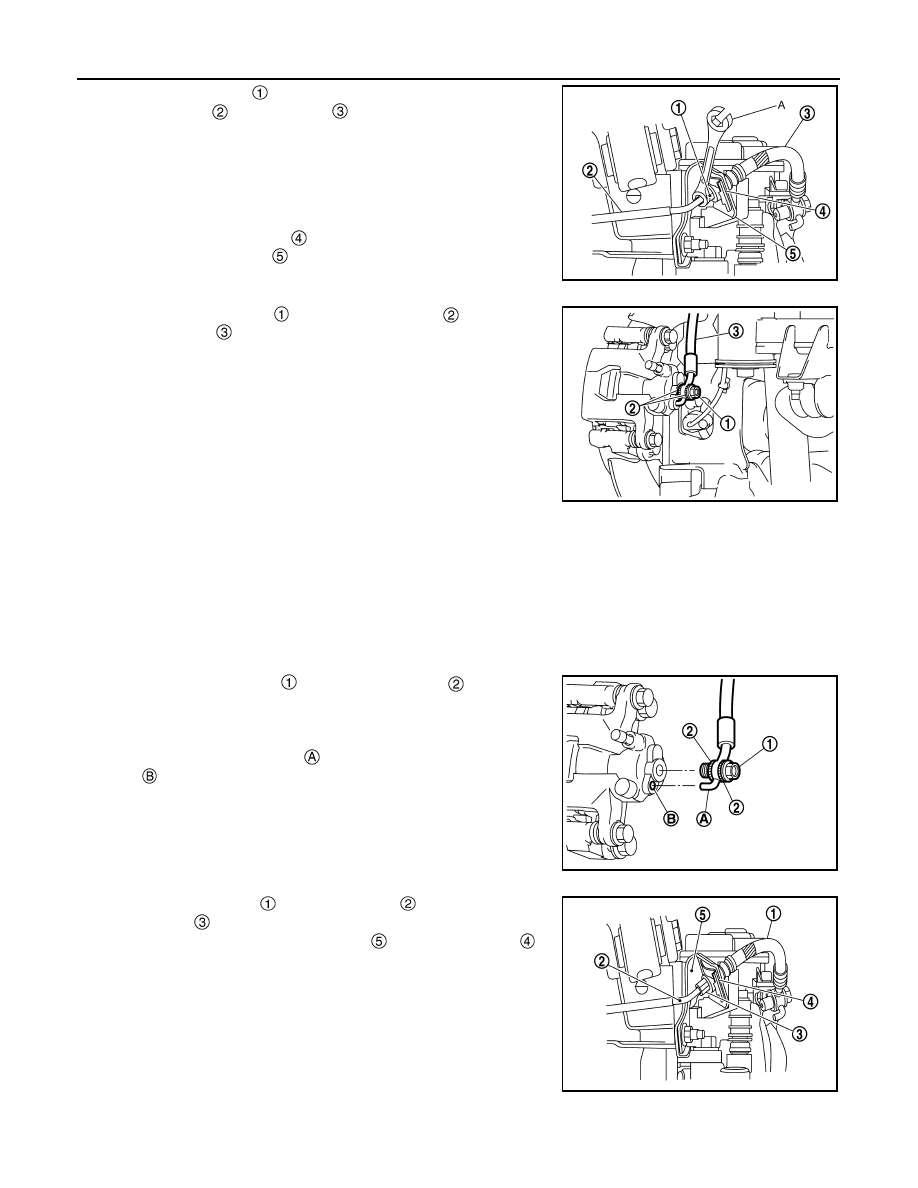

5.

Loosen the flare nut

 with a flare nut wrench (A) and separate

the brake tube

 from the hose

.

CAUTION:

• Never scratch the flare nut and the brake tube.
• Never bend sharply, twist or strongly pull out the brake

hoses and tubes.

• Cover open end of brake tubes and hoses when discon-

necting to prevent entrance of dirt.

6.

Disconnect the lock plate

, then remove the brake hose from

the brake hose bracket

.

7.

Remove the union bolt

 and copper washers

, and remove

the brake hose

 from the brake caliper assembly.

INSTALLATION

CAUTION:

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface. For brake component parts,
never wash them with water.

• Never depress the brake pedal while removing the brake hose or brake tube. If this is not complied

with, brake fluid may splash.

• Never allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.
• Wipe off immediately when attaching brake fluid with disc rotor and caliper assembly.

1.

Assemble the union bolt

 and copper washers

 to the brake

hose.

CAUTION:

Never reuse the copper washer.

2.

Align the brake hose L-pin

 with the brake caliper assembly

hole

, and tighten the union bolt to the specified torque.

3.

Install the brake hose

 to the brake tube

, temporarily tighten

the flare nut

 by hand until it does not rotate further, and fix the

brake hose to the brake hose bracket

 with the lock plate

.

CAUTION:

Check that all brake hoses and brake tubes are not twisted
and bent.

JSFIA2702ZZ

JSFIA0471ZZ

JSFIA0472ZZ

JSFIA2658ZZ

BRAKE PIPING

BR-31

< REMOVAL AND INSTALLATION >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

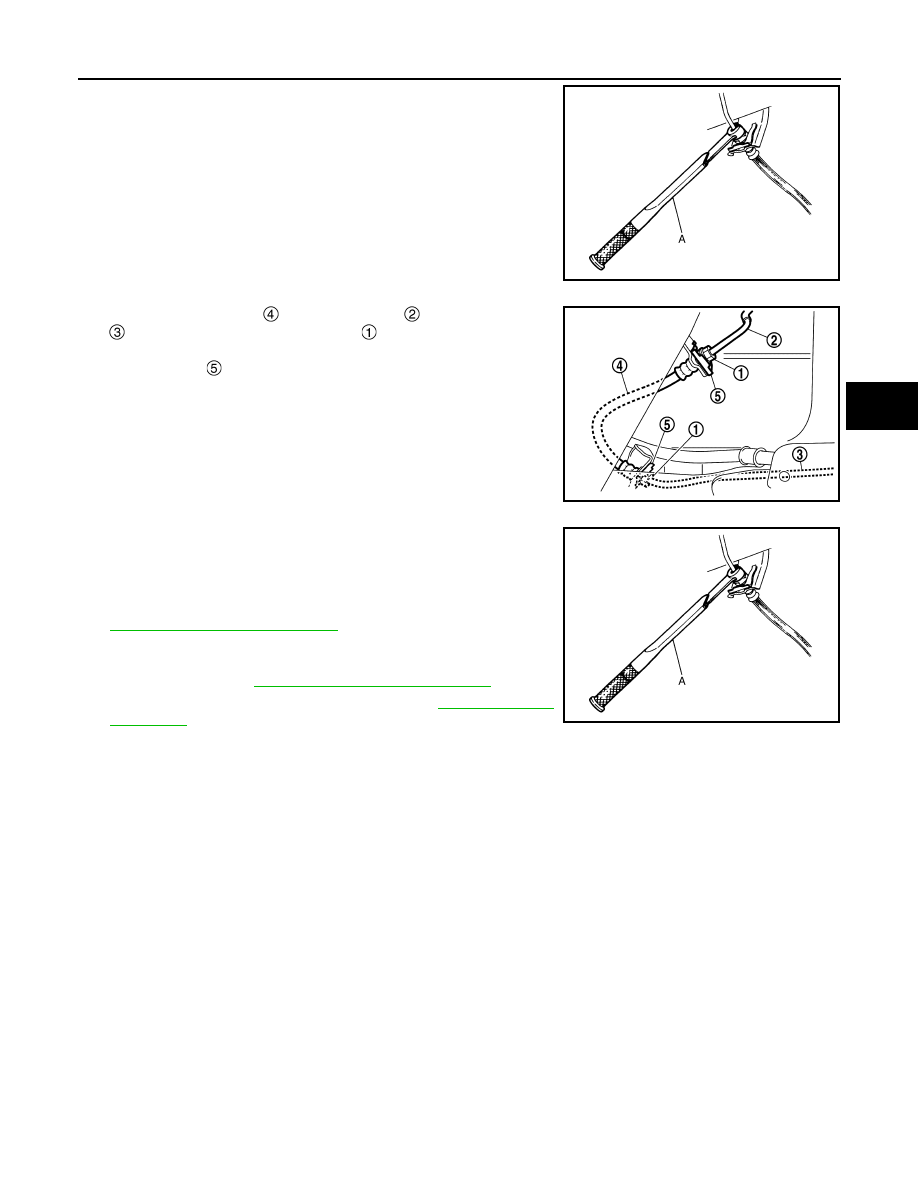

4.

Tighten the flare nut to the specified torque with a flare nut
torque wrench (A).

CAUTION:

Never scratch the flare nut and the brake tube.

5.

Install the brake hose

 to the brake tube

 and the brake tube

, temporarily tighten the flare nut

 by hand until it does not

rotate further, and fix the brake hose to brake hose brackets with
the lock plate

.

CAUTION:

Check that all brake hoses and brake tubes are not twisted
and bent.

6.

Tighten the flare nut to the specified torque with a flare nut
torque wrench (A).

CAUTION:

Never scratch the flare nut and the brake tube.

7.

Refill with new brake fluid and perform the air bleeding. Refer to

BR-14, "Bleeding Brake System"

.

CAUTION:

Never reuse drained brake fluid.

8.

Install tires. Refer to

WT-61, "Removal and Installation"

.

9.

Perform inspection after installation. Refer to

BR-31, "REAR :

Inspection"

.

REAR : Inspection

INFOID:0000000010838517

INSPECTION AFTER INSTALLATION

1.

Check the brake hoses and tubes for the following: no scratches; no twist and deformation; no looseness
at connections.

CAUTION:

Clearance with brake hose and each parts being secured more than 10 mm (0.39 in) in unladen
condition

*

.

*: Fuel, engine coolant and lubricant are quantity to specified. Spare tire, jack, hand tools and mats
are brought out of vehicle.

2.

Depress the brake pedal with a force of 785 N (80 kg, 176 lb) and hold down the pedal for approximately
5 seconds with the engine running. Check for any fluid leakage.

CAUTION:

Retighten the applicable connection to the specified torque and repair any abnormal (damaged,
worn or deformed) part if any brake fluid leakage is present.

JPFIA0061ZZ

JSFIA1065ZZ

JPFIA0061ZZ

BR-32

< REMOVAL AND INSTALLATION >

[LHD]

BRAKE MASTER CYLINDER

BRAKE MASTER CYLINDER

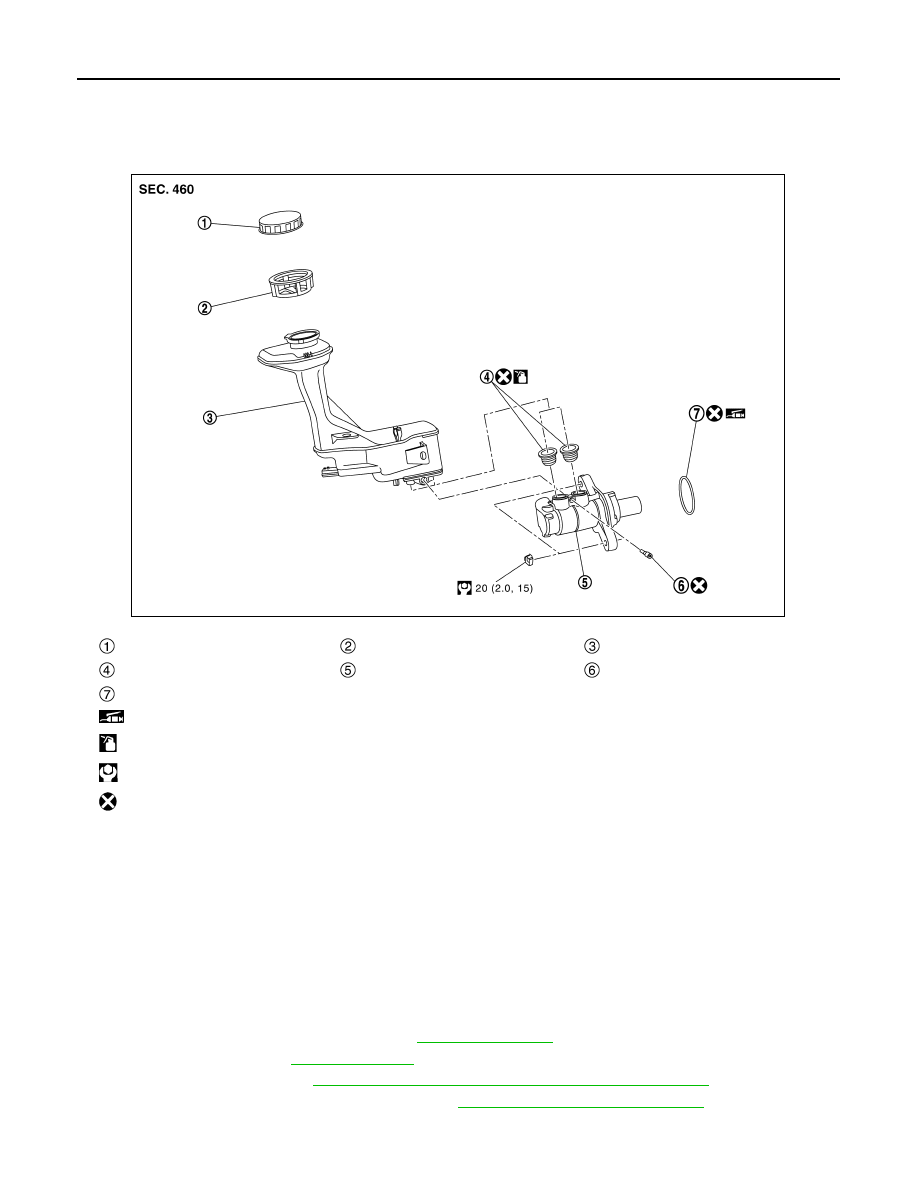

Exploded View

INFOID:0000000010838518

Removal and Installation

INFOID:0000000010838519

REMOVAL

CAUTION:

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface. For brake component parts,
never wash them with water.

• Depress the brake pedal several times to release the vacuum pressure from the brake booster. Then

remove the master cylinder assembly.

• Never depress the brake pedal while removing the brake tube. If this is not complied with, brake fluid

may splash.

1.

Perform inspection before removal. Refer to

BR-35, "Inspection"

.

2.

Drain brake fluid. Refer to

BR-13, "Draining"

.

3.

Remove the battery. Refer to

PG-142, "EXCEPT FOR R9M : Removal and Installation"

.

4.

Remove the TCM (as a set with bracket). Refer to

TM-415, "Removal and Installation"

.

Reservoir cap

Oil strainer

Reservoir tank

Grommet

Cylinder body

Screw

O-ring

: Apply polyglycol ether based lubricant.

: Apply brake fluid.

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

JSFIA2562GB

BRAKE MASTER CYLINDER

BR-33

< REMOVAL AND INSTALLATION >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

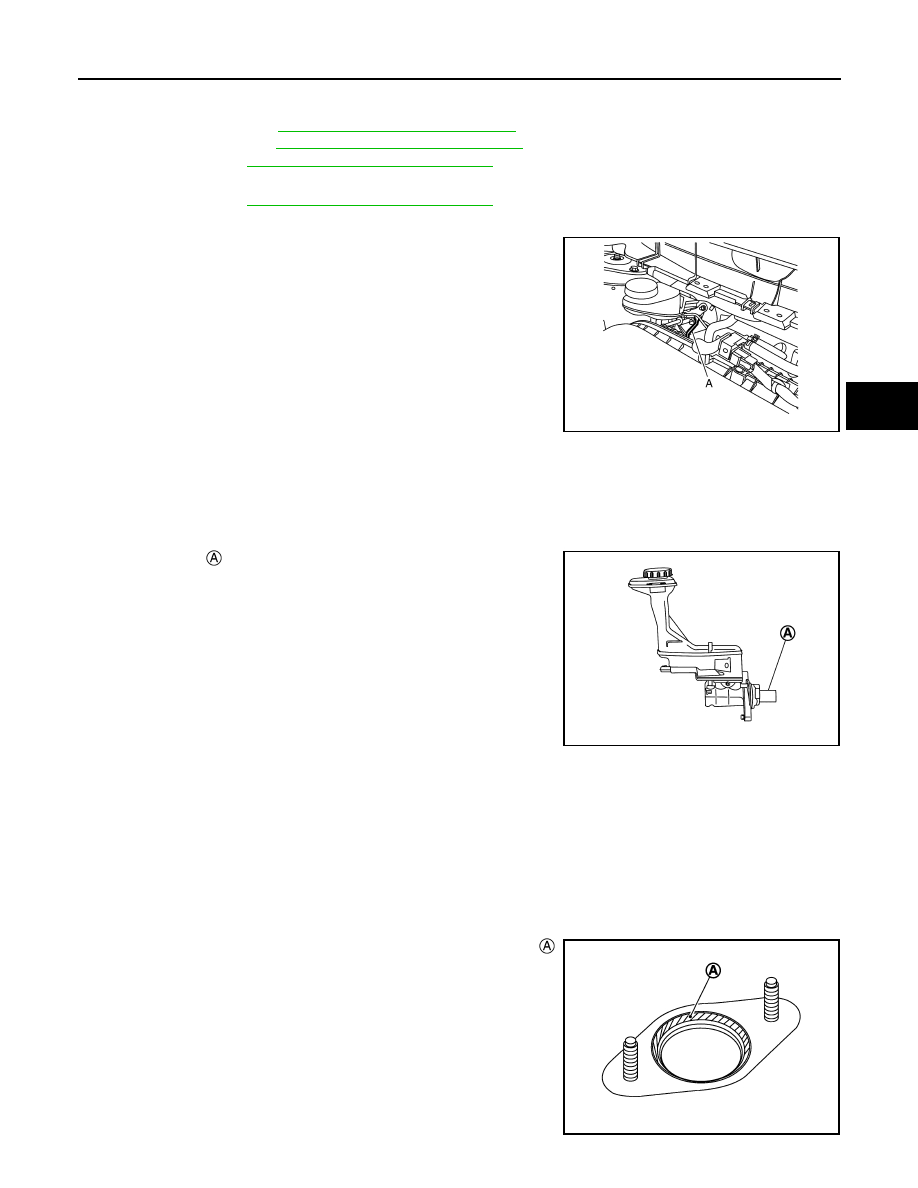

5.

Remove the air duct assembly, the air duct 1, the air duct 2, the air cleaner cover, the cleaner element, the
air cleaner body, and the mass air flow sensor.
• For MR20DD, refer to

EM-31, "Removal and Installation"

.

• For QR25DE, refer to

EM-175, "Removal and Installation"

.

• For R9M, refer to

EM-308, "Removal and Installation"

.

6.

Remove the engine cover.
• For R9M, refer to

EM-306, "Removal and Installation"

.

7.

Disconnect the brake fluid level switch harness connector and the harness clip.

8.

Separate the brake tube from the master cylinder assembly with
a flare nut wrench (A).

CAUTION:

Never scratch the flare nut and the brake tube.

9.

Remove the master cylinder assembly.

CAUTION:

• Never deform or bend the brake tubes.
• Never depress the brake pedal after the master cylinder assembly is removed.

• The piston

 of the master cylinder assembly is exposed.

Never damage it when removing the master cylinder.

• The piston may drop off when pulled out strongly. Never

hold the piston. Hold the cylinder body when handling the
master cylinder assembly.

10. Remove the O-ring.

INSTALLATION

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface. For brake component parts, never
wash them with water.
Note the following, and install in the reverse order of removal.
• Never reuse the O-ring.
• Never depress the brake pedal after the master cylinder assembly is removed.
• Apply polyglycol ether based lubricant to the brake booster [see

in the figure] when installing the master cylinder assembly to the
brake booster.

JSFIA2238ZZ

JSFIA2382ZZ

JPFIA0013ZZ
