PREPARATION

EM-149

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

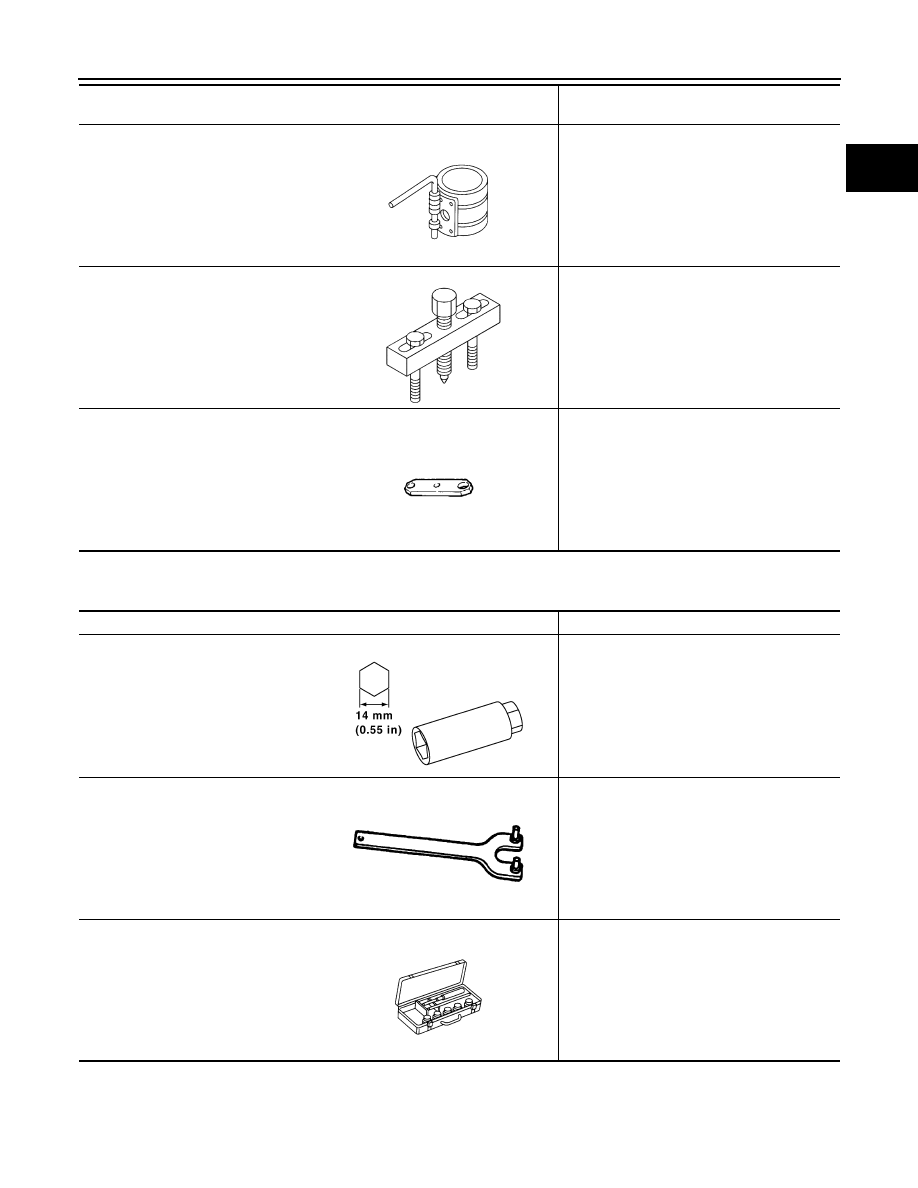

Commercial Service Tools

INFOID:0000000010783757

EM03470000
Piston ring compressor

Installing piston assembly into cylinder bore

KV11103000
Pulley puller

Removing crankshaft pulley

KV11105210
Stopper plate

Fixing drive plate

Tool number
Tool name

Description

S-NT044

NT676

ZZA0009D

Tool name

Description

Spark plug wrench

Removing and installing spark plug

Pulley holder

Crankshaft pulley removing and installing

Valve seat cutter set

Finishing valve seat dimensions

PBIC2982E

ZZA1010D

S-NT048

EM-150

< PREPARATION >

[QR25DE]

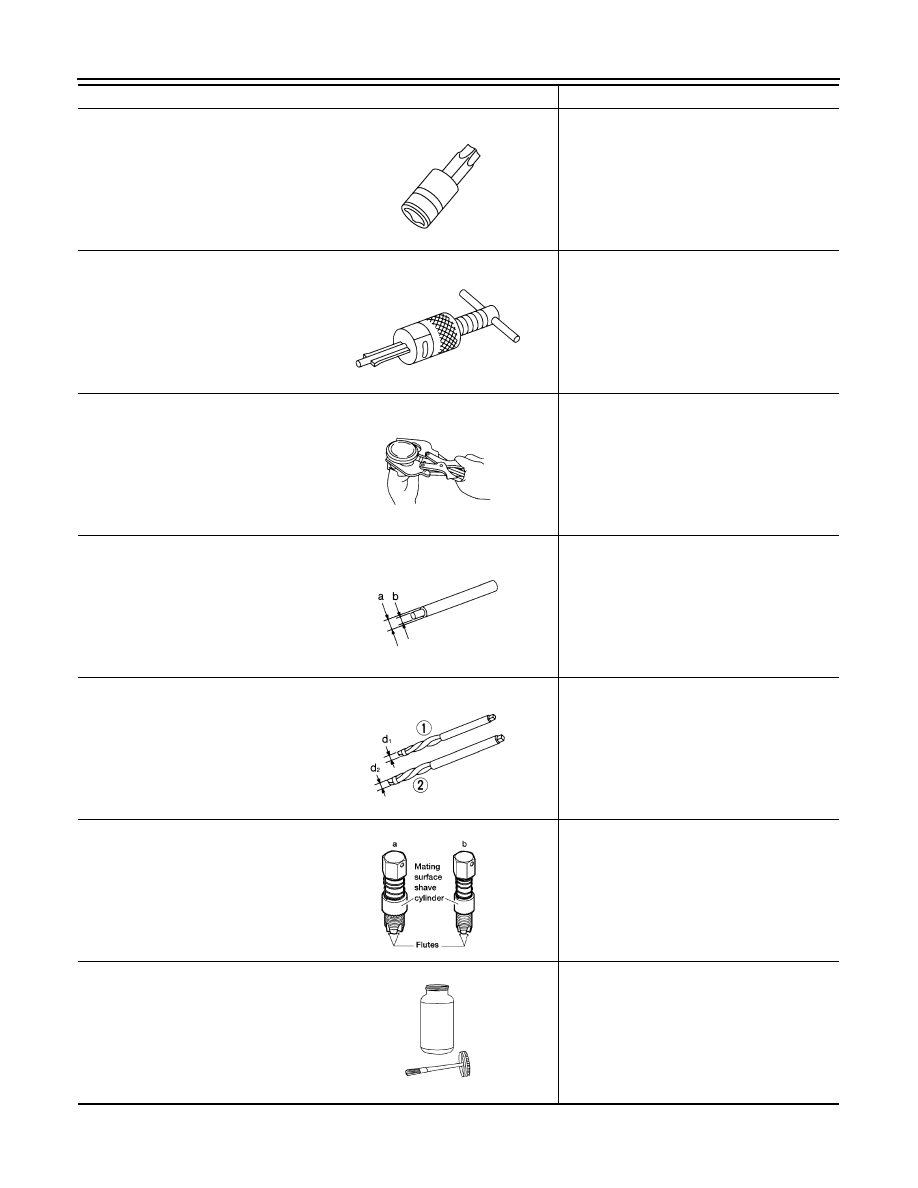

PREPARATION

TORX socket

Removing and installing flywheel
Size: T55

Pilot bushing puller

Removing pilot converter

Piston ring expander

Removing and installing piston ring

Valve guide drift

Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

Valve guide reamer

1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide
Intake & Exhaust:
d1: 6.0 mm (0.236 in) dia.
d2: 10.2 mm (0.402 in) dia.

Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new air fuel ratio sensor and
heated oxygen sensor (Use with anti-seize lu-
bricant shown below.)
a = 18 mm (0.71 in) dia. for zirconia heated
oxygen sensor and air fuel ratio sensor
b = 12 mm (0.47 in) dia. for titania heated
oxygen sensor

Anti-seize lubricant i.e.: (Permatex

TM



133AR or equivalent meeting MIL
specification MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

Tool name

Description

PBIC1113E

S-NT045

S-NT030

S-NT015

S-NT016

AEM488

AEM489

PREPARATION

EM-151

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

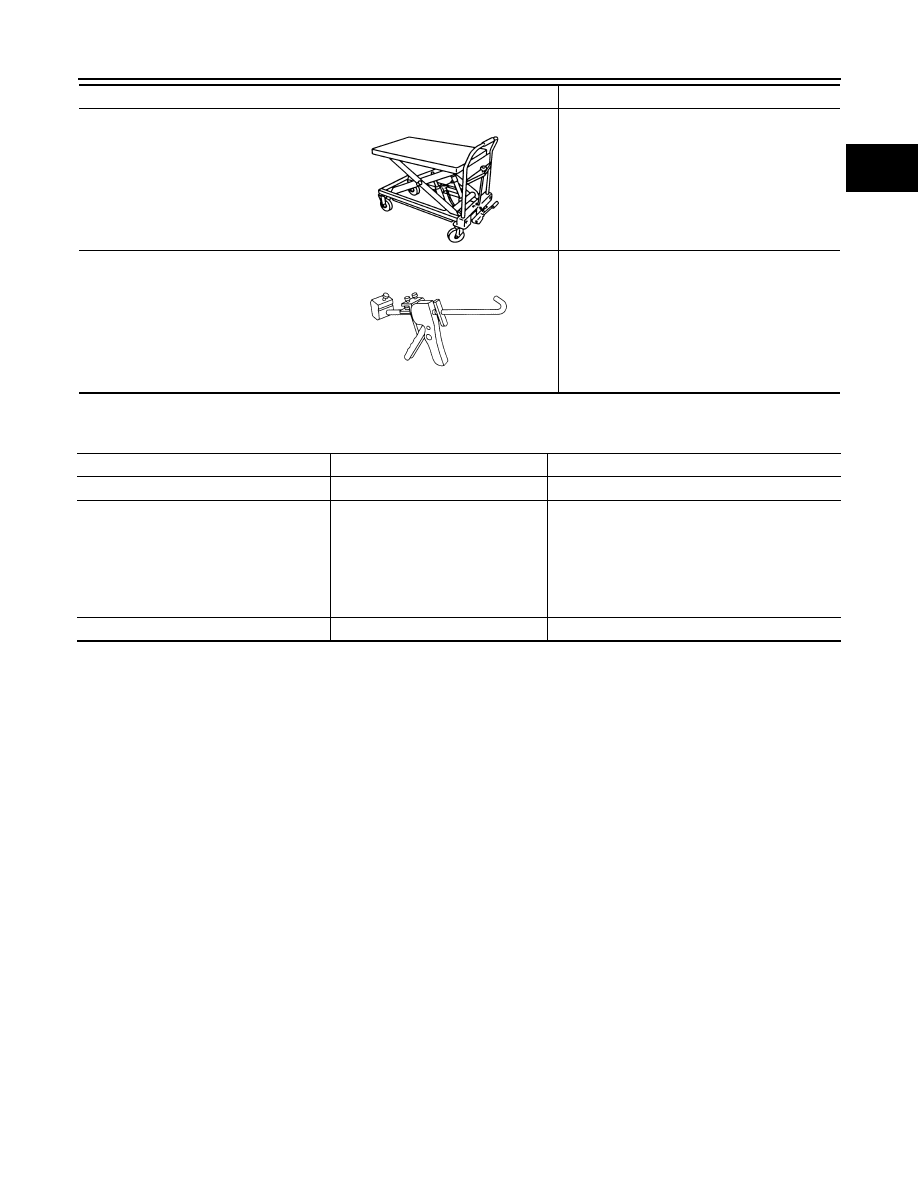

Lubricant or/and Sealant

INFOID:0000000010783758

Manual lift table caddy

Removing and installing engine

Tube presser

Pressing the tube of liquid gasket

Tool name

Description

ZZA1210D

S-NT052

Name

Description

Note

Three bond 1215

Cylinder block

Water drain plug

Three bond 1217H

• Oil pan (lower)
• Oil pan (upper)
• Rocker cover
• VTC cover
• Timing chain
• Camshaft bracket
• Cylinder block

—

Three bond 1386G or 1211

Cylinder block

Plug

EM-152

< SYSTEM DESCRIPTION >

[QR25DE]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Intake Camshaft Sprocket

INFOID:0000000010783759

OUTLINE

The adoption of the intake valve timing intermediate lock control allows the fixing of valve timing in the inter-
mediate phase when starting the engine.
The intake valve timing intermediate lock control improves the cleaning ability of exhaust gas at cold startingby
fixing the camshaft sprocket (INT) with two lock keys and bringing the cam phase into intermediate phase.

OPERATION

The rotor and housing of the intake camshaft sprocket are fixed by the lock key when the engine is stopped.
After the engine is started, the lock key is released by oil pressure and ECM performs the spark advance/
retard control according to driving conditions.
For details of intake valve timing intermediate lock control, refer to

EC-466, "INTAKE VALVE TIMING CON-

TROL : System Description"

.

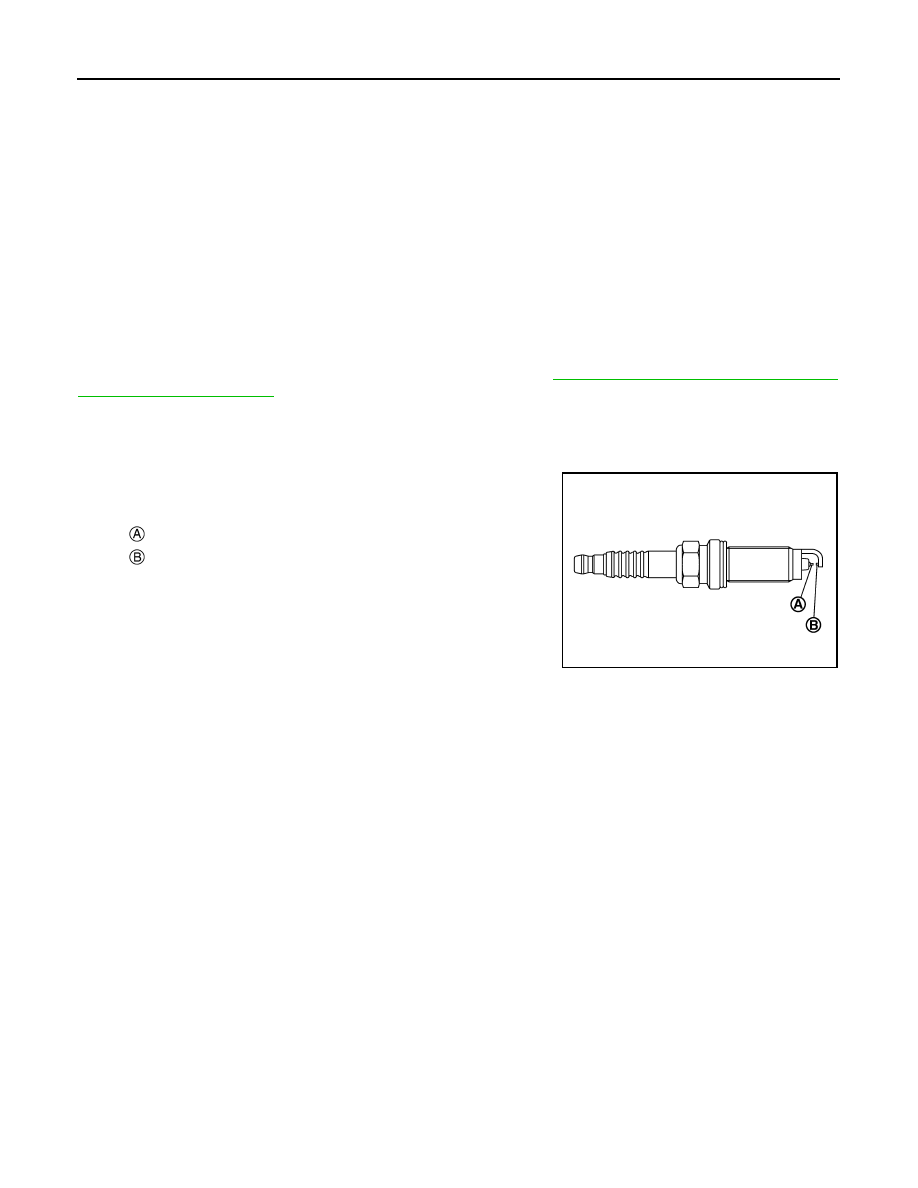

Spark Plug

INFOID:0000000010783760

OUTLINE

• The adoption of a durable and high-performance iridium plug

improves the reduction in discharge voltage.

: Iridium alloy

: Platinum

PBIC3152J
