SERVICE DATA AND SPECIFICATIONS (SDS)

EM-141

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

UNDERSIZE TABLE

Unit: mm (in)

CONNECTING ROD BEARING OIL CLEARANCE

Unit: mm (in)

Main Bearing

INFOID:0000000010783747

MAIN BEARING GRADE TABLE (ALL JOURNALS)

Unit: mm (in)

UNDERSIZE TABLE

Unit: mm (in)

MAIN BEARING OIL CLEARANCE

Unit: mm (in)

Items

Thickness

Crank pin journal diameter

US 0.25 (0.0098)

1.623 - 1.631 (0.0639 - 0.0642)

Grind so that bearing clearance is the specified value.

Connecting rod bearing oil clearance

Standard

 0.037 - 0.047 (0.0015 - 0.0019)

Limit

0.07 (0.0028)

Grade number

Thickness

Identification color

Remarks

0

1.996 - 1.999 (0.0786 - 0.0787)

Black - Black

Grade and color are the same
for upper and lower bearings.

1

1.999 - 2.002 (0.0787 - 0.0788)

Brown - Brown

2

2.002 - 2.005 (0.0788 - 0.0789)

Green - Green

3

2.005 - 2.008 (0.0789 - 0.0791)

Yellow - Yellow

4

2.008 - 2.011 (0.0791 - 0.0792)

Blue - Blue

5

2.011 - 2.014 (0.0792 - 0.0793)

Pink - Pink

6

2.014 - 2.017 (0.0793 - 0.0794)

Purple - Purple

                     7

     2.017 - 2.020 (0.0794 - 0.0795)

White - White

01

UPR

1.996 - 1.999 (0.0786 - 0.0787)

Black - Black

Grade and color are different
between upper and lower bear-
ings.

LWR

1.999 - 2.002 (0.0787 - 0.0788)

Brown - Brown

12

UPR

1.999 - 2.002 (0.0787 - 0.0788)

Brown - Brown

LWR

2.002 - 2.005 (0.0788 - 0.0789)

Green - Green

23

UPR

2.002 - 2.005 (0.0788 - 0.0789)

Green - Green

LWR

2.005 - 2.008 (0.0789 - 0.0791)

Yellow - Yellow

34

UPR

2.005 - 2.008 (0.0789 - 0.0791)

Yellow - Yellow

LWR

2.008 - 2.011 (0.0791 - 0.0792)

Blue - Blue

45

UPR

2.008 - 2.011 (0.0791 - 0.0792)

Blue - Blue

LWR

2.011 - 2.014 (0.0792 - 0.0793)

Pink - Pink

56

UPR

2.011 - 2.014 (0.0792 - 0.0793)

Pink - Pink

LWR

2.014 - 2.017 (0.0793 - 0.0794)

Purple - Purple

67

UPR

2.014 - 2.017 (0.0793 - 0.0794)

Purple - Purple

LWR

2.017 - 2.020 (0.0794 - 0.0795)

White - White

Items

Thickness

Main journal diameter

US 0.25 (0.0098)

2.126 - 2.134 (0.0837 - 0.0840)

Grind so that bearing clearance is the specified value.

Main bearing oil clearance

Standard

No. 1 and 4

0.024 - 0.034 (0.0009 - 0.0013)

No. 2, 3 and 5

0.012 - 0.022 (0.0005 - 0.0009)

Limit

0.065 (0.0026)

EM-142

< PRECAUTION >

[QR25DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010783748

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010783749

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Open driver door.

3.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

4.

Turn the ignition switch to OFF position with driver door open.

5.

Wait for 3 minutes or longer with driver door open.
NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.

PRECAUTIONS

EM-143

< PRECAUTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

6.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

7.

Perform the necessary repair operation.

8.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

9.

Perform self-diagnosis check of all control units using CONSULT.

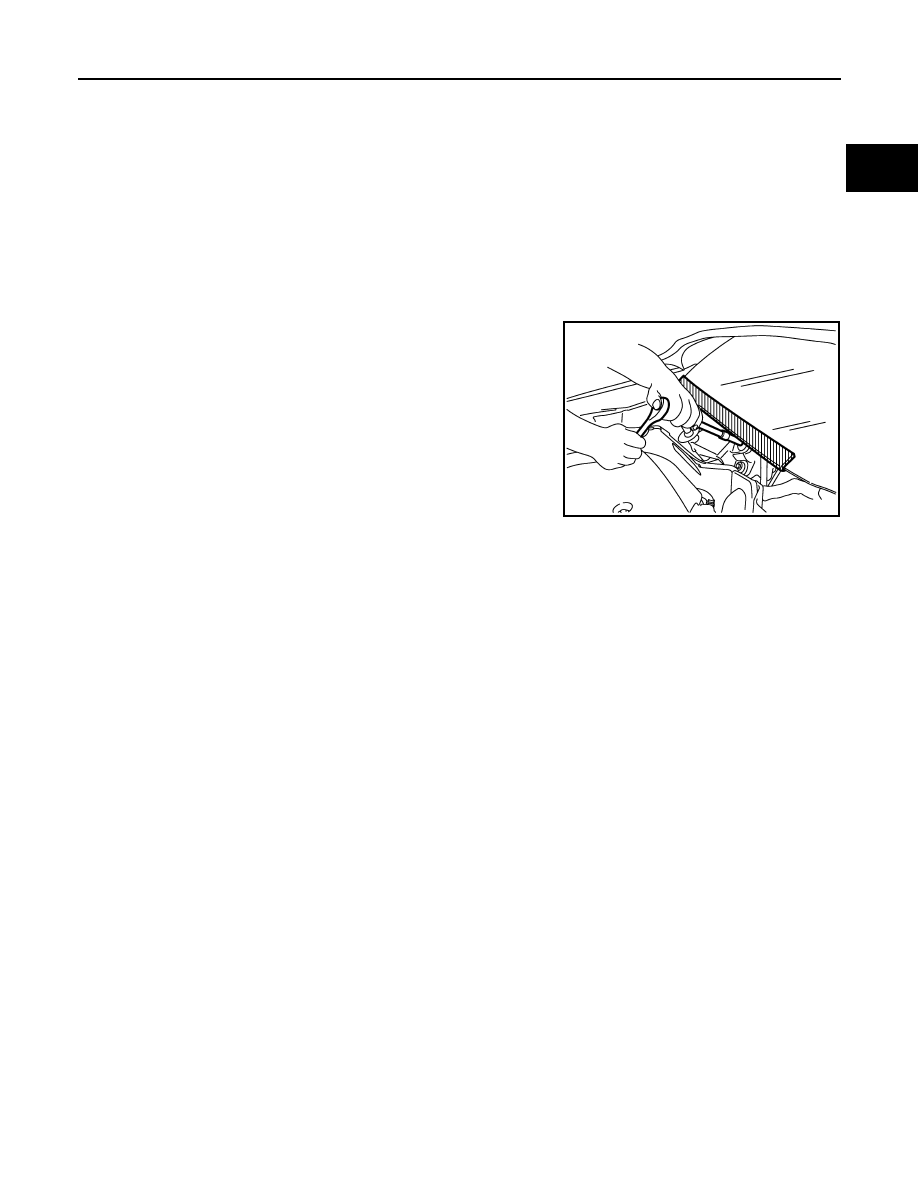

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010783750

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions For Engine Service

INFOID:0000000010783751

DISCONNECTING FUEL PIPING

• Before starting work, check no fire or spark producing items are in the work area.
• Release fuel pressure before disconnecting and disassembly.
• After disconnecting pipes, plug openings to stop fuel leakage.

DRAINING ENGINE COOLANT

Drain engine coolant and engine oil when the engine is cooled.

INSPECTION, REPAIR AND REPLACEMENT

Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.

REMOVAL AND DISASSEMBLY

• When instructed to use SST, use specified tools. Always be careful to work safely, avoid forceful or unin-

structed operations.

• Exercise maximum care to avoid damage to mating or sliding surfaces.
• Dowel pins are used for several parts alignment. When replacing and reassembling parts with dowel pins,

check that dowel pins are installed in the original position.

• Must cover openings of engine system with a tape or equivalent, to seal out foreign materials.
• Mark and arrange disassembly parts in an organized way for easy troubleshooting and reassembly.
• When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally

opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be used
in the step.

ASSEMBLY AND INSTALLATION

• Use torque wrench to tighten bolts or nuts to specification.
• When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the

ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,
do exactly as specified.

• Replace with new gasket, packing, oil seal or O-ring.

PIIB3706J

EM-144

< PRECAUTION >

[QR25DE]

PRECAUTIONS

• Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for

any restriction and blockage.

• Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.

Before assembly, oil sliding surfaces well.

• After disassembling, or exposing any internal engine parts, change engine oil and replace oil filter with a new

one.

• Release air within route when refilling after draining engine coolant.
• After repairing, start the engine and increase engine speed to check engine coolant, fuel, engine oil, and

exhaust gases for leakage.

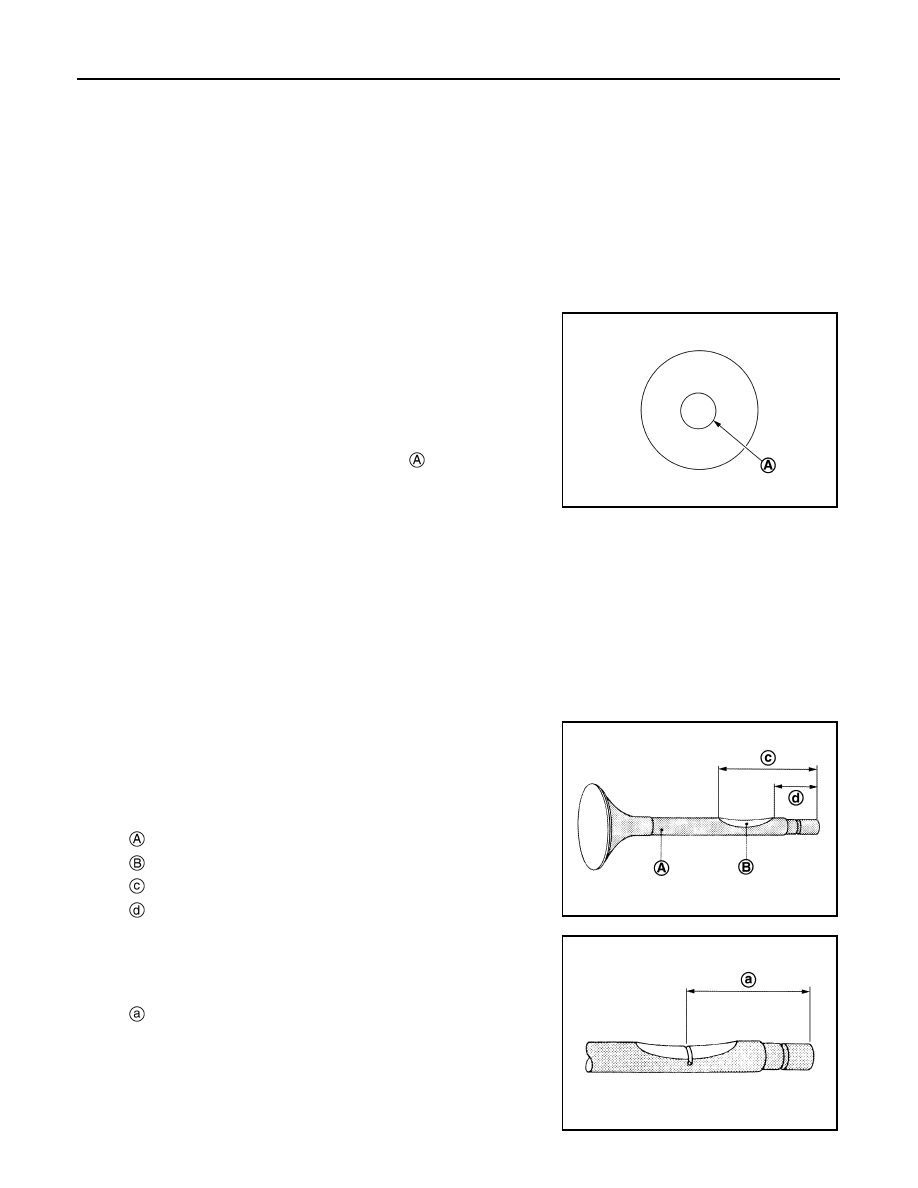

Special Cautions to Ensure the Safe Disposal of Sodium-filled Exhaust Valves

INFOID:0000000010783752

Handling and disposal of sodium-filled exhaust valves requires spe-
cial care and consideration. Under conditions such as breakage with
subsequent contact with water, metal sodium which lines the inner
portion of exhaust valve will react violently, forming sodium hydrox-
ide and hydrogen which may result in an explosion. Sodium-filled
exhaust valve is identified on the top of its stem as shown in illustra-
tion.

DEALER DISPOSAL INSTRUCTIONS

CAUTION:

• Use approved shatter-resistant eye protection when performing this procedure.
• Perform this and all subsequent disposal work procedures in an open room, away from flammable

liquids. Keep a fire extinguisher, rated at least 10 ABC, in close proximity to the work area.

• Be sure to wear rubber gloves when performing the following operations.
• Make sure the resultant (high alkalinity) waste water does not contact your skin. If the waste water

does contact you, wash the contacted area immediately with large quantities of water.

• Dealers should check their respective state and local regulations concerning any chemical treatment

or waste water discharge permits which may be required to dispose of the resultant (high alkalinity)
waste water.

1.

Clamp valve stem in a vice.

2.

The valve has a specially-hardened surface. To cut through it,
first remove a half-round section, approximately 30 mm (1.18 in)
long using air-powered grinder until black color is removed and
silver color appears.

3.

Use hacksaw to cut through approximately half the diameter of
valve stem. Make the serration at a point 40 mm (1.57 in) from
the end of valve stem.

 Identification mark of sodium-filled exhaust valve

For CHINA

: 3T1

Except for CHINA

: 3T1 or 3TA

JPBIA6407ZZ

: Black color

: Silver color

: 47 mm (1.85 in)

: 17 mm (0.67 in)

JPBIA4964ZZ

: 32 mm (1.26 in)

JPBIA4965ZZ
