FUEL INJECTOR AND FUEL TUBE

EM-53

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Inspection

INFOID:0000000010783703

INSPECTION AFTER INSTALLATION

Check on Fuel Leakage

1.

Turn ignition switch “ON” (with the engine stopped). With fuel pressure applied to fuel piping, check there
are no fuel leakage at connection points.
NOTE:
Use mirrors for checking at points out of clear sight.

2.

Start the engine. With engine speed increased, check again that there are no fuel leakage at connection
points.

CAUTION:

Never touch the engine immediately after stopped, as the engine becomes extremely hot.

EM-54

< REMOVAL AND INSTALLATION >

[MR20DD]

IGNITION COIL, SPARK PLUG AND ROCKER COVER

IGNITION COIL, SPARK PLUG AND ROCKER COVER

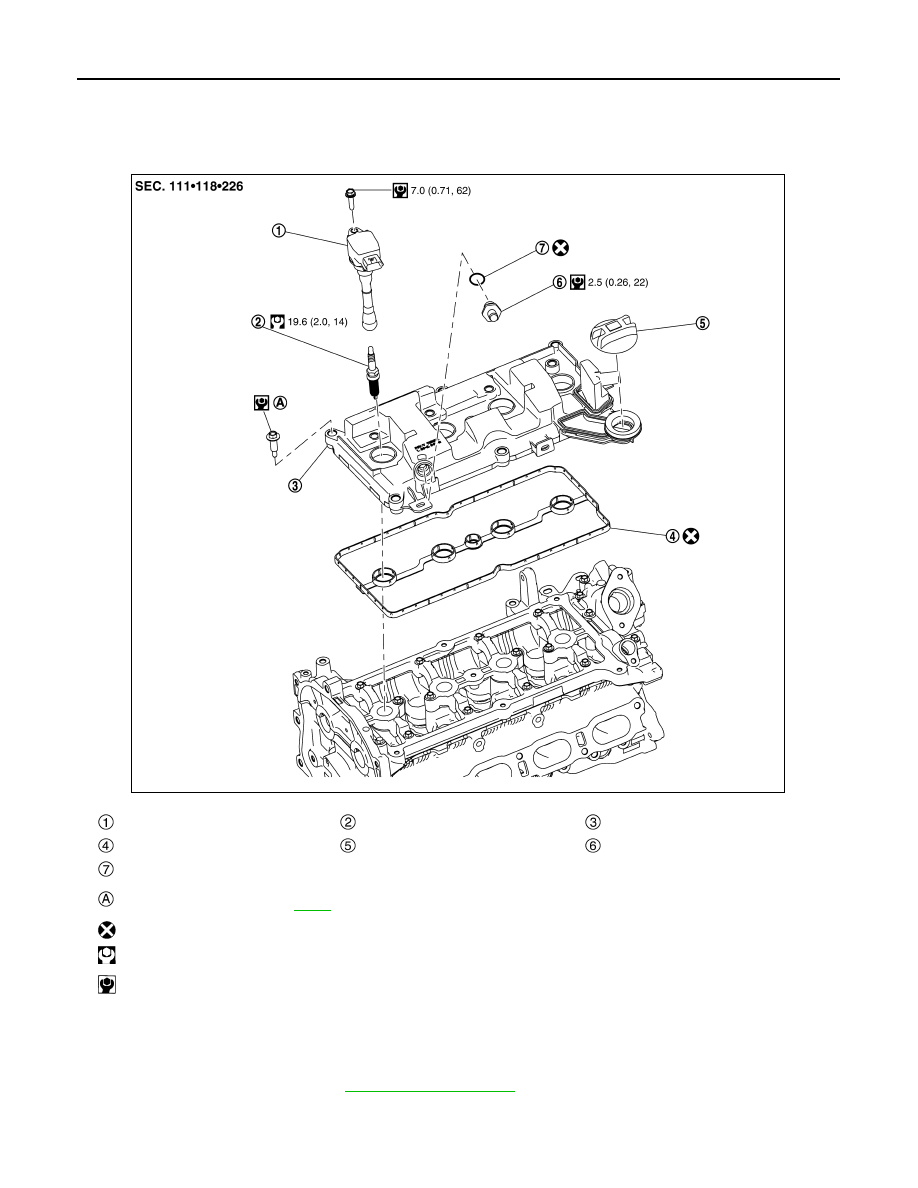

Exploded View

INFOID:0000000010783704

Removal and Installation

INFOID:0000000010783705

REMOVAL

1.

Remove intake manifold. Refer to

EM-33, "Exploded View"

.

2.

Remove PCV valve and PCV hose, if necessary.

3.

Remove ignition coil.

Ignition coil

Spark plug

Rocker cover

Rocker cover gasket

Oil filler cap

PCV valve

O-ring

Comply with the installation proce-
dure when tightening. Refer to

EM-54

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPBIA6815GB

IGNITION COIL, SPARK PLUG AND ROCKER COVER

EM-55

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CAUTION:

• Never drop or shock ignition coil.
• Never disassemble ignition coil.

4.

Remove rocker cover.

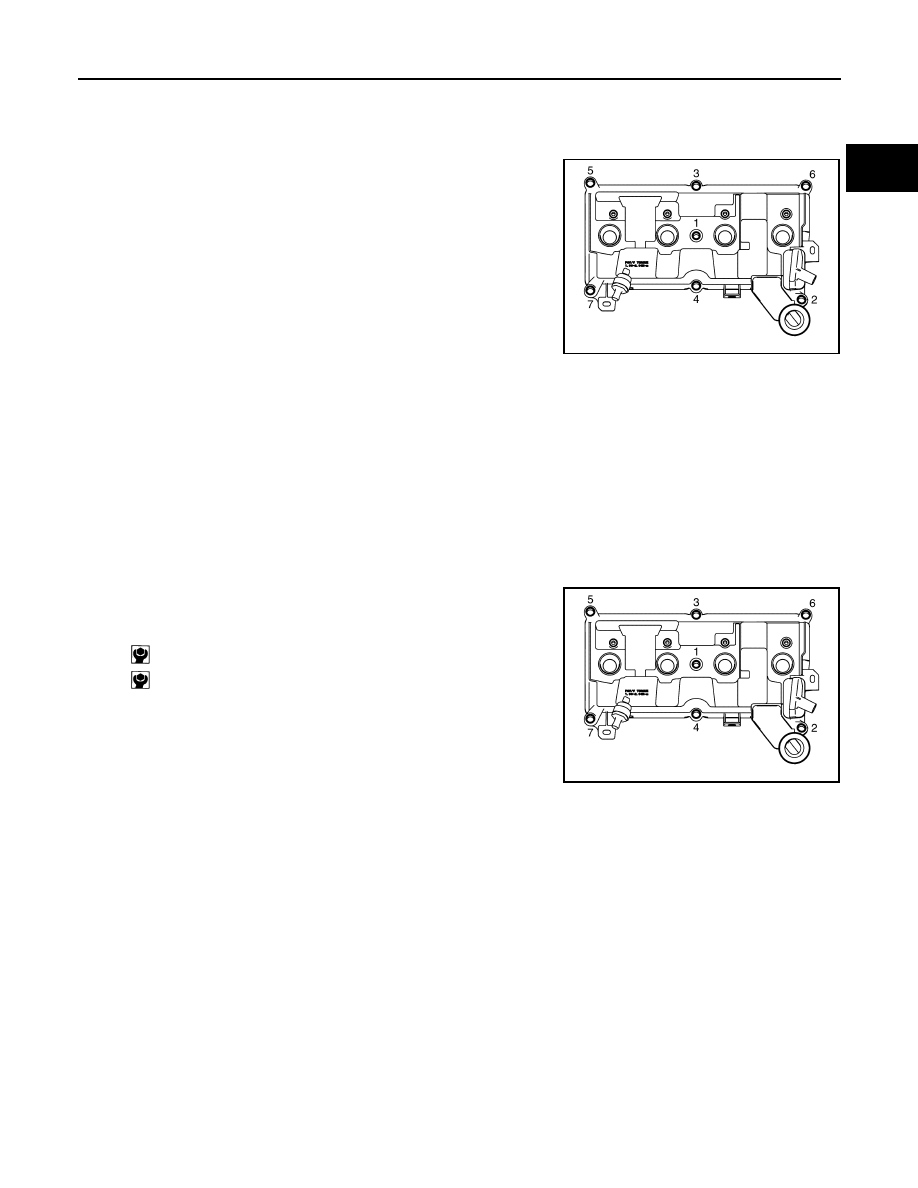

• Loosen bolts in the order from 7 to 1 shown in the figure.

5.

Remove rocker cover gasket from rocker cover.

6.

Use scraper to remove all traces of liquid gasket from camshaft bracket.

CAUTION:

Never scratch or damage the mating surface when cleaning off old liquid gasket.

INSTALLATION

CAUTION:

Do not reuse O-ring.

1.

Install the rocker cover gasket to rocker cover.

CAUTION:

Check the gasket is not dropped.

2.

Install rocker cover.
• Tighten bolts in two steps separately in the order from 1 to 7 as

shown in the figure.

3.

Install in the reverse order of removal, for the rest of parts.

JPBIA6816ZZ

 1st step

: 1.96 N·m (0.20 kg-m, 17 in-lb)

 2nd step

: 8.33 N·m (0.85 kg-m, 74 in-lb)

JPBIA6816ZZ

EM-56

< UNIT REMOVAL AND INSTALLATION >

[MR20DD]

ENGINE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

ENGINE ASSEMBLY

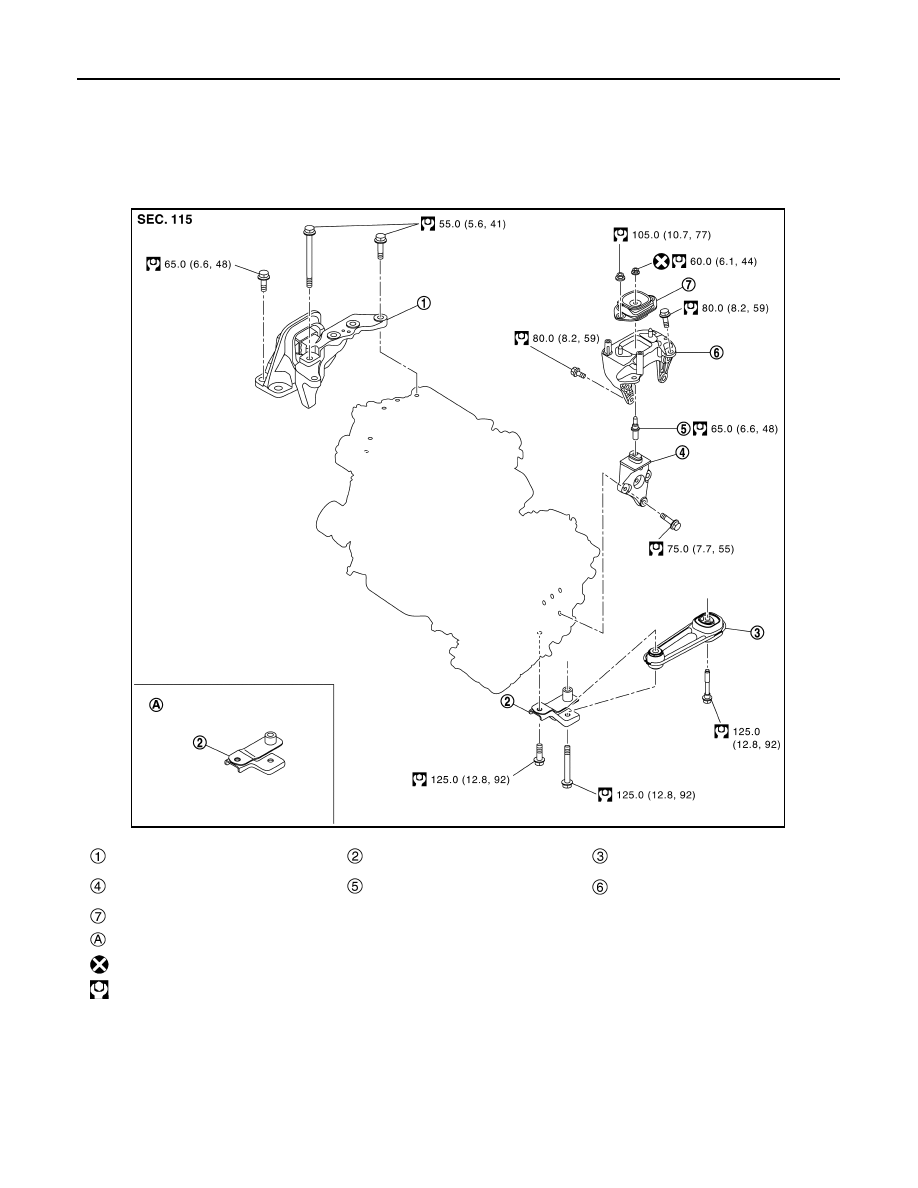

Exploded View

INFOID:0000000010783706

Removal and Installation

INFOID:0000000010783707

WARNING:

• Situate the vehicle on a flat and solid surface.
• Place chocks at front and back of rear wheels.
• Attach proper slingers and bolts described in PARTS CATALOG if engine slingers are not equipped.

CAUTION:

Engine mounting insulator (RH)

Rear torque rod bracket

Rear torque rod

Engine mounting bracket (LH)

Stud bolt

Engine mounting bracket support
(LH)

Engine mounting insulator (LH)

4WD models

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPBIA6801GB
