Nissan X-Trail 32. Manual - part 1032





AIR CLEANER FILTER

EM-25

< PERIODIC MAINTENANCE >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

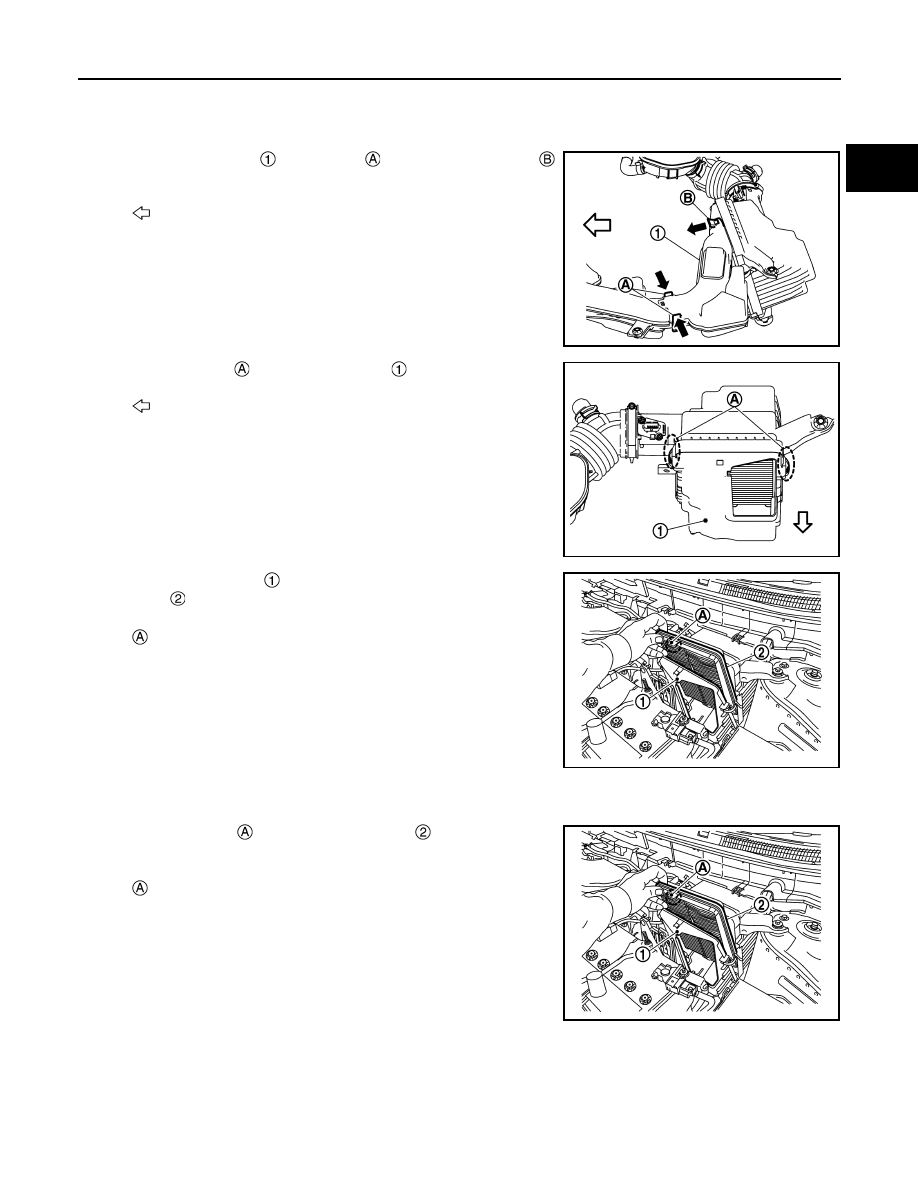

Removal and Installation

INFOID:0000000010783677

REMOVAL

1.

To remove air duct 2

, pinch pawl

 to unlock, move pawl

frontward, and remove air duct 2 upward.

2.

Remove the clips

 of air cleaner cover

.

3.

Shift air cleaner cover

 to car front side and remove air cleaner

element .

INSTALLATION

Install in the reverse order of removal.
• Insert the projection

 of air cleaner element

 in such a way so

that it becomes the position (upper front side of car) of illustration.

• Verify that there is no looseness in air cleaner cover and has been fixed accurately.

: Vehicle front

JSBIA4626ZZ

: Vehicle front

JPBIA6829ZZ

: Projection

JPBIA6830ZZ

: Projection

JPBIA6830ZZ

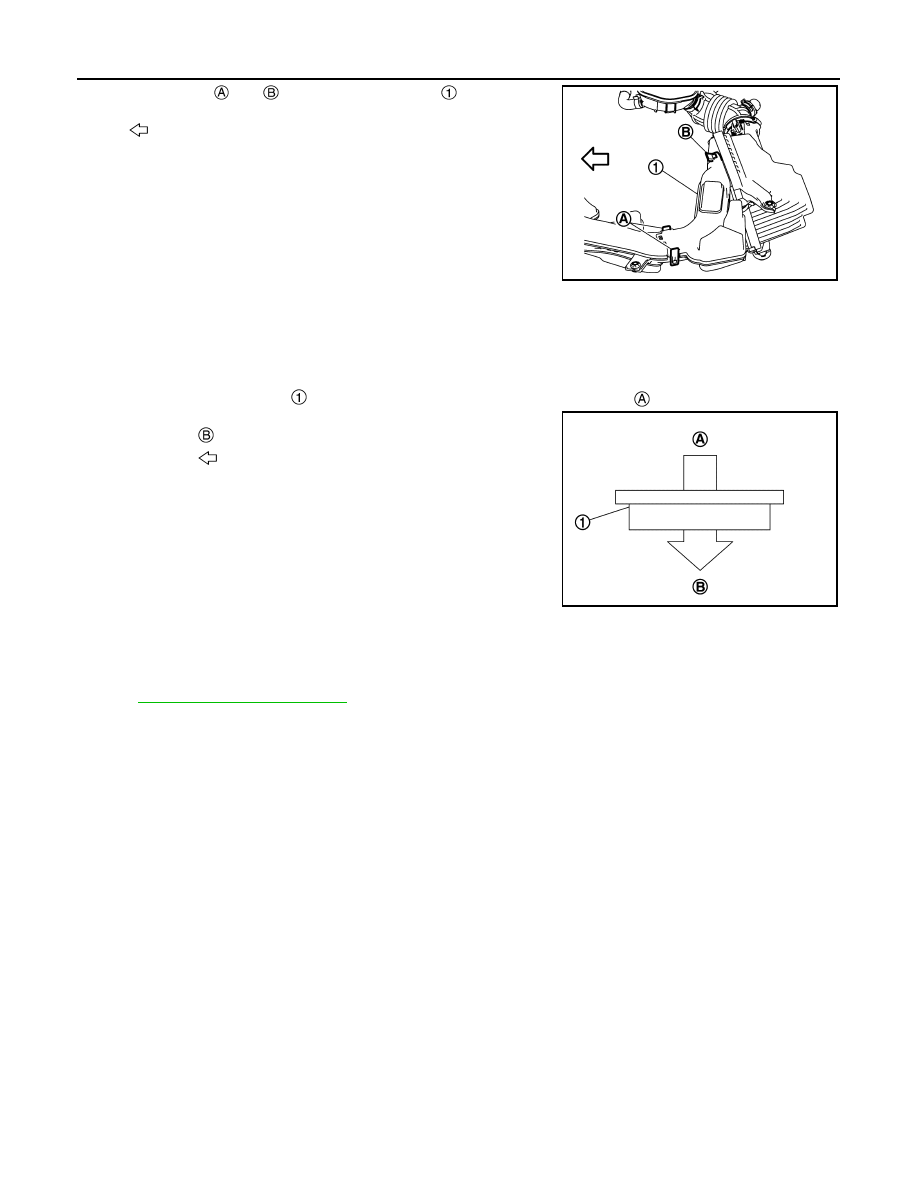

EM-26

< PERIODIC MAINTENANCE >

[MR20DD]

AIR CLEANER FILTER

• Check that pawls

 and

 (3 in total) of air duct 2

 are engaged.

Inspection (Dry Paper Type)

INFOID:0000000010783678

INSPECTION AFTER REMOVAL

Examine with eyes that there is no stain, clogging, or damage on air cleaner element.
• Remove dusts (such as dead leafs) on air cleaner element surface and inside cleaner case.
• To clean air cleaner element

, blow air on it from the air intake manifold side

 to remove trash or dust.

CAUTION:

• When blowing air on the air cleaner element, attach the

cover to the air cleaner case and stay away from the vehicle
as much as possible to prevent the entry of dirt into the air
cleaner case.

• Never blow air from the ambient air side to prevent clogging.

When the ambient air side needs to be cleaned, attach the
cover to the intake manifold side and lightly dust by hand.

• If clogging or damage is observed, replace the air cleaner element.

MAINTENANCE INTERVAL

Refer to

MA-8, "Periodic Maintenance"

.

: Vehicle front

JPBIA6828ZZ

Ambient air side

Air blow direction

JSBIA3460ZZ

SPARK PLUG

EM-27

< PERIODIC MAINTENANCE >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

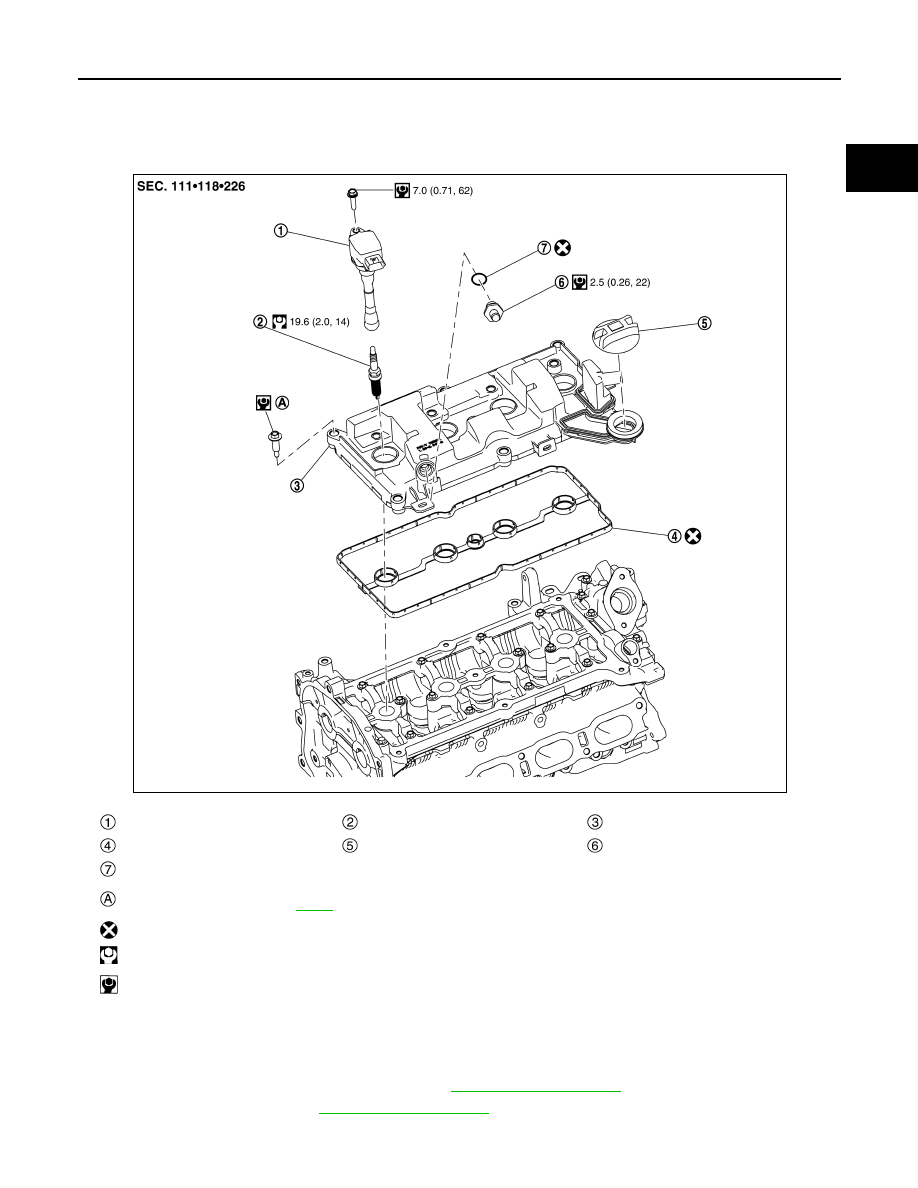

SPARK PLUG

Exploded View

INFOID:0000000010783680

Removal and Installation

INFOID:0000000010783681

REMOVAL

1.

Remove resonater of air duct assembly. Refer to

EM-30, "Exploded View"

.

2.

Remove ignition coil. Refer to

EM-54, "Exploded View"

.

Ignition coil

Spark plug

Rocker cover

Rocker cover gasket

Oil filler cap

PCV valve

O-ring

Comply with the installation proce-
dure when tightening. Refer to

EM-54

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPBIA6815GB

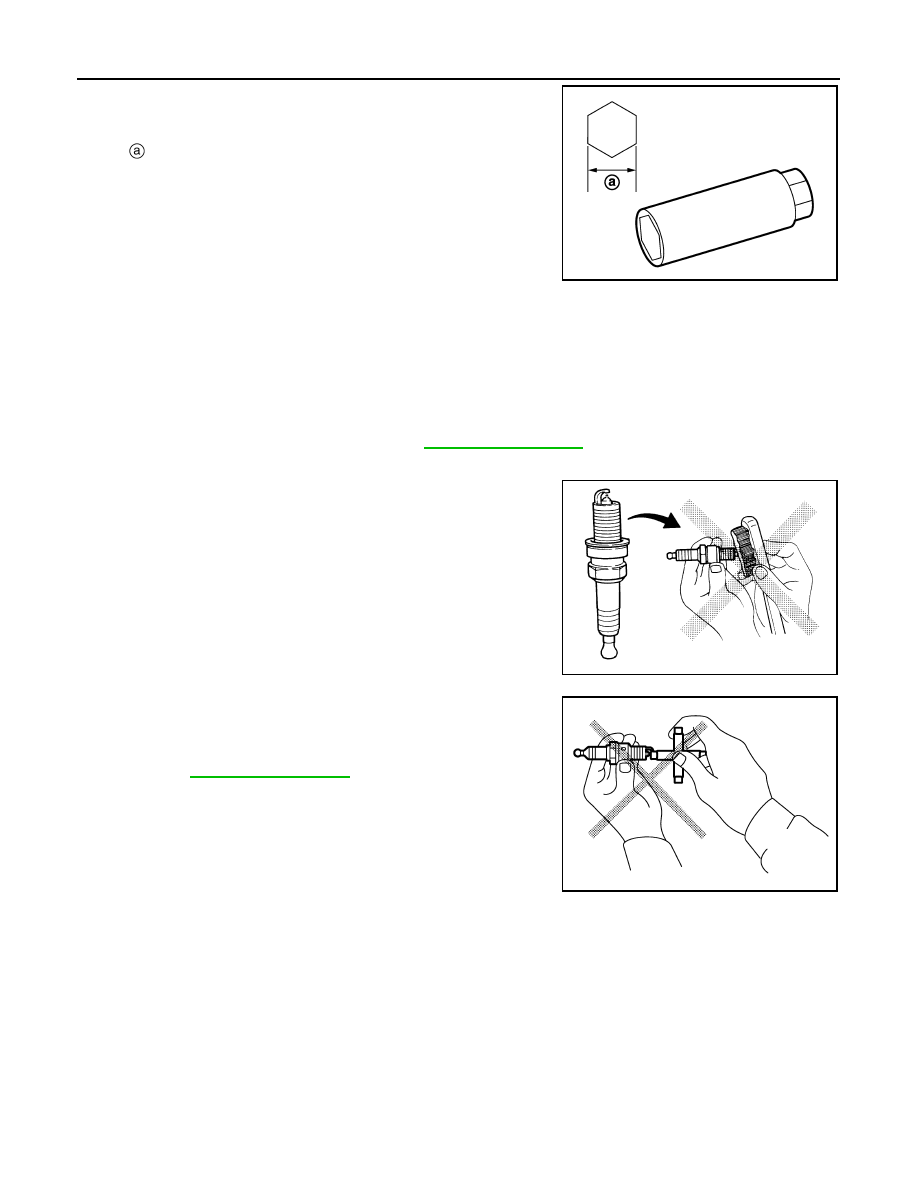

EM-28

< PERIODIC MAINTENANCE >

[MR20DD]

SPARK PLUG

3.

Remove spark plug with a spark plug wrench (commercial ser-
vice tool).

CAUTION:

Never drop or shock spark plug.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000010783682

INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

CAUTION:

• Never drop or shock spark plug.
• Never use a wire brush for cleaning.
• If plug tip is covered with carbon, spark plug cleaner may be

used.

• Checking and adjusting plug gap is not required between

replacement intervals.

• Measure spark plug gap. when it exceeds the limit, replace

spark plug even if it is with in the specified replacement mile-
age. Refer to

EM-132, "Spark Plug"

.

: 14 mm (0.55 in)

JPBIA0030ZZ

Spark plug (Standard type)

: Refer to

EM-132, "Spark Plug"

.

Cleaner air pressure

: Less than 588 kPa (5.88 bar, 6

kg/cm

2

, 85 psi)

Cleaning time

: Less than 20 seconds

SMA773C

JPBIA0031ZZ
