Nissan X-Trail 32. Manual - part 1025





DC/DC CONVERTER

EC-1229

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

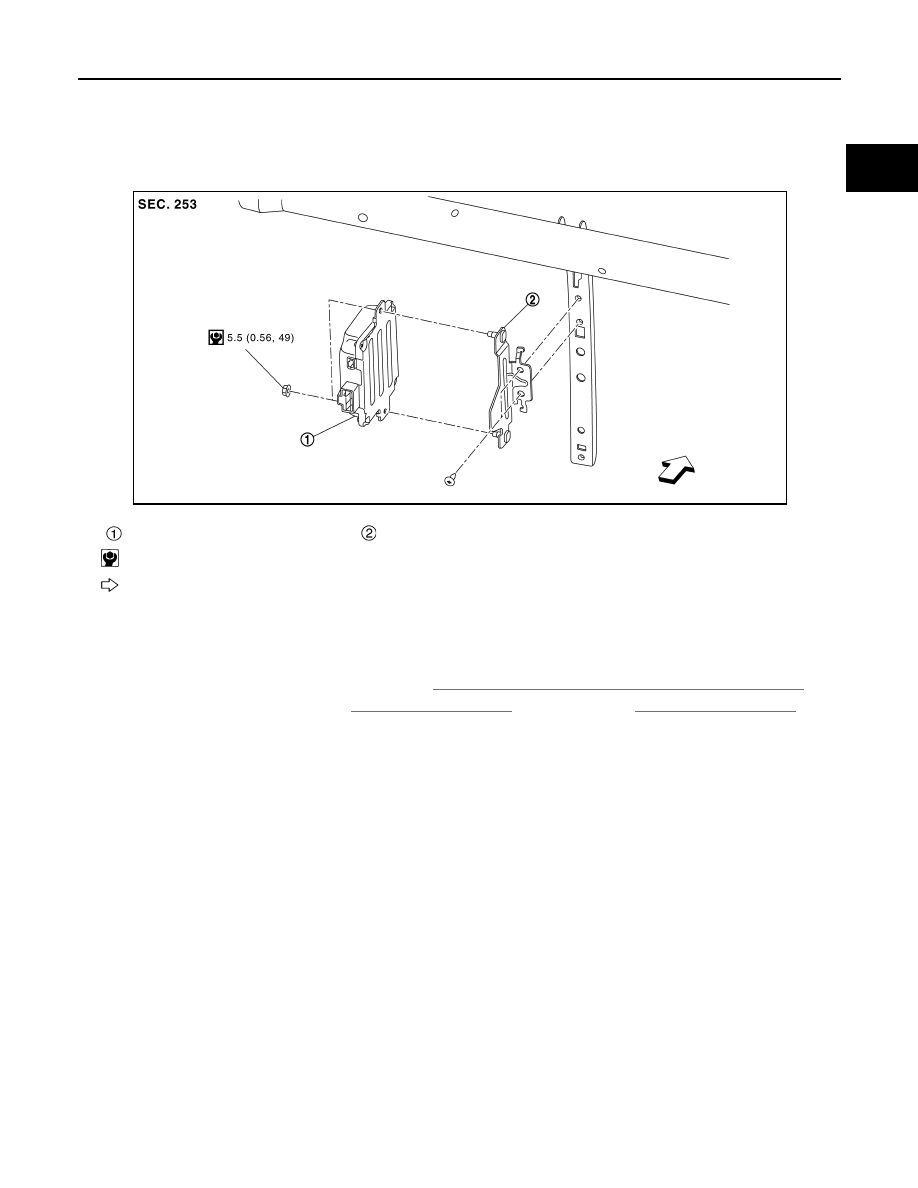

DC/DC CONVERTER

Exploded View

INFOID:0000000010935936

NOTE:
The below figure shows LHD models. RHD models are the mirror image.

Removal and Installation

INFOID:0000000010935937

REMOVAL

1.

Disconnect battery negative terminal. Refer to

EC-809, "Precautions for Removing Battery Terminal"

.

2.

Remove glove box cover. Refer to

IP-13, "Exploded View"

 (LHD models) or

IP-40, "Exploded View"

 (RHD

models).

3.

Disconnect DC/DC converter harness connectors.

4.

Remove DC/DC converter bracket mounting screws.

5.

Remove bracket with DC/DC converter.

6.

Remove DC/DC converter mounting nuts.

7.

Remove DC/DC converter.

INSTALLATION

Install in the reverse order of removal.

DC/DC converter

Bracket

: N·m (kg-m, in-lb)

: Vehicle front

JSBIA4865GB

EC-1230

< REMOVAL AND INSTALLATION >

[R9M]

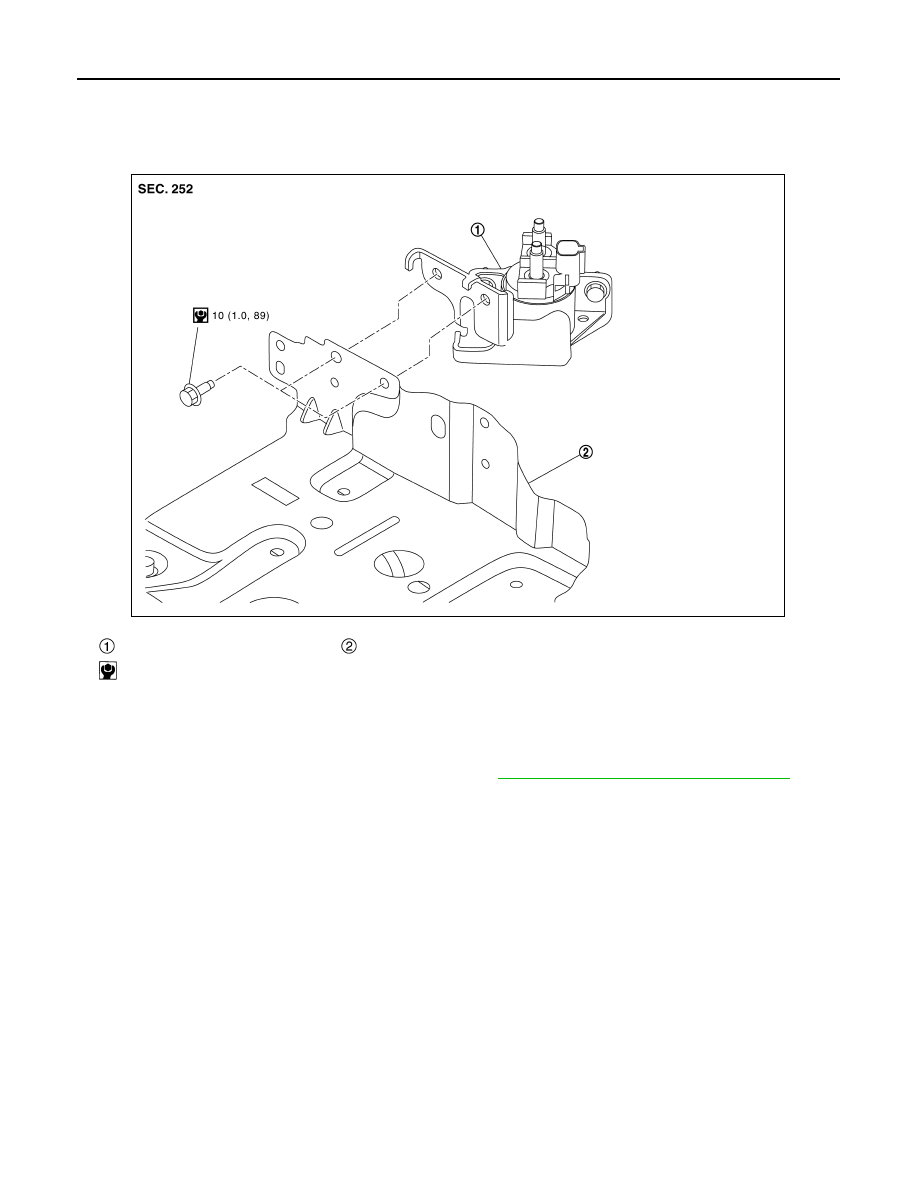

ENGINE RESTART BYPASS RELAY

ENGINE RESTART BYPASS RELAY

Exploded View

INFOID:0000000010935938

Removal and Installation

INFOID:0000000010935939

REMOVAL

1.

Remove battery, battery cover and battery tray. Refer to

PG-139, "R9M : Removal and Installation"

.

2.

Disconnect engine restart bypass relay harness connectors.

3.

Remove bracket with engine restart bypass relay.

INSTALLATION

Install in the reverse order of removal.

Engine restart bypass relay

Battery mounting bracket

: N·m (kg-m, in-lb)

JSBIA5193GB

FUEL PUMP CONTROL MODULE (FPCM)

EC-1231

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

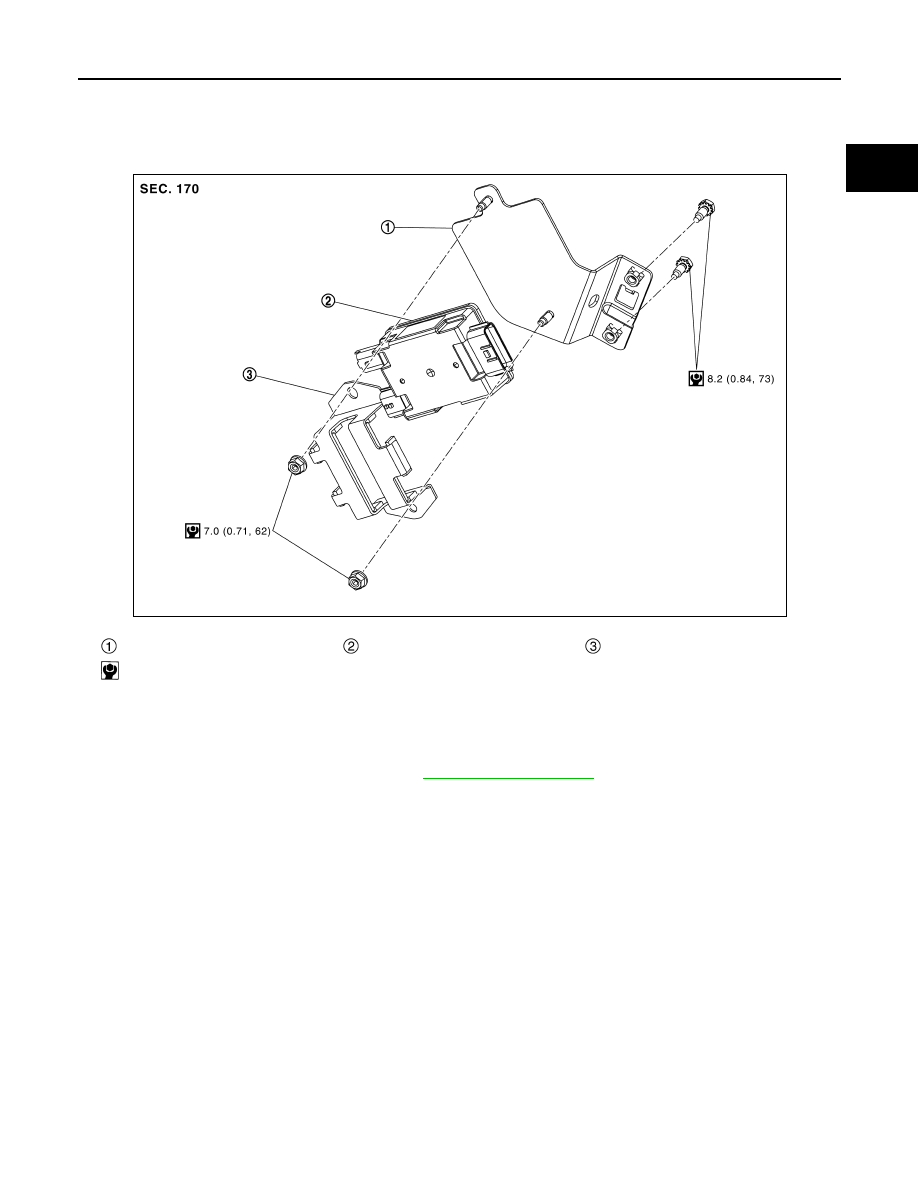

FUEL PUMP CONTROL MODULE (FPCM)

Exploded View

INFOID:0000000010935940

Removal and Installation

INFOID:0000000010935941

REMOVAL

1.

Remove luggage side finisher (RH). Refer to

INT-40, "Exploded View"

.

2.

Remove bracket with fuel pump control module (FPCM).

3.

Disconnect fuel pump control module (FPCM) harness connectors.

4.

Remove cover and fuel pump control module (FPCM) from bracket.

INSTALLATION

Install in the reverse order of removal.

Bracket

Fuel pump control module (FPCM)

Cover

: N·m (kg-m, in-lb)

JSBIA4867GB

EC-1232

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000010935942

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, glow plug, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Condition

Specification

No load* (in Neutral position)

850

±

 100 rpm
