Nissan X-Trail 32. Manual - part 1024





VACUUM LINES

EC-1225

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

REMOVAL AND INSTALLATION

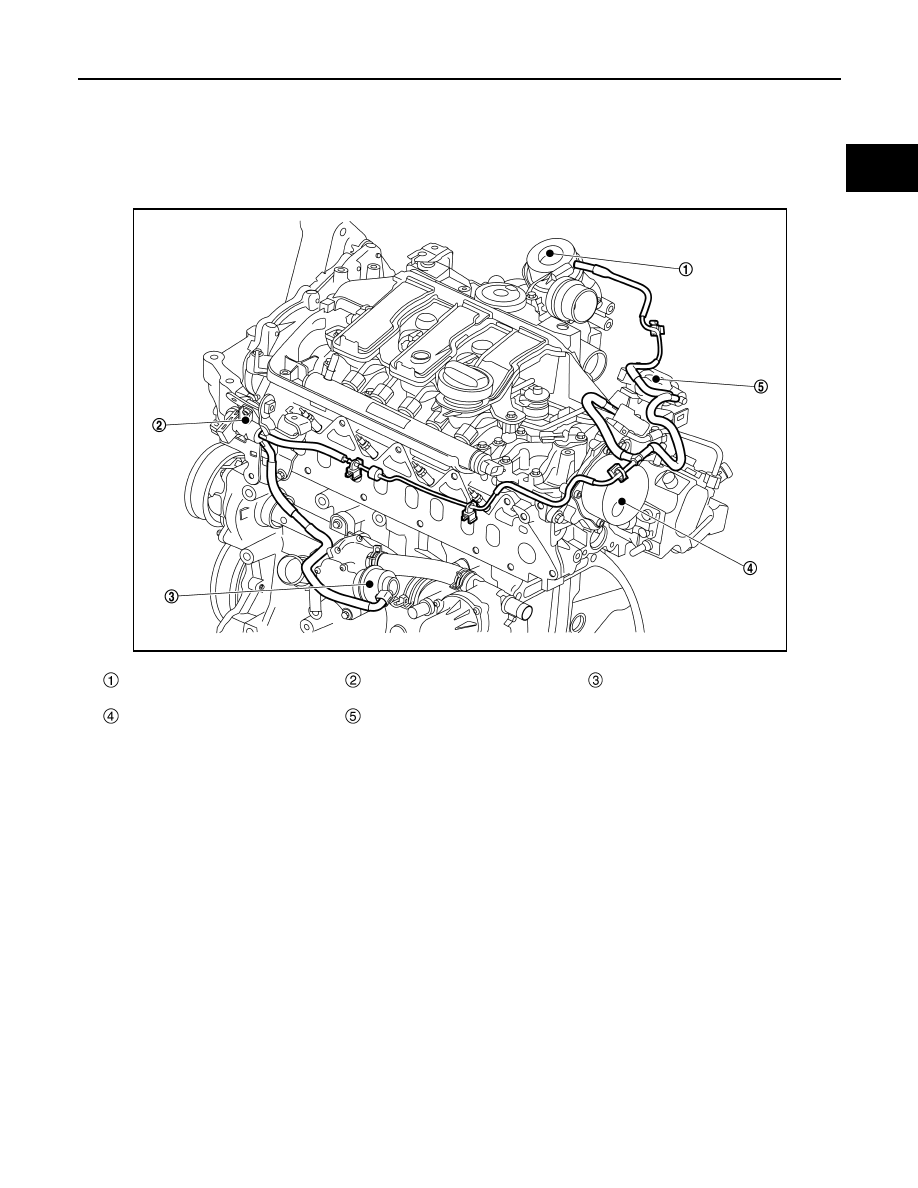

VACUUM LINES

Vacuum Layout

INFOID:0000000010935929

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose.

TC boost control actuator

Engine coolant bypass valve control
solenoid valve

Engine coolant bypass valve control
actuator

Vacuum pump

TC boost control solenoid valve

JSBIA4746ZZ

EC-1226

< REMOVAL AND INSTALLATION >

[R9M]

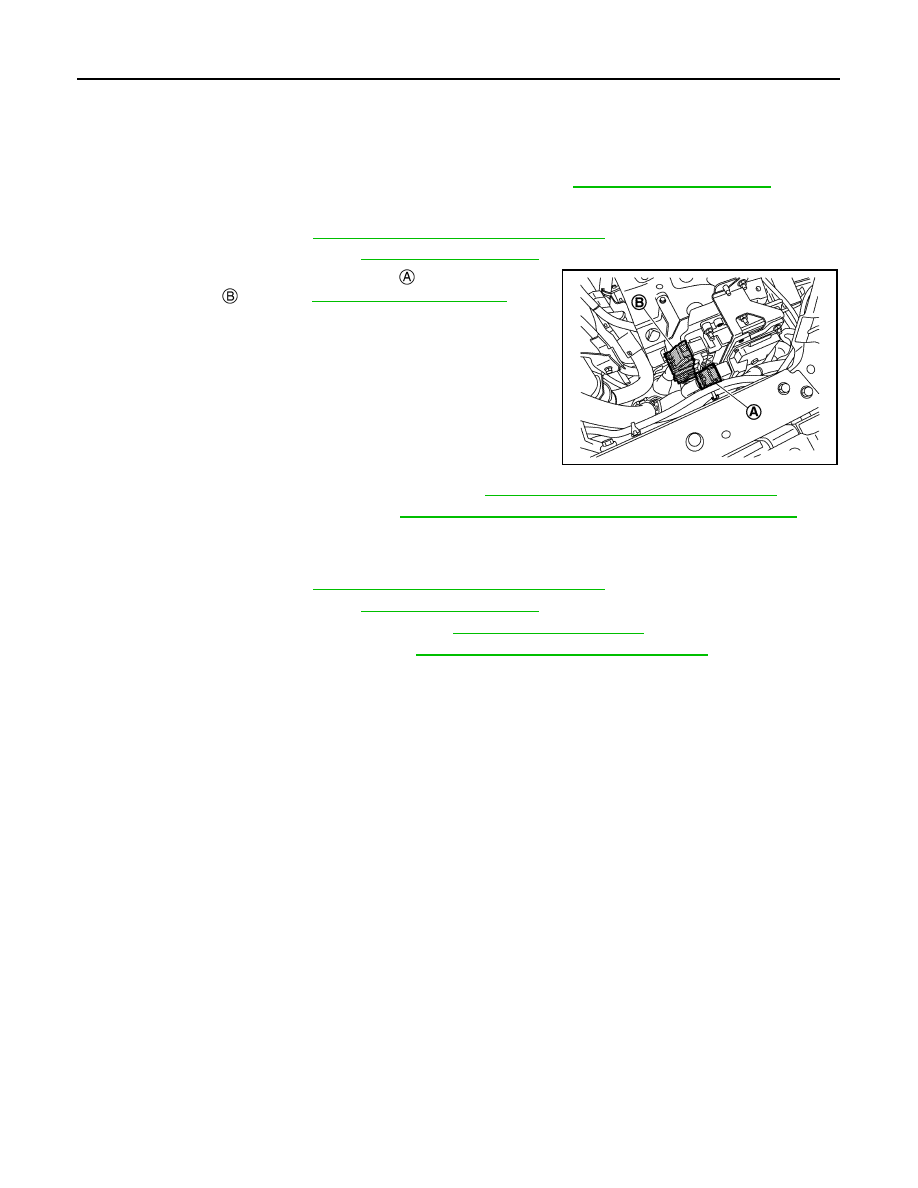

ECM

ECM

Removal and Installation

INFOID:0000000010935931

CAUTION:

Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to

EC-944, "Work Procedure"

.

REMOVAL (CVT MODELS)

1.

Remove the battery. Refer to

PG-139, "R9M : Removal and Installation"

2.

Remove the air duct (inlet). Refer to

EM-308, "Exploded View"

.

3.

Disconnect the TCM harness connector

 and the ECM har-

ness connector

. Refer to

PG-7, "Harness Connector"

 (lever

locking type).

4.

Remove the battery tray with ECM and TCM. Refer to

PG-143, "R9M : Removal and Installation"

.

5.

Remove TCM bracket with TCM. Refer to

PG-148, "EXCEPT FOR R9M : Removal and Installation"

.

6.

Remove ECM from the battery tray.

REMOVAL (M/T MODELS)

1.

Remove the battery. Refer to

PG-139, "R9M : Removal and Installation"

2.

Remove the air duct (inlet). Refer to

EM-308, "Exploded View"

.

3.

Disconnect the ECM harness connector. Refer to

PG-7, "Harness Connector"

 (lever locking type).

4.

Remove the battery tray with ECM. Refer to

PG-143, "R9M : Removal and Installation"

.

5.

Remove ECM from the battery tray.

INSTALLATION

Install in the reverse order of removal.

JSDIA5385ZZ

GLOW CONTROL UNIT

EC-1227

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

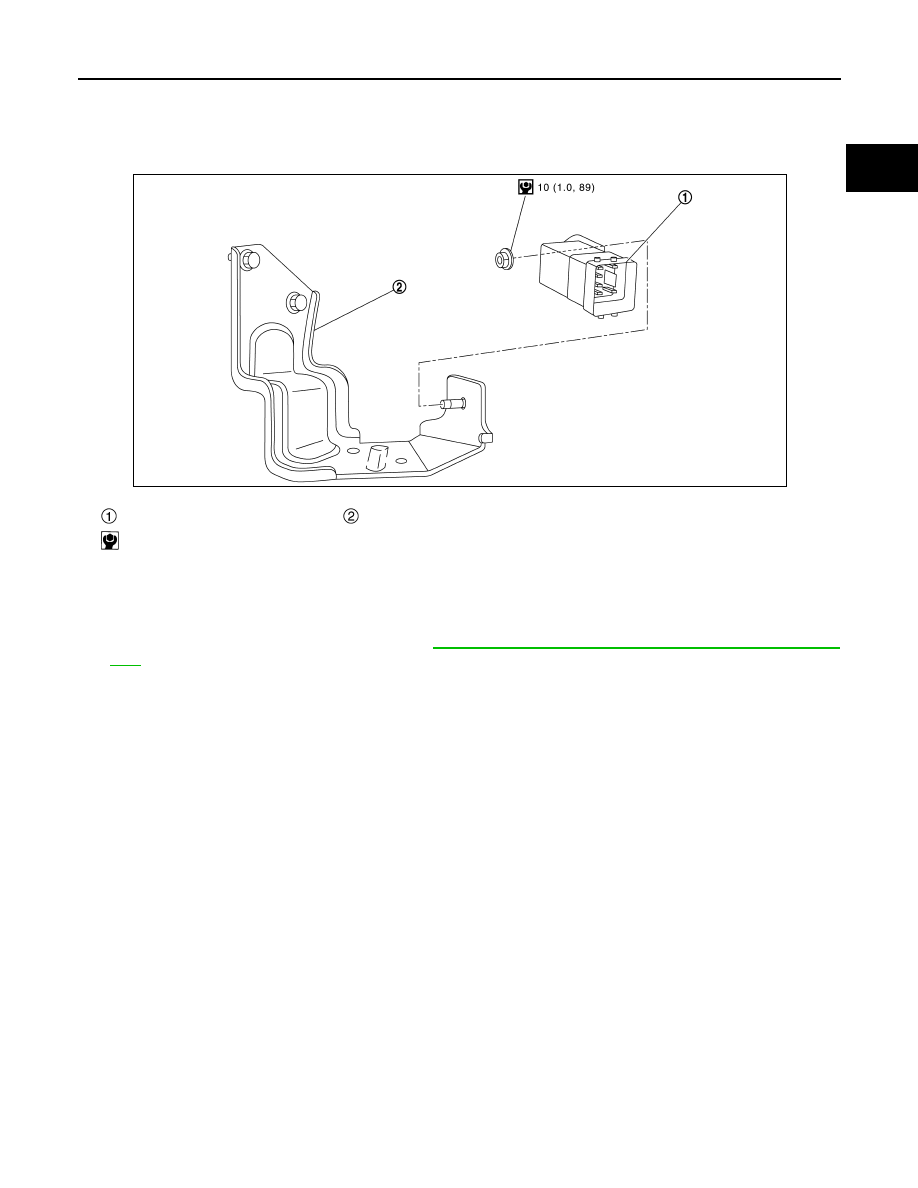

GLOW CONTROL UNIT

Exploded View

INFOID:0000000010935932

Removal and Installation

INFOID:0000000010935933

REMOVAL

1.

Remove front fender protector (LH). Refer to

EXT-35, "FENDER PROTECTOR : Removal and Installa-

tion"

.

2.

Disconnect glow control unit harness connector.

3.

Remove glow control unit from bracket.

INSTALLATION

Install in the reverse order of removal.

Glow control unit

Bracket

: N·m (kg-m, in-lb)

JSBIA5215GB

EC-1228

< REMOVAL AND INSTALLATION >

[R9M]

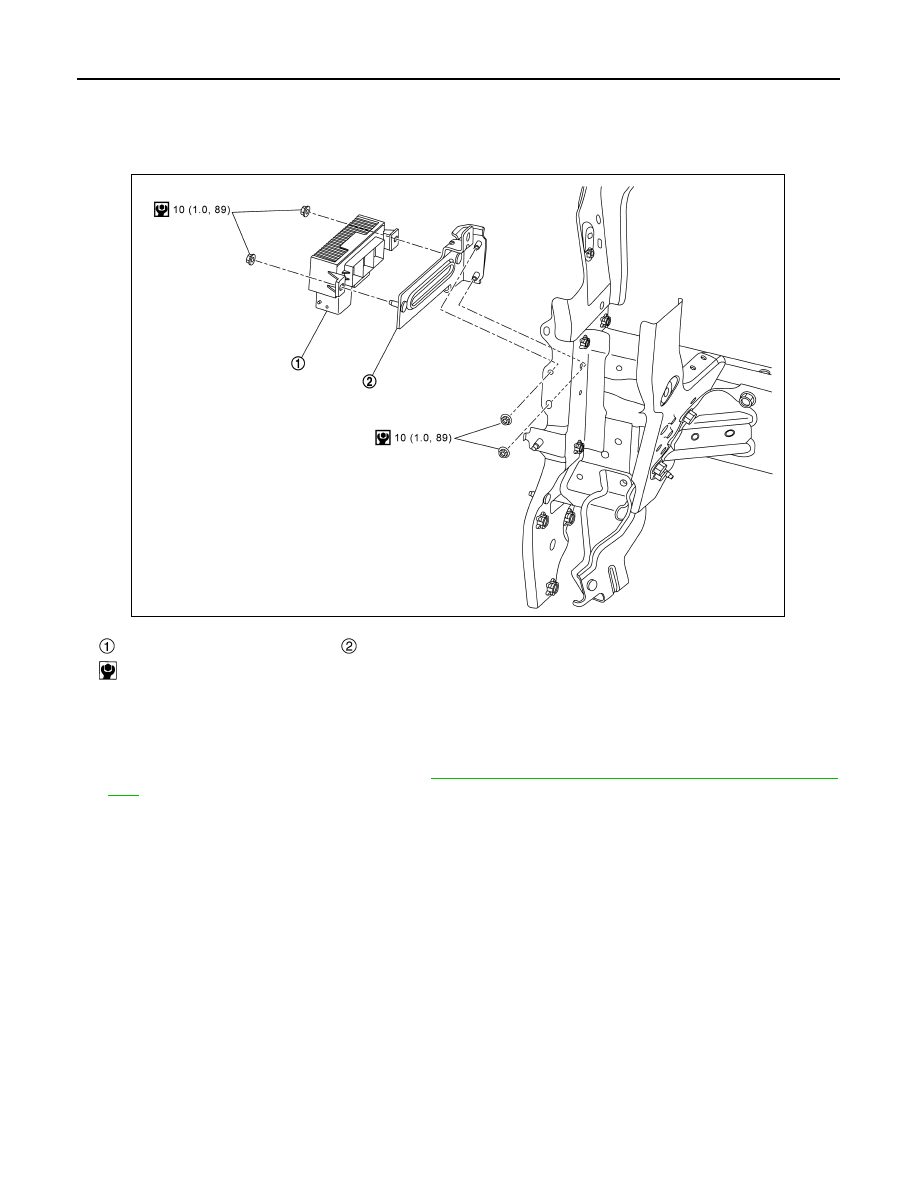

THERMOPLUNGER CONTROL UNIT

THERMOPLUNGER CONTROL UNIT

Exploded View

INFOID:0000000010935934

Removal and Installation

INFOID:0000000010935935

REMOVAL

1.

Remove front fender protector (LH). Refer to

EXT-35, "FENDER PROTECTOR : Removal and Installa-

tion"

.

2.

Disconnect thermoplunger control unit harness connector.

3.

Remove thermoplunger control unit from bracket.

INSTALLATION

Install in the reverse order of removal.

Thermoplunger control unit

Bracket

: N·m (kg-m, in-lb)

JSBIA5453GB
