STEERING SWITCH SIGNAL A CIRCUIT

2.

Check steering switch. Refer to

AV-248, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch. Refer to

AV-273, "Removal and Installation"

.

Component Inspection

INFOID:0000000010714908

Measure the resistance between the steering switch connector.

Steering switch

Condition

Resistance

(Approx.)

Ω

Terminal

Terminal

10

4

ENTER switch is pressed

1982 – 2064

TEL switch is pressed

708 – 738

MENU DOWN switch is
pressed

314 – 328

MENU UP switch is pressed

118 – 124

SOURCE switch is pressed

0

5

SEEK UP switch is pressed

1982 – 2064

SEEK DOWN switch is
pressed

708 – 738

TEL END switch is pressed

314 – 328

VOL UP switch is pressed

118 – 124

VOL DOWN switch is
pressed

0

JSNIA7127GB

AV

STEERING SWITCH SIGNAL B CIRCUIT

AV-249

< DTC/CIRCUIT DIAGNOSIS >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH SIGNAL B CIRCUIT

Diagnosis Procedure

INFOID:0000000010714909

1.

CHECK STEERING SWITCH SIGNAL B CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter harness connector and spiral cable harness connector.

3.

Check continuity between combination meter harness connector and spiral cable harness connector.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

1.

Disconnect steering switch connector.

2.

Check continuity between spiral cable harness connectors.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-23, "Removal and Installation"

.

3.

CHECK COMBINATION METER VOLTAGE

1.

Connect combination meter harness connector, steering switch connector and spiral cable connector.

2.

Turn ignition switch ON.

3.

Check the voltage between combination meter harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace combination meter. Refer to

MWI-151, "Removal and Installation"

.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

Combination meter

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M34

23

M33

24

Existed

Combination meter

Ground

Continuity

Connector

Terminal

M34

23

Not existed

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M33

24

M303

5

Existed

combination meter

Condition

Voltage

(Approx.)

Connector

+

-

Terminal

M34

23

21

Keep pressing VOLUME DOWN switch

0 V

Keep pressing VOLUME UP switch

0.5 V

Keep pressing TEL END switch

1.2 V

Keep pressing SEEK UP switch

2.1 V

Keep pressing SEEK DOWN switch

3.3 V

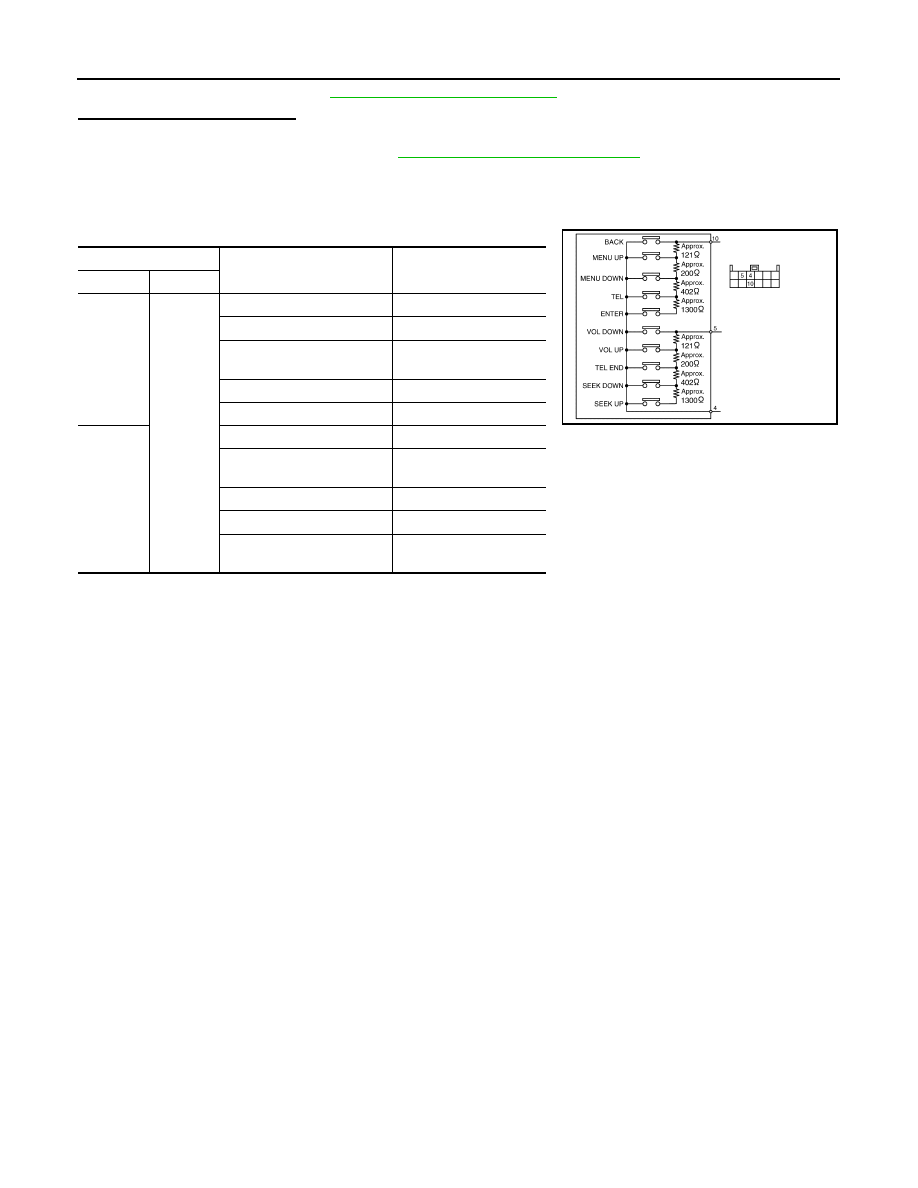

AV-250

< DTC/CIRCUIT DIAGNOSIS >

[WITH NAVIGATION]

STEERING SWITCH SIGNAL B CIRCUIT

2.

Check steering switch. Refer to

AV-250, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch. Refer to

AV-273, "Removal and Installation"

.

Component Inspection

INFOID:0000000010714910

Measure the resistance between the steering switch connector.

Steering switch

Condition

Resistance

(Approx.)

Ω

Terminal

Terminal

10

4

ENTER switch is pressed

1982 – 2064

TEL switch is pressed

708 – 738

MENU DOWN switch is
pressed

314 – 328

MENU UP switch is pressed

118 – 124

SOURCE switch is pressed

0

5

SEEK UP switch is pressed

1982 – 2064

SEEK DOWN switch is
pressed

708 – 738

TEL END switch is pressed

314 – 328

VOL UP switch is pressed

118 – 124

VOL DOWN switch is
pressed

0

JSNIA7127GB

A V

STEERING SWITCH GROUND CIRCUIT

AV-251

< DTC/CIRCUIT DIAGNOSIS >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

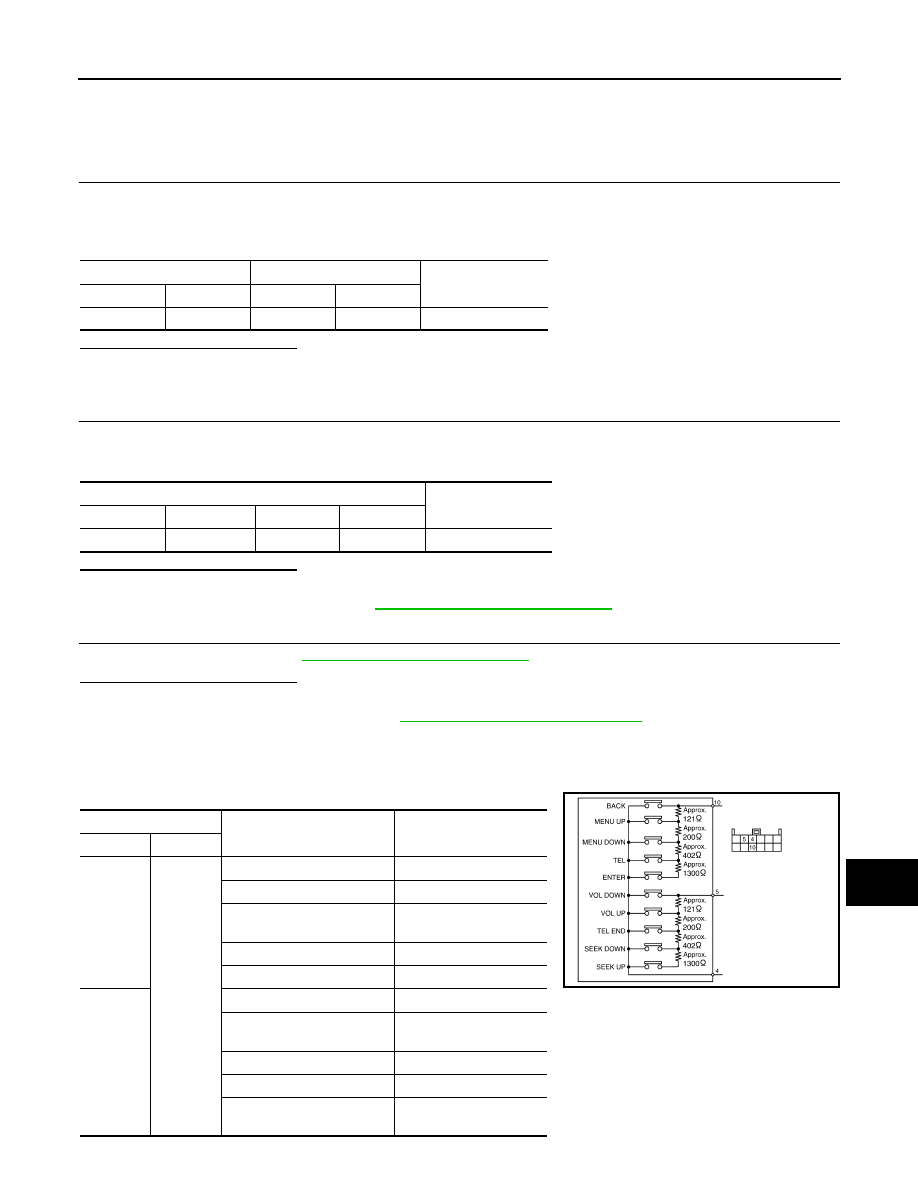

STEERING SWITCH GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000010714911

1.

CHECK STEERING SWITCH SIGNAL GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter harness connector and spiral cable harness connector.

3.

Check continuity between combination meter harness connector and spiral cable harness connector.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

1.

Disconnect steering switch connector.

2.

Check continuity between spiral cable harness connectors.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-23, "Removal and Installation"

.

3.

CHECK STEERING SWITCH

Check steering switch. Refer to

AV-251, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch. Refer to

AV-273, "Removal and Installation"

.

Component Inspection

INFOID:0000000010714912

Measure the resistance between the steering switch connector.

Combination meter

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M34

21

M33

23

Existed

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M33

23

M303

4

Existed

Steering switch

Condition

Resistance

(Approx.)

Ω

Terminal

Terminal

10

4

ENTER switch is pressed

1982 – 2064

TEL switch is pressed

708 – 738

MENU DOWN switch is
pressed

314 – 328

MENU UP switch is pressed

118 – 124

SOURCE switch is pressed

0

5

SEEK UP switch is pressed

1982 – 2064

SEEK DOWN switch is
pressed

708 – 738

TEL END switch is pressed

314 – 328

VOL UP switch is pressed

118 – 124

VOL DOWN switch is
pressed

0

JSNIA7127GB
