Nissan X-Trail 32. Manual - part 21





AV-76

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

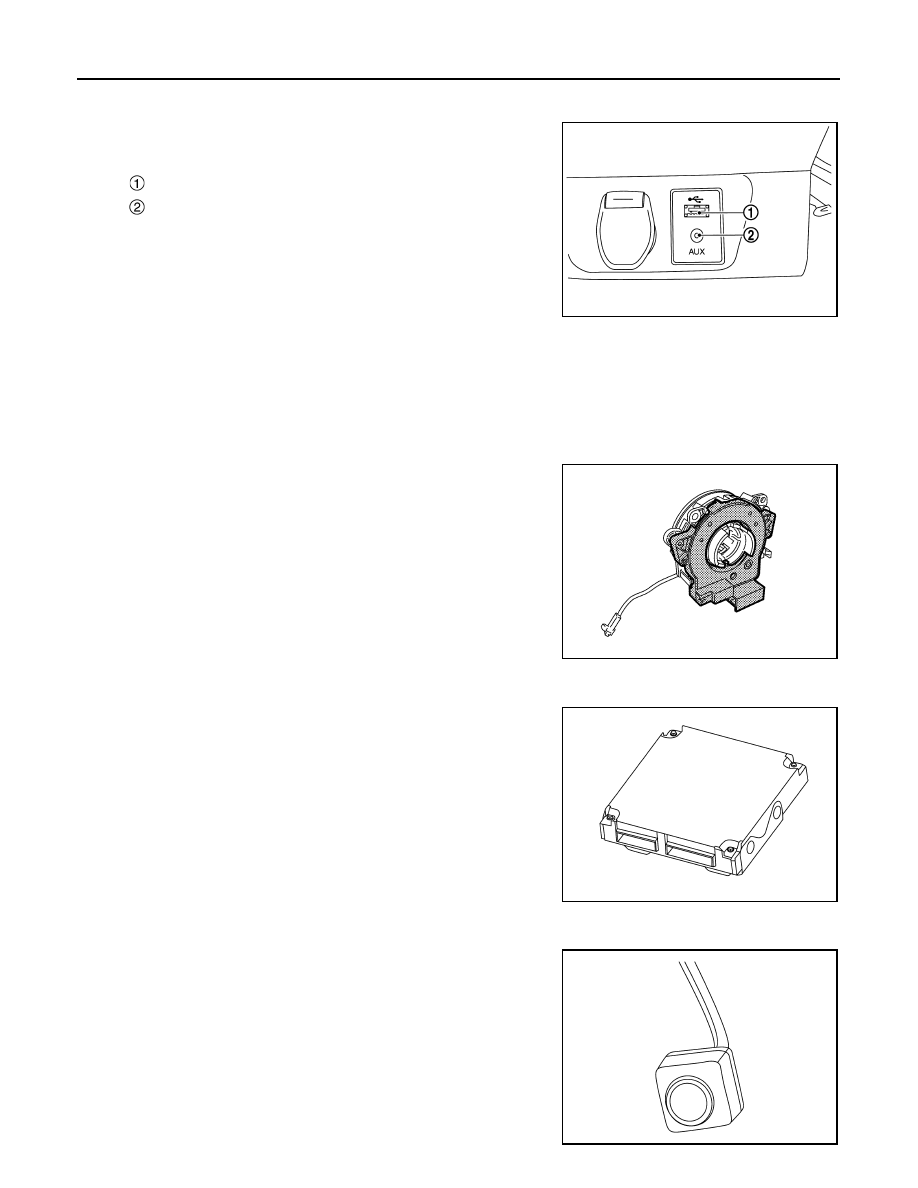

COMPONENT PARTS

USB Connector and AUX Jack

INFOID:0000000010714794

• USB connector and AUX jack is installed on the instrument lower

panel center.

• iPod and USB memory can be connected to the NAVI control unit.
• Connection to an external audio device can provide sound output.

NOTE:
When connected to monaural mini-jack plug cable, sound may not
be output.

SD Card

INFOID:0000000010714795

Map data is sent to the NAVI control unit from the SD slot.

Steering Angle Sensor

INFOID:0000000010714796

• Steering angle sensor is installed to the spiral cable.
• Steering angle sends the steering signal necessary for predictive

course line of the rear view monitor to the NAVI control unit via
CAN communication. (Models without around view monitor)

• Steering angle sends the steering signal necessary for predictive

course line of the rear view monitor to the around view monitor
control unit via CAN communication. (Models with around view
monitor)

Around View Monitor Control Unit

INFOID:0000000010714797

• The around view monitor control unit is installed at the end of the

glove box assembly.

• Necessary signals are transmitted/received to/from control unit via

CAN communication.

• Camera image signals received from each camera are converted/

synthesized in the around view monitor control unit and transmitted
to the NAVI control unit.

• Vehicle width guide lines, predicted course line, vehicle front guid-

ing line and vehicle side line, and vehicle icon are rendered with
the around view monitor control unit and combined with camera
image.

Front Camera

INFOID:0000000010714798

• The front camera is installed to the front grille.
• Super-small CMOS camera (color) using CMOS

*

 for the image

pickup element is adopted.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the front of the vehicle is sent to the
around view monitor control unit.

NOTE:
*: “CMOS” is abbreviation of Complementary Metal Oxide Semicon-
ductor, and features low power consumption and high speed reading
rate of electric charge.

USB connector

AUX jack

External input terminal for connection

φ

3.5 mm stereo mini-jack

JSNIA6736ZZ

JSNIA1571ZZ

JSOIA0646ZZ

JSNIA5851ZZ

AV

COMPONENT PARTS

AV-77

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Specification

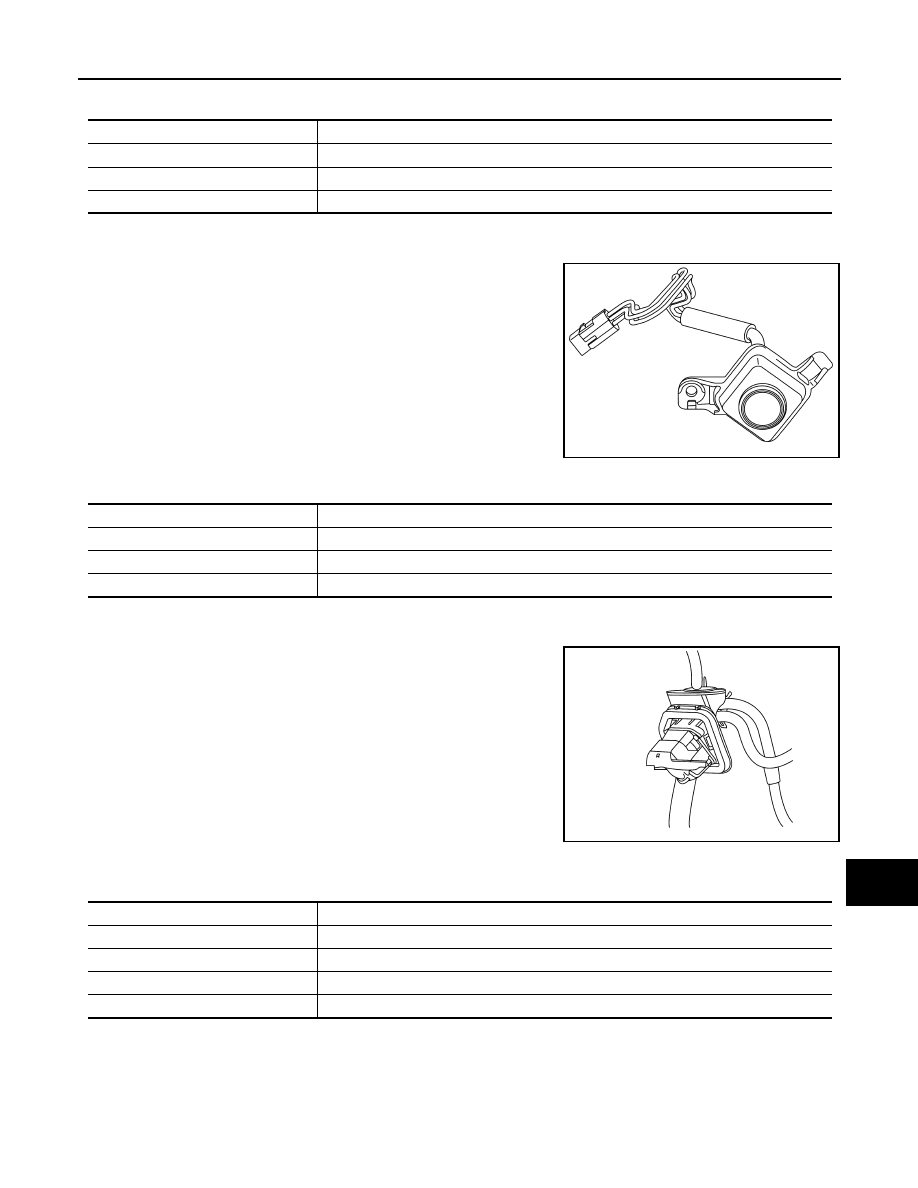

Side Camera

INFOID:0000000010714799

• The side camera is installed to the door mirror.
• Super-small CMOS camera (color) using CMOS

*

 for the image

pickup element is adopted.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the side of the vehicle is sent to the
around view monitor control unit.

NOTE:
*: “CMOS” is abbreviation of Complementary Metal Oxide Semicon-
ductor, and features low power consumption and high speed reading
rate of electric charge.

Specification

Rear Camera

INFOID:0000000010714800

• The rear camera is installed to the back door finisher.
• Super-small CMOS camera (color) using CMOS

*

 for the image

pickup element is adopted.

• With the mirror processing function, a mirror image is sent as if it is

viewed by a rear view mirror.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the rear of the vehicle is sent to the
around view monitor control unit.

NOTE:
*: “CMOS” is abbreviation of Complementary Metal Oxide Semicon-
ductor, and features low power consumption and high speed reading
rate of electric charge.

Specification

Image pickup element

1/4-inch CMOS image sensor

Effective number of pixels

Approx. 300,000 pixels (632

×

 480)

Minimum brightness

1 lx

Angle of view

H: 190.4

°

 V: 141.8

°

JSNIA5852ZZ

Image pickup element

1/4-inch CMOS image sensor

Effective number of pixels

Approx. 300,000 pixels (632

×

 480)

Minimum brightness

1 lx

Angle of view

H: 190.4

°

 V: 141.8

°

JSNIA5853ZZ

Image pickup element

1/4-inch CMOS image sensor

Effective number of pixels

Approx. 300,000 pixels (632

×

 480)

Minimum brightness

1 lx

Angle of view

H: 190.4

°

 V: 141.8

°


With mirror processing function

AV-78

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

SYSTEM

SYSTEM

System Description

INFOID:0000000010714801

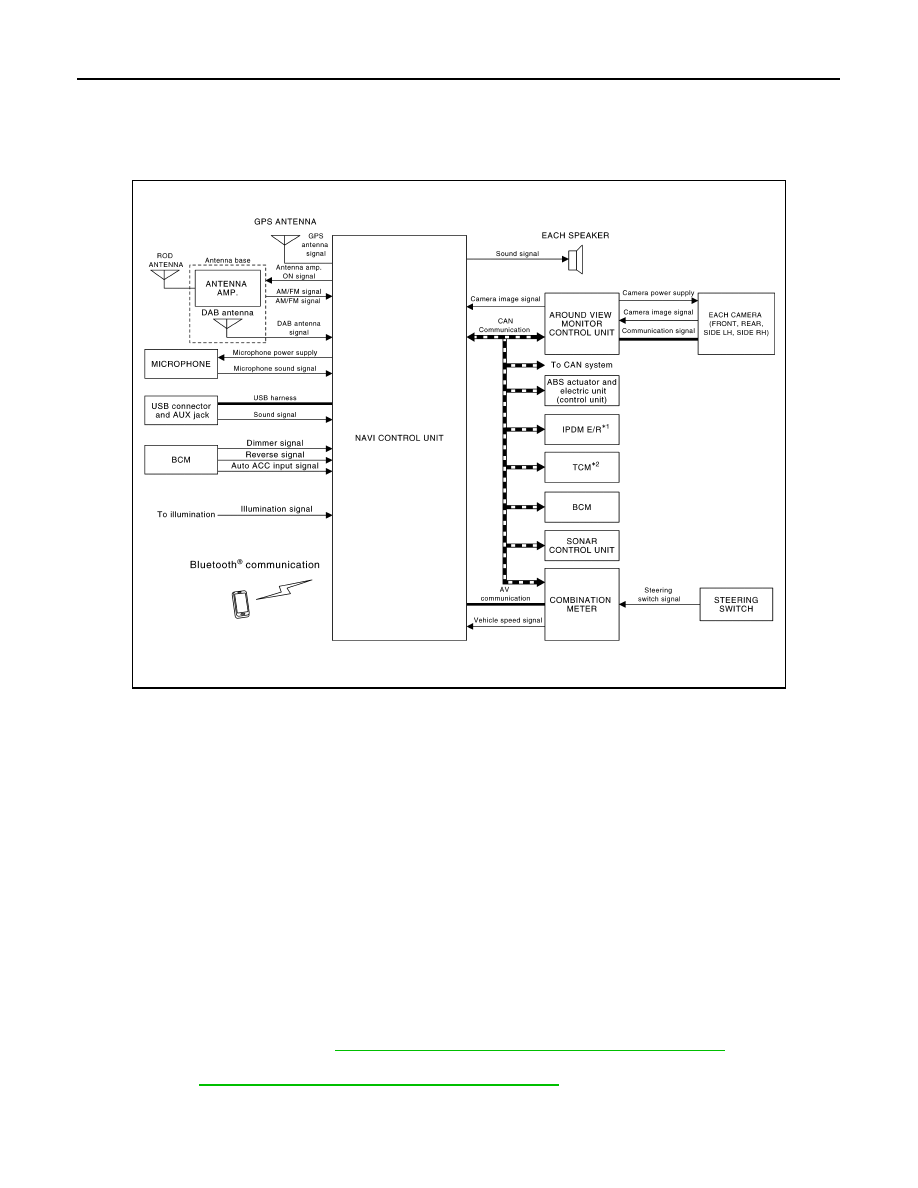

SYSTEM DIAGRAM

*1: With M/T models
*2: With CVT models

DESCRIPTION

Refer to Owner’s Manual for navigation and audio system operating instructions.
Audio function and display are built into NAVI control unit.
This navigation has the following functions.
• Map data on SD card.
• Full support for playback of music from iPod

*

, iPhone, and USB device.

*: iPod is a trademark of Apple inc., registered in the U.S. and other countries.

• High resolution full color touch panel 7 inch “QVGA” display.
• FM/AM digital tuner.
• DAB radio.
• USB interface.
• AUX in jack
• Bluetooth

®

 audio streaming.

• Hands-free phone system.
NOTE:
• The auto ACC function allows the operation of audio and navigation without operating the ignition switch. In

addition, even after the ignition switch is turned OFF, audio and navigation can be operated for 10 minutes.
For the auto ACC function, refer to

PCS-68, "AUTO ACC FUNCTION : System Description"

.

• The settings of the auto ACC function can be changed with the CONSULT (work support of BCM). For

details, refer to

BCS-47, "BCM : CONSULT Function (BCM - BCM)"

.

NAVIGATION SYSTEM FUNCTION

Description

JSNIA7281GB

AV

SYSTEM

AV-79

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The navigation system can be operated by control panel of the NAVI control unit and display (touch panel) of

the NAVI control unit.

• Guide sound during the operation of the navigation system is output from NAVI control unit to front speaker.
• NAVI control unit calculates the vehicle location based on the signals from GYRO (angle speed sensor),

vehicle sensor, and GPS satellite, as well as the map data from map SD card. It is displayed on display of
the NAVI control unit.

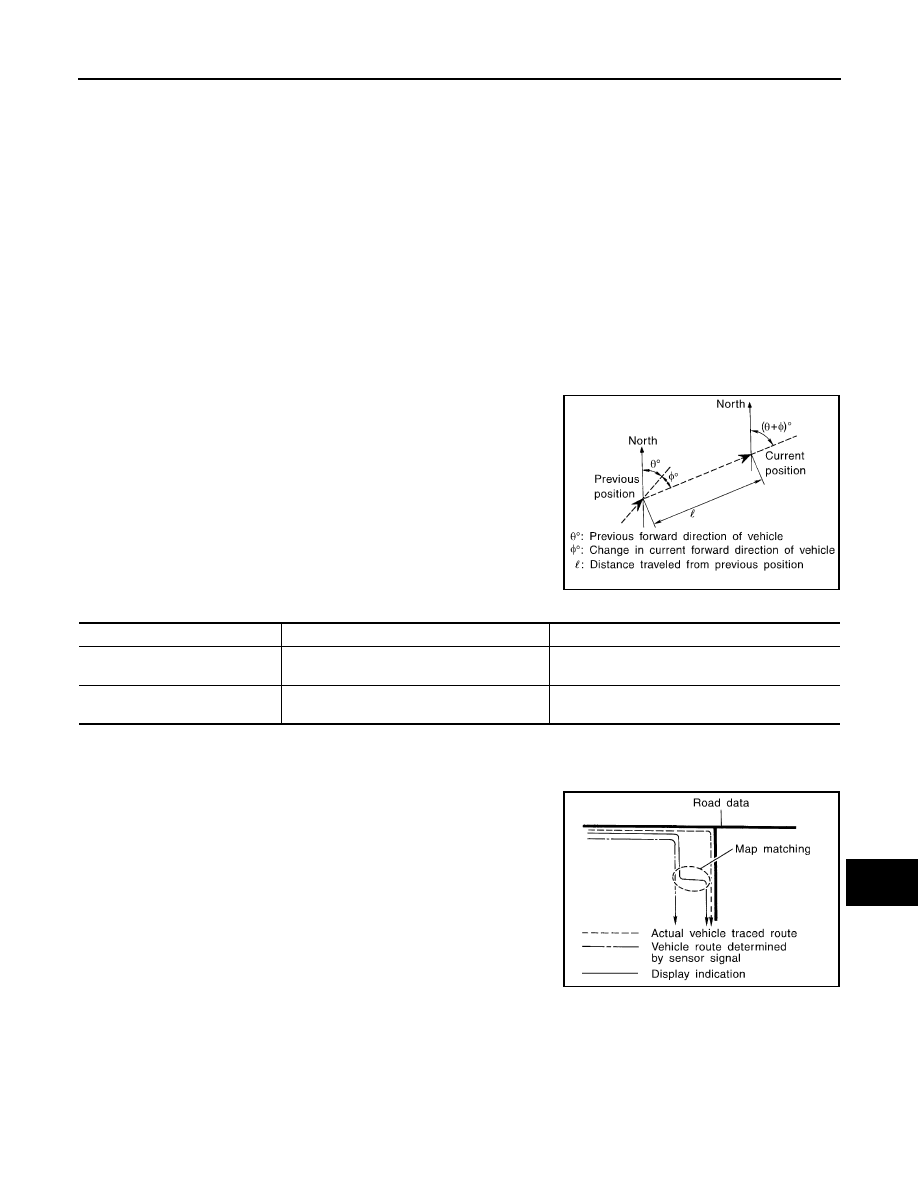

POSITION DETECTION PRINCIPLE

The navigation system periodically calculates the vehicle's current position according to the following three
signals:
• Travel distance of the vehicle as determined by the vehicle speed sensor
• Turning angle of the vehicle as determined by the gyroscope (angular velocity sensor)
• Direction of vehicle travel as determined by the GPS antenna (GPS information)
The current position of the vehicle is then identified by comparing the calculated vehicle position with map data
read from the map SD card (map-matching), and indicated on the screen as a vehicle mark. More accurate
data is judged and used by comparing vehicle position detection results found by the GPS with the result by
map-matching.

The current vehicle position will be calculated by detecting the dis-
tance the vehicle moved from the previous calculation point and its
direction.
• Travel distance

Travel distance calculations are based on the vehicle speed sen-
sor input signal. Therefore, the calculation may become incorrect
as the tires wear down. To prevent this, an automatic distance cor-
rection function has been adopted.

• Travel direction

Change in the travel direction of the vehicle is calculated by a gyro-
scope (angular velocity sensor) and a GPS antenna (GPS informa-
tion). They have both advantages and disadvantages.

More accurate traveling direction is detected because priorities are set for the signals from these two
devices according to the situation.

MAP-MATCHING

Map-matching compares a current location detected by the method
in the “Location Detection Principle” with a road map data from map
SD card.
NOTE:
The road map data is based on data stored in the map SD card.

The vehicle position may not be corrected under the following circumstances and after driving for a certain
time when GPS information is difficult to receive.

SEL684V

Type

Advantage

Disadvantage

Gyroscope
(angular velocity sensor)

Can detect the vehicle's turning angle quite
accurately.

Direction errors may accumulate when vehicle is
driven for long distances without stopping.

GPS antenna
(GPS information)

Can detect the vehicle's travel direction
(North/South/East/West).

Correct direction cannot be detected when vehicle
speed is low.

SEL685V
