COMPONENT PARTS

NAVI Control Unit

INFOID:0000000010714789

The audio system is equipped with following function.

DESCRIPTION

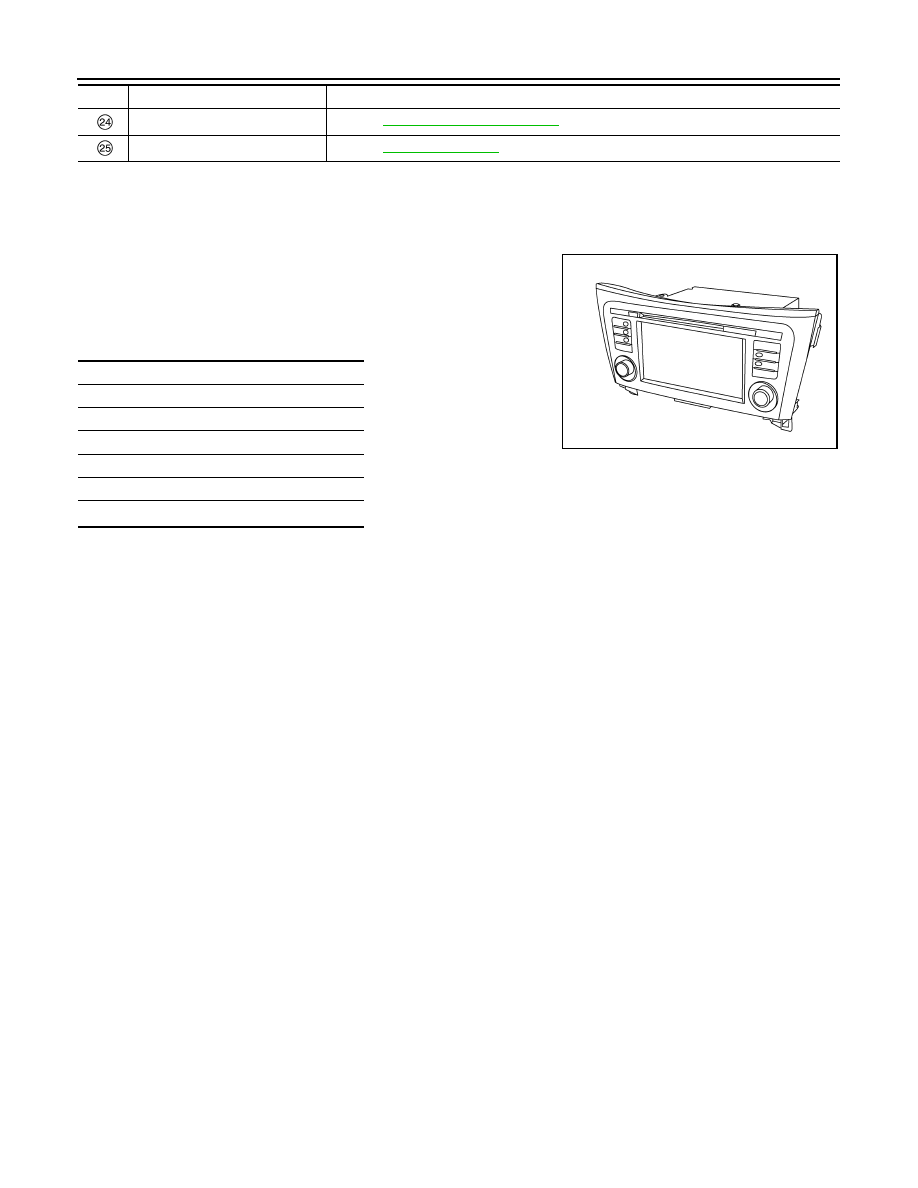

• 7 inch display integrated NAVI control unit is installed at the center

of the instrument panel.

• The NAVI control unit is equipped with the following parts. It is the

master unit integrated with functions and controls the multi-AV sys-
tem.

• A possible route line is generated on the camera image from the rear view camera, and it is shown on the

display.

• It has the built-in gyro sensor and acceleration sensor as a vehicle position calculation sensor. Map data is

read from an SD card in the SD slot.

- SD  card
• It records the map data, guide information, etc.
- Gyroscope
• Detects vehicle cornering condition.
- Acceleration sensor
• Detects the inclination angle and height variation of the vehicle.

Display

• Touch panel function is adopted to improve operability.
• Composite image signals (around view camera image) are displayed.

Audio Amplifier

• 40 W x 4ch amplifiers are installed.
• Audio sound, TEL voice and guiding voice are output to each speaker.

AM/FM Electronic Tuner

• The AM/FM electric tuner includes the PLL frequency synthesizer system.

CD Drive

• It is CD-R/CD-RW compliant and enables MP3 and WMA files to play music.
• It displays the artist name, album title or song title recorded to the file by the ID3 tag/WMA tag display func-

tion.

Bluetooth

®

 Module

• Wireless connection to the audio device equipped with Bluetooth

®

 communication can play music.

• Five units of Bluetooth

®

 communication devices including audio devices and cellular phones can be regis-

tered to the NAVI control unit.

Specification

Steering angle sensor

Refer to

AV-76, "Steering Angle Sensor"

.

Microphone

Refer to

AV-70, "Microphone"

.

No.

Component

Function

Units equipped

SD card slot

7-inch monitor

Audio amplifier

AM/FM electronic tuner

CD drive

Bluetooth

®

 module

ALNIA1590ZZ

AV

COMPONENT PARTS

AV-69

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

*1: If the reflectance of the surface of the media is low, the data may not be read.
*2: It may not be used if it is not updated to the latest firmware or partial functions may not work if it is used.

Speaker

INFOID:0000000010714790

FRONT DOOR SPEAKER

Display

Screen size

7-inch

 (15.5 cm

×

 8.72 mm)

Number of pixels

480

×

 272 pixels

Drive type

TFT active matrix method

Touch panel detection

Analog resistive touch

Amplifier output

40 W

×

 4 ch

CD drive

Used disc

φ

12 cm

Playable disc

CD

CD-ROM (CD-DA)

CD-R

*1

CD-RW

*1

Playable format

Music

MP3

WMA

Text display function

ID3 / WMA tag

Artist name

Album title

Song title

USB

High communication standard

USB2.0

Playable format

Music

MP3

WMA

Text display function

ID3 / WMA tag

Artist name

Album title

Song title

iPod Action

*2

iPod Classic 5th generation and later

iPod nano 1st generation and later

iPod touch 1st generation and later

iPhone 3G and later

Bluetooth

®

 audio

Compliant communication
type

Wireless connection

Bluetooth

®

 communication

Compliant profile

A2DP 1.2

AVRCP 1.4

Hands-free phone

Compliant communication
type

Wireless connection

Bluetooth

®

 communication compliant

type

Compliant profile

HFP v10r00

Camera controller

Guideline display function

Width/distance display

Other functions

Speed sensitive volume function

Steering switch compliant

AV-70

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

COMPONENT PARTS

•

φ

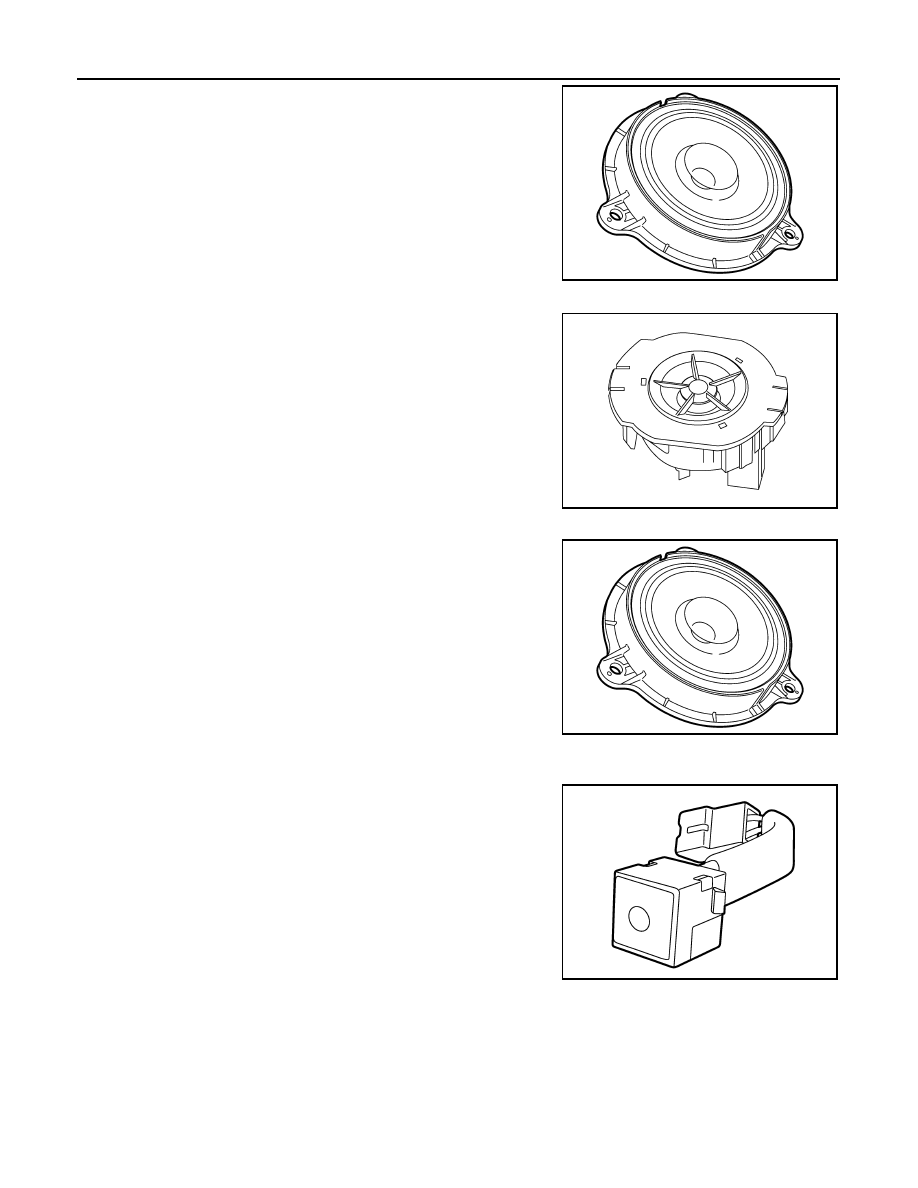

16.0 cm speaker is installed to the bottom of the front door.

• Sound signal is input from the NAVI control unit to output high, mid

and low range sound.

FRONT SQUAWKER

•

φ

8.0 cm squawker for high-range sounds is installed in the instru-

ment panel assembly.

• Sound signal is input from the NAVI control unit to output high

range sounds.

REAR DOOR SPEAKER

•

φ

16.0 cm speaker is installed to the bottom of the rear door.

• Sound signal is input from the NAVI control unit to output high, mid

and low range sound.

Microphone

INFOID:0000000010714791

• The microphone is installed on the map lamp assembly.
• The power is supplied from the NAVI control unit to the micro-

phone, transmitting sound signals to the NAVI control unit at the
during hands-free phone communication.

Maximum input

: 40 W

Rated input

: 20 W

Impedance

: 4

Ω

JSNIA5958ZZ

ALNIA1593ZZ

Maximum input

: 40 W

Rated input

: 20 W

Impedance

: 4

Ω

JSNIA5958ZZ

JPNIA1448ZZ

AV

COMPONENT PARTS

AV-71

< SYSTEM DESCRIPTION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Steering Switch

INFOID:0000000010714792

• Hands-free phone, navigation, and audio operations can be per-

formed.

• This switch is connected to combination meter, and switch opera-

tion signal is transmitted to combination meter.

• Combination meter transmits steering switch signal to NAVI control

unit via AV communication.

Antenna and Antenna Feeder

INFOID:0000000010714793

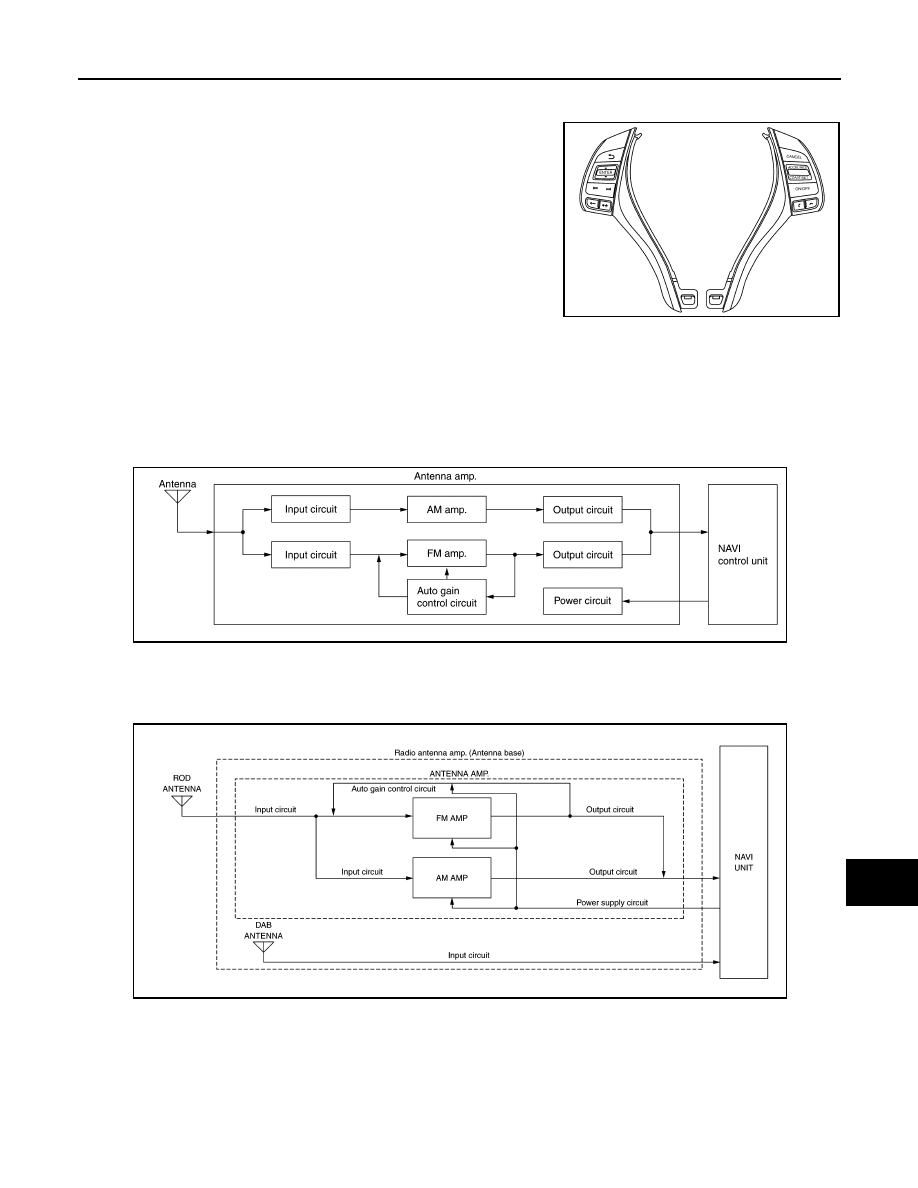

ANTENNA AMP. AND RADIO ANTENNA

Without DAB antenna

• AM/FM radio rod antenna and antenna base are located on the rear of the roof.
• The antenna amp. is built into the antenna base.
• The AM/FM radio main antenna path has an antenna amp. to obtain sufficient reception power.

With DAB antenna

• AM/FM radio rod antenna, antenna base and DAB antenna are located on the rear of the roof.
• The antenna amp. and DAB antenna are built into the antenna base.
• The AM/FM radio main antenna path has an antenna amp. to obtain sufficient reception power.

GPS ANTENNA

JSNIA7234ZZ

JSNIA5180GB

JSNIA7241GB
