WW-52

COMBINATION SWITCH

COMBINATION SWITCH

PFP:25567

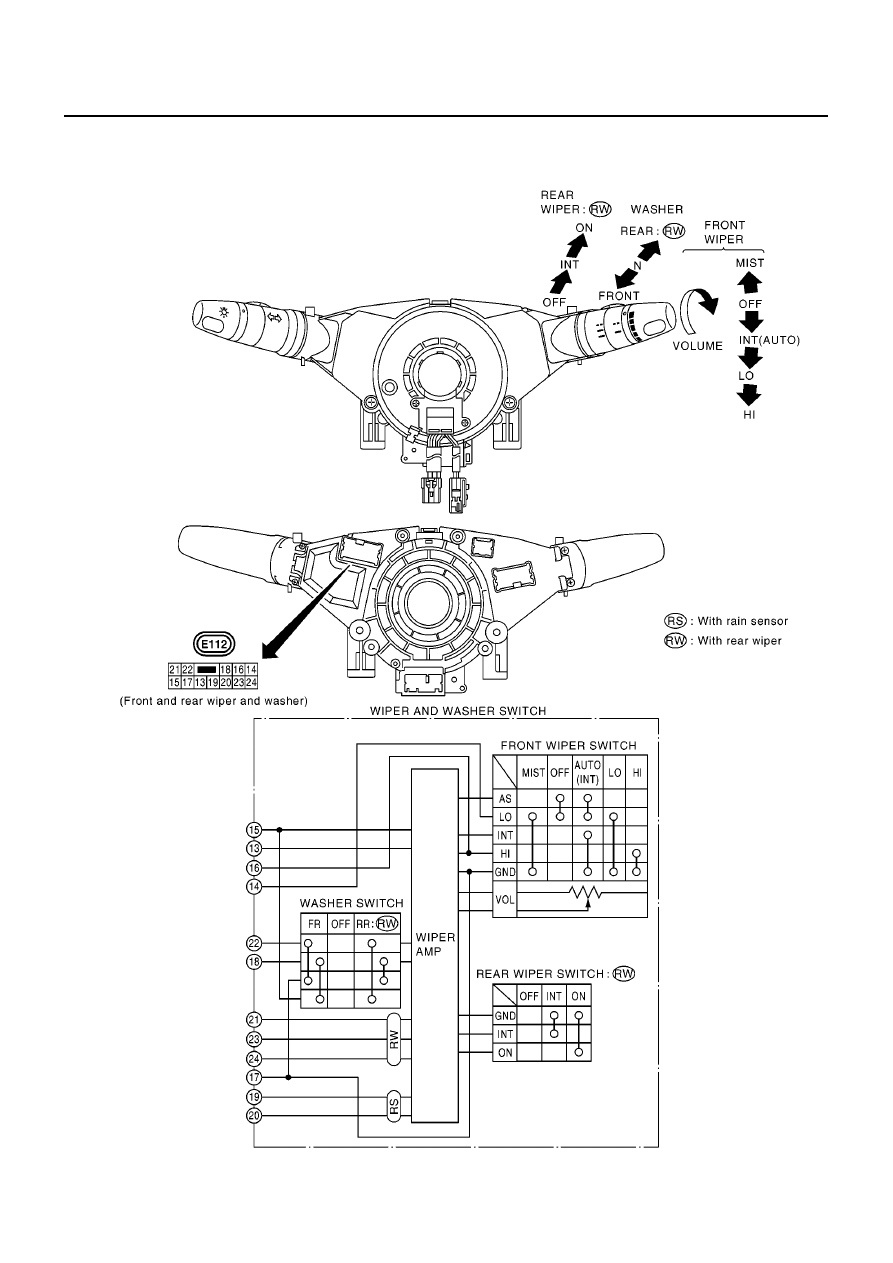

Switch Circuit Inspection

EKS009PV

MKWA1017E

HEADLAMP WASHER

WW-53

C

D

E

F

G

H

I

J

L

M

A

B

WW

HEADLAMP WASHER

PFP:28620

System Description

EKS009PW

The headlamp washer is controlled by the smart entrance control unit and ground supplied, the headlamp
washer motor operates.
Power is supplied at all times.

through 30A fusible link (letter , located in fuse and fusible link box)

to headlamp washer motor terminal 2, and

through 10A fuse (No. 32, located in fuse and fusible link box)

to lighting switch terminal 11

through 10A fuse [No. 10, located in fuse block (J/B)]

to smart entrance control unit terminal 29.

Ground is supplied to smart entrance control unit terminal 53 through body grounds M16, M50, M70 and F115.
When headlamp washer switch is pushed during lighting switch is in 1ST or 2ND position, ground is supplied

to smart entrance control unit terminal 24

through headlamp washer switch and body grounds E10 and E58, and

to headlamp washer motor terminal 1

through smart entrance control unit terminal 62.

With ignition switch in the ON or START position and lighting switch is in 1ST or 2ND position, power is sup-
plied, the headlamp washer motor operates.

WW-54

HEADLAMP WASHER

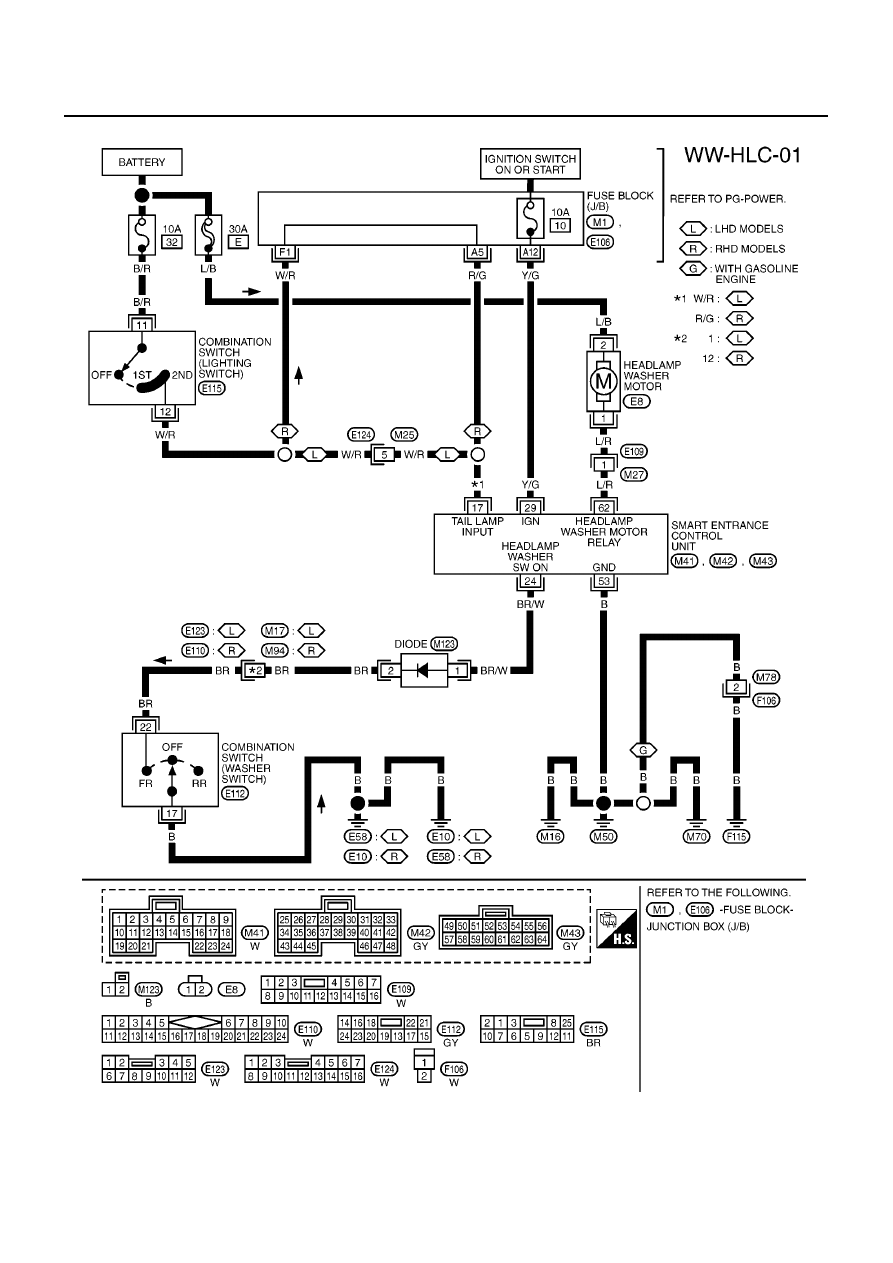

Wiring Diagram —HLC—

EKS009PX

MKWA1015E

HEADLAMP WASHER

WW-55

C

D

E

F

G

H

I

J

L

M

A

B

WW

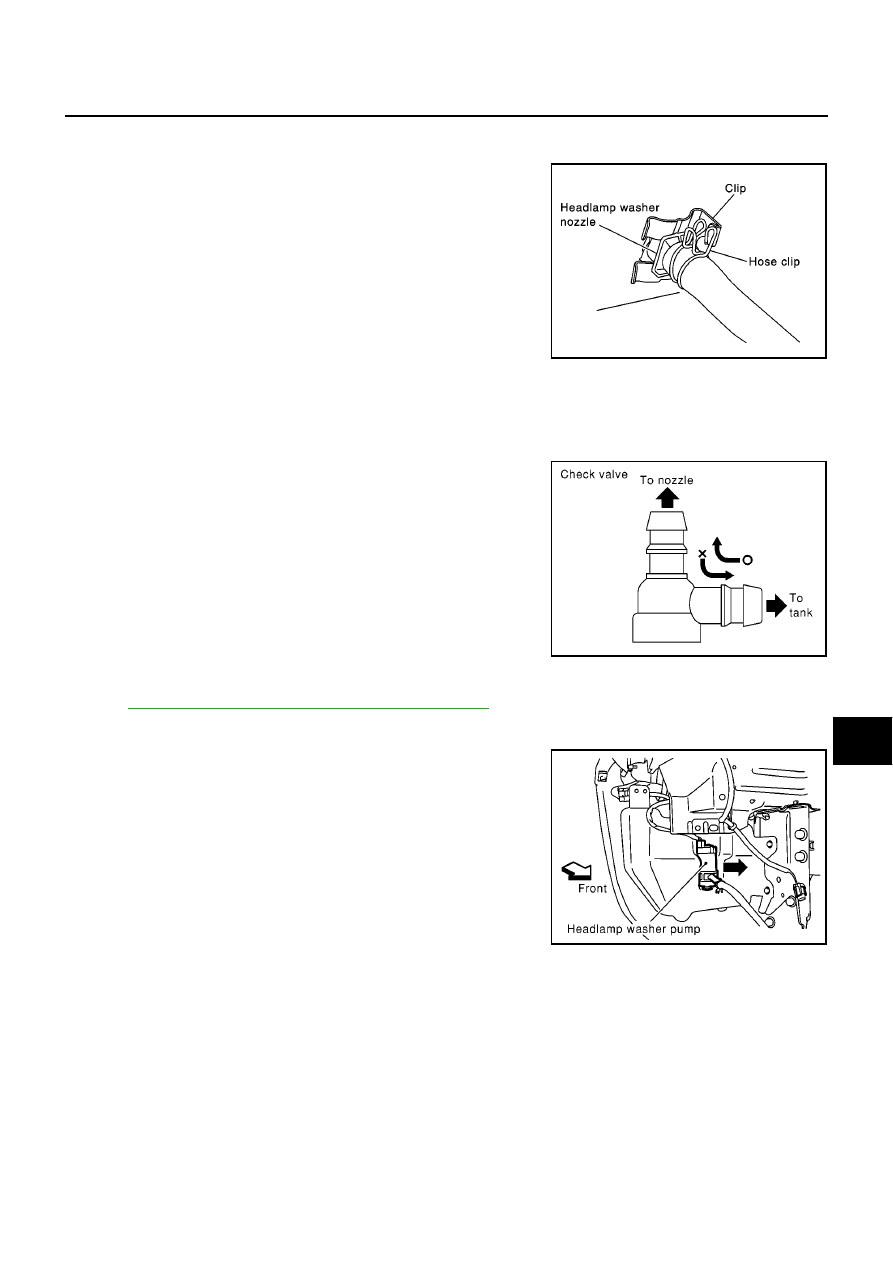

Removal and Installation for Washer Nozzle

EKS009PY

REMOVAL

1.

Remove front bumper. Refer to EI section in P12 ESM
(SM2E00-1P12E0E)

2.

Remove hose clip and washer nozzle metal clip.

3.

Remove washer nozzle from front bumper.

INSTALLATION

Installation is in the reverse order of removal.

Inspection for Washer Nozzle

EKS009PZ

CHECK VALVE

Blow air in the injection direction, and check that air flows only
one way. Make sure that the reverse direction is not possible.

Removal and Installation for Washer Tank

EKS009Q0

Refer to

WW-16, "Removal and Installation for Washer Tank"

,

Removal and Installation for Washer Pump

EKS009Q1

1.

Remove front bumper. Refer to EI section in P12 ESM
(SM2E00-1P12E0E)

2.

Remove washer pump connector and hose.

3.

Pull out washer pump in the direction of the arrow in the figure,
and remove the washer pump from the washer tank.

CAUTION:

When installing washer pump, there should be no packing twist,
etc.

PKIA0490E

PKIA0491E

PKIA0494E
