RSU-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Caution

EES00147

●

Final tightening of bushings must be carried out under unladen condition with tires on the ground. Oil will

shorten life of bushings. Be sure to wipe off any spilled oil.

●

“Unladen condition” means that fuel, coolant and lubricant are full and ready for drive. However, spare tire,
jack, and hand tools should be unloaded.

●

After installing the removed suspension parts, always check wheel alignment and adjust if necessary.

●

Replace the caulking nut with a new one. Install a new nut without wiping the oil off before tightening.

Precautions for Brake System

EES00148

●

When installing rubber parts, final tightening must be carried out
under unladen condition* with tires on ground.

*: Fuel, radiator coolant and engine oil full. Spare tire, jack,

hand tools and mats in designated positions.

●

Use flare nut wrench when removing or installing brake tubes.

●

After installing removed suspension parts, check wheel align-
ment and adjust if necessary.

●

Always torque brake lines when installing.

SBR686C

PREPARATION

RSU-3

C

D

F

G

H

I

J

K

L

M

A

B

RSU

PREPARATION

PFP:00002

Special Service Tool

EES00149

Commercial Service Tools

EES0014A

Tool name
Tool number

Description

Strut attachment
ST35652000

Disassembling and assembling strut

ZZA0807D

Tool name

Description

1. Flare nut crowfoot
2. Torque wrench

a: 10 mm (0.39 in)

Removing and installing brake piping

Spring compressor

Removing and installing coil spring

S-NT360

S-NT717

RSU-4

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

PFP:00003

NVH Troubleshooting Chart

EES0014B

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

Re

fe

r

to

RSU-

5

Re

fe

r

to

RSU-

8

—

—

—

Re

fe

r

to

RSU-

5

Re

fe

r

to

RSU-

5

Re

fe

r

to

RSU-

1

1

N

V

Hi

nF

A

X

a

n

dF

S

U

s

e

c

ti

o

n

s

.

N

V

H

in

W

T

s

ec

ti

on.

N

V

H

in

W

T

s

ec

ti

on.

NVH

in

F

AX

s

e

c

ti

o

n

.

N

V

Hi

nB

Rs

e

c

ti

o

n

.

NVH

in

P

S

s

e

c

ti

o

n

.

Possible cause and SUSPECTED PARTS

Im

pr

ope

r

in

s

ta

llat

ion,

lo

o

s

ene

ss

Shoc

k

abso

rbe

r

def

orm

a

ti

on,

dam

age

or

d

e

fl

ec

ti

on

Bush

in

g

o

r

m

ount

in

g

det

eri

o

ra

ti

o

n

Par

ts

int

erf

e

renc

e

Sp

ri

n

g

fa

tig

u

e

Susp

ensi

o

n

loos

enes

s

In

cor

rec

t

w

hee

l

a

lig

n

m

ent

S

tab

ili

z

er

fa

ti

g

u

e

FRONT

A

XLE

A

ND

FRONT

S

USPENSION

TIR

E

S

ROAD

WHEEL

DRI

VE

SHAFT

BRAKES

STEERING

Symptom

REAR SUSPENSION

Noise

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

×

×

Poor quality ride or
handling

×

×

×

×

×

×

×

×

×

×

REAR SUSPENSION ASSEMBLY

RSU-5

C

D

F

G

H

I

J

K

L

M

A

B

RSU

REAR SUSPENSION ASSEMBLY

PFP:55020

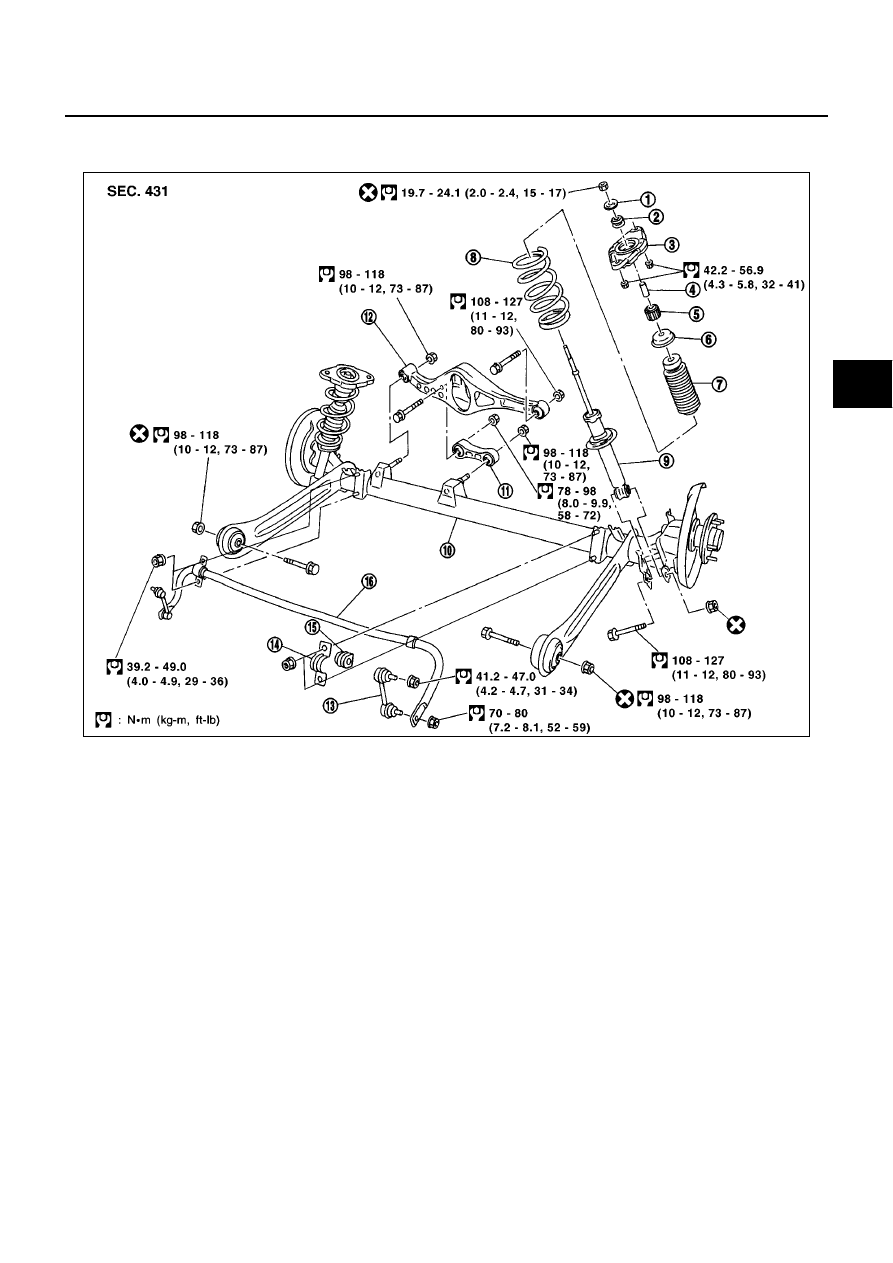

Components

EES0014C

On-Vehicle Inspection and Service

EES0014D

Check axle and suspension parts for excessive play, wear, and damage.

●

Move rear wheels (RH/LH) to check abnormal free play.

●

Retighten all nuts and bolts to the specified torque.

●

Check shock absorber for oil leakage and damage.

Wheel Alignment

EES0014E

DESCRIPTION

●

Measure wheel alignment under unladen conditions. “Unladen conditions” means that fuel, coolant, and
lubricant are full. However, spare tire, jack, and hand tools should be unloaded.

PRELIMINARY INSPECTION

1.

Check the tires for improper air pressure and wear.

2.

Check road wheels for runout.

3.

Check wheel bearing axial end play.

MEIA0039E

1.

Washer

2.

Bushing

3.

Mounting bracket

4.

Collar

5.

Bushing

6.

Bound bumper cover

7.

Bound bumper

8.

Coil spring

9.

Shock absorber

10. Torsion beam

11. Control rod

12. Lateral link

13. Connecting rod

14. Clamp

15. Bushing

16. Stabilizer bar
