Nissan Primera P12. Manual - part 633





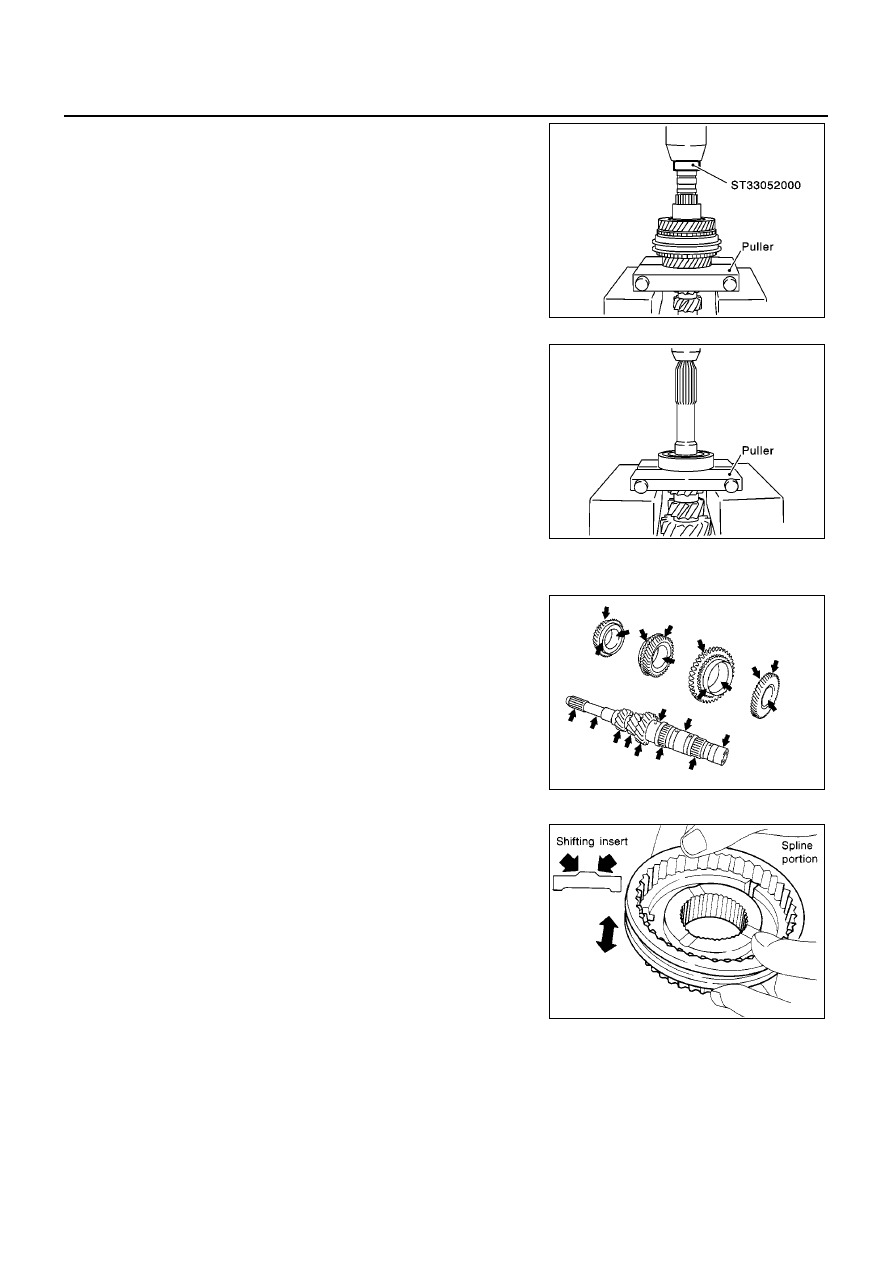

MT-38

[RS6F51R]

INPUT SHAFT AND GEARS

9.

Remove 5th bushing, thrust washer, 4th input gear, 4th needle
bearing, 4th bushing, 4th baulk ring, 3rd-4th synchronizer hub
assembly, 3rd baulk ring and 3rd input gear simultaneously.

10. Remove 3rd needle bearing.

11. Remove input shaft front bearing.

INSPECTION AFTER DISASSEMBLY
Input Shaft and Gear

Check items below. If necessary, replace them with new ones.

Damage, peeling, dent, uneven wear, bending, etc. of shaft

Excessive wear, damage, peeling, etc. of gears

Synchronizer

Check items below. If necessary, replace them with new ones.

Damage and excessive wear of contact surfaces of coupling
sleeve, synchronizer hub, and shifting insert

Coupling sleeve and synchronizer hub must move smoothly.

SCIA0919E

SCIA0920E

SCIA1074J

SMT387A

INPUT SHAFT AND GEARS

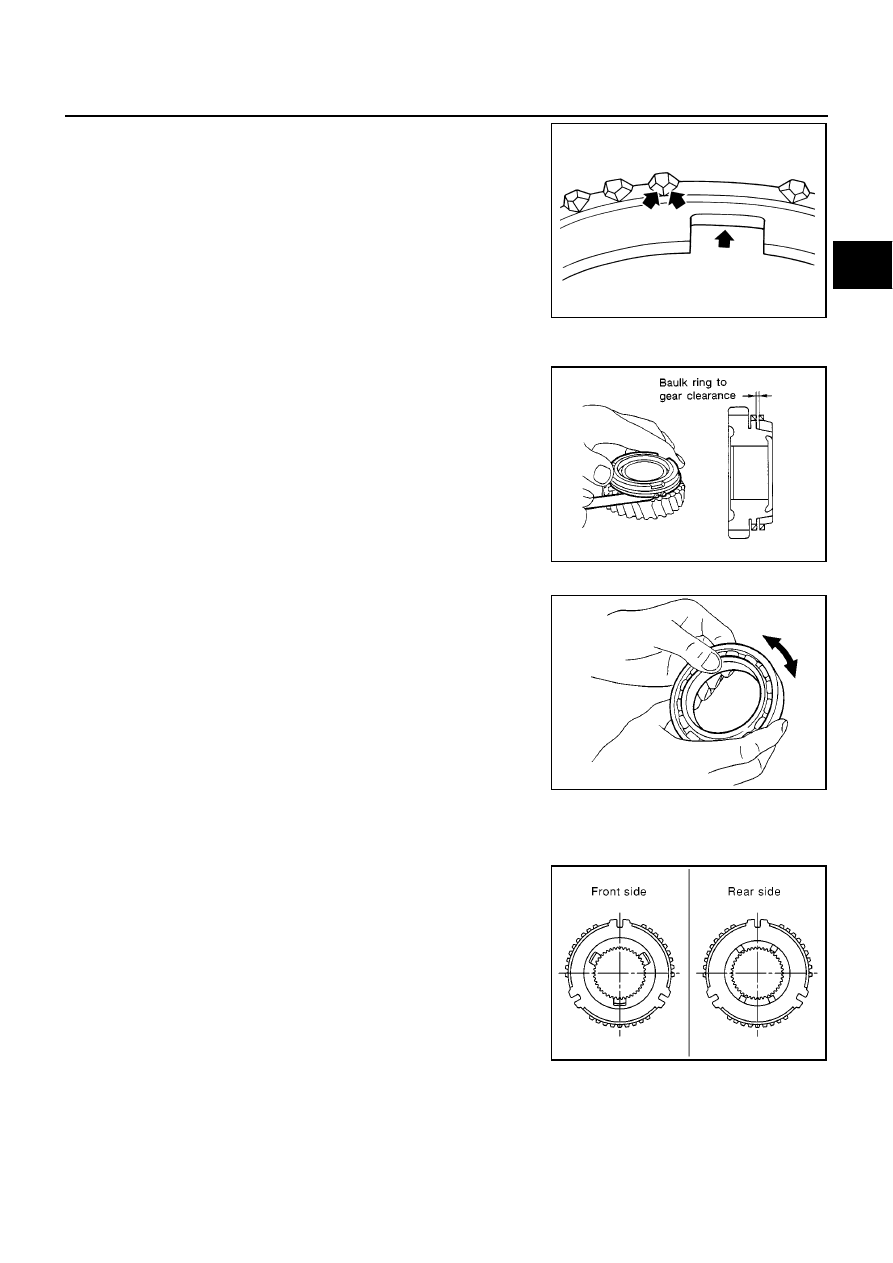

MT-39

[RS6F51R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

If any crack, damage, or excessive wear is found on cam face of
baulk ring or working face of insert, replace it.

Baulk ring clearance

Press baulk ring against cone, and measure clearance between
baulk ring and cone. If measurement is below limit, replace it
with a new one.

Bearing

Check items below. If necessary, replace them with new ones.

Damage and rough rotation of bearing

ASSEMBLY

1.

Install 3rd needle bearing.

2.

Install 3rd input gear and 3rd baulk ring.

3.

Install spread spring, shifting insert and 3rd-4th synchronizer
hub onto 3rd-4th coupling sleeve.

CAUTION:

Be careful with orientation of synchronizer hub.

Do not reuse 3rd-4th synchronizer hub.

SMT867D

Clearance

Standard

3rd and 4th

: 0.9 - 1.45 mm (0.0354 - 0.0571 in)

5th and 6th

: 0.95 - 1.4 mm (0.0374 - 0.0551 in)

Limit value

: 0.7 mm (0.0276 in)

SMT140

MTF0041D

SCIA0921E

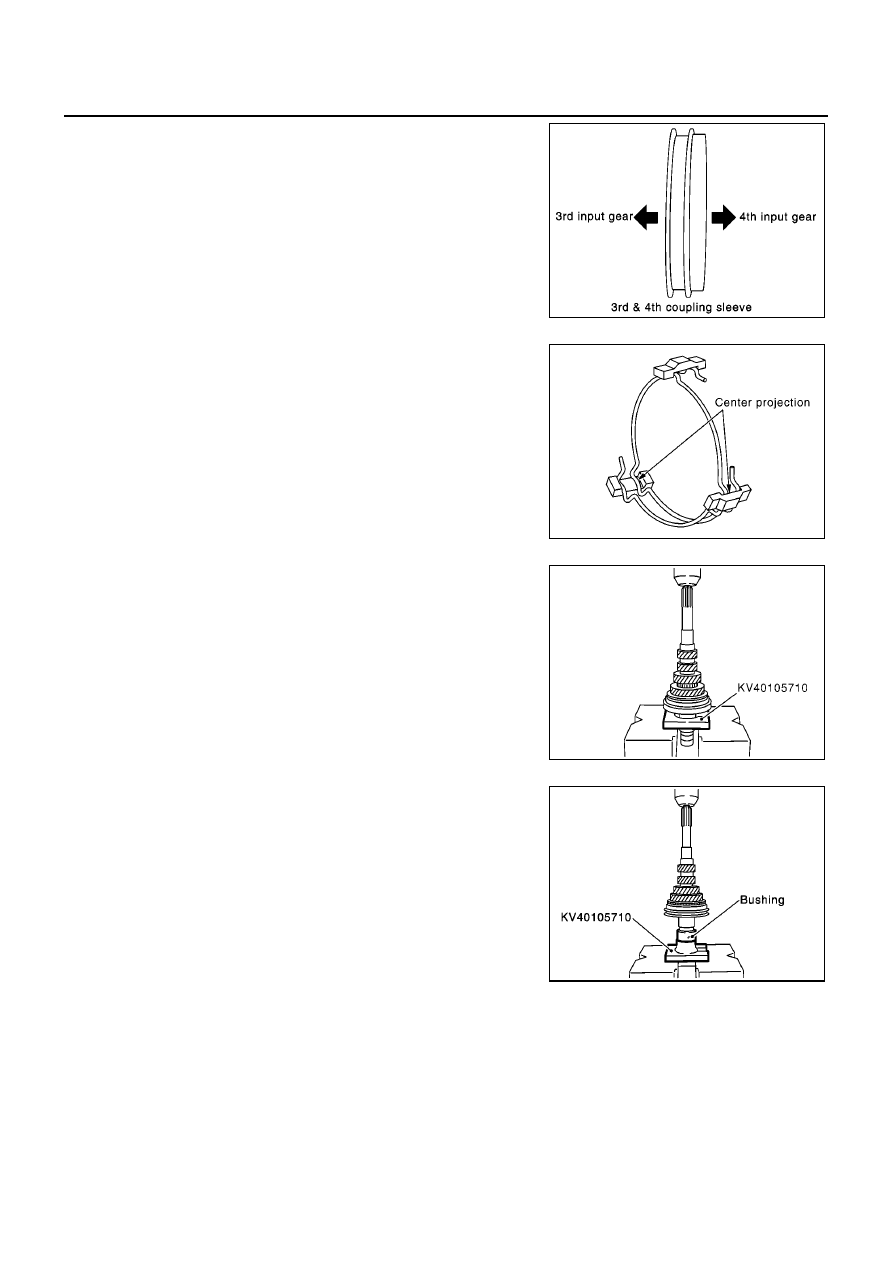

MT-40

[RS6F51R]

INPUT SHAFT AND GEARS

Be careful with orientation of coupling sleeve.

Be sure not to hook center projection of 2 spread springs
on same shifting insert.

4.

Install 3rd-4th synchronizer hub assembly.

CAUTION:

Align grooves of shifting insert and 3rd baulk ring.

5.

Install 4th bushing.

6.

Install 4th baulk ring.

7.

Install 4th input gear and 4th needle bearing.

SCIA0993E

MCIA0145E

SCIA0922E

SCIA0923E

INPUT SHAFT AND GEARS

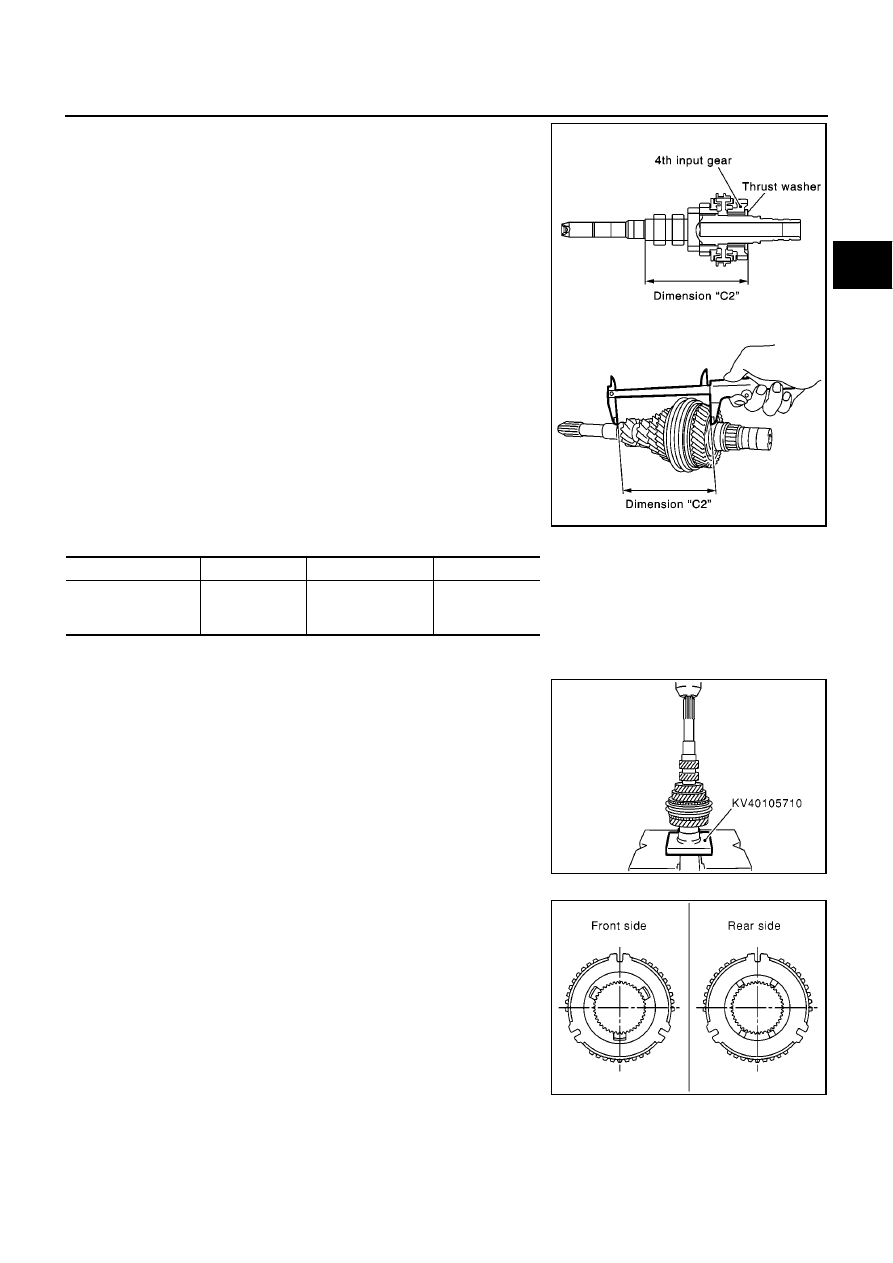

MT-41

[RS6F51R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

8.

Select thrust washer so that dimension “C2” satisfies standard
below. Then install it onto input shaft.

Thrust Washer

CAUTION:

Only one thrust wahser can be selected.

9.

Install 5th bushing.

10. Install 5th needle bearing and 5th input gear.

11. Install 5th baulk ring.

12. Install 5th-6th synchronizer hub, spread spring and shifting

insert onto 5th-6th coupling sleeve.

CAUTION:

Be careful with orientation of synchronizer hub.

Do not reuse 5th-6th synchronizer hub.

Standard for dimension C2

: 154.7 - 154.8 mm (6.091 -
6.094 in)

SCIA0925E

Thickness

Part number

Thickness

Part number

3.84 mm (0.1512 in)
3.90 mm (0.1535 in)
3.96 mm (0.1559 in)

32347 8H500
32347 8H501
32347 8H502

4.02 mm (0.1583 in)
4.08 mm (0.1606 in)
4.14 mm (0.1630 in)

32347 8H503
32347 8H504
32347 8H505

SCIA0926E

SCIA0921E
