Nissan Primera P12. Manual - part 627





MT-14

[RS6F51R]

AIR BREATHER HOSE

AIR BREATHER HOSE

PFP:31098

Removal and Installation

ECS00ABL

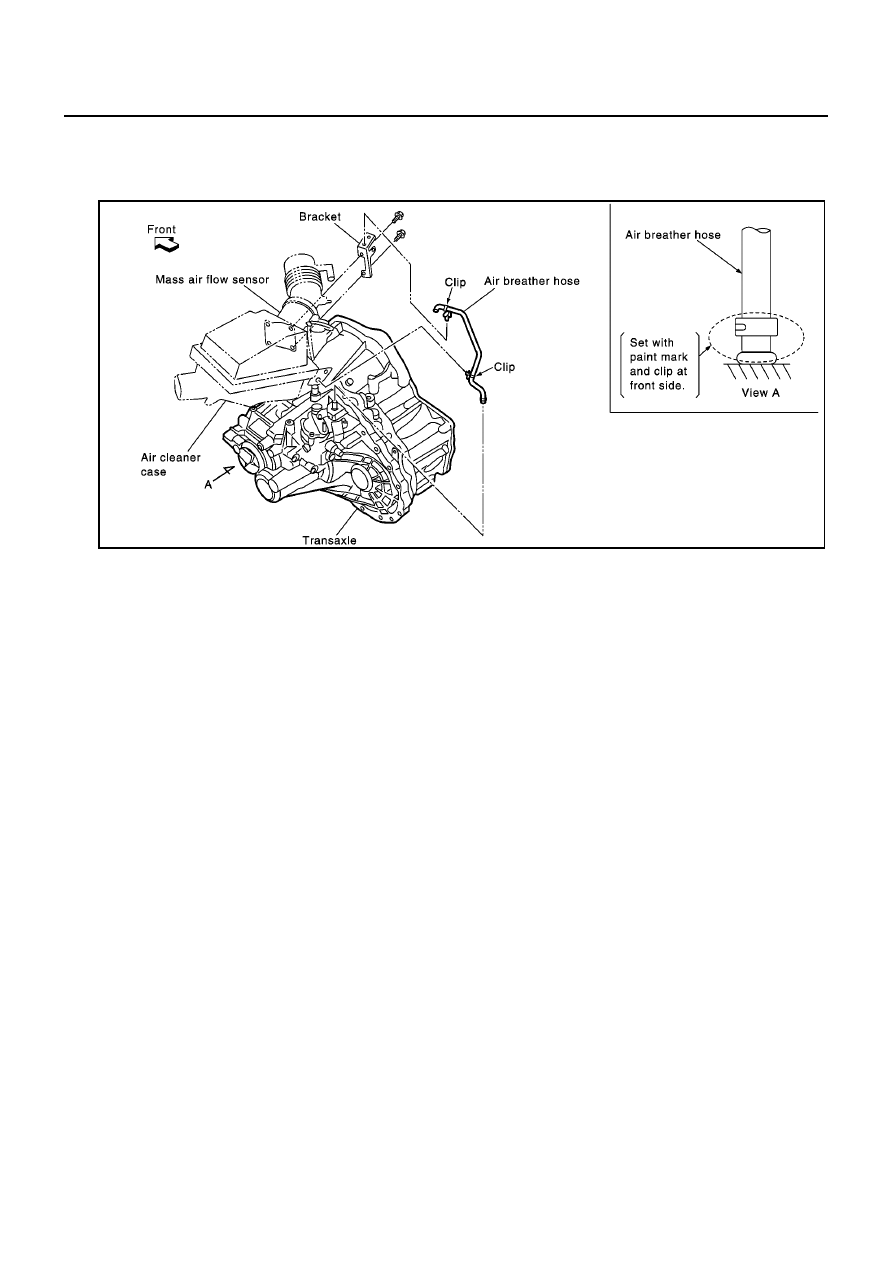

Refer to the figure for air breather hose removal and installation information.

CAUTION:

Make sure there are no pinched or restricted areas on the air breather hose caused by bending or
winding when installing it.

Be sure to insert hose into the transaxle tube until overlap area reaches the spool.

SCIA0747E

TRANSAXLE ASSEMBLY

MT-15

[RS6F51R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

TRANSAXLE ASSEMBLY

PFP:32010

Removal and Installation

ECS00ABM

REMOVAL

1.

Remove battery and its bracket.

2.

Remove fuse box from battery bracket.

3.

Remove air cleaner box with mass air flow sensor.

4.

Remove air breather hose and vacuum pump hose.

5.

Remove fuel filter bracket.

6.

Remove clutch operating cylinder.

CAUTION:

Do not depress clutch pedal during removal procedure.

7.

Disconnect control cable from transaxle.

8.

Drain gear oil from transaxle.

9.

Disconnect neutral switch and back-up lamp switch harness connectors.

10. Remove starter motor.

11. Remove crankshaft position sensor (POS) from transaxle.

12. Remove exhaust front tube and the drive shaft.

13. Place a jack onto the transaxle.

CAUTION:

When setting jack, be careful not to bring it into contact with the switch.

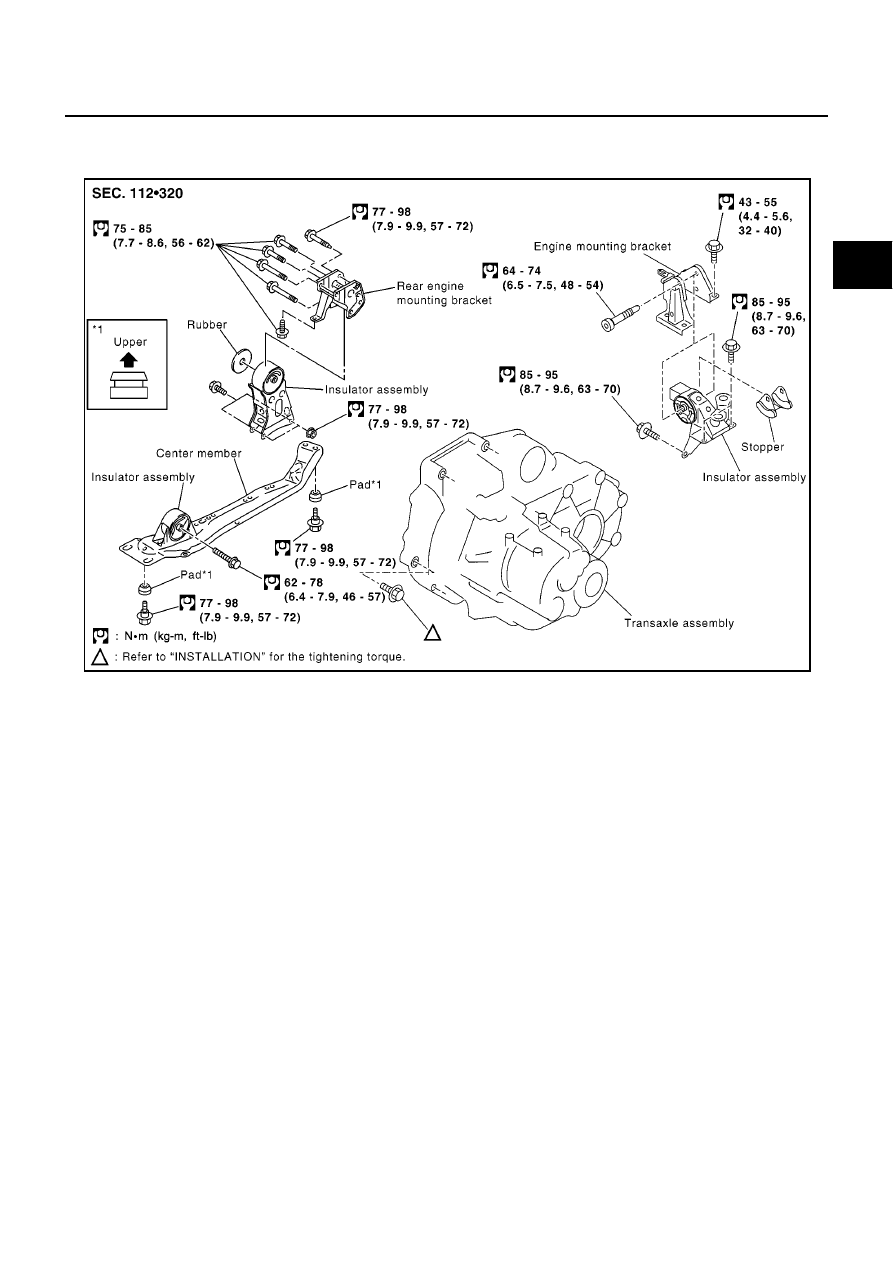

14. Remove center member, engine insulator and engine mount bracket.

15. Support engine by placing a jack under oil pan.

16. Remove bolts securing transaxle to engine.

MCIA0121E

MT-16

[RS6F51R]

TRANSAXLE ASSEMBLY

17. Remove transaxle from vehicle.

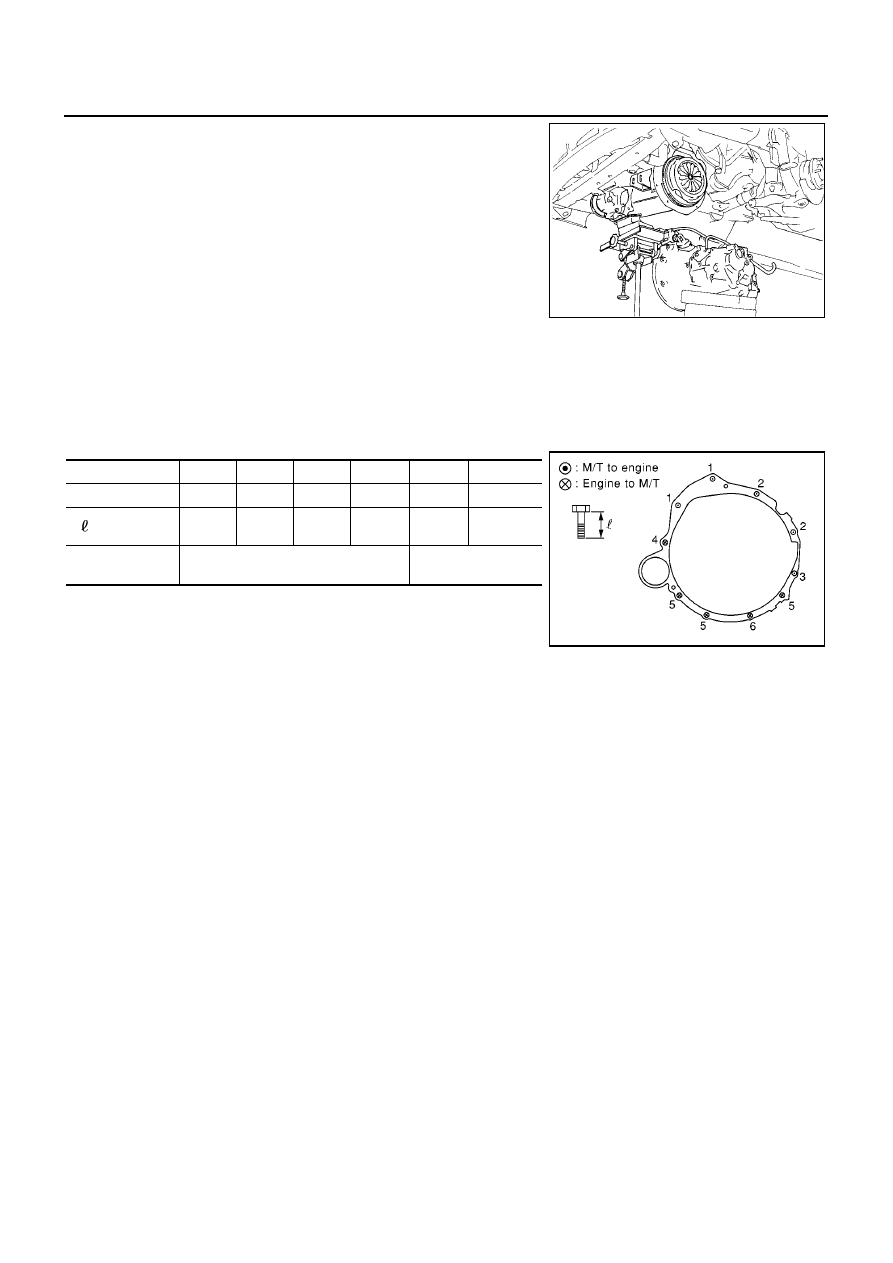

INSTALLATION

Paying attention to the following items, install in the reverse order of removal.

When installing the transaxle to the engine, tighten to the specified torque.

CAUTION:

When installing transaxle, be careful not to bring transaxle input shaft into contact with the clutch
cover.

After installation, check oil level, and look for leaks and loose
mechanisms.

MTD0062D

Bolt No.

1

2

3

4

5

6

Quantity

2

2

1

1

3

1

” mm (in)

55

(2.17)

70

(2.76)

120

(4.72)

45

(1.77)

40

(1.57)

35

(1.38)

Tightening torque
N·m (kg-m, ft-lb)

39 - 49

(4.0 - 5.0, 29 - 36)

42 - 52

(4.2 - 5.3, 30 - 38)

MCIA0014E

TRANSAXLE ASSEMBLY

MT-17

[RS6F51R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

Component Parts

ECS00ABN

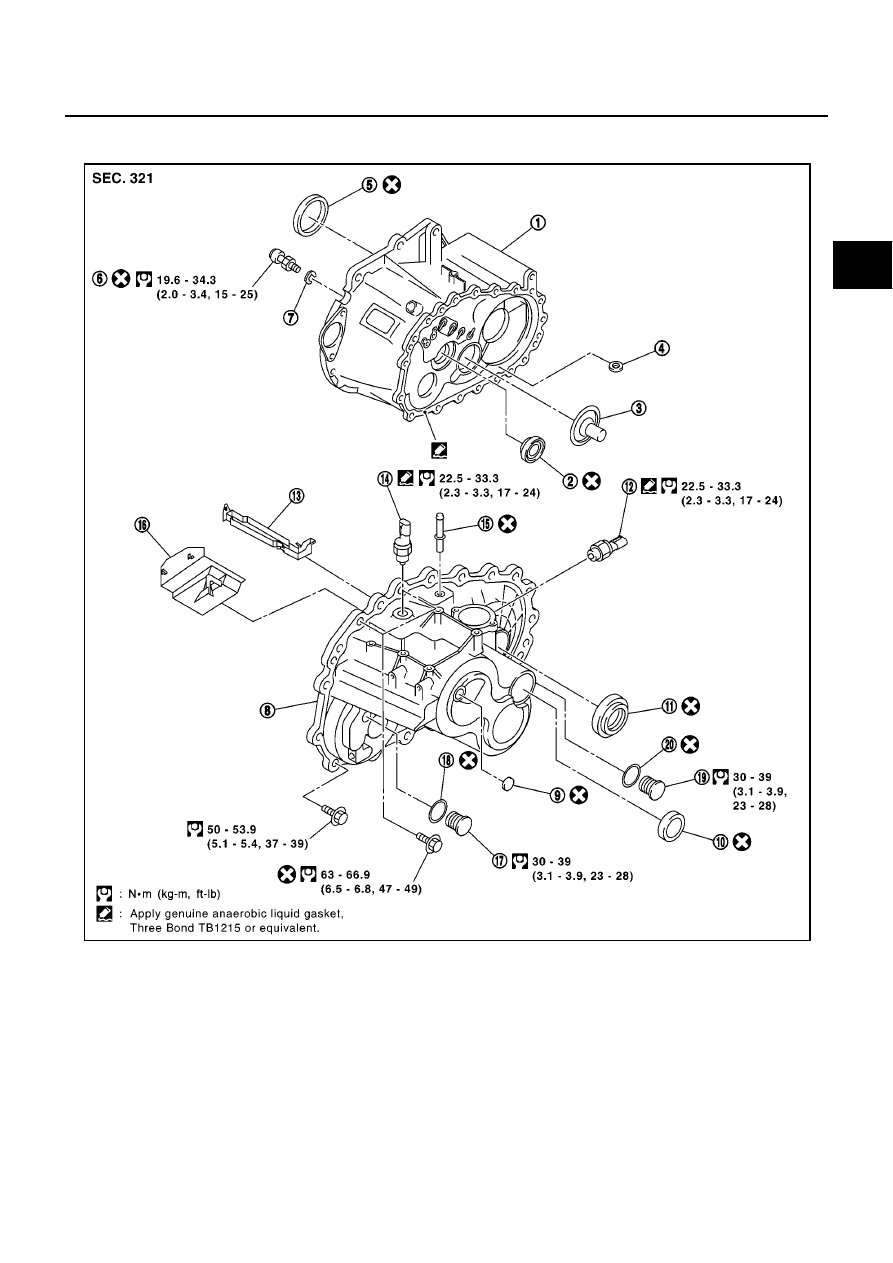

CASE AND HOUSING COMPONENTS

1.

Clutch housing

2.

Input shaft oil seal

3.

Oil channel

4.

Magnet

5.

Differential oil seal

6.

Ball pin

7.

Washer

8.

Transaxle case

9.

Welch plug

10. Bore plug

11. Differential oil seal

12. Park/Neutral position switch

13. Oil gutter

14. Back-up lamp switch

15. Air breather tube

16. Baffle plate

17. Filler plug

18. Gasket

19. Drain plug

20. Gasket

MCIA0122E
