MT-10

[RS6F51R]

M/T OIL

M/T OIL

PFP:KLD20

Changing M/T Oil

ECS00ABG

DRAINING

1.

Start the engine and let it run to warm up the transaxle.

2.

Stop the engine. Remove drain plug and drain oil.

3.

Set a gasket on the drain plug and install it to the transaxle.

CAUTION:

Do not reuse gasket.

FILLING

1.

Remove filler plug. Fill with new oil until oil level reaches the specified limit near filler plug mounting hole.

2.

After refilling oil, check oil level. Assemble gasket to filler plug, then install it to transaxle body.

CAUTION:

Do not reuse gasket.

Checking M/T Oil

ECS00ABH

OIL LEAKAGE AND OIL LEVEL

Check that oil is not leaking from transaxle or around it.

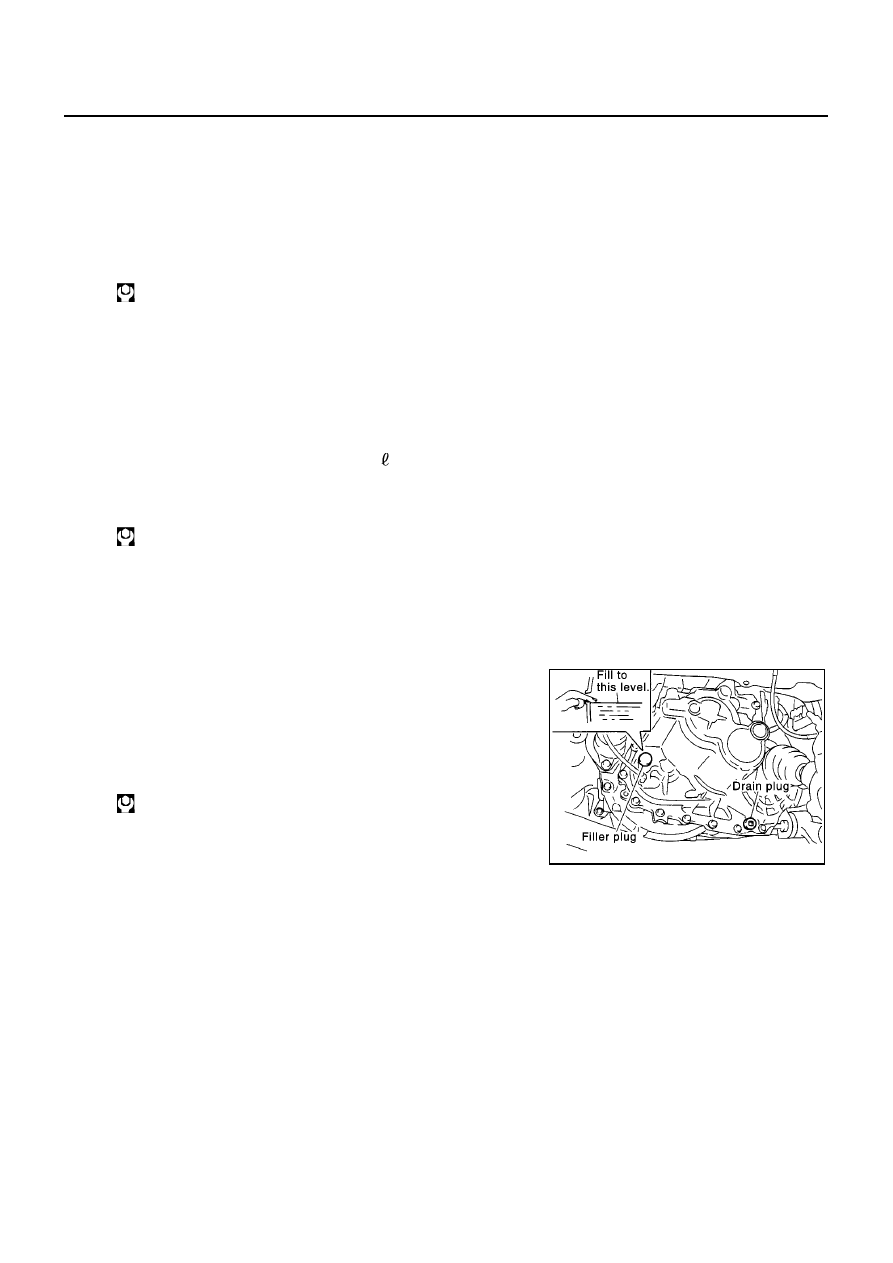

Check oil level from filler plug mounting hole as shown in the fig-
ure.

CAUTION:

Never start engine while checking oil level.

Set a new gasket on the filler plug and install it on the transaxle.

CAUTION:

Do not reuse gasket.

Drain plug:

: 30 - 39 N·m (3.1 - 3.9 kg-m, 23 - 28 ft-lb)

Oil grade

: Genuine Nissan gear oil, SAE viscosity
75w - 80 or exact equivalent

Capacity (reference)

: Approx. 2.3

(4 lmp pt)

Filler plug:

: 30 - 39 N·m (3.1 - 3.9 kg-m, 23 - 28 ft-lb)

Filler plug:

: 30 - 39 N·m (3.1 - 3.9 kg-m, 23 - 28 ft-lb)

SCIA0361E

SIDE OIL SEAL

MT-11

[RS6F51R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

SIDE OIL SEAL

PFP:32113

Removal and Installation

ECS00ABI

REMOVAL

1.

Remove the drive shaft from the transaxle. Refer to AX-11, “Removal”.

2.

Remove oil seal with a slotted screwdriver.

CAUTION:

Be careful not to damage the case surface when removing
the oil seal.

INSTALLATION

1.

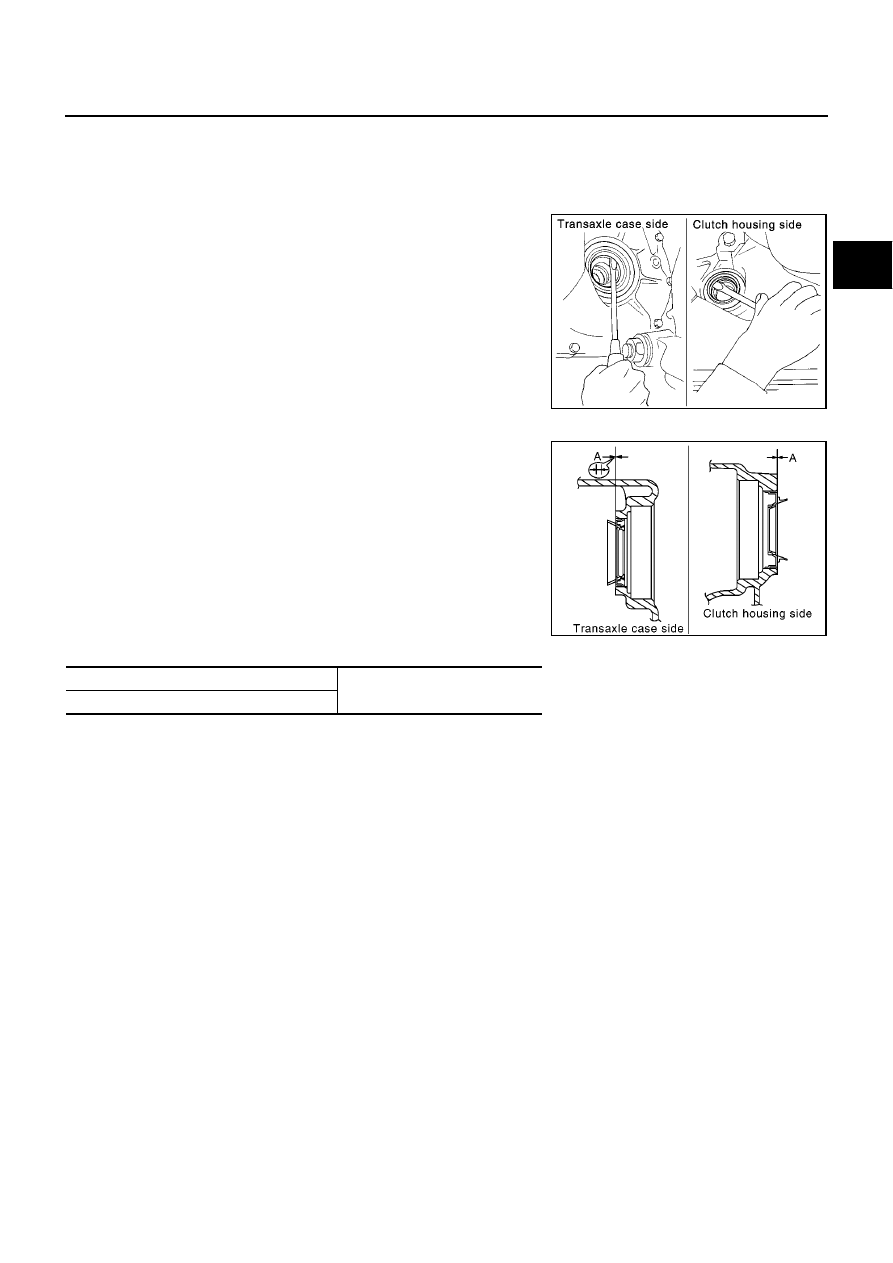

Using a drift (special service tool), drive the oil seal straight until
it protrudes from the case end equal to dimension A shown in
the figure.

Drift to be used:

CAUTION:

When installing oil seals, apply multi-purpose grease to oil seal lips.

Do not reuse oil seal.

2.

Install all parts in reverse order of removal and check oil level after installation.

SCIA0824E

Dimension A

: Within 0.5 mm of flush with the case.

MCIA0141E

Transaxle case side

ST3072 0000

Clutch housing side

MT-12

[RS6F51R]

POSITION SWITCH

POSITION SWITCH

PFP:32005

Checking

ECS00ABJ

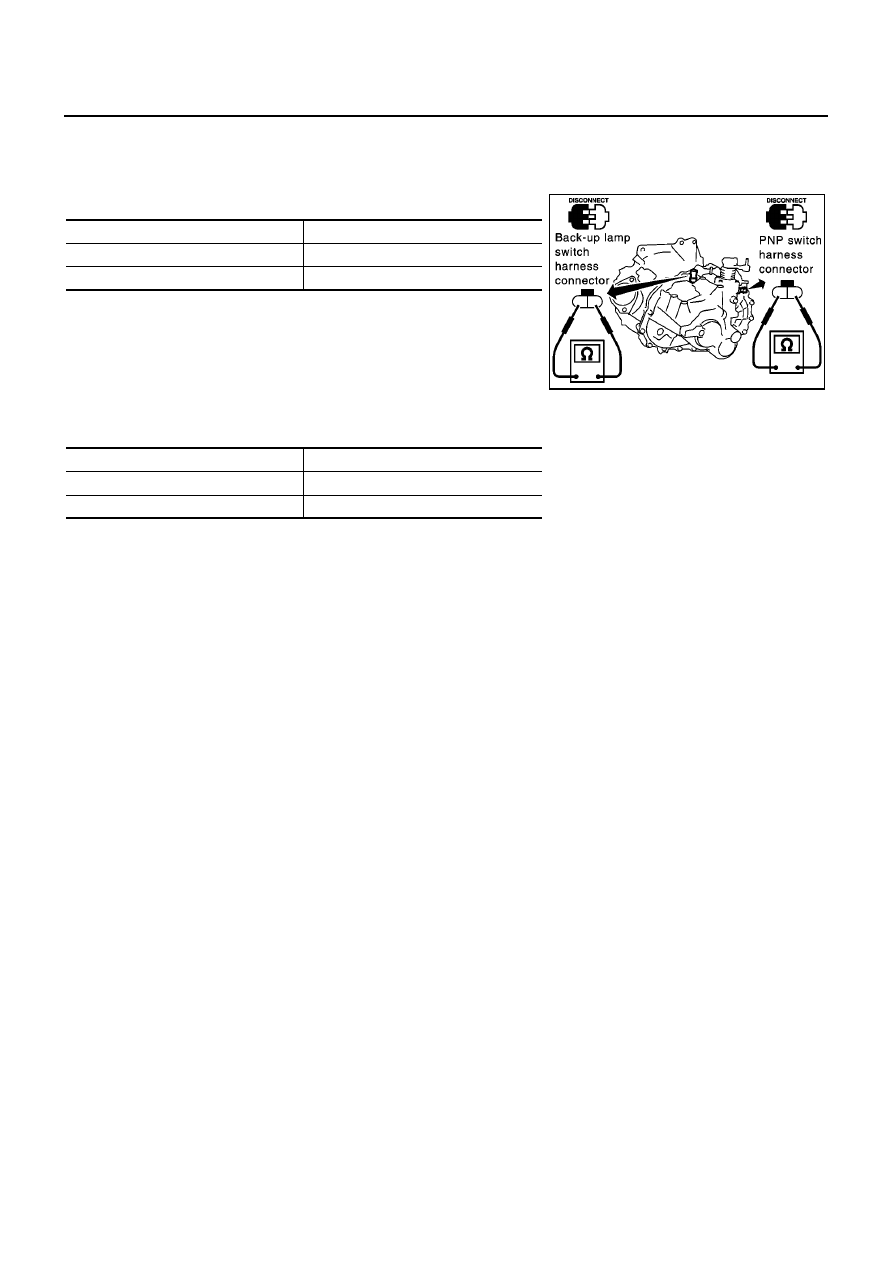

BACK-UP LAMP SWITCH

Check continuity.

NEUTRAL POSITION SWITCH

Check continuity.

Gear position

Continuity

Reverse

Yes

Except reverse

No

SCIA0708E

Gear position

Continuity

Neutral

Yes

Except neutral

No

CONTROL LINKAGE

MT-13

[RS6F51R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

CONTROL LINKAGE

PFP:34103

Removal and Installation of Control Device and Cable

ECS00ABK

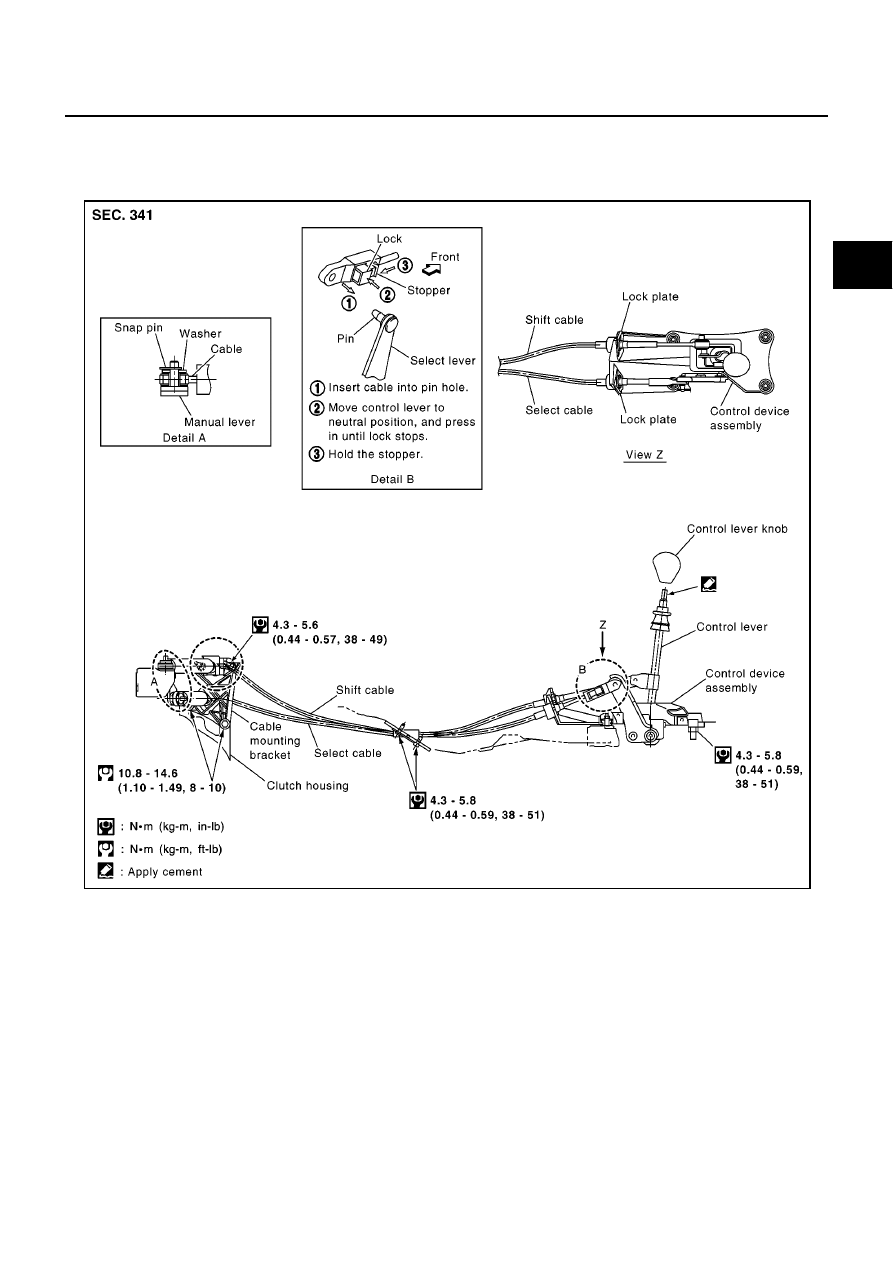

Refer to the figure for removal and installation procedure.

CAUTION:

Keep in mind that the select side lock plate for securing the control cable is different from the one
on the shift side.

After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st,
2nd, or Reverse.

MCIA0120E
