Nissan Primera P12. Manual - part 612

LU-10

[YD.]

OIL PUMP

OIL PUMP

PFP:15010

Removal and Installation

EBS00SJF

●

Remove oil pump housing. Refer to

EM-68, "PRIMARY TIMING CHAIN"

.

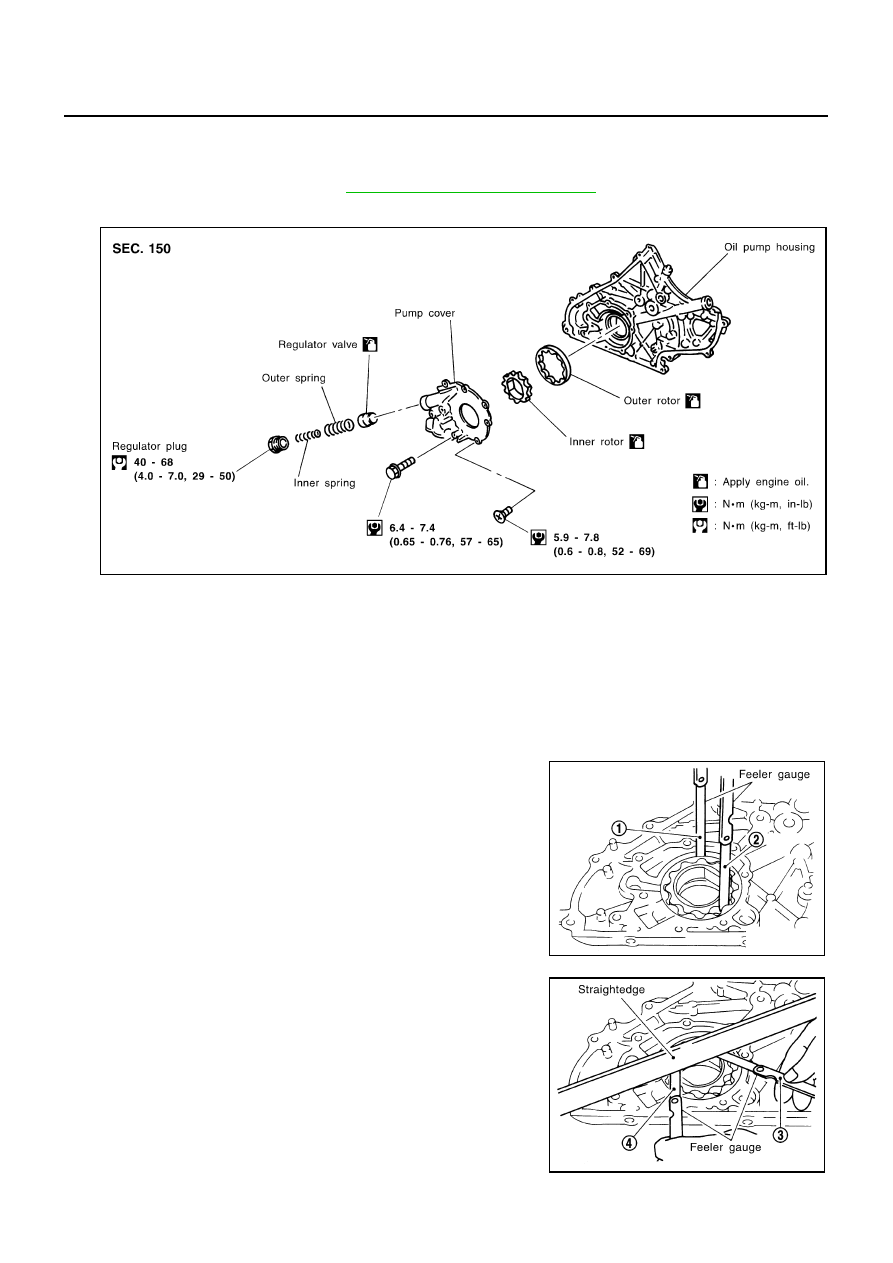

Disassembly and Assembly

EBS00SJG

CAUTION:

Before installation, apply new engine oil to the parts as instructed in the figure.

DISASSEMBLY

1.

Remove oil pump cover.

2.

Remove inner rotor and outer rotor from oil pump housing.

3.

After removing regulator plug, remove regulator spring and regulator valve.

INSPECTION AFTER DISASSEMBLY
Clearance of Oil Pump Parts

●

Measure clearance with feeler gauge.
Clearance between outer rotor and oil pump housing (position 1)

Tip clearance between inner rotor and outer rotor (position 2)

●

Measure clearance with feeler gauge and straightedge.
Side clearance between inner rotor and oil pump housing (posi-
tion 3)

Side clearance between outer rotor and oil pump housing (posi-
tion 4)

JLC285B

Standard

: 0.114 - 0.260 mm (0.0045 - 0.0102 in)

Standard

: Below 0.18 mm (0.0071in)

JLC355B

Standard

: 0.050 - 0.090 mm (0.0020 - 0.0035 in)

Standard

: 0.030 - 0.190 mm (0.0012 - 0.0075 in)

JLC356B

OIL PUMP

LU-11

[YD.]

C

D

E

F

G

H

I

J

K

L

M

A

LU

●

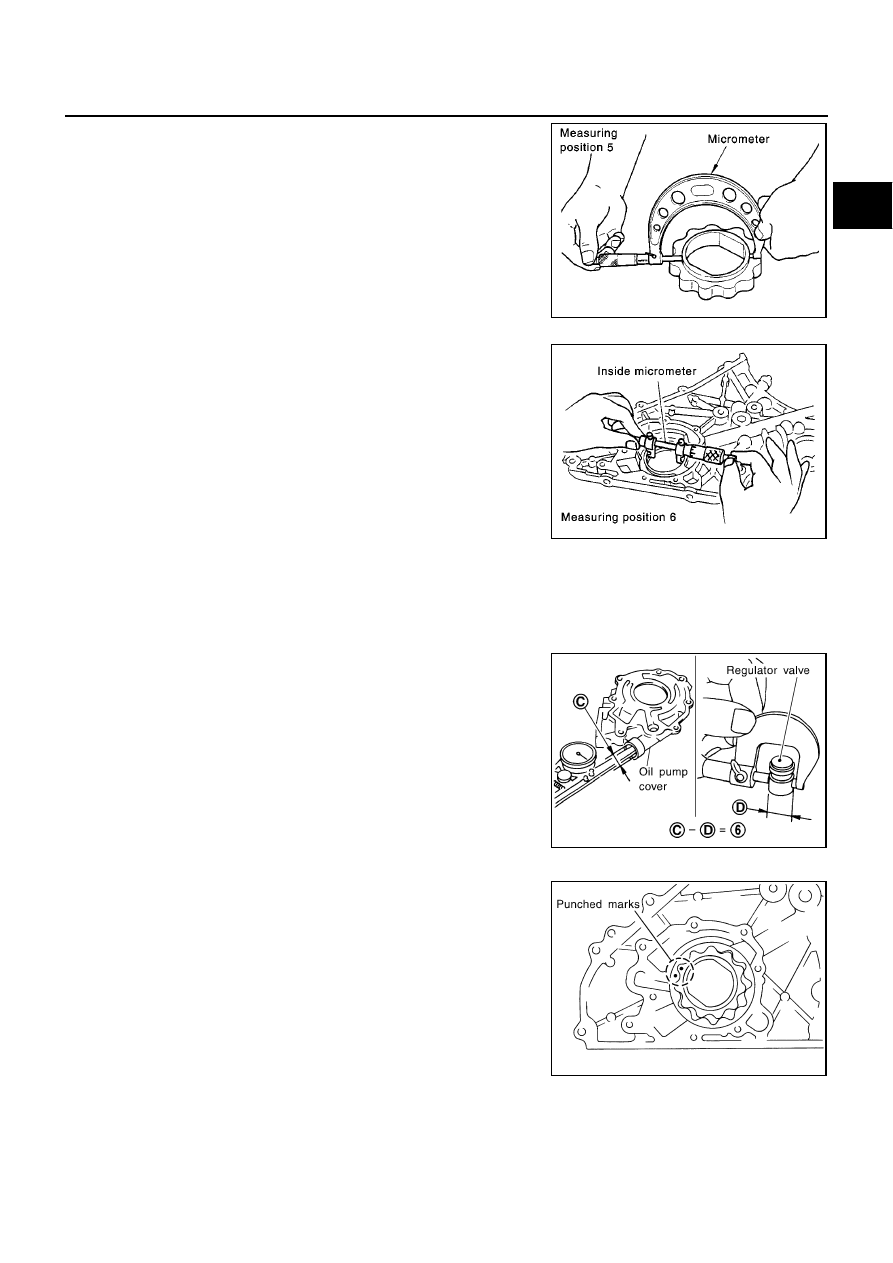

Calculate the clearance between inner rotor and oil pump hous-
ing as follows.

1.

Measure the outer diameter of protruded portion of inner rotor
(Position 5)

2.

Measure the inner diameter of oil pump housing with inside
micrometer (Position 6)
(Clearance) = (Inner diameter of oil pump housing) – (Outer
diameter of inner rotor)

Regulator Valve

1.

Visually inspect components for wear and damage.

2.

Check oil pressure regulator valve sliding surface and valve spring.

3.

Coat regulator valve with engine oil. Check that it falls smoothly into the valve hole by its own weight.
If damaged, replace regulator valve set or oil pump cover.

4.

Check regulator valve to oil pump cover clearance.

ASSEMBLY

●

Assemble in the reverse order of disassembly.

●

Install the inner rotor and outer rotor with the punched marks on
the oil pump cover side.

PBIC0253E

Standard

: 0.045 - 0.091mm (0.0018 - 0.0036 in)

SBIA0124E

Clearance 6

Standard

: 0.040 - 0.097 mm (0.0016 - 0.0038 in)

JLC358B

JLC286B

LU-12

[YD.]

OIL COOLER

OIL COOLER

PFP:21305

Removal and Installation

EBS00SJH

CAUTION:

●

Be careful not to get burned when the engine and engine oil are hot.

●

When removing, prepare a shop cloth to absorb any oil leakage or spillage.

●

Completely wipe off any oil that abhere to the engine and the vehicle.

REMOVAL

1.

Remove front RH wheel and engine side cover.

2.

Remove the exhaust front tube.

3.

Drain coolant by removing cylinder block drain plug and disconnecting radiator lower hose.

INSPECTION
Oil Cooler

Check oil cooler for cracks and clogging by blowing through coolant inlet. If necessary, replace oil cooler
assembly.

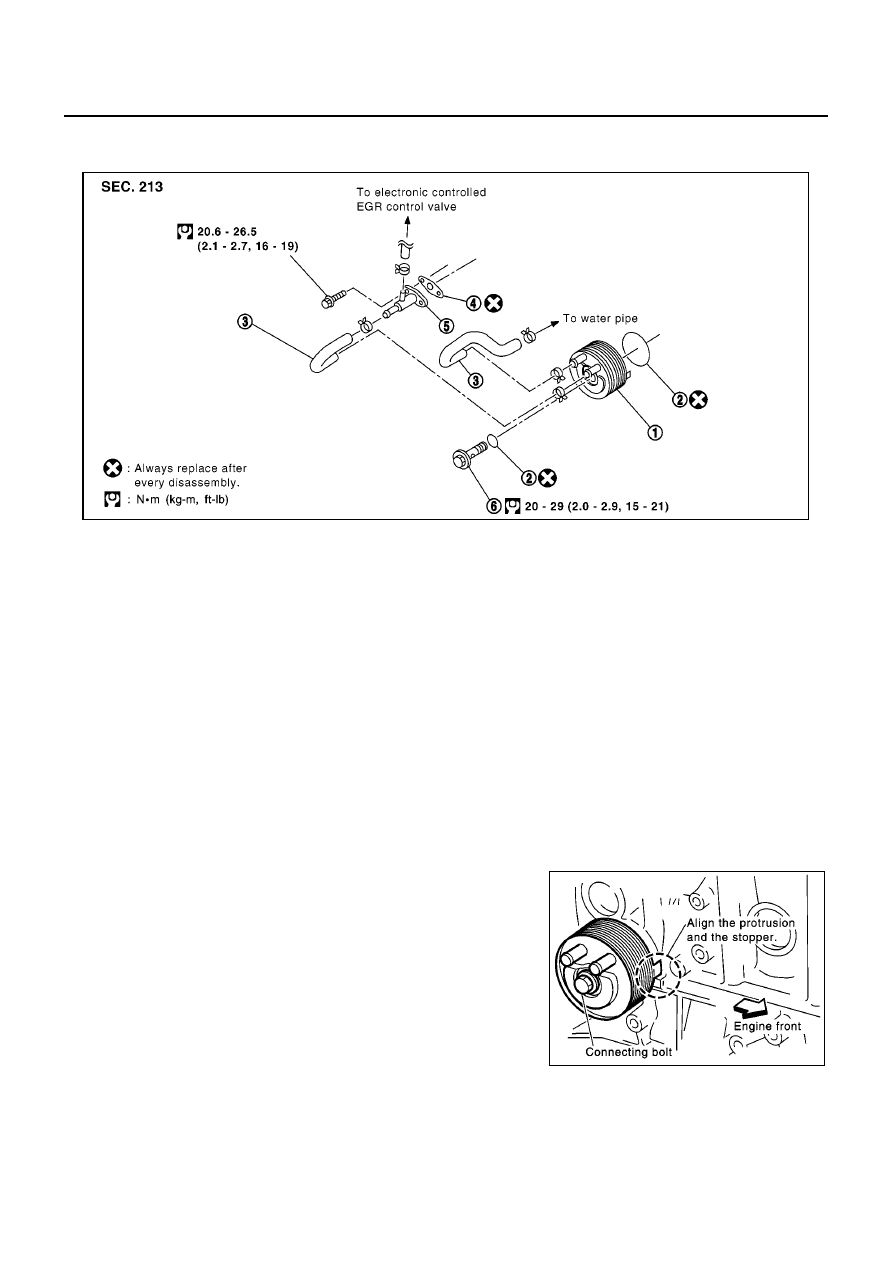

INSTALLATION

Installation is in reverse order of removal.

●

Confirm that no foreign objects are adhering to the installation
planes of the oil cooler and block.

●

Tighten the connecting bolt after aligning the stopper on the cyl-
inder block side with protrusion of the oil cooler.

MBIA0051E

1.

Oil cooler

2.

O-ring

3.

Water hose

4.

Gasket

5.

Water hose connector

6.

Connecting bolt

SBIA0126E

SERVICE DATA AND SPECIFICATIONS (SDS)

LU-13

[YD.]

C

D

E

F

G

H

I

J

K

L

M

A

LU

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Standard and Limit

EBS00SJI

OIL PRESSURE

OIL PUMP

Unit: mm (in)

REGULATOR VALVE

Unit: mm (in)

OIL CAPACITY

Unit: ·

(Imp

qt)

Tightening Torque

EBS00SJJ

                                                                                                                                                                                                         Unit: N·m (kg-m, ft-lb)

Unit: N·m (kg-m, in-lb)*

Engine speed (rpm)

Approximate oil pressure kPa (bar, kg/cm

2

 , psi)

Idle speed

2,000
4,000

More than 140 (1.40, 1.43, 20.3)
More than 270 (2.69, 2.75, 39.1)
More than 430 (4.29, 4.38, 62.3)

Body to outer rotor radial clearance

0.114 - 0.260 (0.0045 - 0.0102)

Inner rotor to outer rotor tip clearance

Below 0.18 (0.0071)

Body to inner rotor axial clearance

0.050 - 0.090 (0.0020 - 0.0035)

Body to outer rotor axial clearance

0.030 - 0.190 (0.0012 - 0.0075)

Inner rotor to brazed portion of housing clearance

0.045 - 0.091 (0.0018 - 0.0036)

Regulator valve to oil pump cover clearance

0.040 - 0.097 (0.0016 - 0.0038)

With oil filter change Approximately 5.2 (4-5/8 Imp qt)

Without oil filter change Approximately 4.9 (4-3/8 Imp qt)

Dry engine (engine overhaul) Approximately 6.3 (5-1/2 Imp qt)

Oil pressure switch

13 - 17 (1.4 - 1.7, 10 - 12)

Oil pan drain plug

29 - 39 (3.0 - 4.0, 22 - 29)

Oil filter bracket

20 -23 (2.0 - 2.4, 15 - 17)

Oil filter body

20 - 24 (2.0 - 2.5, 15 - 18)

Oil pump assembly

6.4 - 7.4 (0.65 - 0.76, 57 - 65)*

Oil pump cover

5.9 - 7.8 (0.6 - 0.8, 52 - 69)*

Regulator plug

40 - 68 (4.0 - 7.0, 29 - 50)

Water hose connector for oil cooler

20.6 - 26.5 (2.1 - 2.7, 15 - 20)

Connecting bolt for oil cooler

20 - 29 (2.0 - 3.0, 15 - 21)
