LT-58

TURN SIGNAL AND HAZARD WARNING LAMPS

3.

POWER SUPPLY CIRCUIT CHECK

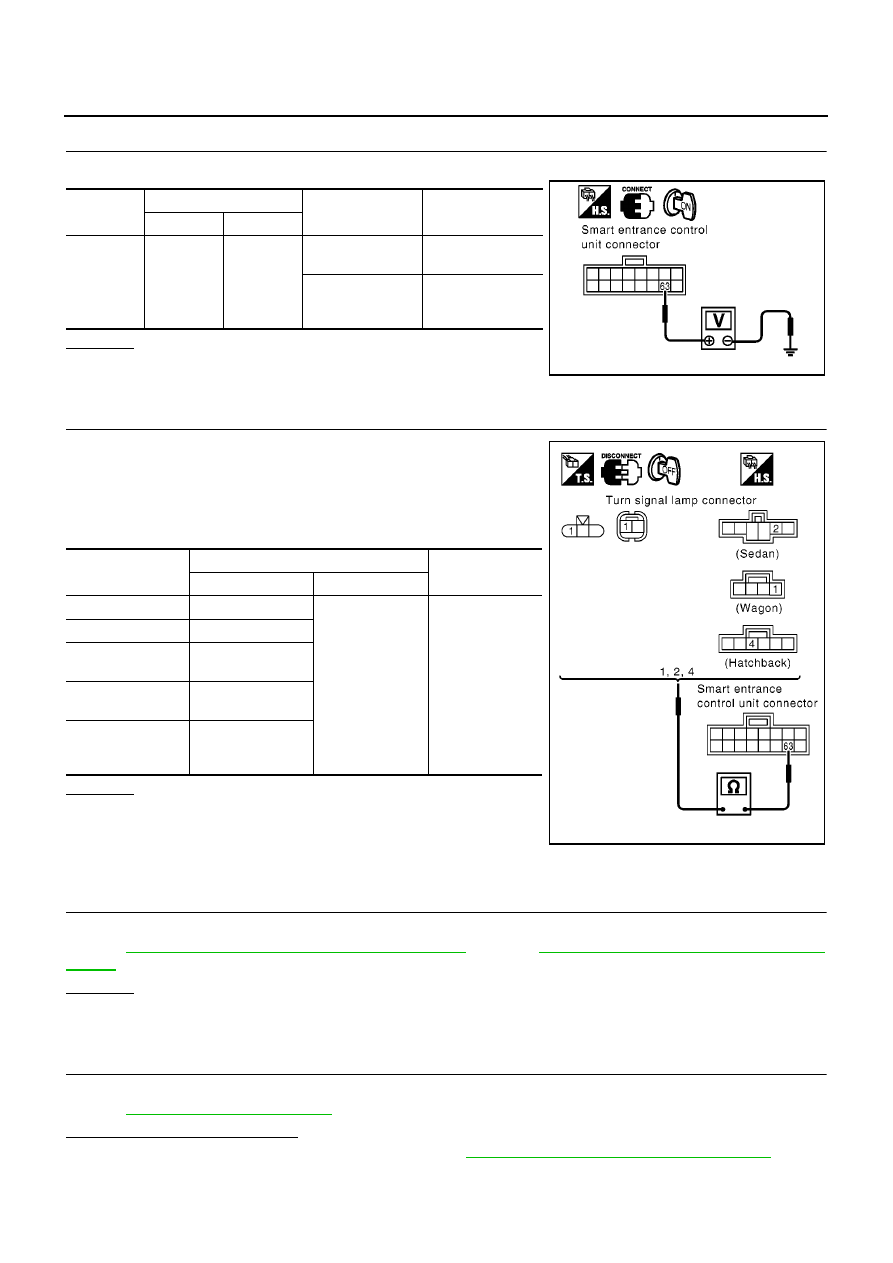

Check voltage between smart entrance control unit harness connector M43 terminal 63 (G/Y) and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Replace the smart entrance control unit.

4.

TURN SIGNAL LAMP RH CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Disconnect each turn signal lamp RH connector.

3.

Check continuity between the following harness connector ter-
minal of the each turn signal lamp RH and smart entrance con-
trol unit harness connector M43 terminal 63.

OK or NG

OK

>> Check harness for open or short between smart

entrance control unit and each turn signal lamps RH.

NG

>> Repair or replace harness.

RH and LH Turn Indicators Do Not Operate

EKS009MX

1.

COMBINATION METER POWER AND GROUND CIRCUIT CHECK

Check combination meter power and ground circuit check.
Refer to

DI-20, "Power Supply and Ground Circuit Check"

(LHD) or

DI-43, "Power Supply and Ground Circuit

Check"

(RHD).

OK or NG

OK

>> GO TO 2.

NG

>> Replace combination meter.

2.

SELF-DIAGNOSIS FOR SMART ENTRANCE CONTROL UNIT

Perform smart entrance control unit self-diagnosis mode.
Refer to

BCS-21, "Trouble Diagnoses"

.

Does the display of CAN appear?

YES

>> Check the CAN communication line. Refer to

BCS-23, "CAN Communication Line Check"

.

NO

>> Replace combination meter.

Connector

Terminal (wire color)

Condition

Voltage (V)

(Approx.)

( + )

( - )

M43

64 (G/B)

Ground

Turn signal RH illu-
minates.

0

Turn signal RH
does not illumi-
nate.

Battery voltage

MKIB0068E

Connector

Terminals (wire color)

Continuity

(+)

(–)

E1

1 (G/Y)

63 (G/Y)

Yes

E24

1 (G/Y)

B39

(Wagon models)

1 (G/Y)

B64

(Sedan models)

2 (G/Y)

B91

(Hatchback

models)

4 (G/Y)

MKIB0602E

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-59

C

D

E

F

G

H

I

J

L

M

A

B

LT

Bulb Replacement

EKS009MY

FRONT TURN SIGNAL LAMP

SIDE TURN SIGNAL LAMP

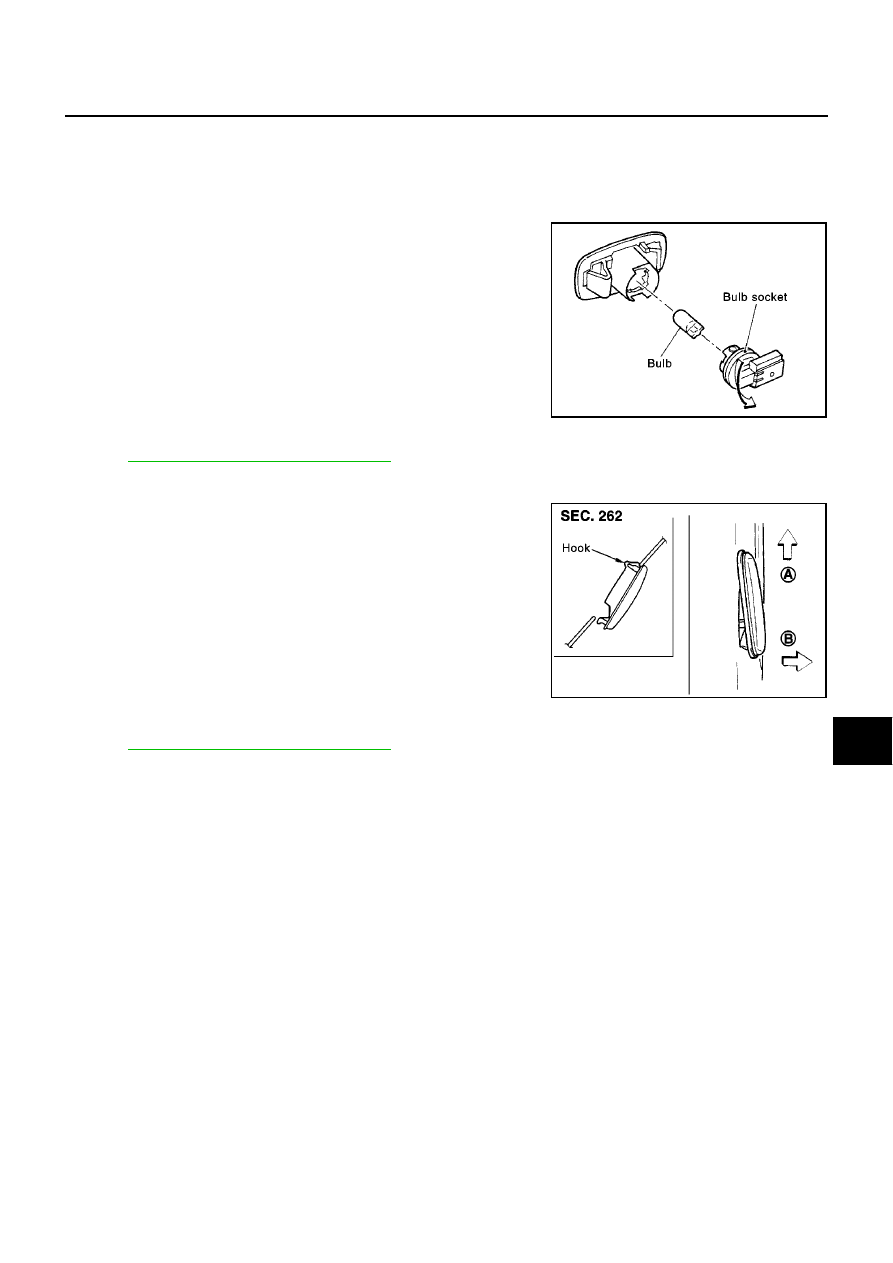

1.

Remove side turn signal lamp.

2.

Turn the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from its socket.

REAR TURN SIGNAL LAMP

Refer to

LT-92, "REAR COMBINATION LAMP"

.

Removal and Installation for Side Turn Signal Lamp

EKS009MZ

1.

Push the side turn signal lamp toward A direction in the figure,
and pull up B direction in the figure.

2.

Disconnect the side turn signal lamp connector.

Removal and Installation for Rear Turn Signal Lamp

EKS009N0

Refer to

LT-92, "REAR COMBINATION LAMP"

.

Front turn signal lamp

: 12V - 21W (amber)

Side turn signal lamp

: 12V - 5W

PKIA0468E

PKIA0469E

LT-60

LIGHTING AND TURN SIGNAL SWITCH

LIGHTING AND TURN SIGNAL SWITCH

PFP:25540

Removal and Installation

EKS009N1

1.

Remove the steering column cover. Refer to

PS-9, "STEERING

COLUMN"

.

2.

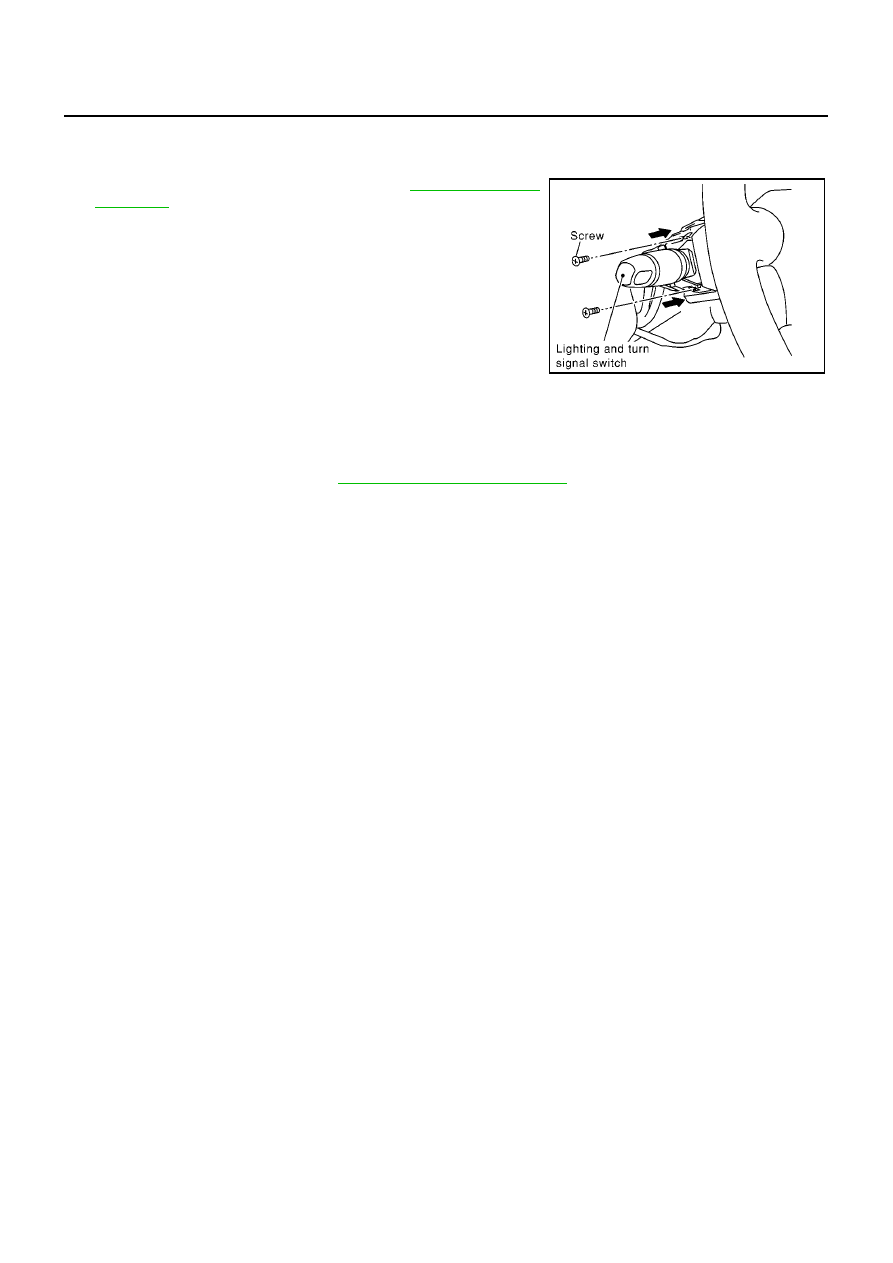

Remove lighting and turn signal switch mounting screw and
remove the lighting and turn signal switch from the spiral cable.

3.

Disconnect the lighting and turn signal switch connector.

Switch Circuit Inspection

EKS009N2

Using circuit tester, check continuity between the lighting and turn signal switch connector terminals in each
operation status of the switch. Refer to

LT-95, "Switch Circuit Inspection"

.

MKIA0054E

HAZARD SWITCH

LT-61

C

D

E

F

G

H

I

J

L

M

A

B

LT

HAZARD SWITCH

PFP:25290

Removal and Installation

EKS009N3

REMOVAL

1.

Remove cluster lid C. Refer to IP section in P12 ESM (SM2E00-
1P12E0E) .

2.

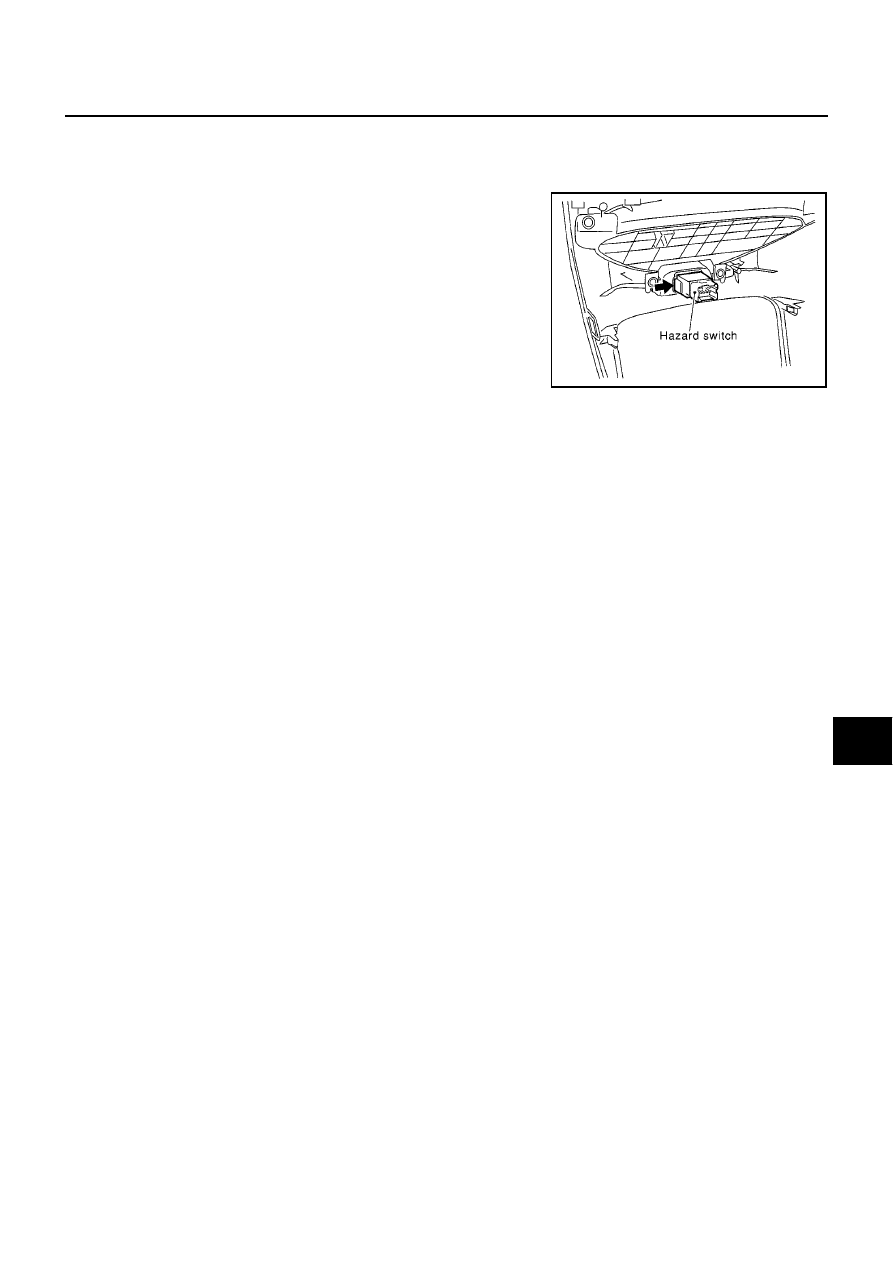

Using a flat-bladed screwdriver or other suitable tool, press pawl
to remove hazard switch from cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

MKIB0120E
