Nissan Primera P12. Manual - part 519





GW-72

DOOR MIRROR

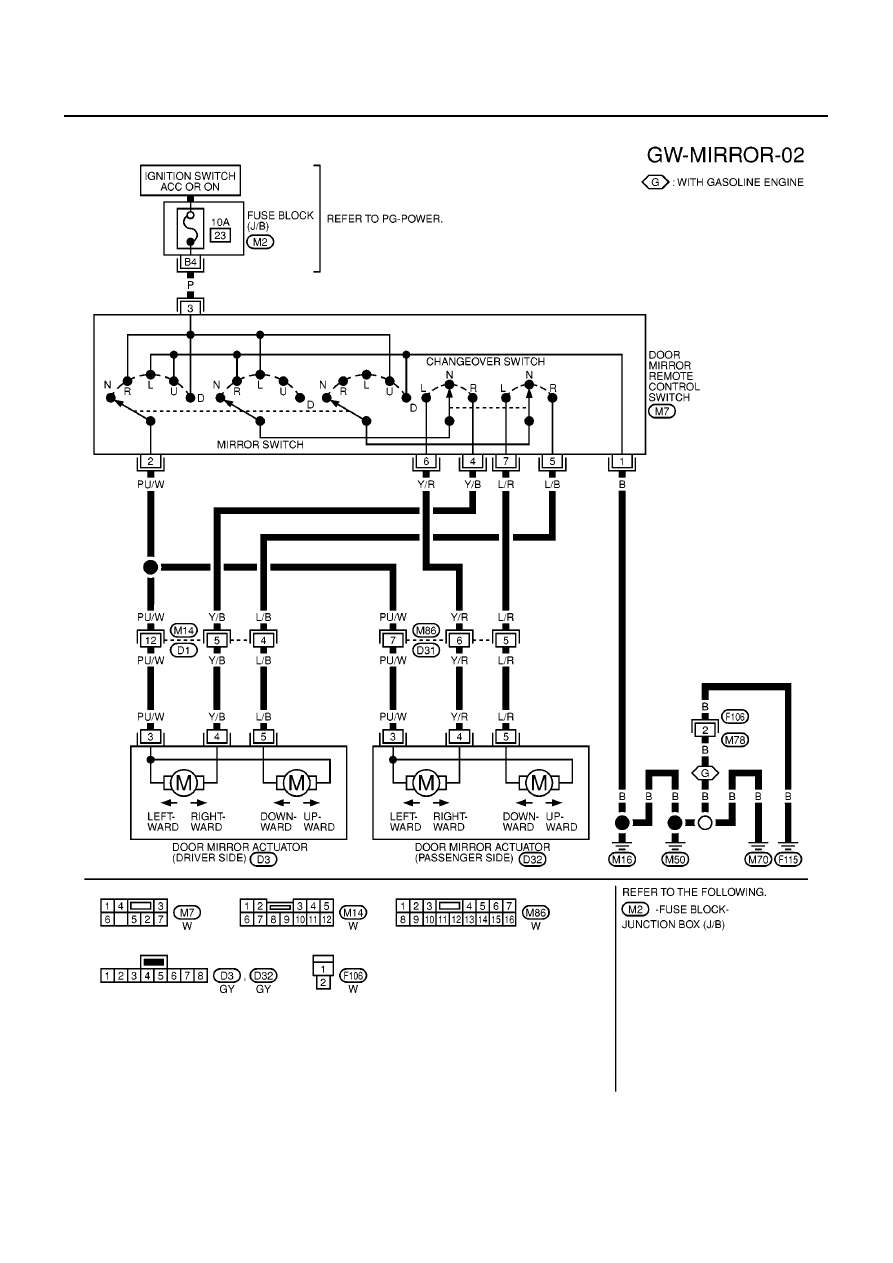

Wiring Diagram –MIRROR– RHD Models

EIS005KJ

MKWA0666E

DOOR MIRROR

GW-73

C

D

E

F

G

H

J

K

L

M

A

B

GW

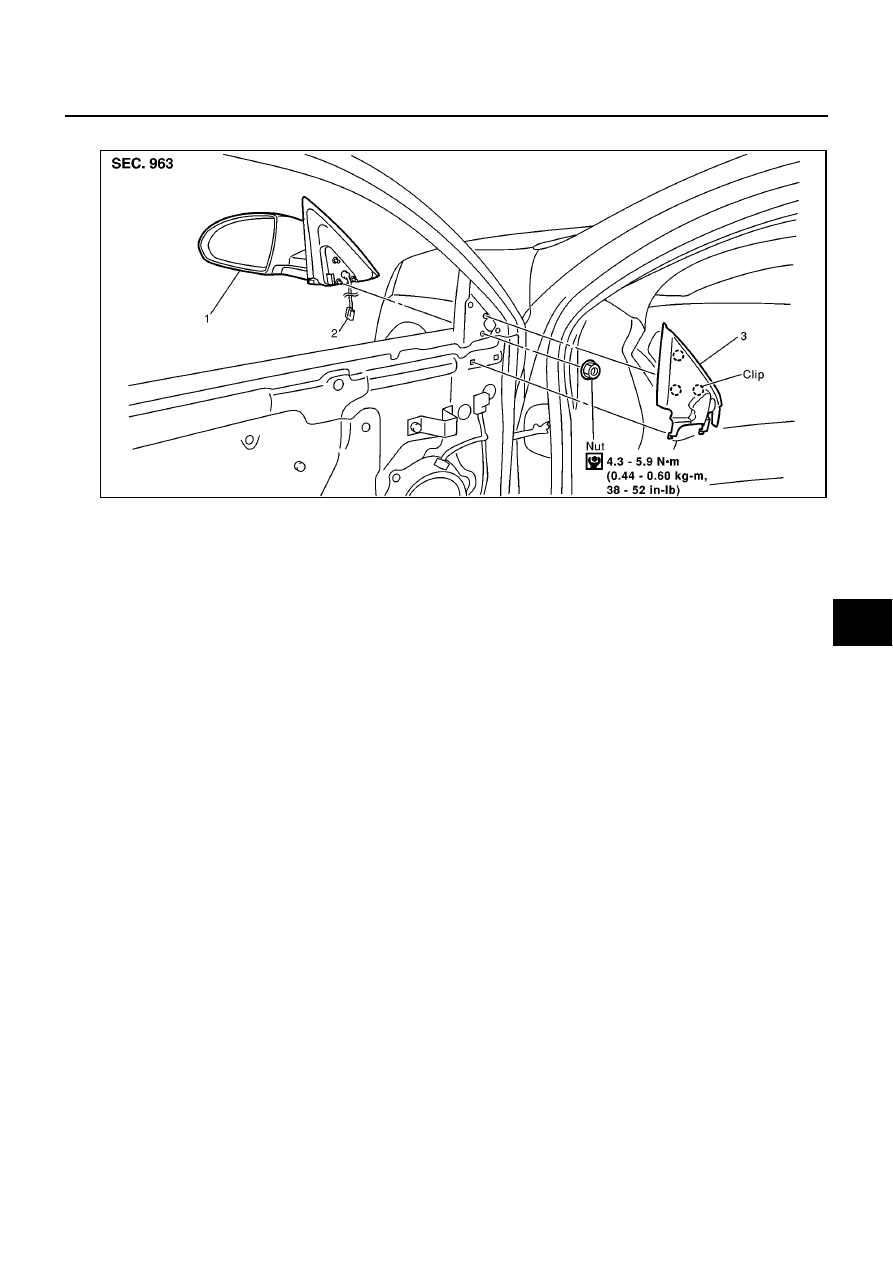

Removal and Installation

EIS005KK

REMOVAL

1.

Remove front door finisher. Refer to EI section in P12 ESM (SM2E00-1P12E0E).

2.

Remove corner cover.

3.

Remove door mirror harness connector.

4.

Remove door mirror mounting nuts, and remove door mirror assembly.

NOTE:
Be careful not to damage door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Door mirror

2.

Connector

3.

Corner cover

MIIA0078E

GW-74

DOOR MIRROR

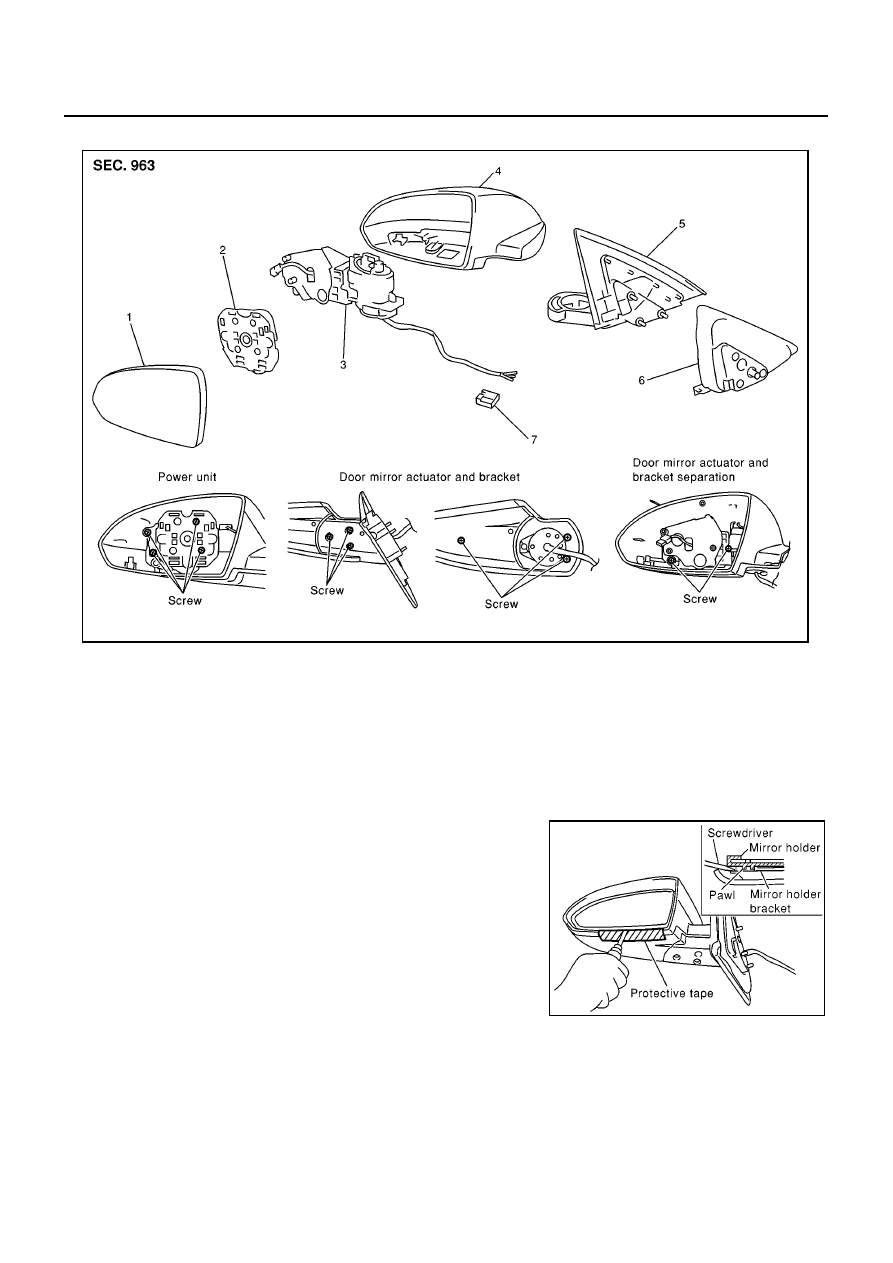

Disassembly and Assembly

EIS005KL

DISASSEMBLY

1.

Pull out all the terminals from the harness connector.

NOTE:
Before pulling out the terminal, note the connector terminal arrangement.

2.

Turn the mirror glass surface upward.

3.

Apply a protective tape to the housing.

4.

Insert a narrow slotted screwdriver in the concave gap between
mirror glass and power unit to push up tabs (2 locations) on mir-
ror holder to disengage lower part of mirror holder, and remove
mirror body assembly.
NOTE:
When pushing up the tabs, do not forcefully push up only 1 con-
cave but try to push up using 2 concave positions.

5.

Remove packing.

6.

Remove base.

7.

Remove power unit, and disconnect the connector.

ASSEMBLY

1.

Connect power unit connector. Install bracket.

2.

Install base to the housing.

3.

Place power unit and mirror body assembly in a horizontal position.

4.

Engage upper tabs of mirror glass with power unit. Then, press lower part of mirror glass down until the
lower part snaps to allow engagement of lower tabs.

1.

Mirror body

2.

Power unit

3.

Bracket

4.

Housing

5.

Base

6.

Packing

7.

Connector

MIIA0079E

MIIA0080E

DOOR MIRROR

GW-75

C

D

E

F

G

H

J

K

L

M

A

B

GW

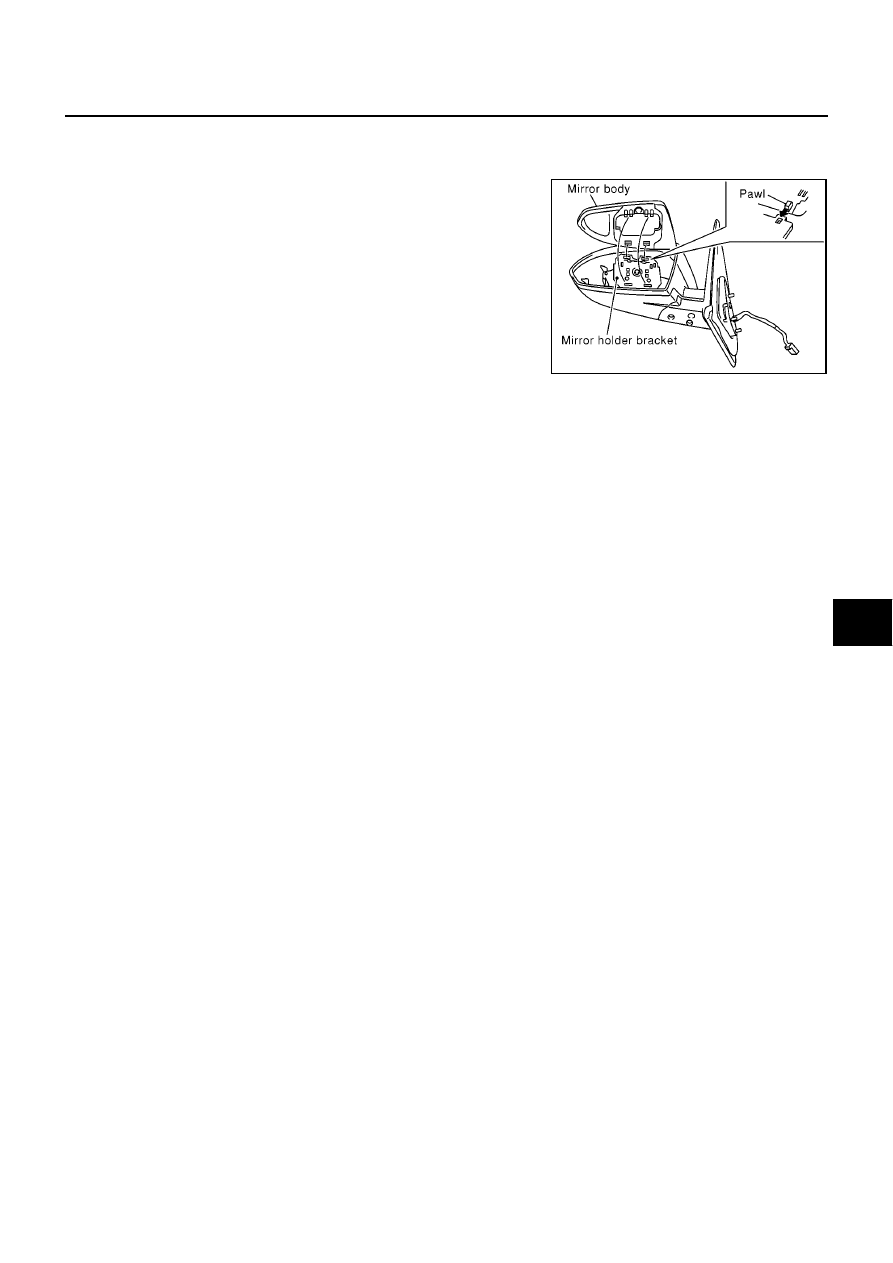

NOTE:
After installation, visually check that the lower tabs (2) are securely engaged when viewed from the bot-
tom of mirror surface.

5.

Install the packing to the base.

6.

Insert the harness terminal into the connector.

NOTE:
Make sure to insert the harness terminal into the correct connec-
tor. Do not confuse the locations.

MIIA0081E
