Nissan Primera P12. Manual - part 503

GW-8

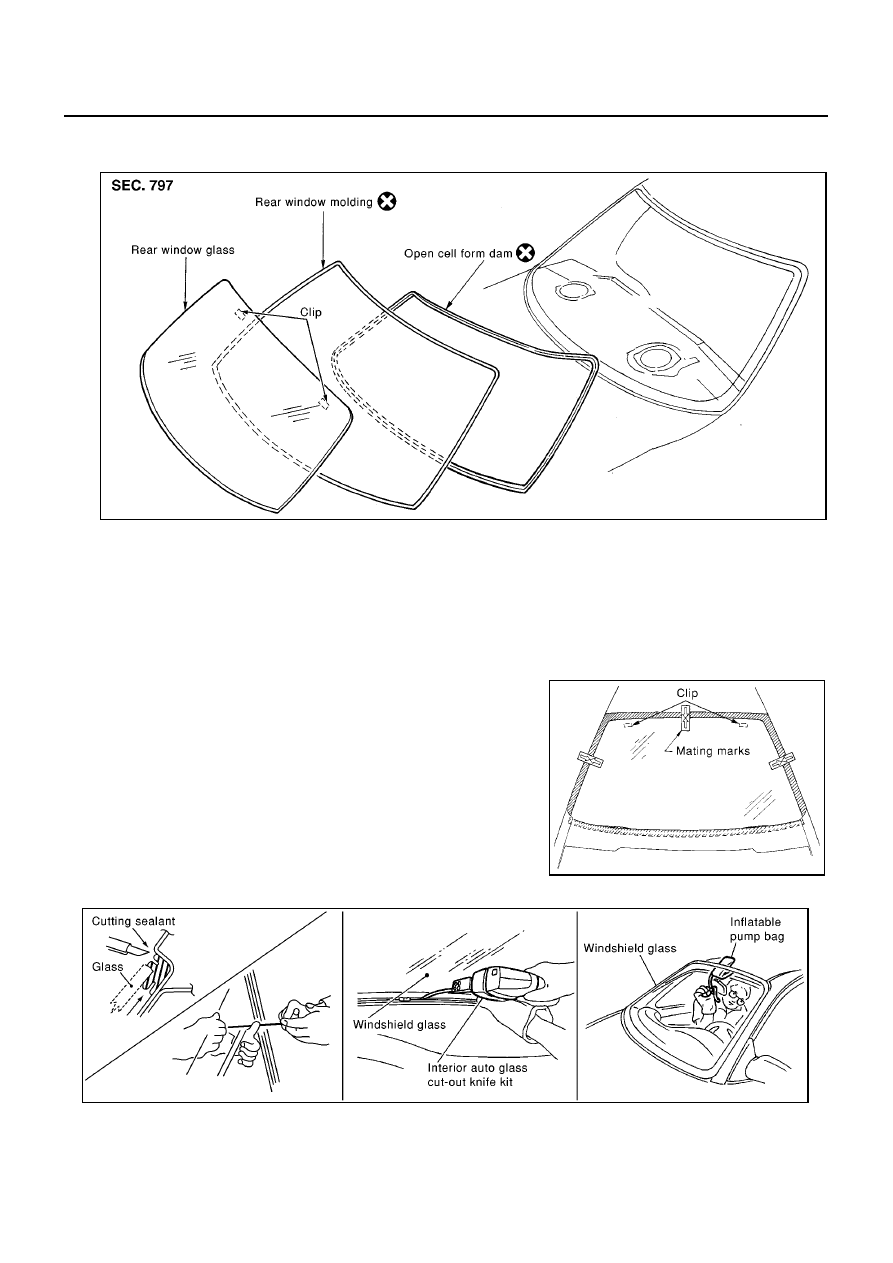

REAR WINDOW GLASS AND MOLDING

PFP:79712

Removal and Installation

EIS005JR

REMOVAL

Remove the headlining. Refer to EI section in P12 ESM (SM2E00-1P12E0E).

Remove rear pillar garnish and rear parcel shelf finisher. Refer to EI section in P12 ESM (SM2E00-
1P12E0E).

Remove rear window defogger connector, printed antenna connector and body ground connector.

Apply a protective tape around the rear window glass to protect the painted surface from damage.

After removing moldings, remove glass using piano wire or power cutting tool and an inflatable pump bag.

●

If a rear window glass is reversed, mark the body and the glass
with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety
glasses and heavy gloves to help prevent glass splinters from
entering your eyes or cutting your hands.

CAUTION:

When a rear window glass is reused, do not use a cutting knife
or power cutting tool.
NOTE:

●

Be careful not to scratch the glass when removing.

●

Do not set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

●

Use a genuine Nissan Urethane Adhesive Kit or equivalent and follow the instructions furnished with it.

MIIA0062E

MIIA0060E

PIIA0186E

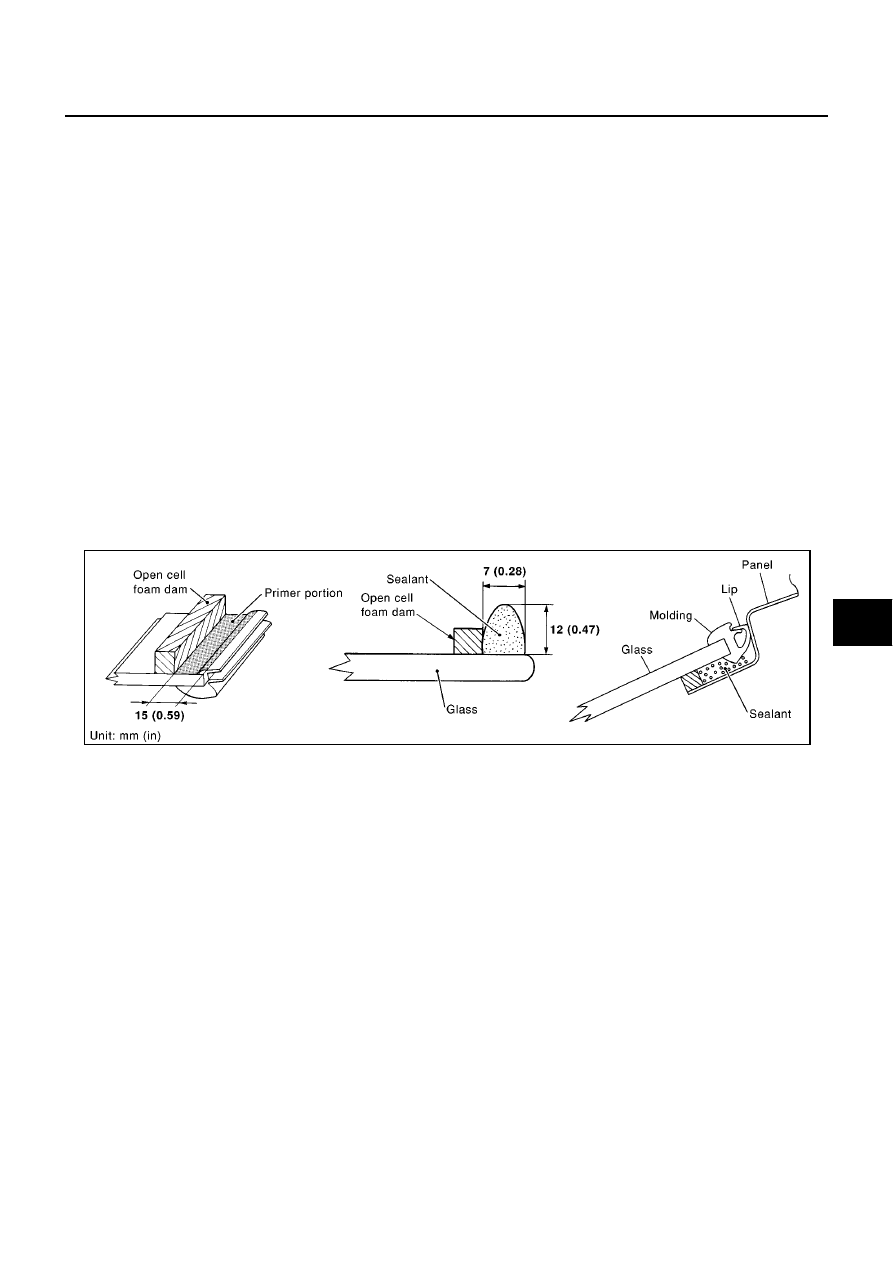

REAR WINDOW GLASS AND MOLDING

GW-9

●

While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger compartment air pressure when a door is closed.

●

The molding must be installed securely so that it is in position and leaves no gap.

●

Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

●

Keep heat and open flames away as primers and adhesive are flammable.

●

The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.

●

Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

●

Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the windshield in case of an accident.

CAUTION:

●

Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

●

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

●

Do not leave primers or adhesive cartridge unattended with their caps open or off.

●

The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidities. The curing time will
increase under higher temperatures and lower humidities.

Repairing Water Leaks for Rear Window Glass

Leaks can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the windshield area while pushing glass outward.
To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

MIIA0063E

GW-10

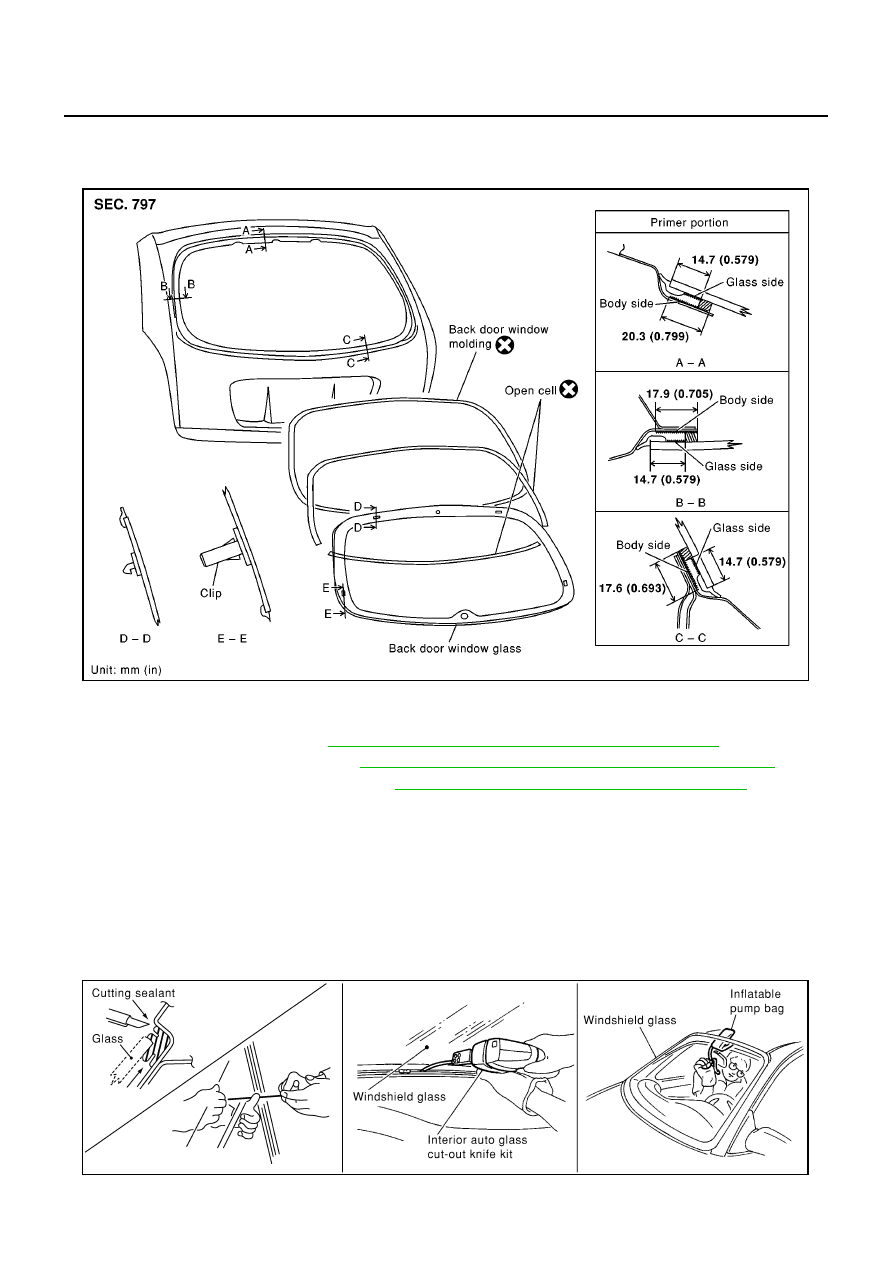

BACK DOOR WINDOW GLASS

PFP:90300

Wagon Models

EIS005JS

REMOVAL NAD INSTALLATION

Removal

Remove back door finisher. Refer to EI section in P12 ESM (SM2E00-1P12E0E).

Remove rear wiper arm. Refer to

WW-46, "Removal and Installation for Rear Wiper Arms"

Remove rear washer nozzle. Refer to

WW-49, "Removal and Installation for Rear Washer Nozzle"

Remove high-mounted stop lamp. Refer to

LT-90, "HIGH-MOUNTED STOP LAMP (WAGON)"

Remove rear defogger connectors and printed antenna.

Apply a protective tape around the back door window glass (molding) to prevent the paint surface from
being damaged.

Using a pair of pliers or similar tool, draw out all bonding molding left in flanged area on the body and
remove it completely from bonding surface on glass.

Cut adhesive.

●

Depending on the tool in use, follow the procedures below.

NOTE:
If back door window glass is reused, do not use a windshield knife. (It may scratch glass surface.)

MIIA0064E

PIIA0186E

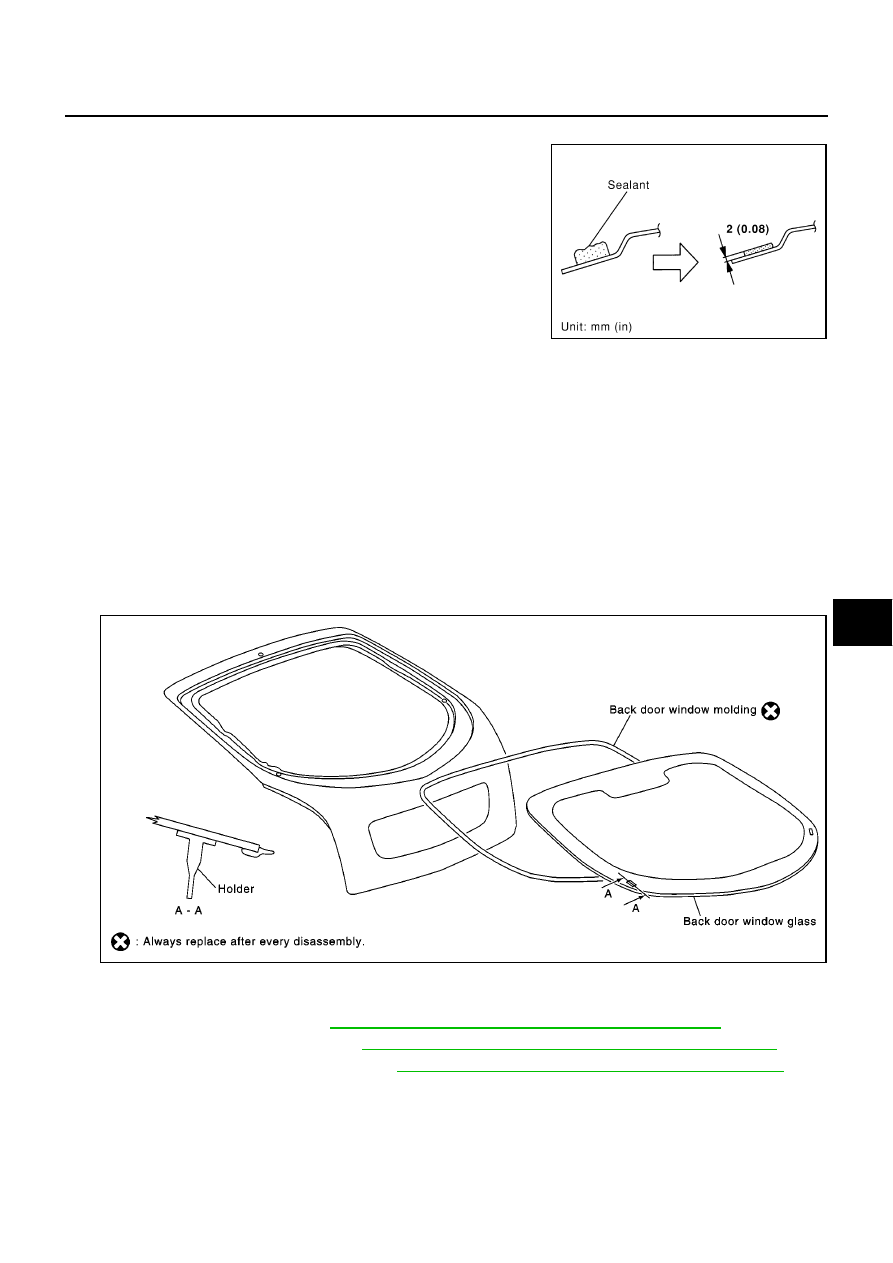

BACK DOOR WINDOW GLASS

GW-11

Installation

With a knife, scrape off remaining adhesive left around on the
side of vehicle body to as thin and flat as 2 mm (0.08 in).

When reusing glass, using a knife or spatula, remove bonding
remainder on glass so that glass edge becomes smooth.

Apply primers.

After applying primer, apply adhesive along glass edge.

Press the entire surface of glass lightly to fit it completely.

Using a spatula, repair any adhesive overflow or shortage to make the surface smooth.

NOTE:
After installing glass, open the door windows until after adhesive has had enough time to cure properly.
Do not drive the vehicle during this period.

Check that there is no leak from the outside.

Remove protective tape.

Install removed parts.

Hatchback Models
